Highlights
- Specially supply for Arduino lover
- Compatible with Arduino, you can use the Arduino IDE directly
- It makes you easier and faster to complete the project of Wifi remote home appliances
- Wireless Upload Program available
- It is built based on the mature and popular ESP8266 technology. You can take advantage the abundant resources available on the web
- It has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms
- Based on the ESP-8266EX
- Arduino Compatible, you can use it on Arduino IDE
- 11 Digital I/O pins
- 1 Analog Input pin
- OTA -- Wireless Upload(Program)
- On board switching power supply -- Max 24V input, 5V 1A output
- Applications: Smart Car, Home automation, Sensor networks, Industrial wireless control

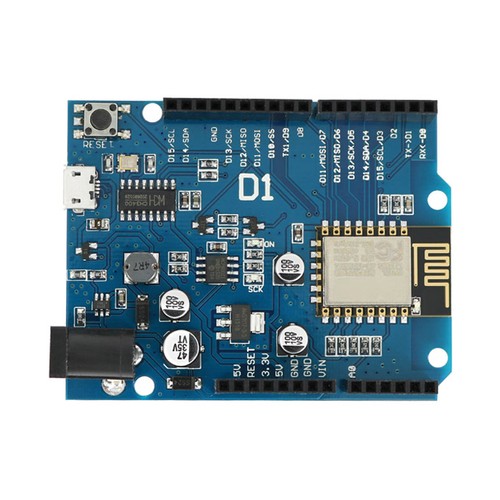

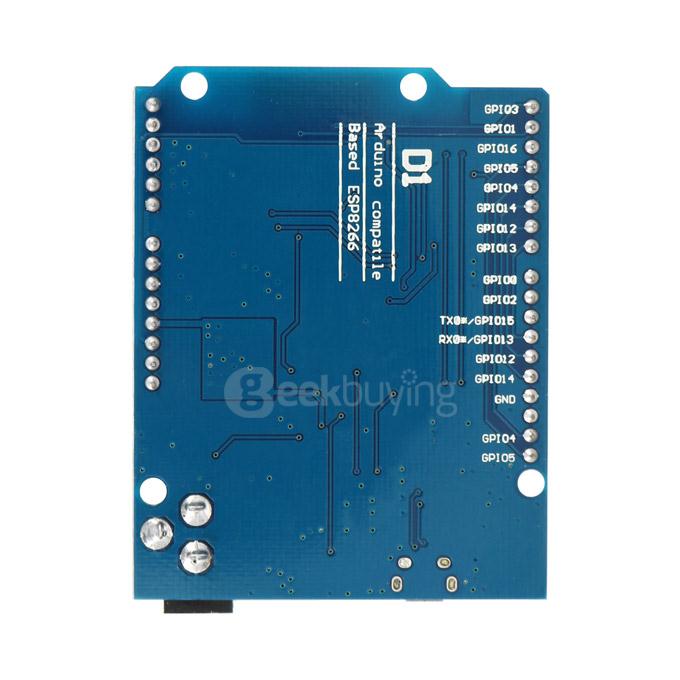

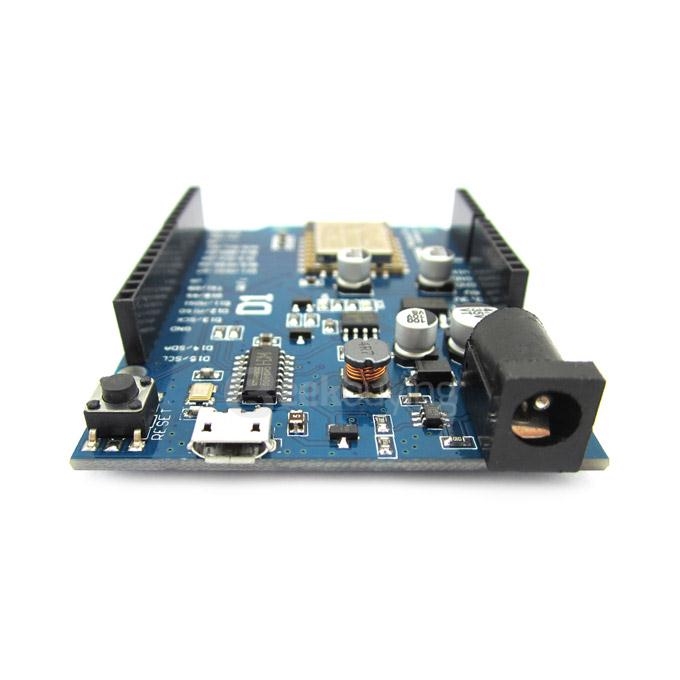

- This is a new version of the high-performance 2.4G wifi development board based on the ESP-12E and CH340G. After installing the hardware package for this development board on Arduino-1.6.5 IDE, you can use the IDE to program and design.
Specification
| General | |
|---|---|
| Type | Development Board |
| Model | ESP8266 |
| Antenna Type | Built-in PCB antenna is available |
| Wireless | Wireless Network Mode: station / softAP / SoftAP + station Wireless criteria: 802.11 b / g / n WIFI @ 2.4 GHz, support for WPA / WPA2 security mode |
| Power Supply | Working voltage: 3.3V IO logic level: 3.3V DC jack input voltage: 6-24VDC DC jack input current: 800mA(MAX) Micro USB socket input current: 500mA(MAX) ADC pin (A0) input voltage: 0-3.3V |
| Flash Capacity | 4M Bytes |
| Clock Frequency | 80MHz or 160MHz |
| Compatible | IDE w/ Built-in CH340G Driver IC |
| Package Contents | |
| 1 x ESP-12E UNO wifi development board | |
| 1 x English user manual | |
