Highlights
- Compatible with Arduino, you can use the Arduino IDE directly
- It makes you easier and faster to complete the project of Wifi remote home appliances
- Wireless Upload Program available
- It is built based on the mature and popular ESP8266 technology. You can take advantage the abundant resources available on the web
- It has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms
- After installing the hardware package for this development board on Arduino-1.6.5 IDE, you can use the IDE to program and design

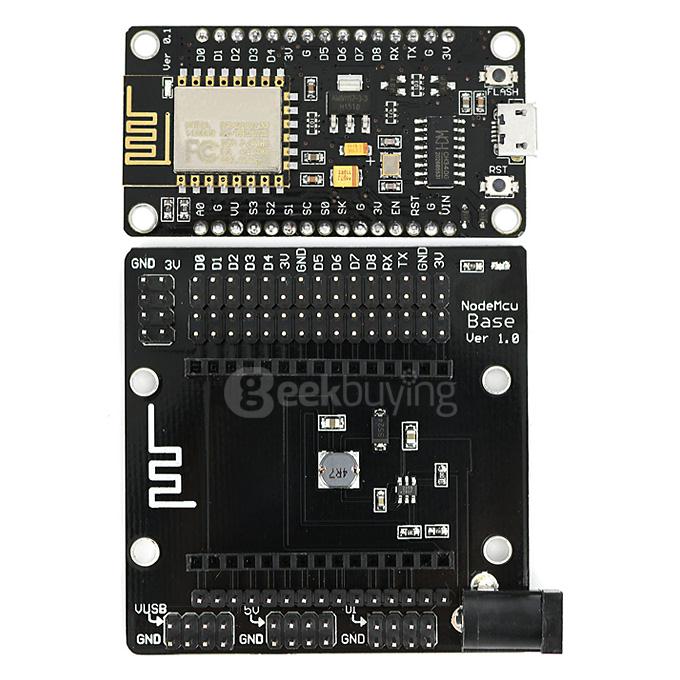

About the IO expansion board:
- Lead out all the IO ports of the ESP-12E development board
- Lead out the pins of 5V and 3.3V power supply
- Very convenient to connect with peripheral modules
- On-board 5V / 800mA DC-DC step-down converter circuit
- DC Jack input voltage: 6V-24VDC
- On-board power indicator
- Great for DIY
Specification
| General | |
|---|---|
| Type | Development Board |
| Antenna Type | Built-in PCB antenna is available |
| Wireless | Wireless Network Mode: station / softAP / SoftAP + station Wireless criteria: 802.11 b / g / n WIFI @ 2.4 GHz, support for WPA / WPA2 security mode |
| Voltage |
Working voltage: 3.3V ADC pin (A0) input voltage: 0-3.3V |
| Current |
DC jack input current: 800mA(MAX) Micro USB socket input current: 500mA(MAX) |
|
Flash capacity |
4M Bytes |
| Clock frequency | 80MHz or 160MHz |
| Applications | Smart Car, Home automation, Sensor networks, Industrial wireless control |
| Package Contents | |
| 1 x ESP-12E wifi development board | |
| 1 x IO Expansion Board | |
