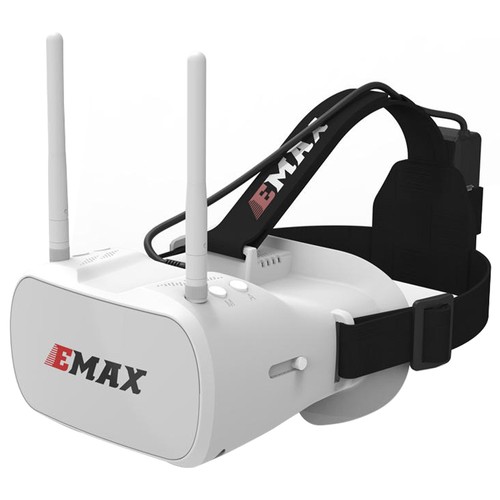

Emax Transporter 5.8G 48CH 4.3Inch Diversity Video Display FPV Goggles Built-in Fan Dual Antenna For FPV Racing Drone

General

Brand: Emax
Item Name: Transporter
Color: White
Quantity: 1set

Specification

Frequency: 5.8CH
Channel: 48CH
Size: 4.3Inch
Resolution: 480 X 320
Battery: 4.2V 1800mAh

Battery Cartridge Introduction:

The battery cartridge comes preinstalled with a 4.2V/1800mAh 18650 battery. If a battery reinstall is required please use caution making sure to install with the correct polarity. The battery can be charged in the cartridge with a micro USB cable. When the battery is charging the indicator light is green. The indicator light will turn red when charging is complete.

Goggle Key Operation:

1. Menu button – Click to enter the menu. From the menu, you can select the brightness, contrast, saturation, language, or exit option. The menu will automatically exit after 3 seconds if there’s no input.
2. Auto Scan key – Automatically scan all 48 available video channels for the strongest signal being emitted. If you click the frequency band selection button or the frequency channel selection button during the search, it will lock at the current frequency channel.
3. Frequency band selection button - Under normal circumstances, this button can be used as the frequency band selection button to select the A/B/E/F/R/H frequency bands. After entering the menu, this button acts as the “+” button for the adjustment.
4. Frequency channel button - Under normal circumstances, this button can be used as the frequency channel button to select 1-8 frequency channels. After entering the menu, this button acts as the "-" button for the adjustment.

Weight & Dimensions

Product Weight: 0.322kg
Package Weight: 0.54kg
Product Size (L x W x H): 18.00 x 15.00 x 5.00 cm
Package Size (L x W x H): 23.50 x 20.00 x 11.50 cm

Package Contents

1 X FPV Goggles
1 X Battery
1 X USB Cable
1 X Manual
