Highlights

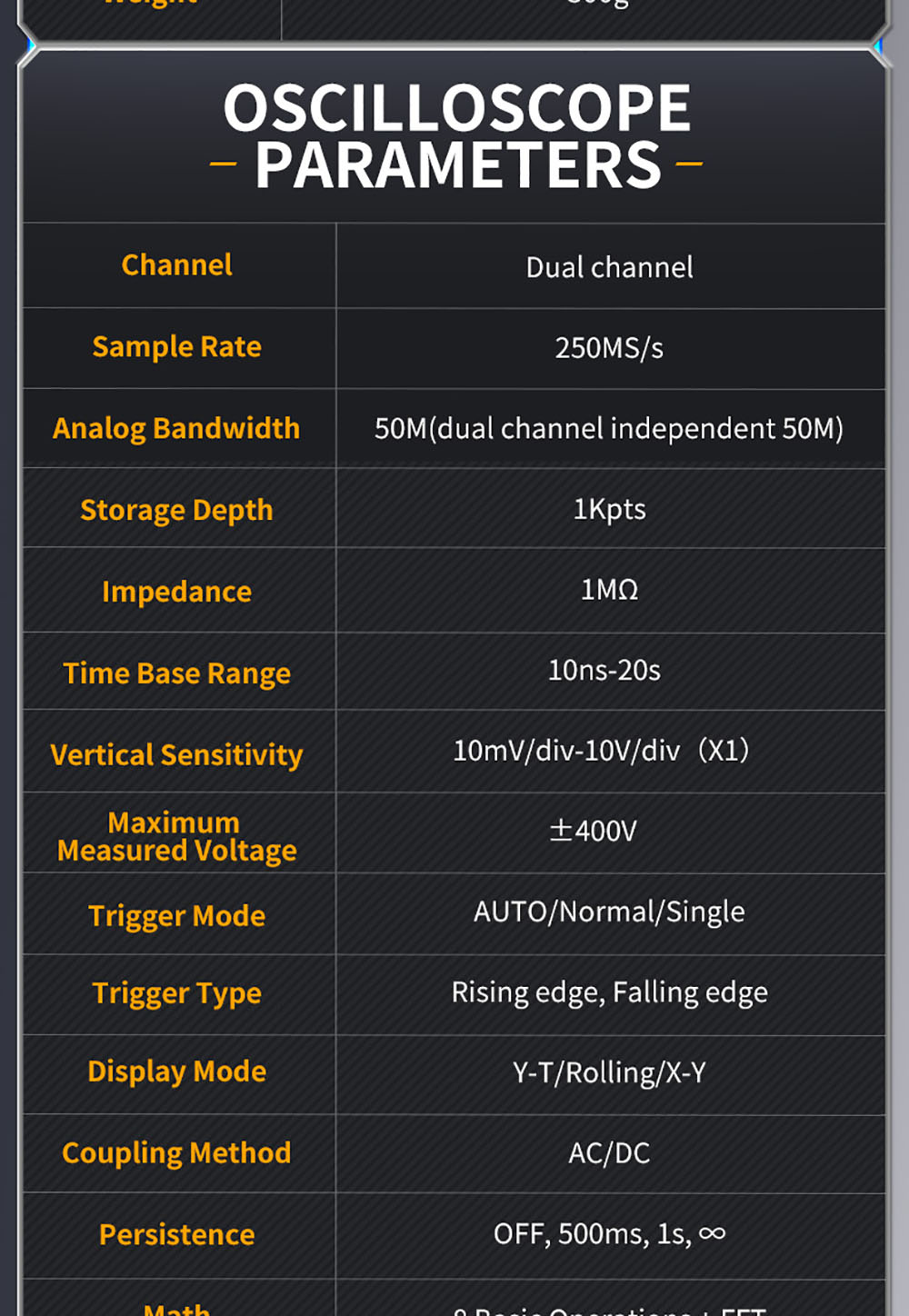

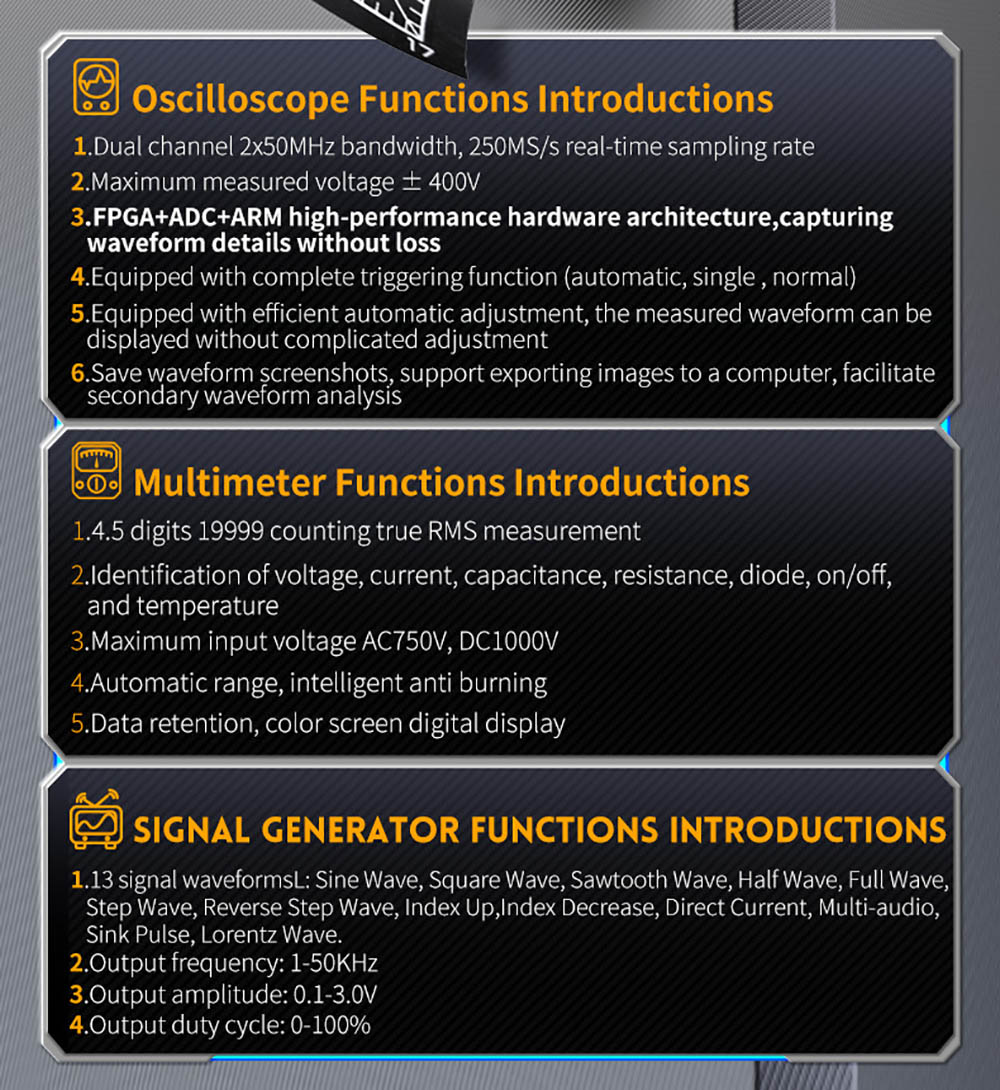

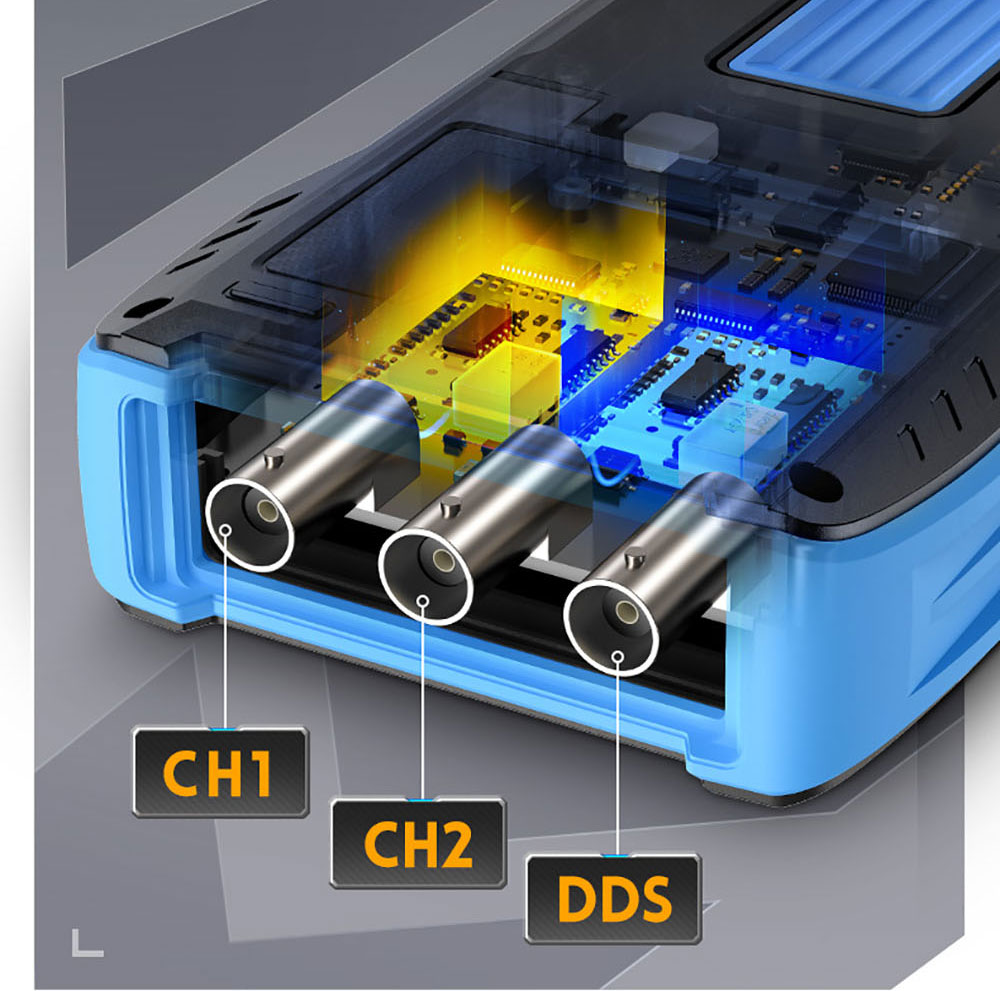

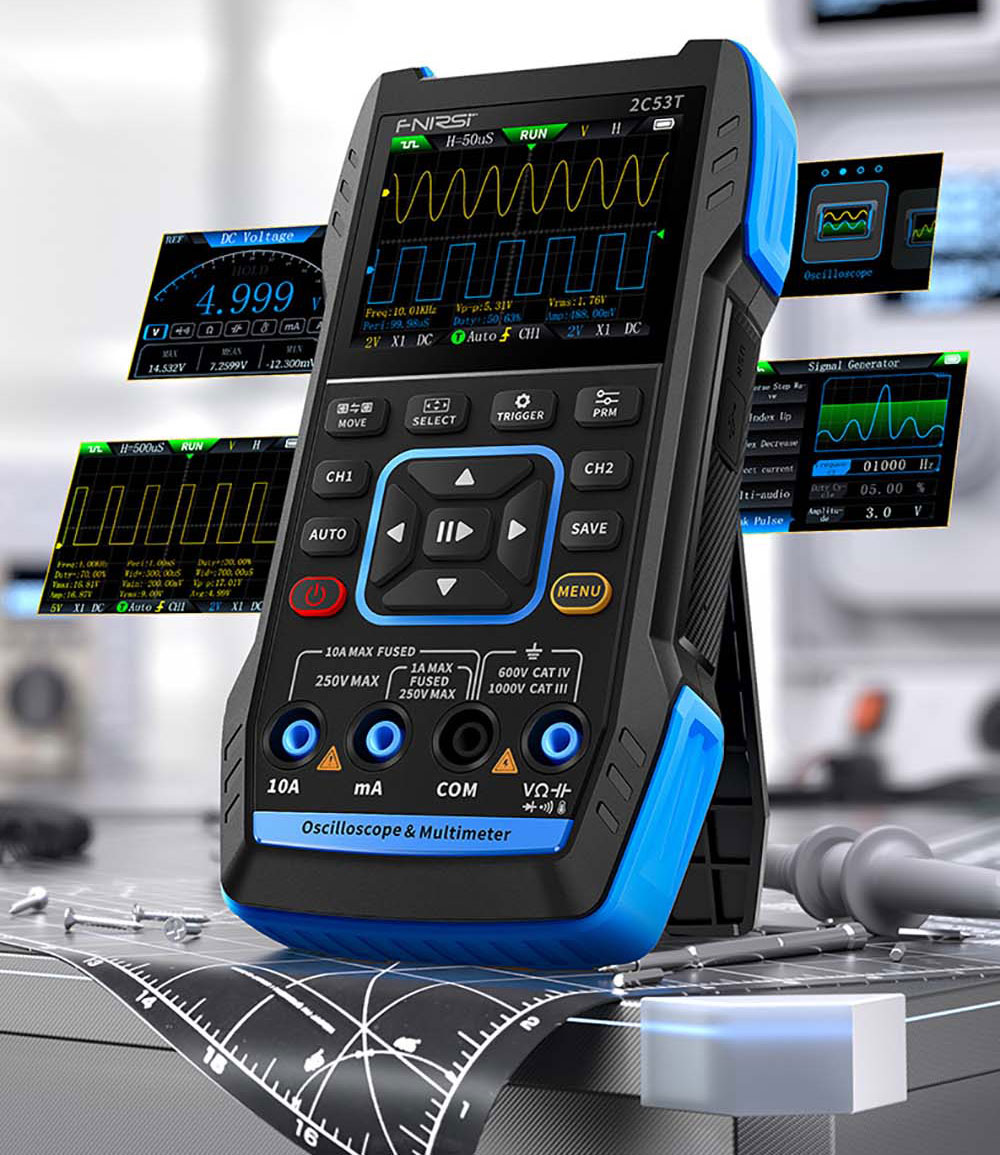

2 Channel Oscilloscope

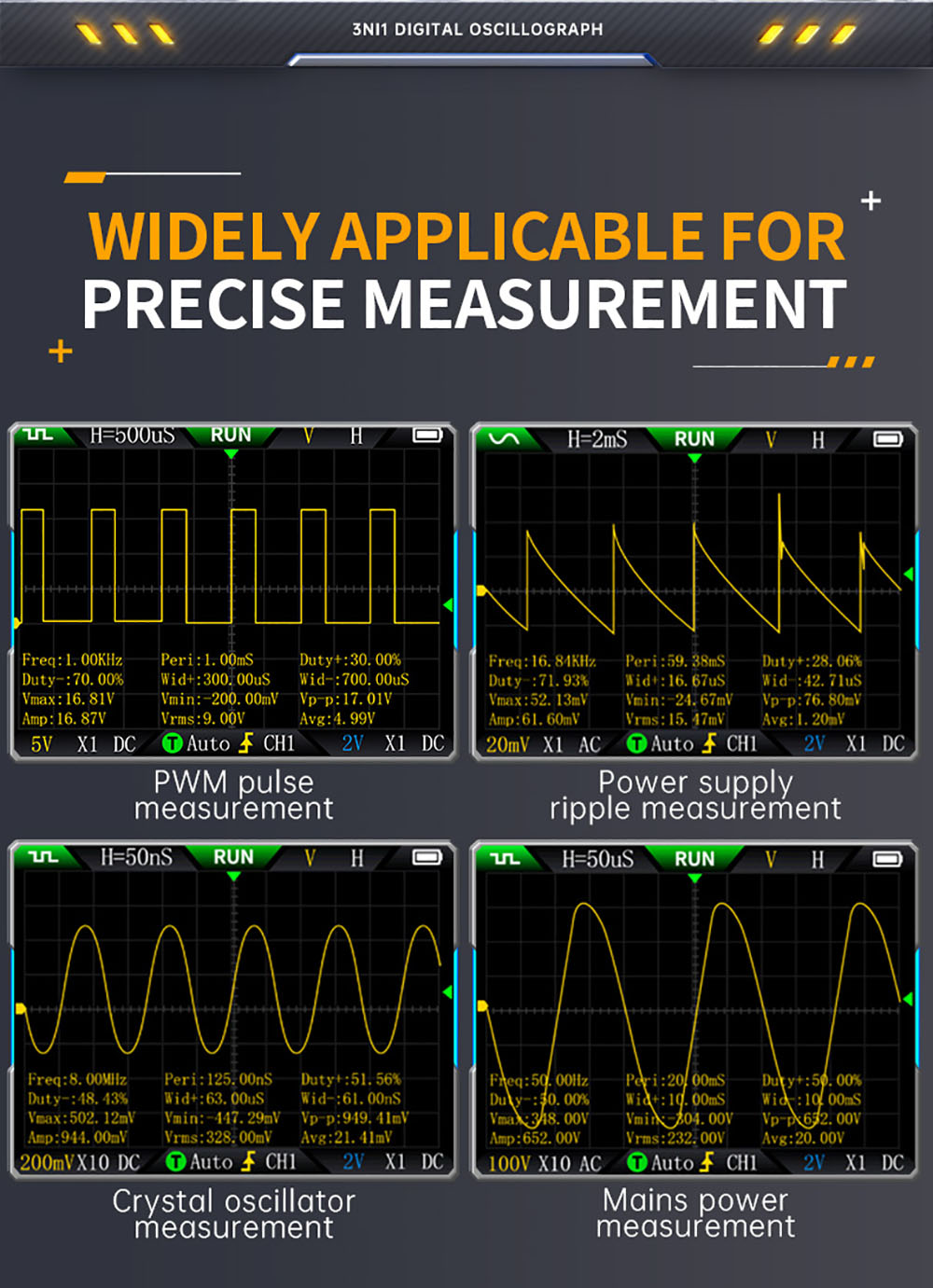

50 MHz bandwidth, 250 MSa/s sampling rate, 1 Kpts record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 10mV/div-10V/div, support waveform image storage and export.

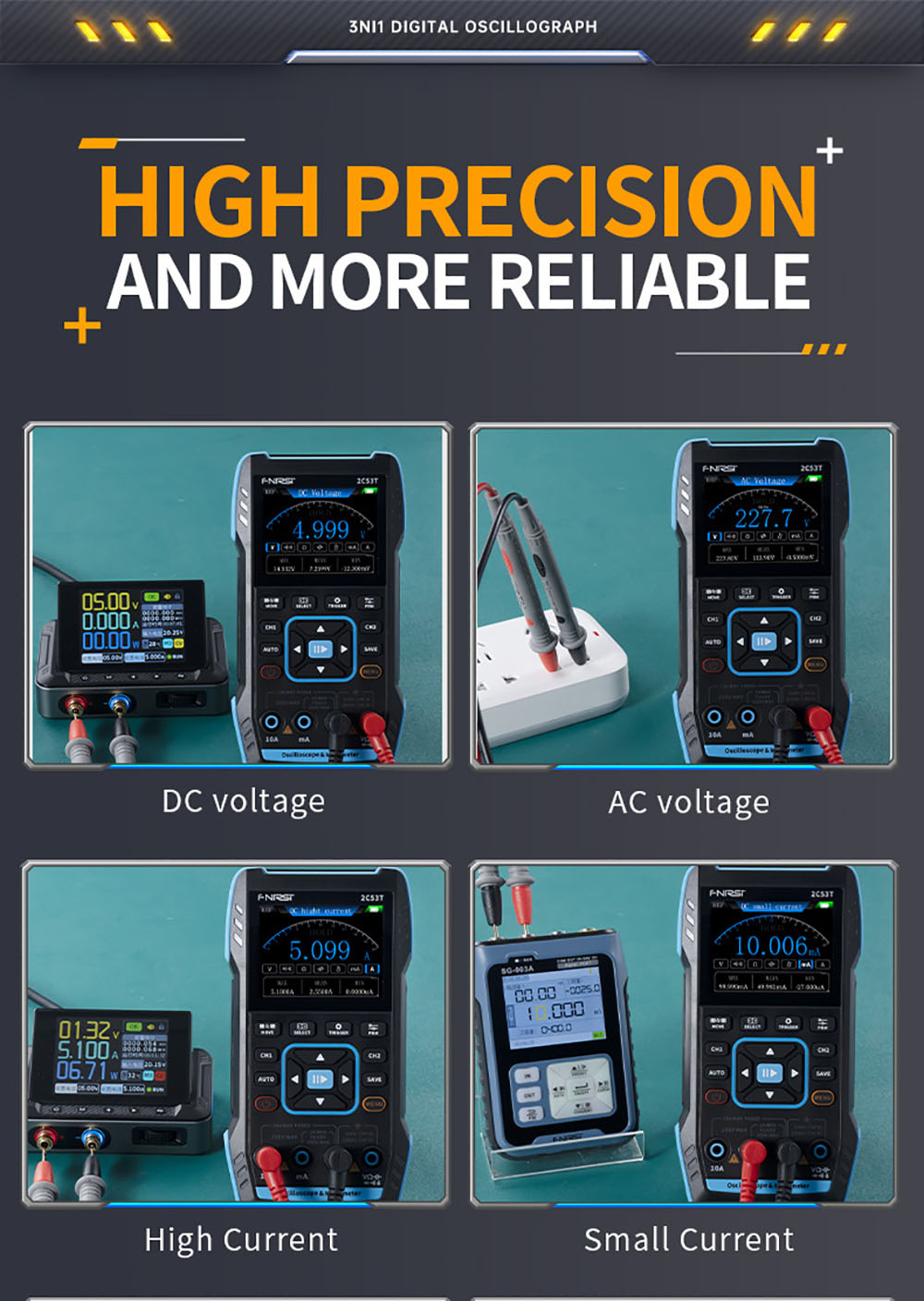

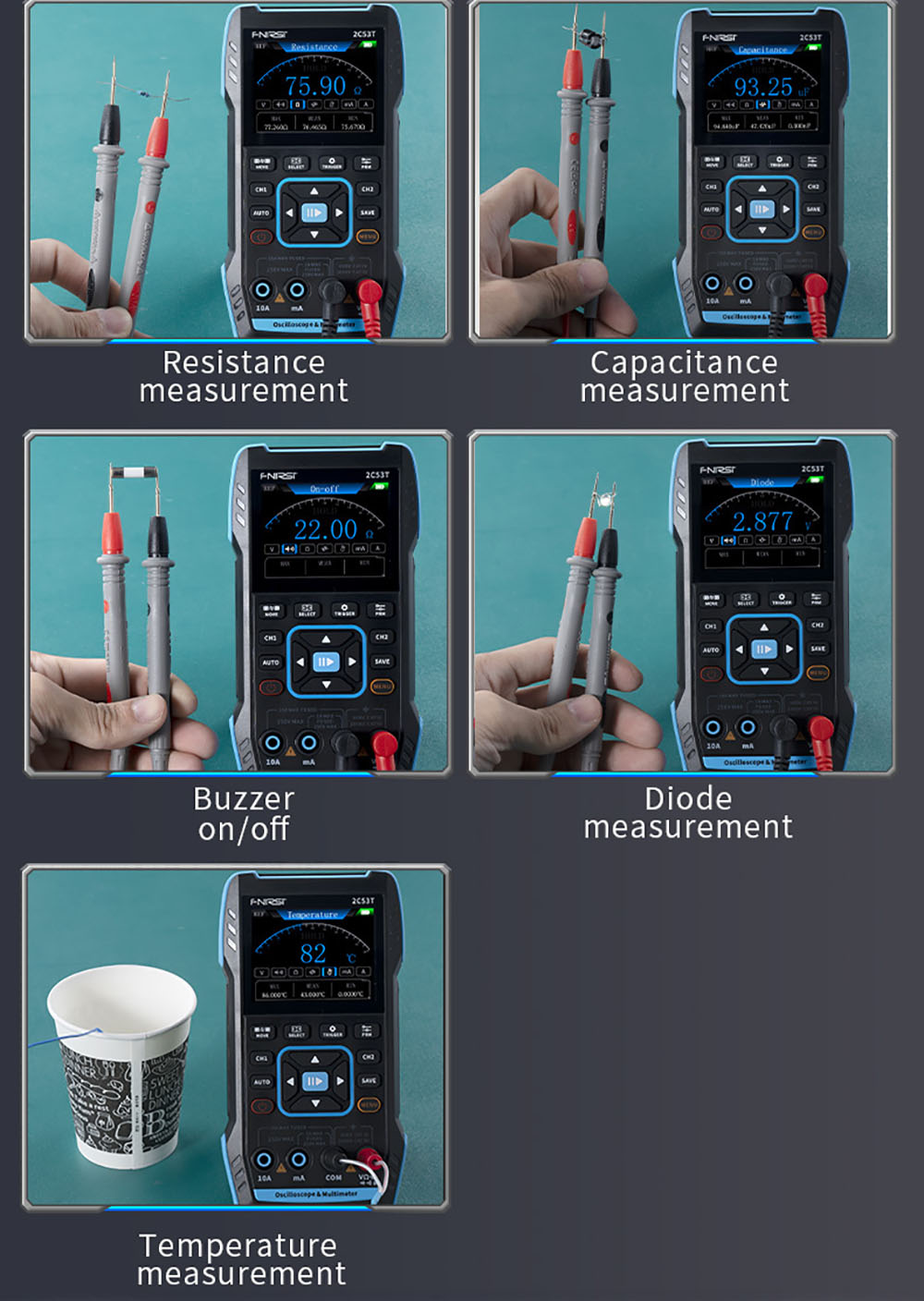

4.5-Digit 19999 Counts Multimeter

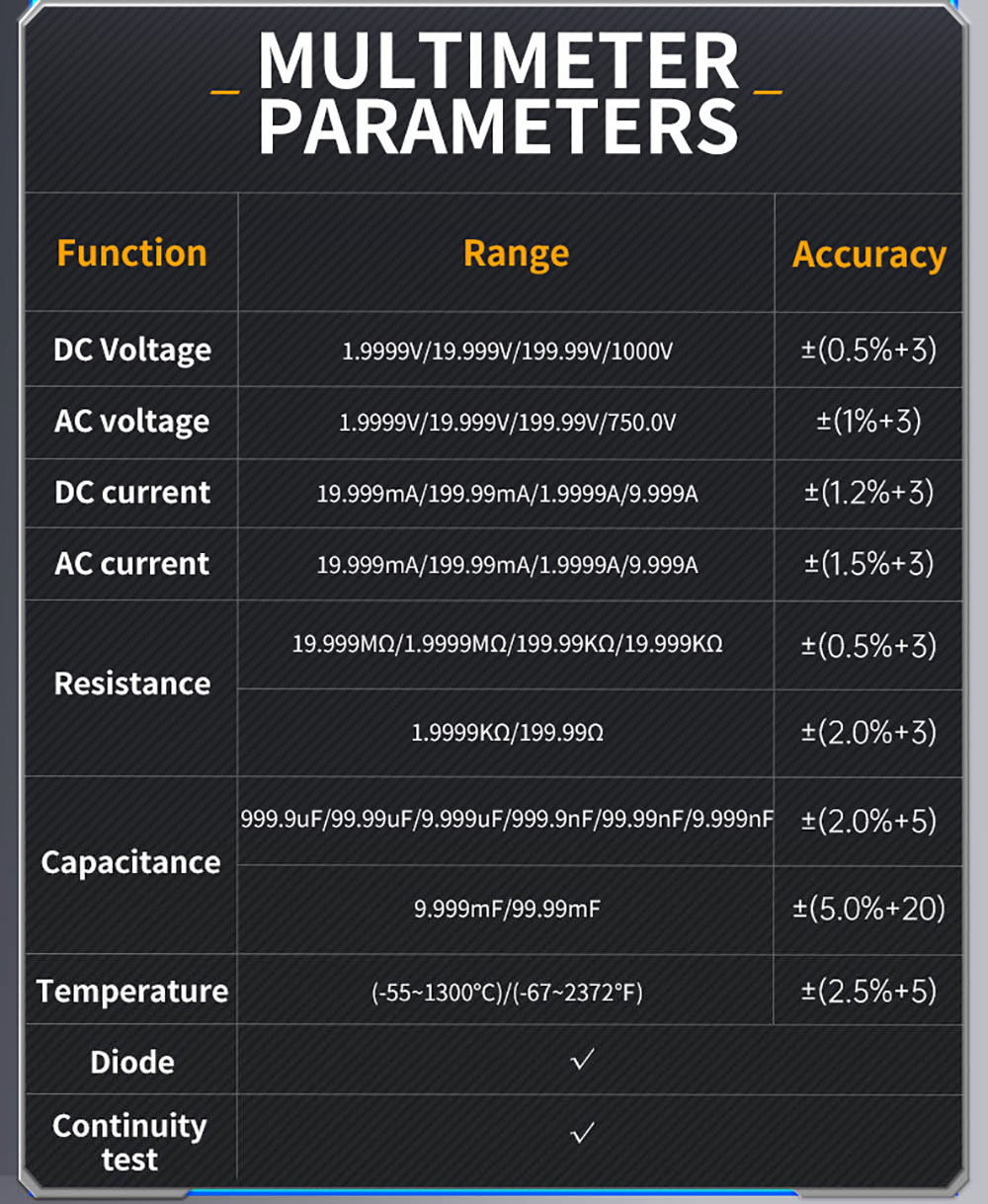

AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-19.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists.

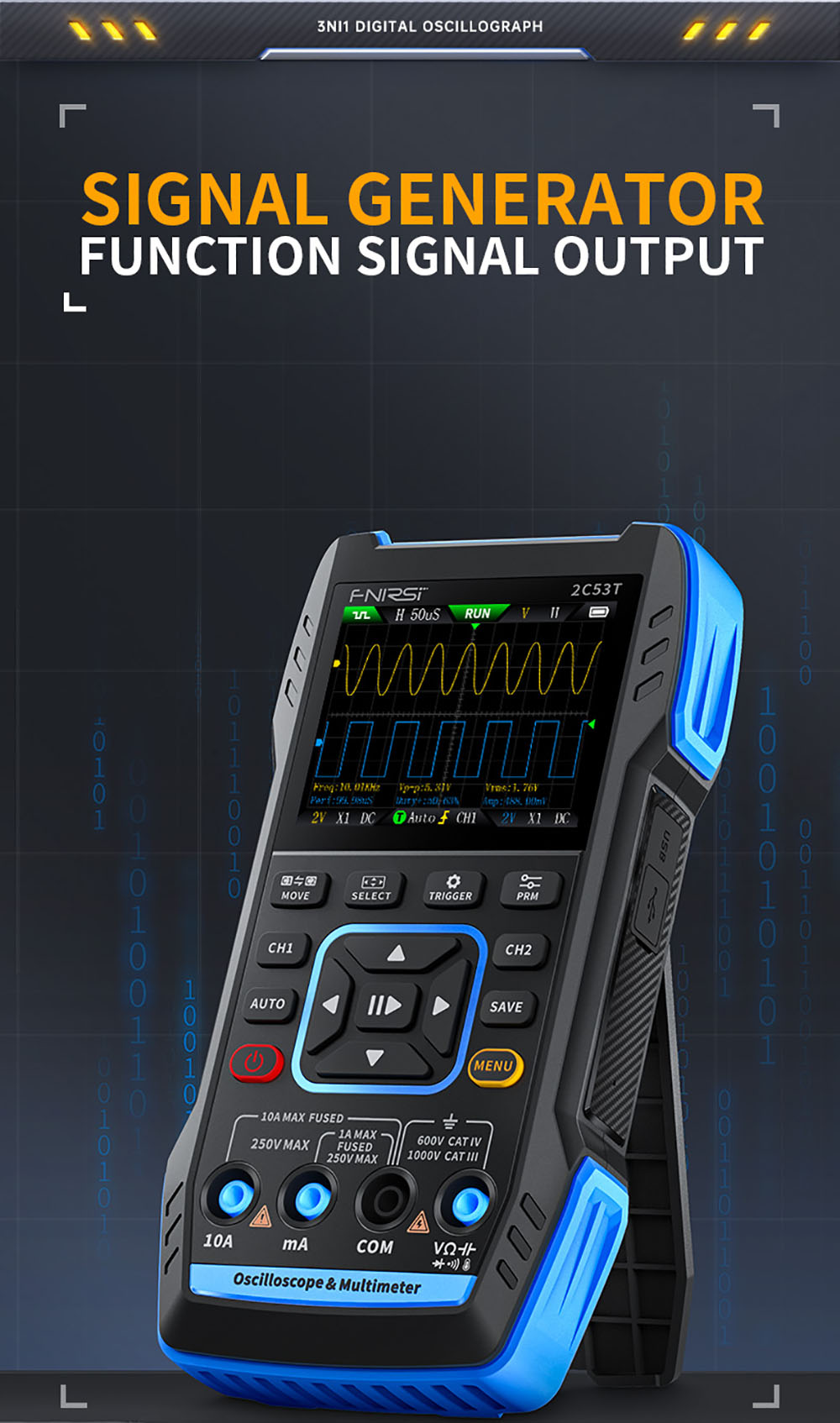

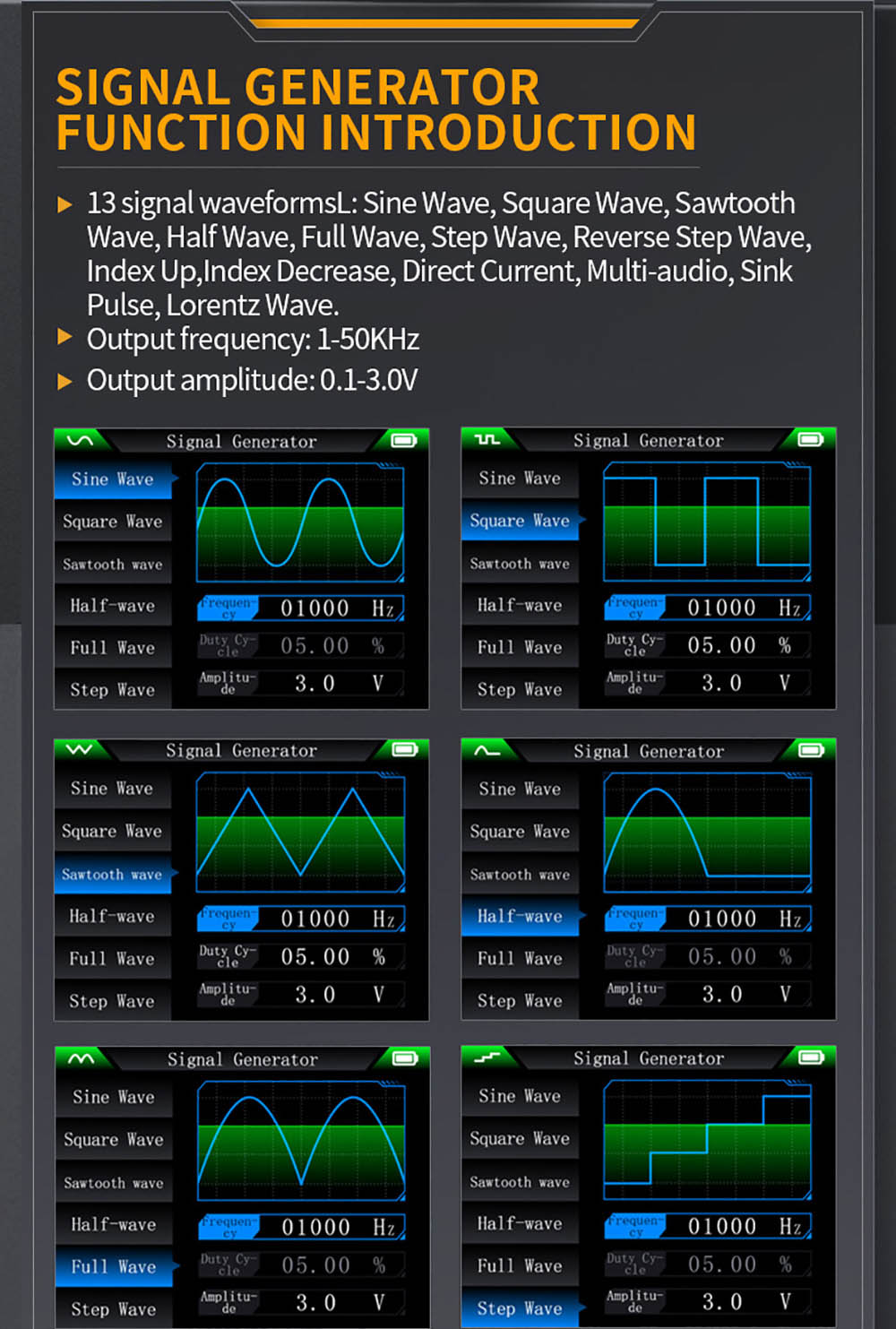

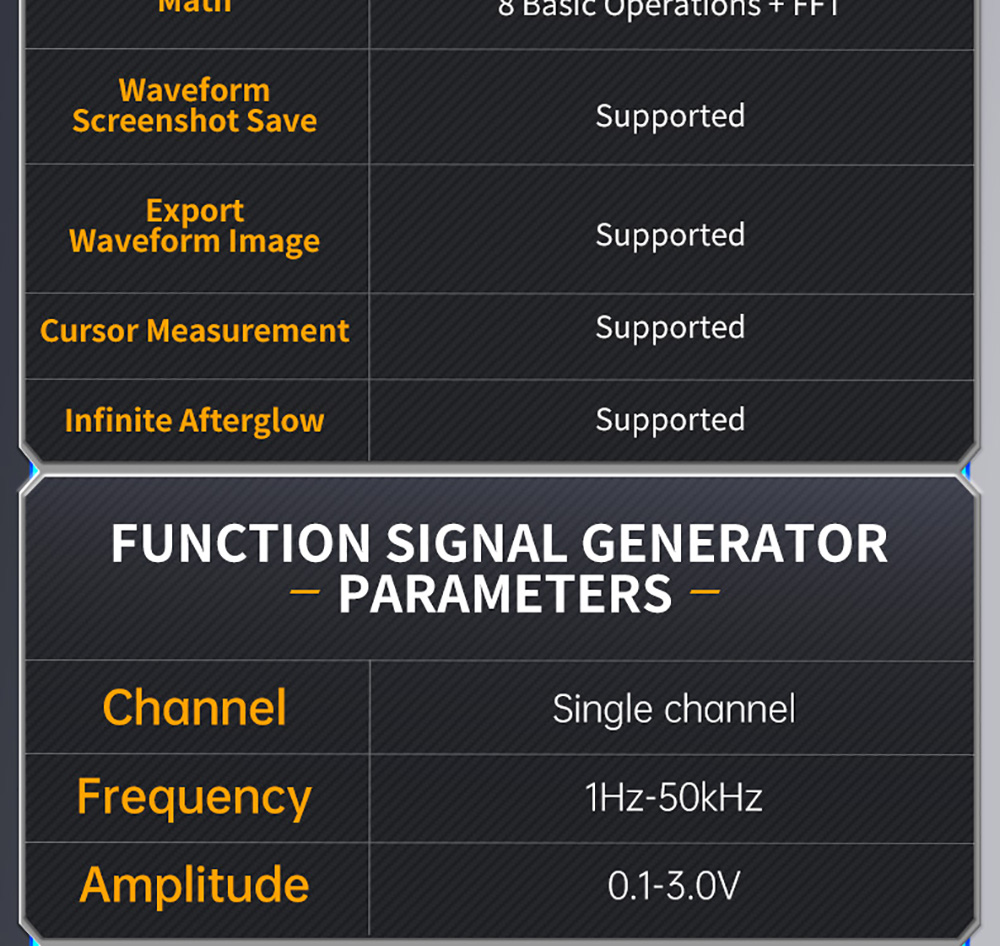

Signal Generator

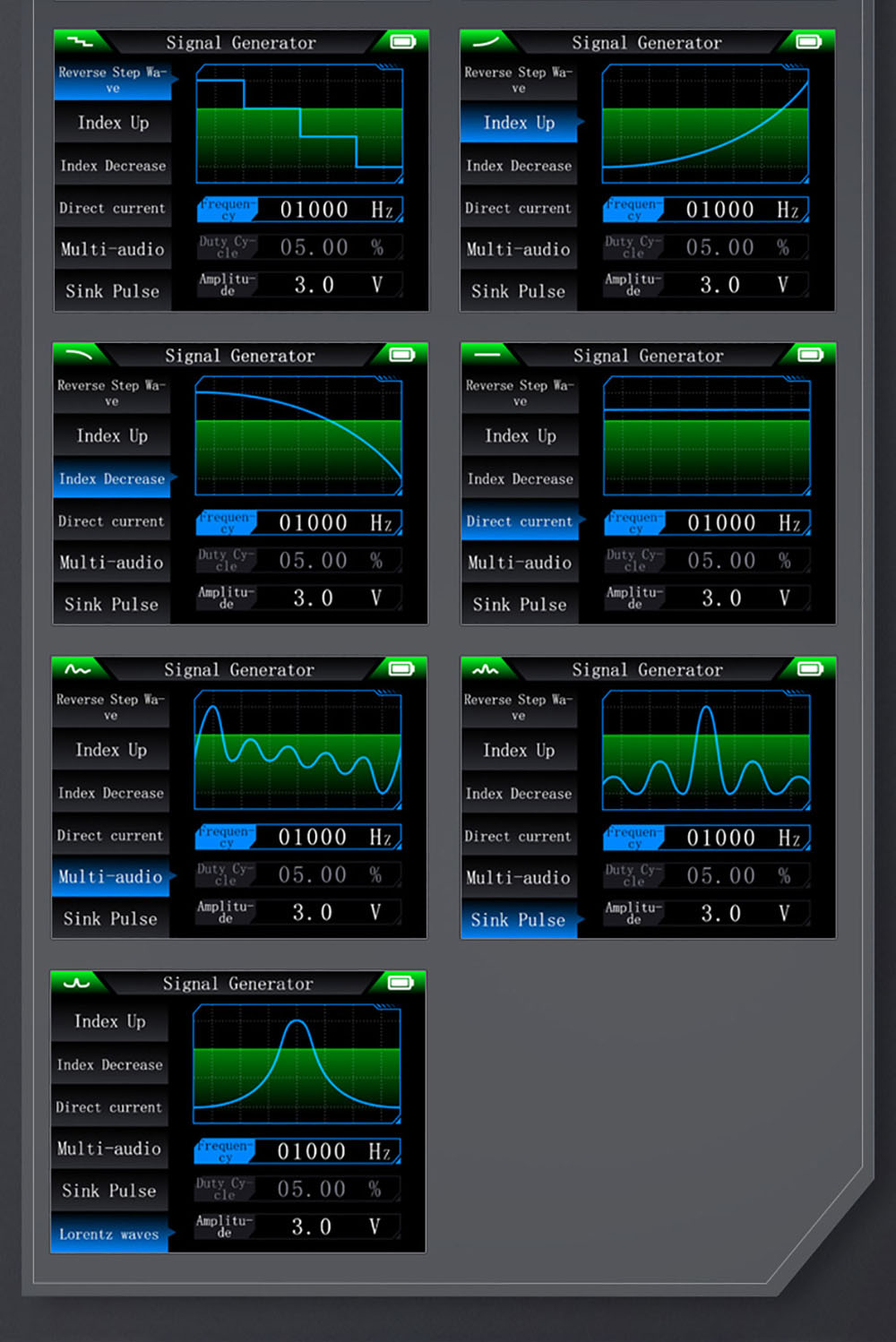

The maximum waveform output frequency can reach 50 kHz and a step of 1 Hz and can output 13 waveforms.

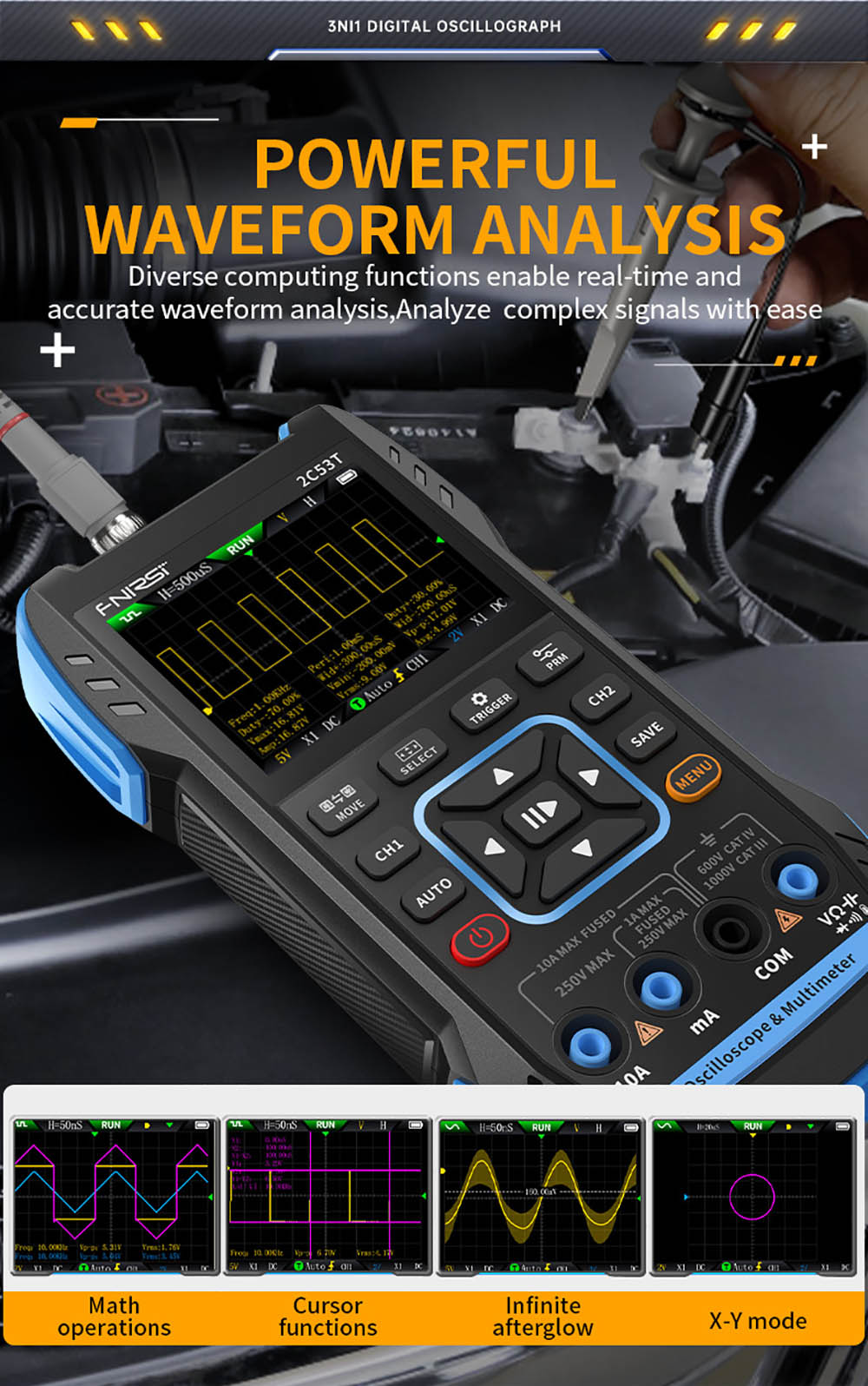

Save Function

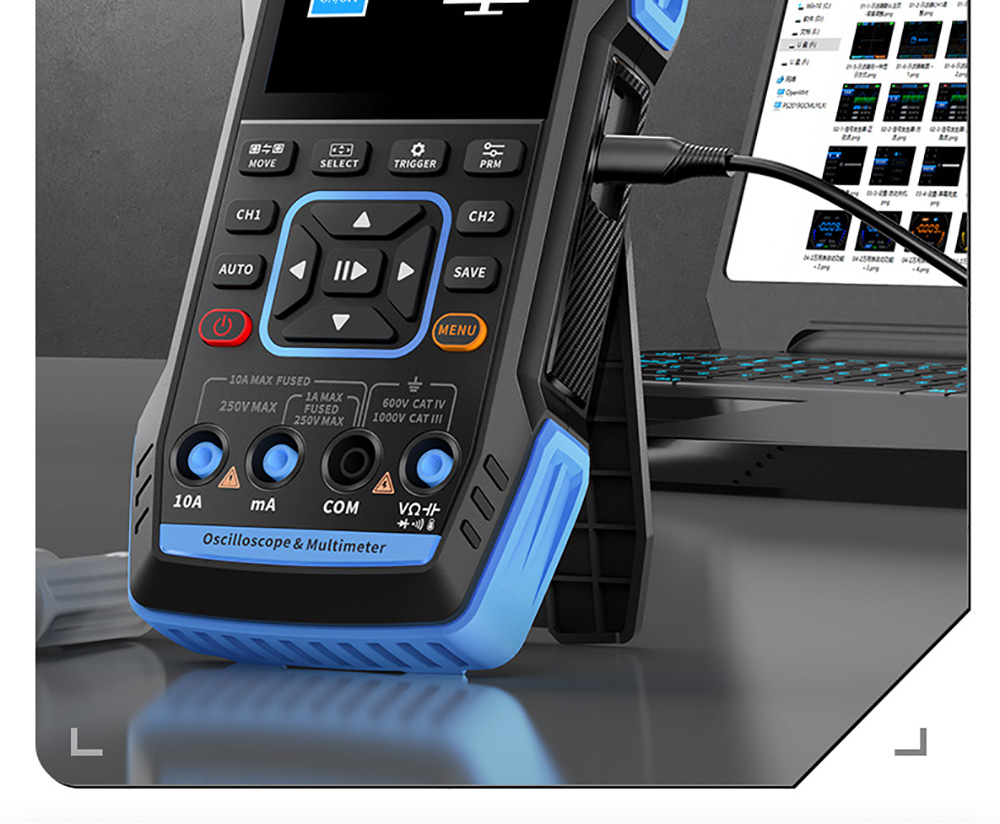

One-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.
Excellent Design

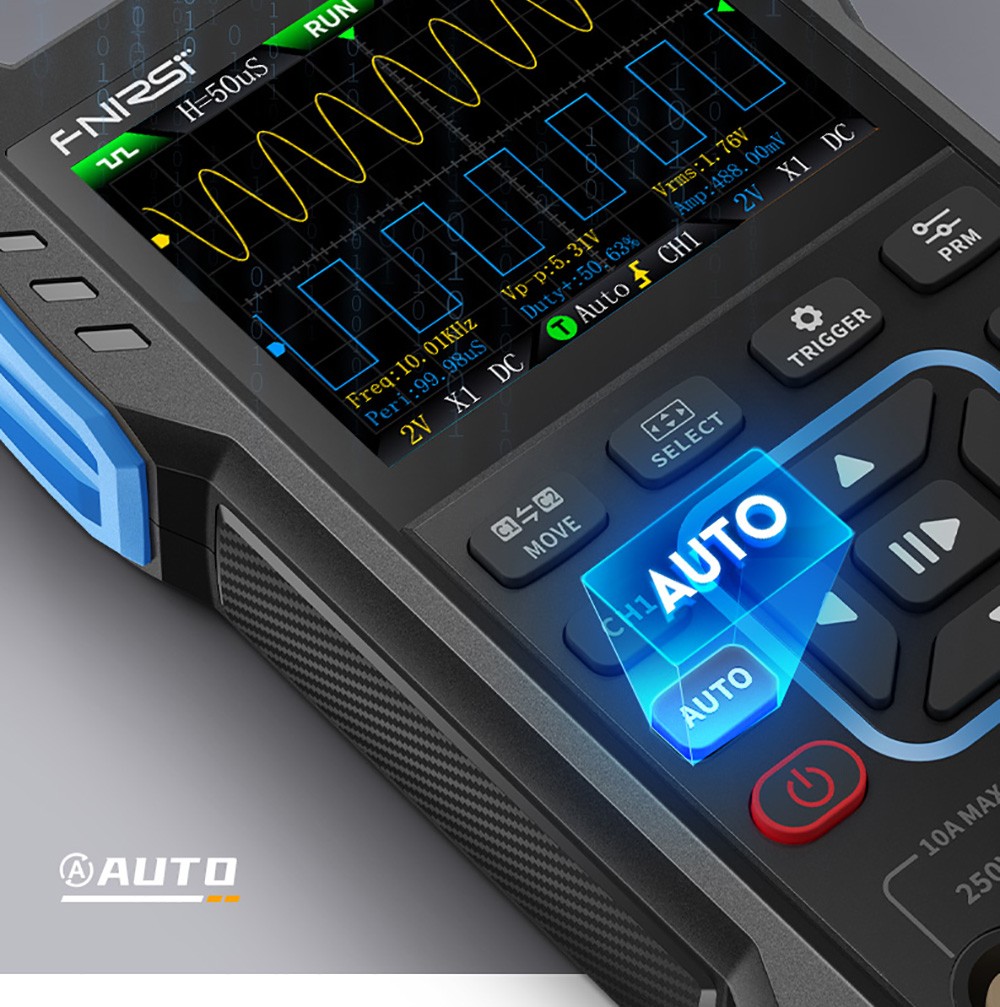

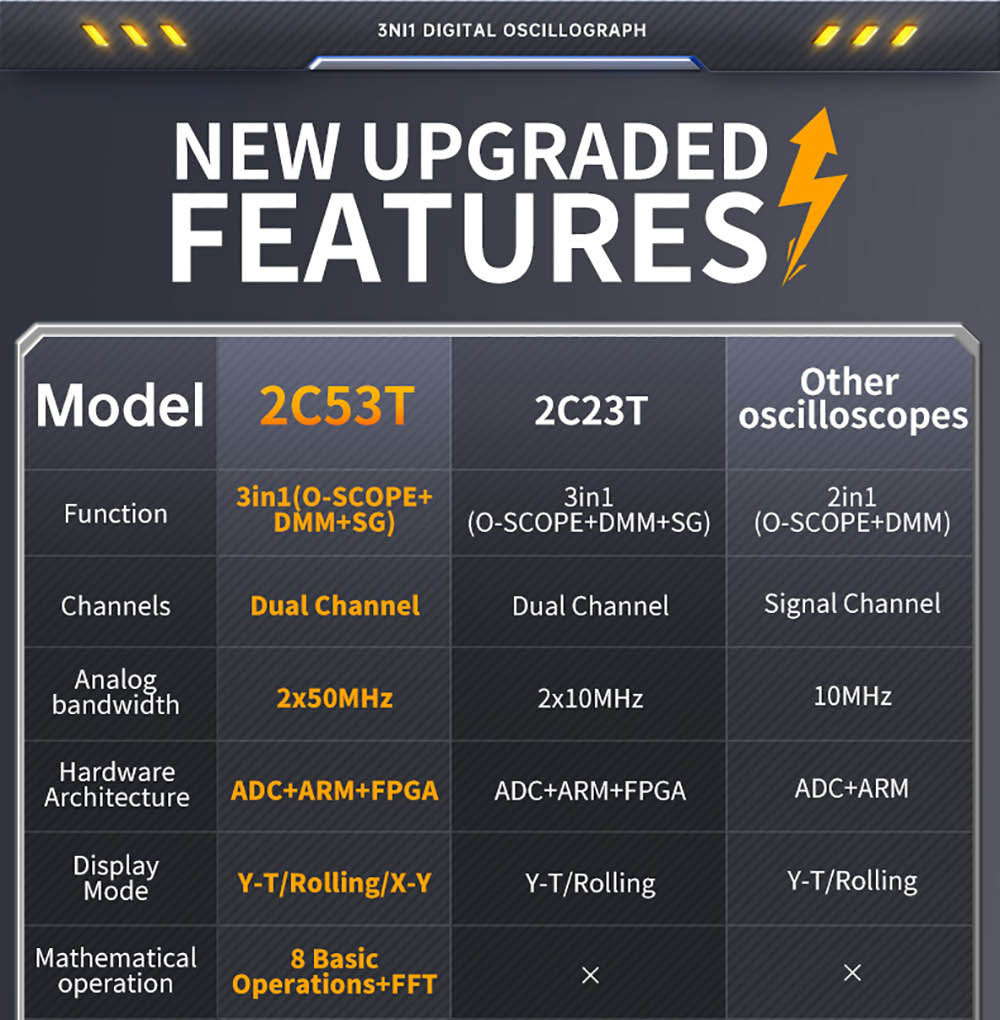

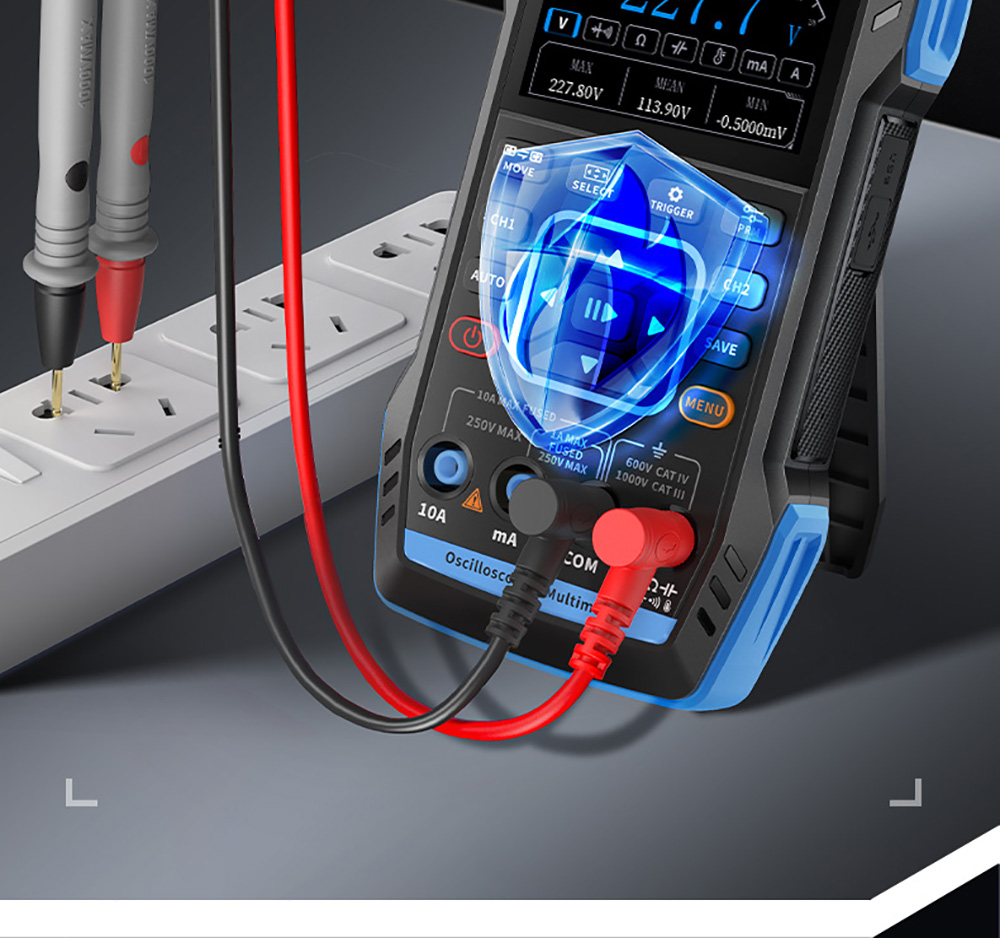

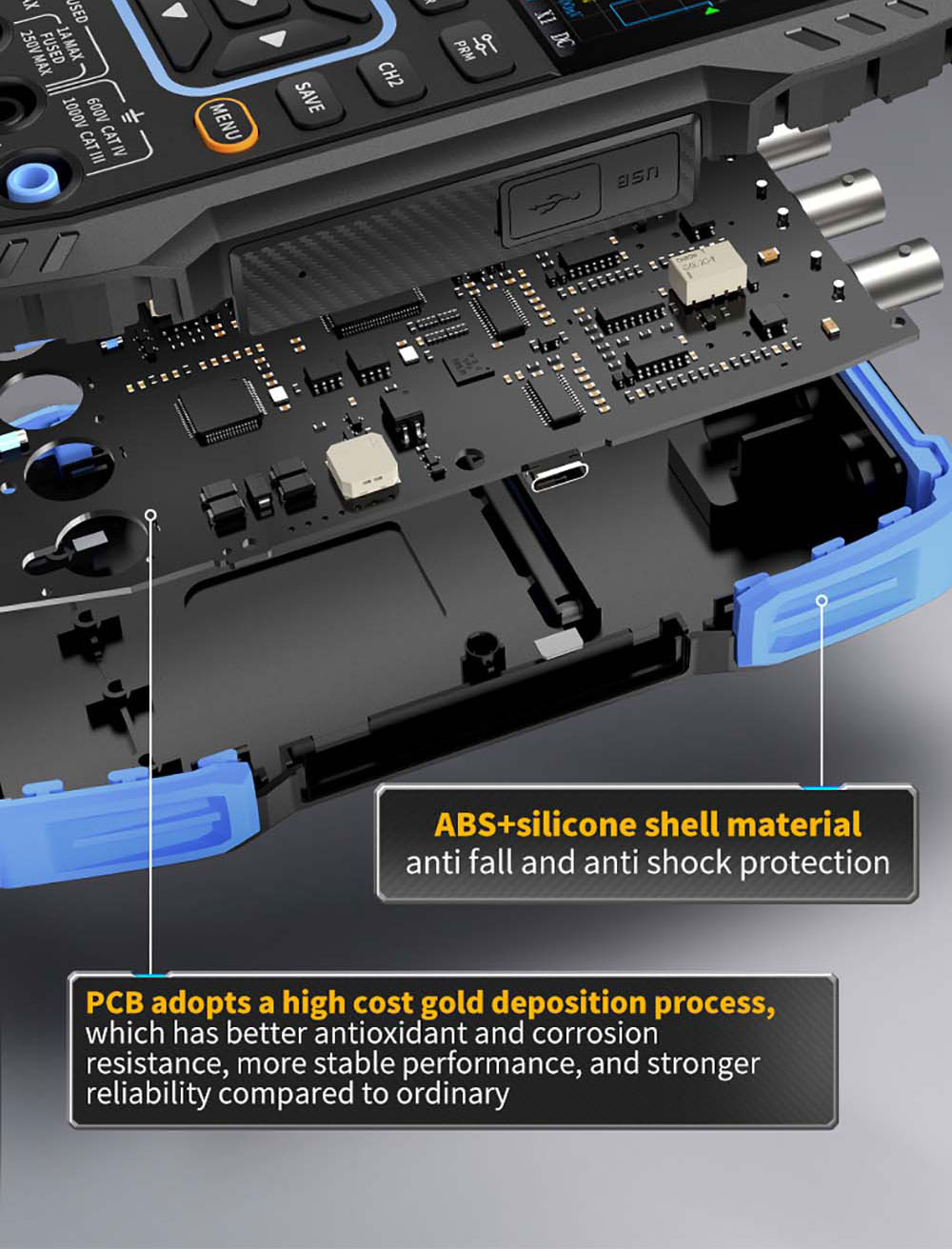

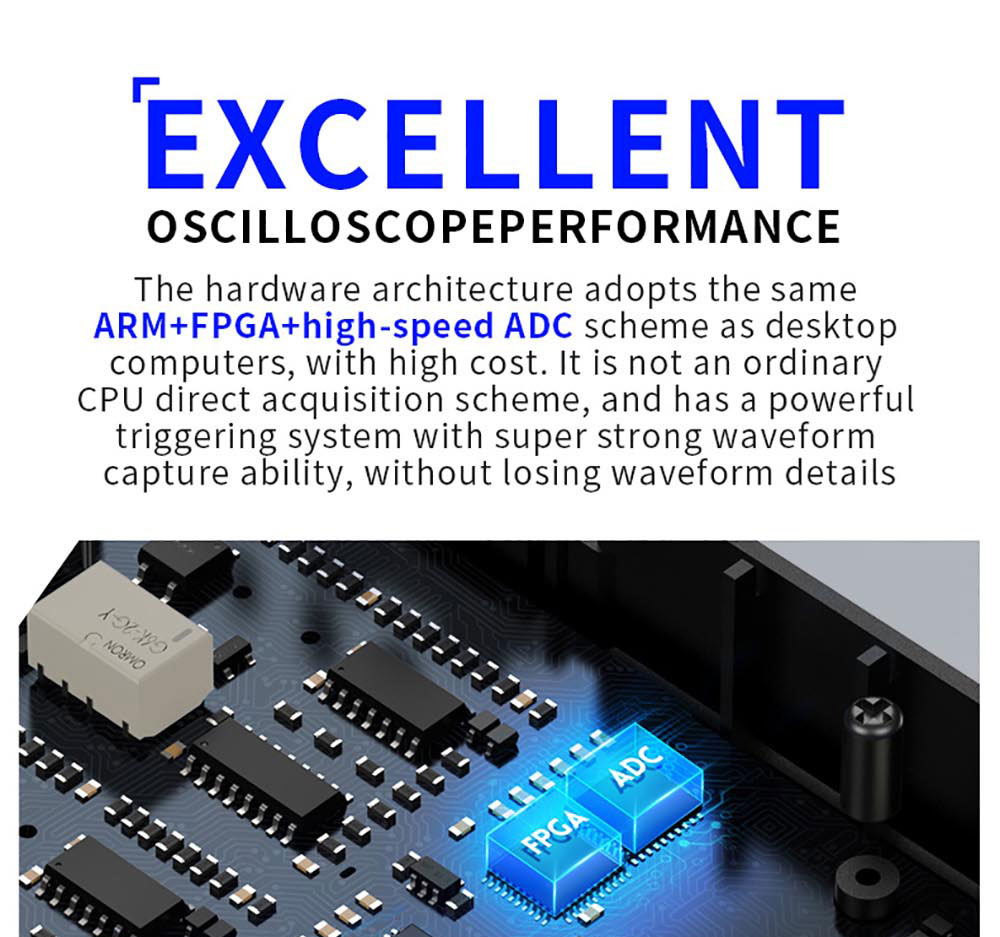

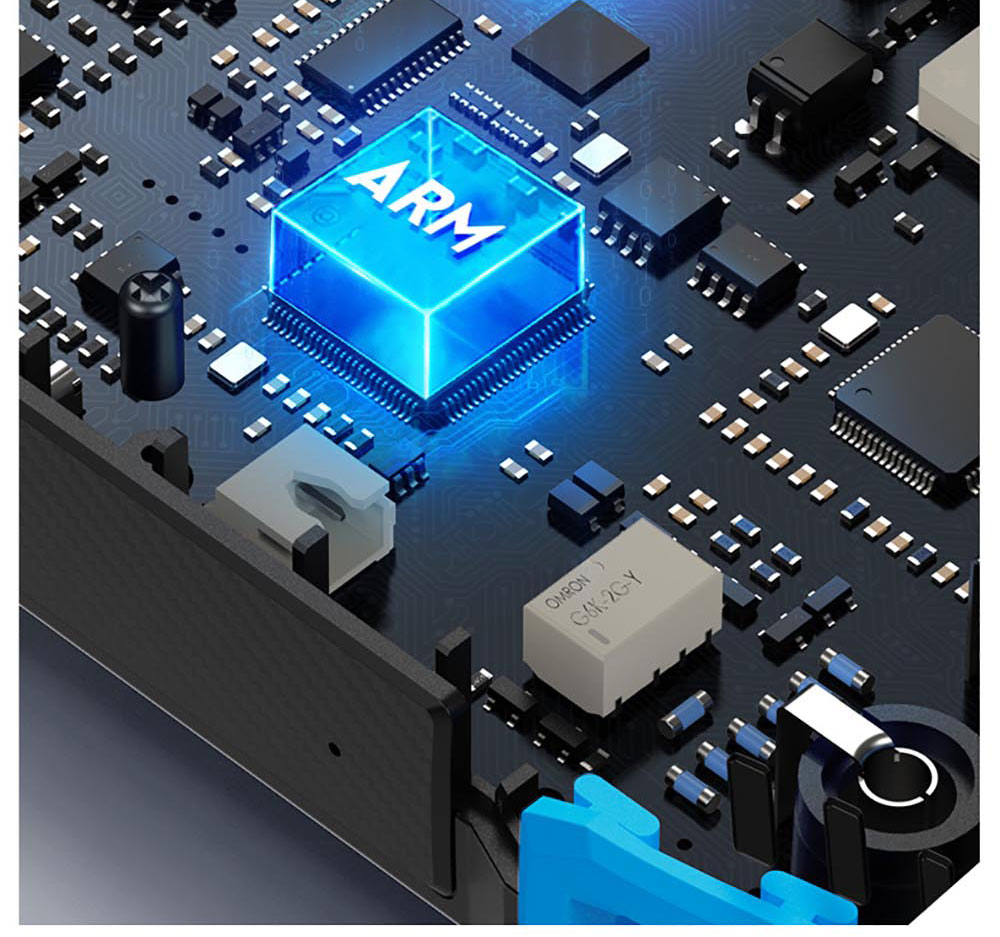

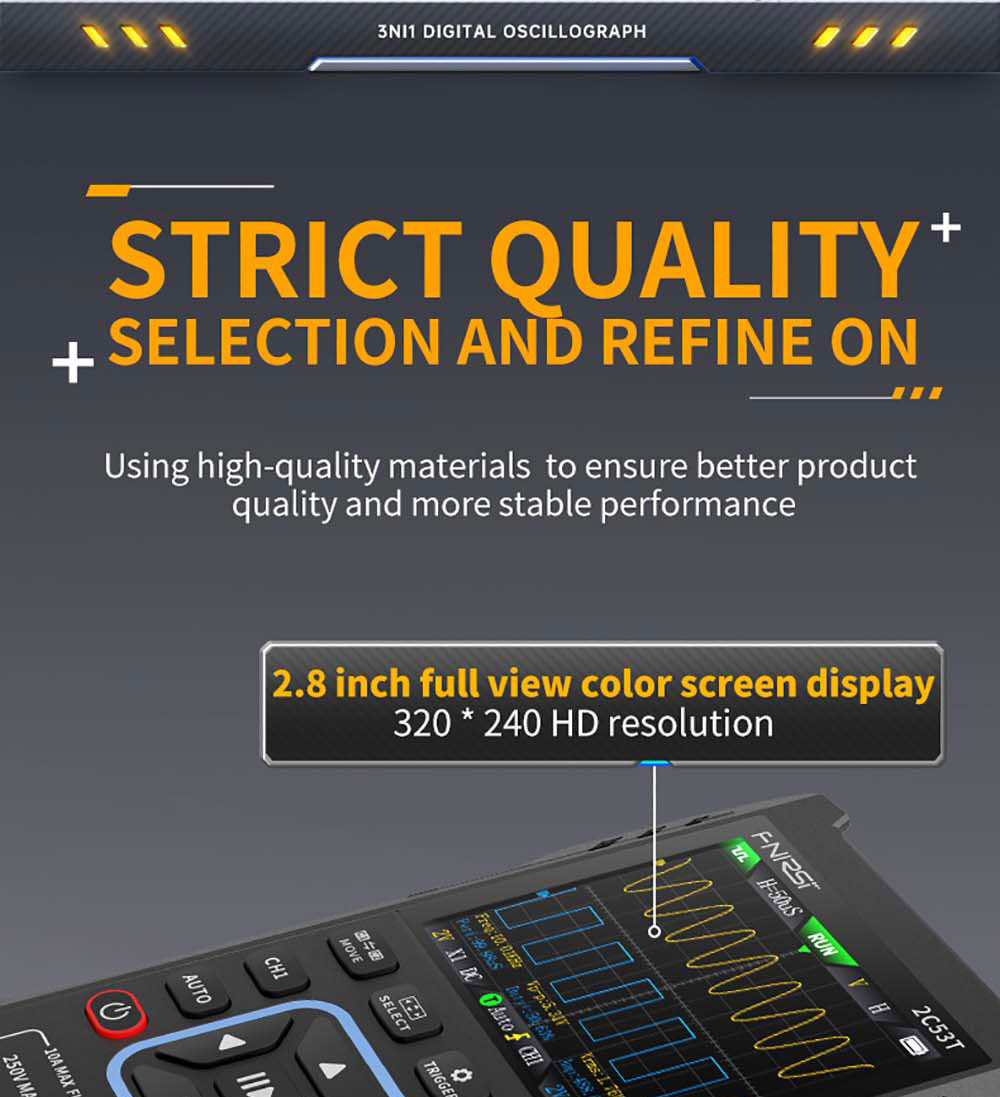

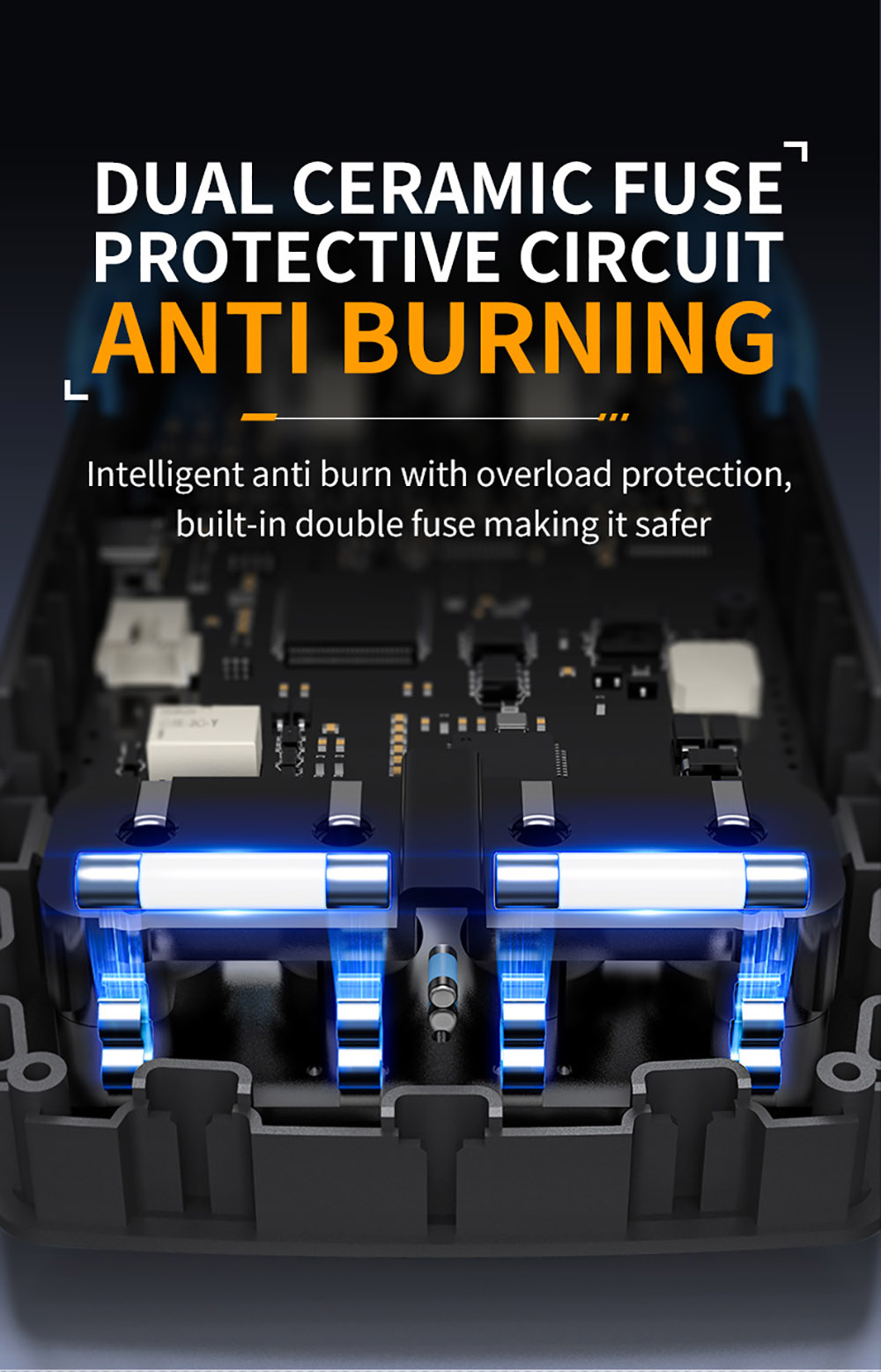

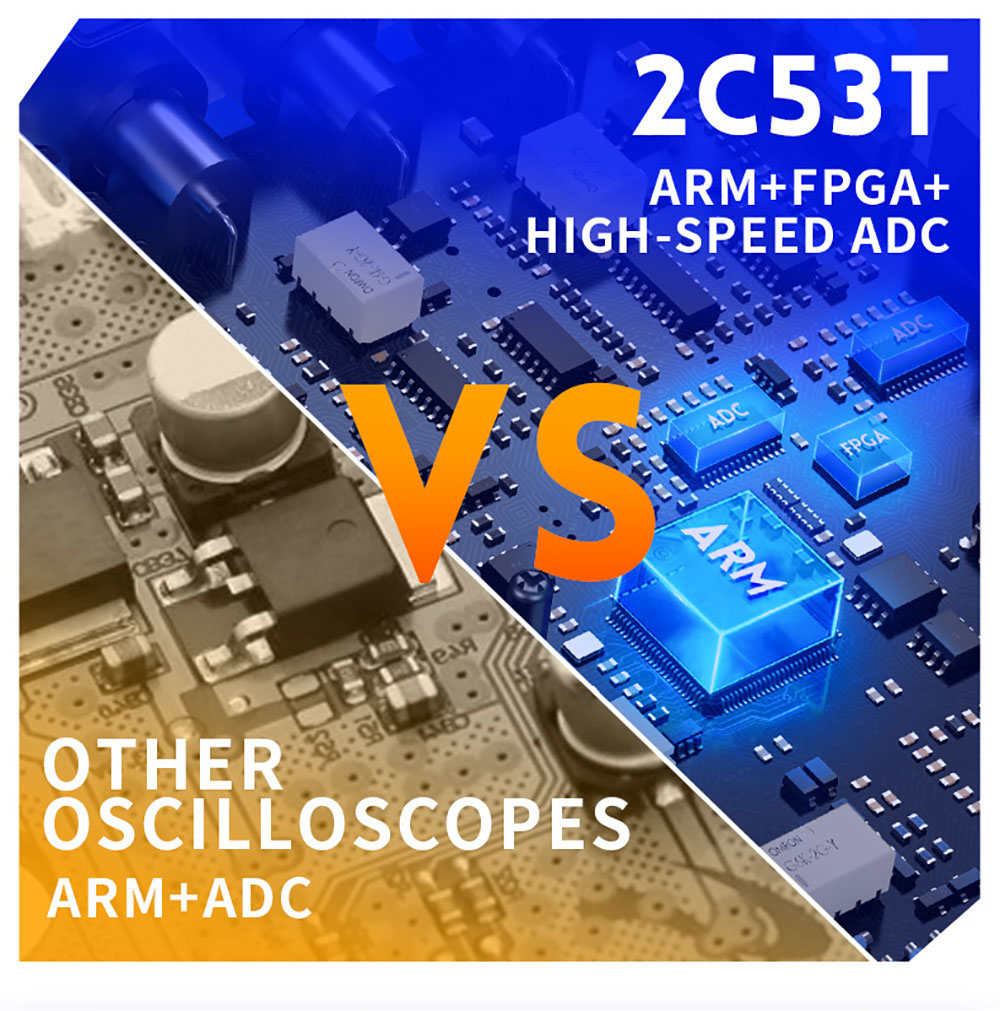

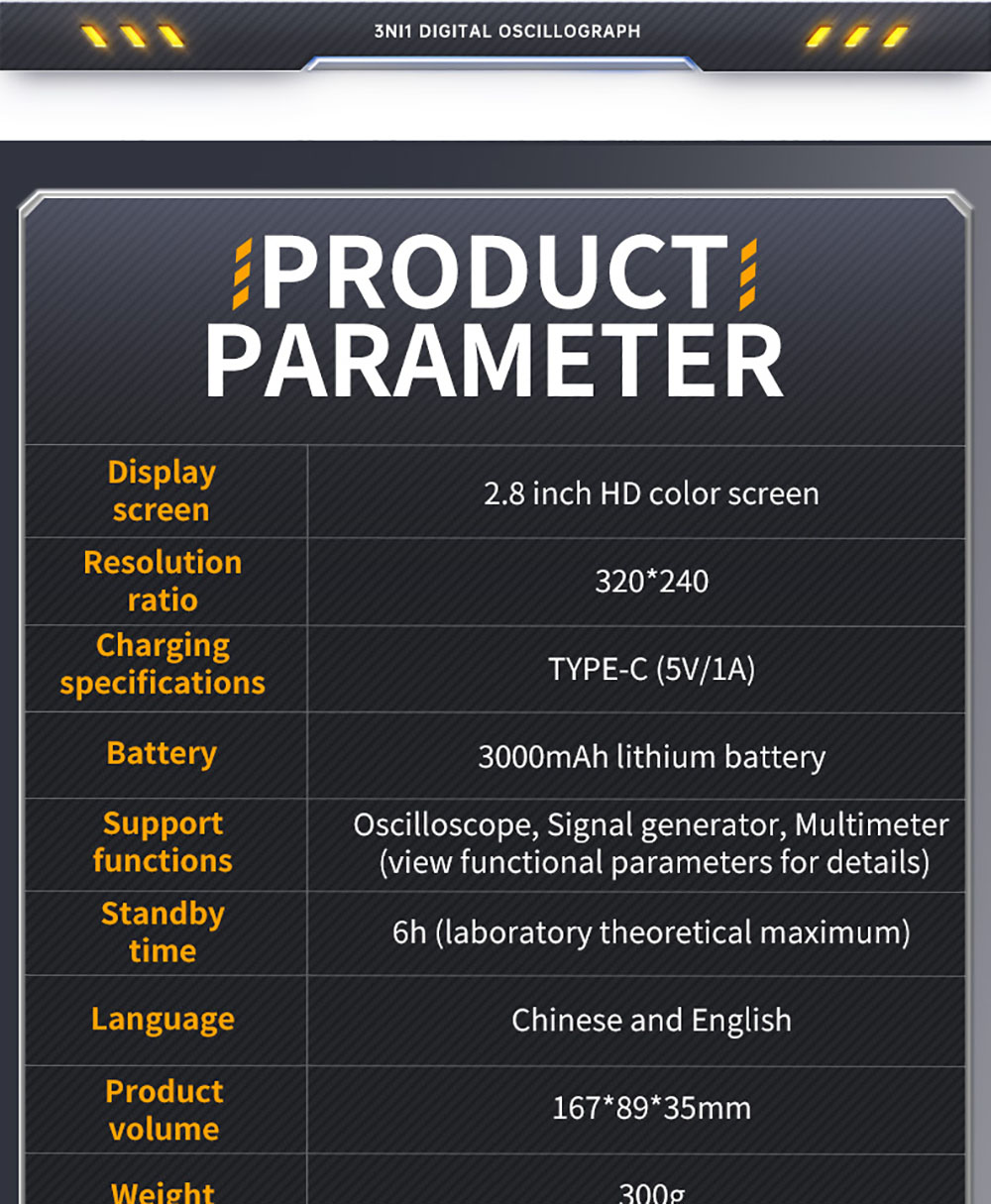

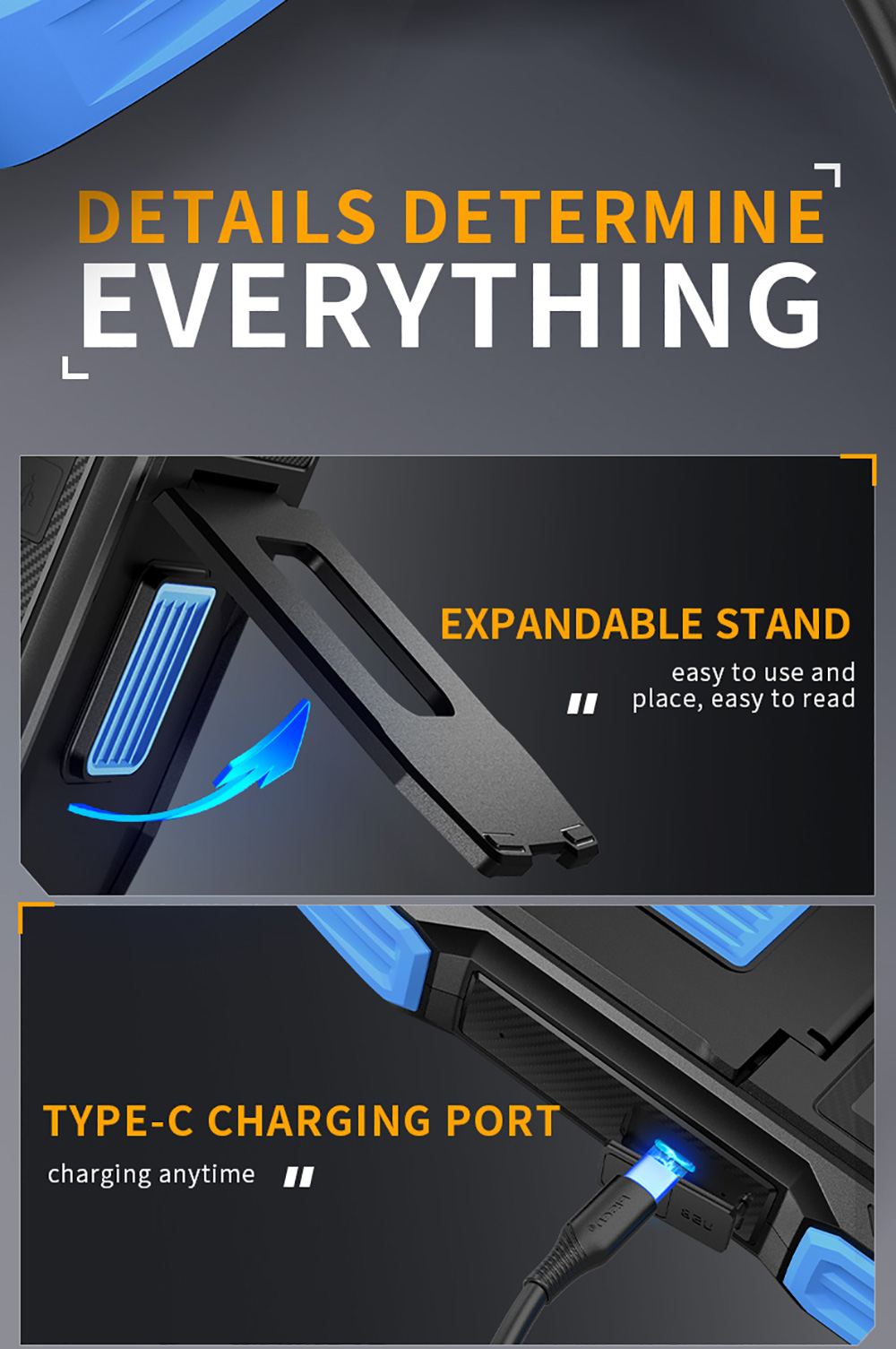

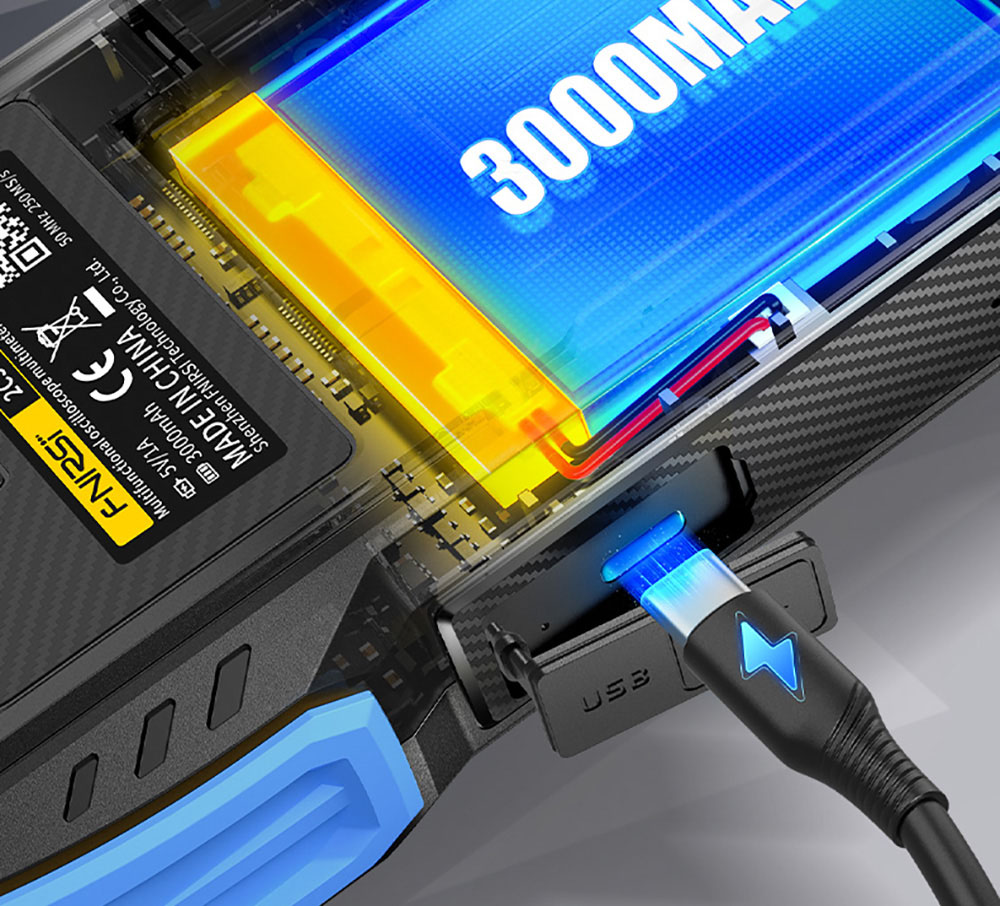

The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, a built-in high-voltage protection module, a 2.8 inch LCD display, a built-in 3000 mAh Li-ion battery, standby time up to 6 H, a Type-C interface supports 5 V/1 A charging.
Specification
| General | Brand: FNIRSI Type: Oscilloscope Multimeter Model: 2C53T Color: Blue+Black |
| Specification |
Basic Parameters: Oscilloscope Parameters: Function Signal Generator Parameters: Multimeter Parameters: |
| Weight & Size | Product Weight: 295.2g Package Weight: 848.9g Package Size(L x W x H): 21.5x9.3x13.7cm |

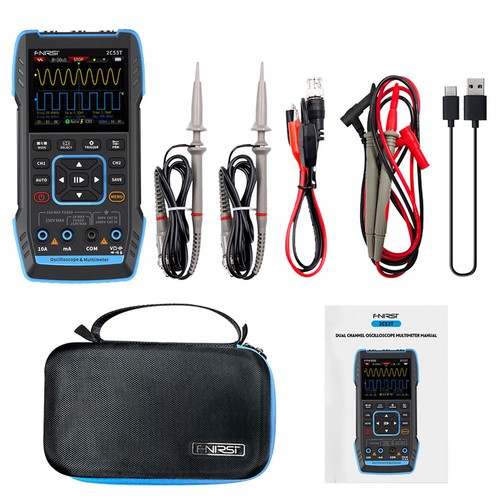

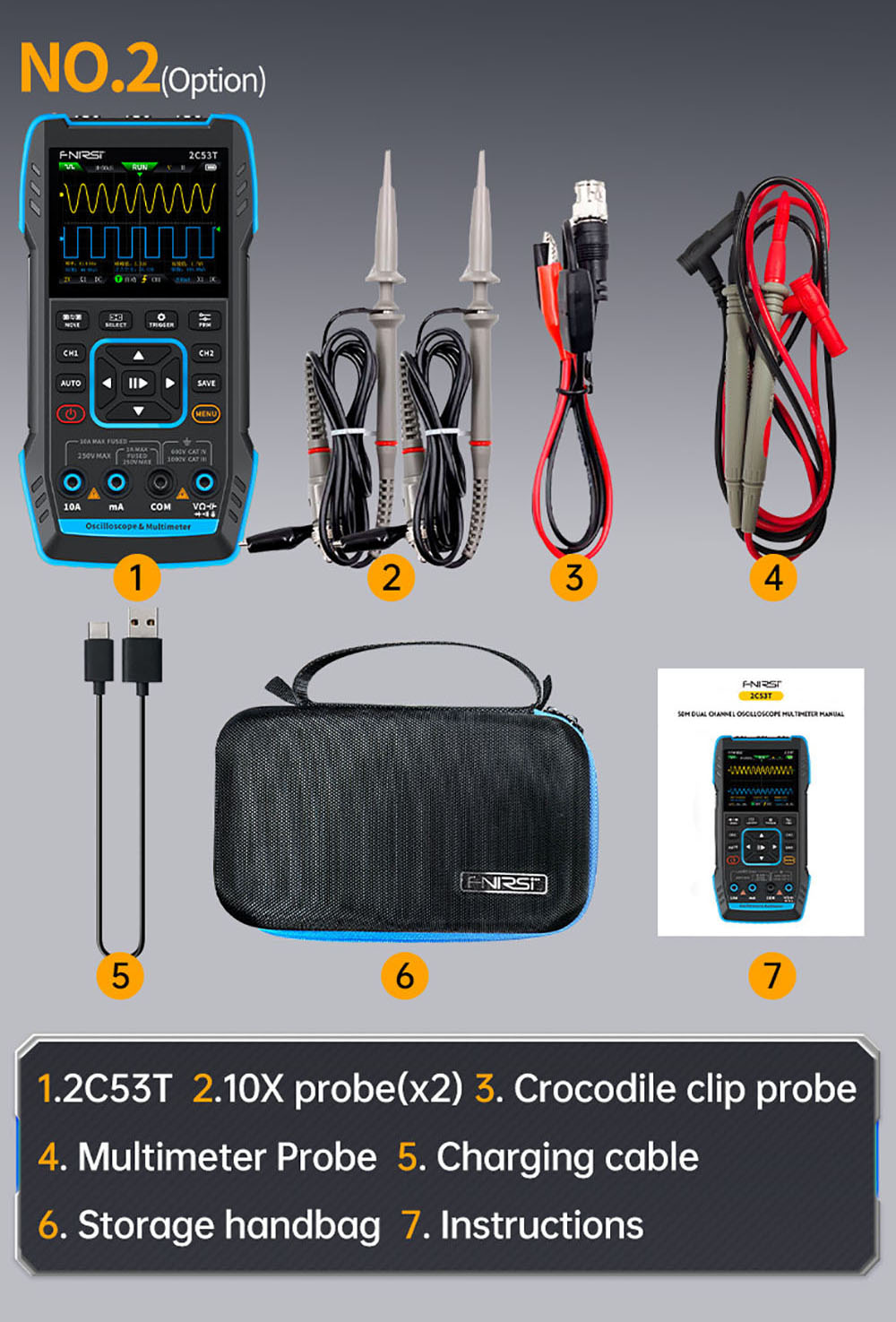

| Package Contents | 1 x Oscilloscope 2 x 10X Probe 1 x Crocodile Clip Probe 1 x Multimeter Probe 1 x Charging Cable 1 x Storage Handbag 1 x User Manual |
