FNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard Version

Brand: FNIRSI Item Code:527049
G-coin
Get Now
G-coin
QTY:
Shipping:
Add to Cart Buy Now
2
Payment:
Price Match
Bulk Order Rebate
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

2 Channel Oscilloscope

50 MHz bandwidth, 250 MSa/s sampling rate, 1 Kpts record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 10mV/div-10V/div, support waveform image storage and export.

4.5-Digit 19999 Counts Multimeter

AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-19.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists.

Signal Generator

The maximum waveform output frequency can reach 50 kHz and a step of 1 Hz and can output 13 waveforms.

Save Function

One-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.

Excellent Design

The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, a built-in high-voltage protection module, a 2.8 inch LCD display, a built-in 3000 mAh Li-ion battery, standby time up to 6 H, a Type-C interface supports 5 V/1 A charging.

FNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard VersionFNIRSI 2C53T 3in1 Oscilloscope Multimeter, Signal Generator, Dual Channel 50MHz Bandwidth, 250MS/s Sampling Rate, 19999 Counts, Voltage, Current, Capacitor, Resistor, Diode Test - Standard Version

Specification

General Brand: FNIRSI
Type: Oscilloscope Multimeter
Model: 2C53T
Color: Blue+Black
Specification

Basic Parameters:
Display Screen: 2.8 inch HD color screen
Resolution ratio: 320*240
Charging Specifications: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Support Functions: Oscilloscope, Signal generator, Multimeter (view functional parameters for details)
Standby Time: 6h (laboratory theoretical maximum)
Language: Chinese and English

Oscilloscope Parameters:
Channel: Dual channel
Sample Rate: 250MS/s
Analog Bandwidth: 50M(dual channel independent 50M)
Storage Depth: 1Kpts
Impedance: 1MΩ
Time Base Range: 10ns-20s
Vertical Sensitivity: 10mV/div-10V/div (x1)
Maximum Measured Voltage: ±400V
Trigger Mode: AUTO/Normal/Single
Trigger Type: Rising edge, Falling edge
Display Mode: Y-T/Rolling/X-Y
Coupling Method: AC/DC
Persistence: OFF, 500ms, 1s, ∞
Math: 8 Basic Operations + FFT
Waveform Screenshot Save: Supported
Export Waveform Image: Supported
Cursor Measurement: Supported
Infinite Afterglow: Supported

Function Signal Generator Parameters:
13 Signal Waveforms: Output waveform: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC, multi-audio, Sinker pulse, Lorentz wave
Output Frequency: 0-50KHZ
Output Amplitude: 0-3V
Output Duty Cycle: 0-100%

Multimeter Parameters:
DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V
AC Voltage: 1.9999V / 19.999V / 199.99V / 750.0V
DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A
AC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A
Resistance: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
Capacitance: 999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF
Temperature: (-55~1300℃) / (-67~2372℉)
Diode: YES
Continuity Test: YES

Weight & Size Product Weight: 295.2g
Package Weight: 848.9g
Package Size(L x W x H): 21.5x9.3x13.7cm

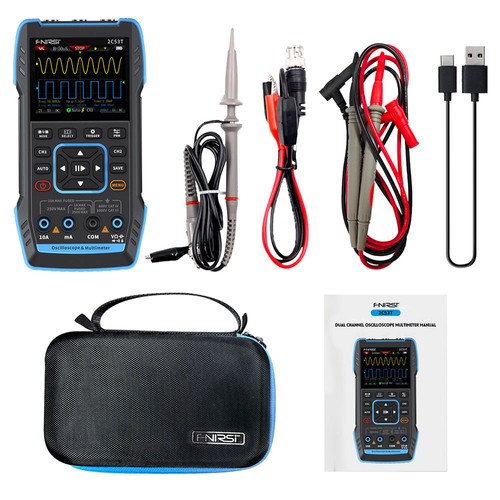

Package Contents 1 x Oscilloscope
1 x 10X Probe
1 x Crocodile Clip Probe
1 x Multimeter Probe
1 x Charging Cable
1 x Storage Handbag
1 x User Manual
