Highlights

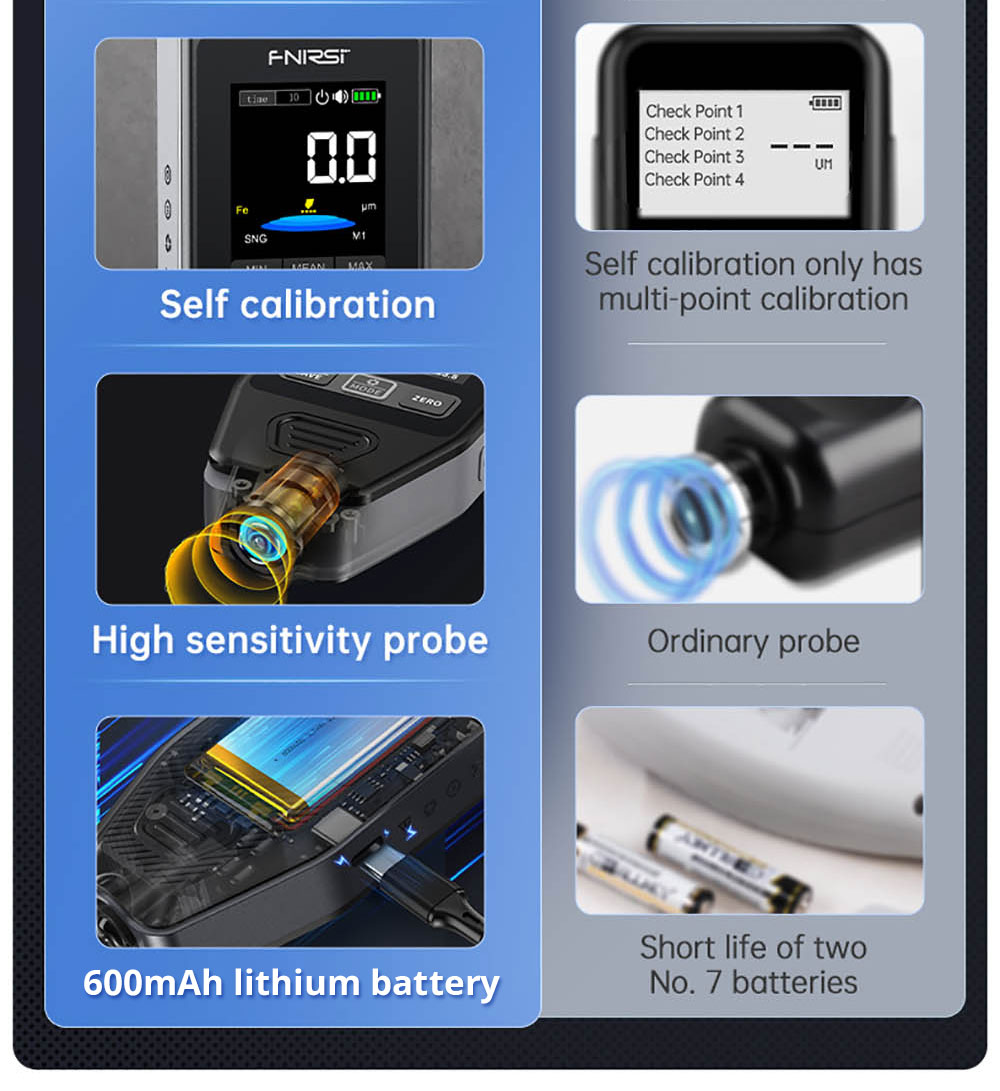

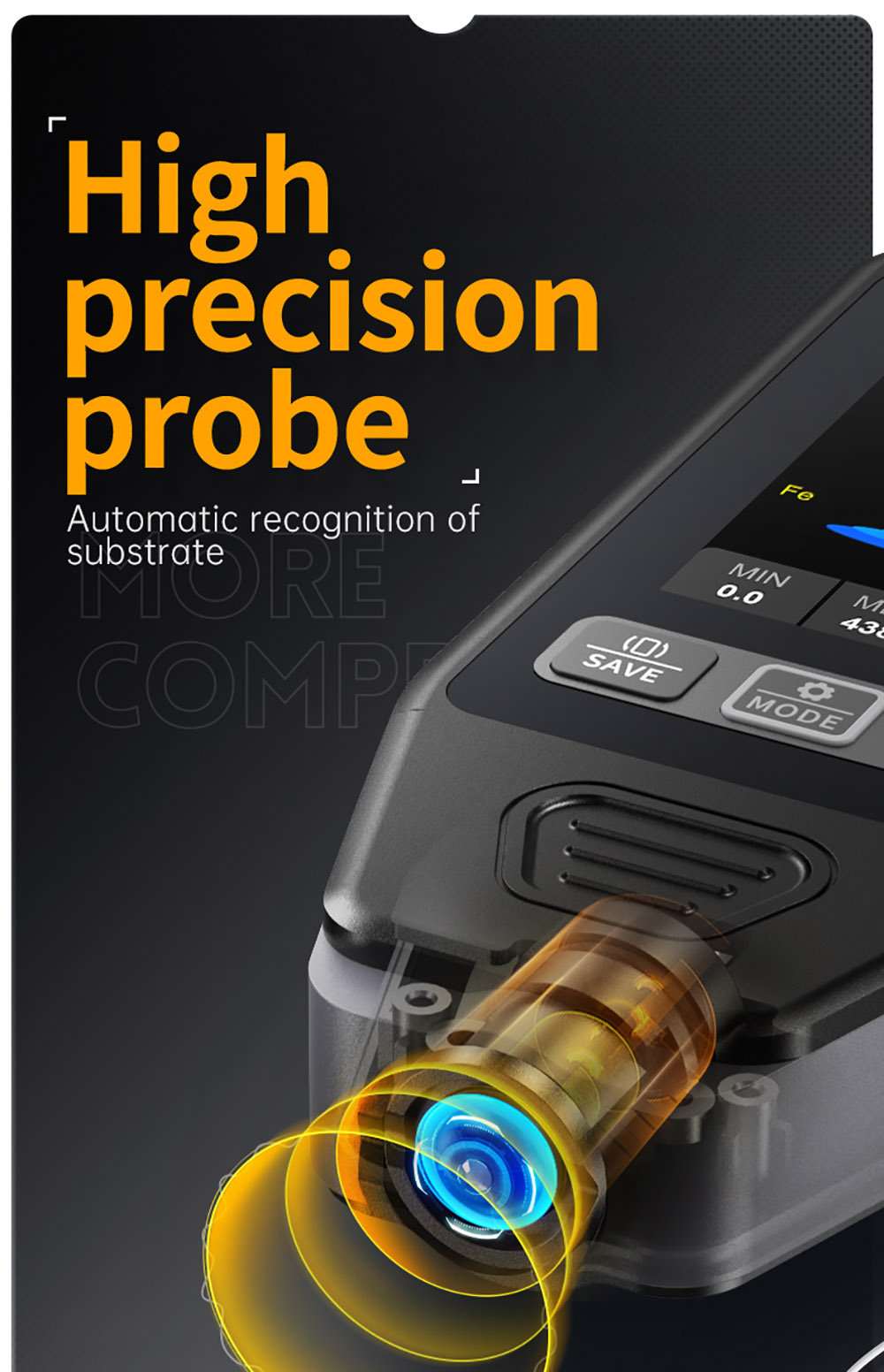

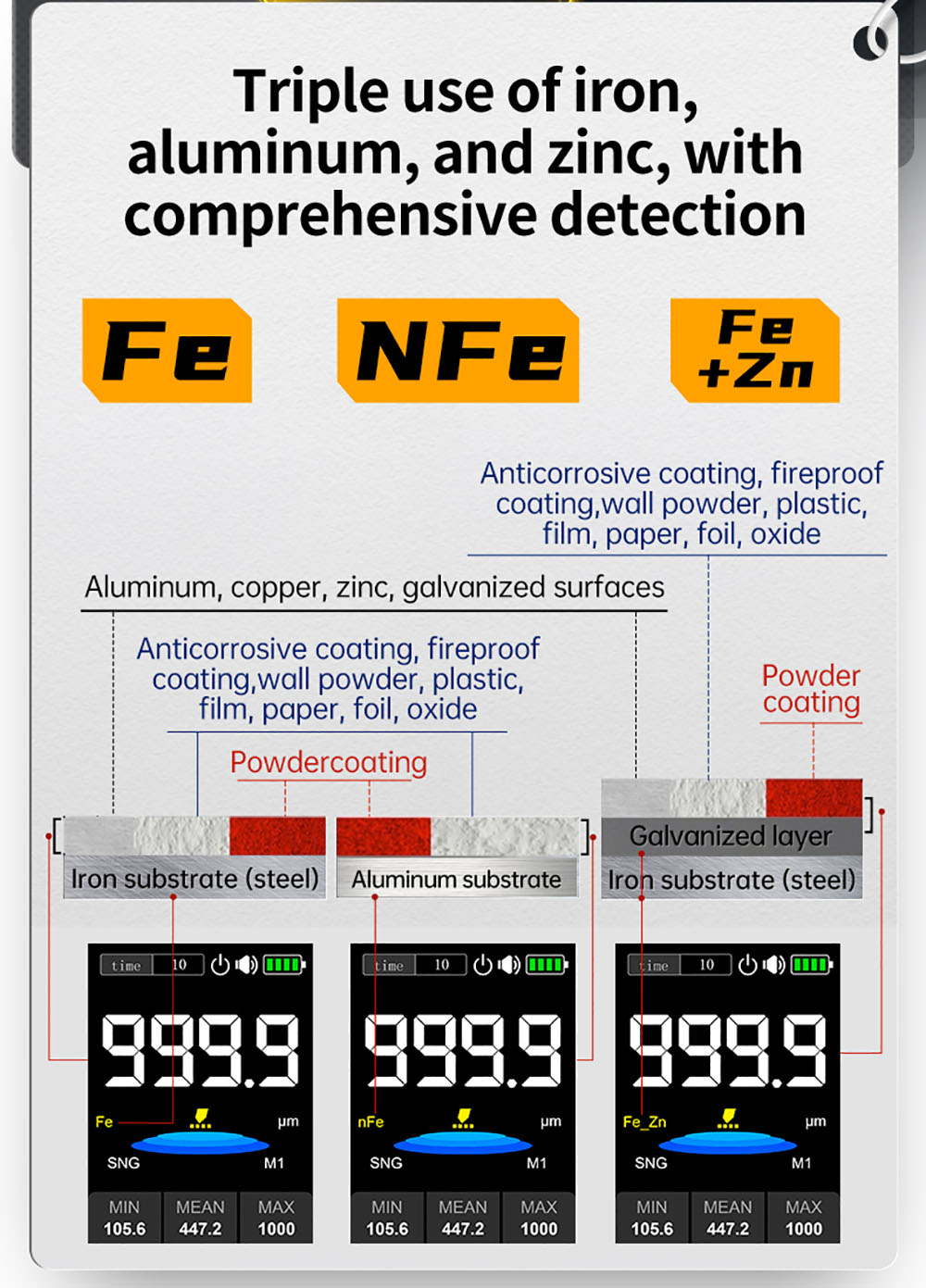

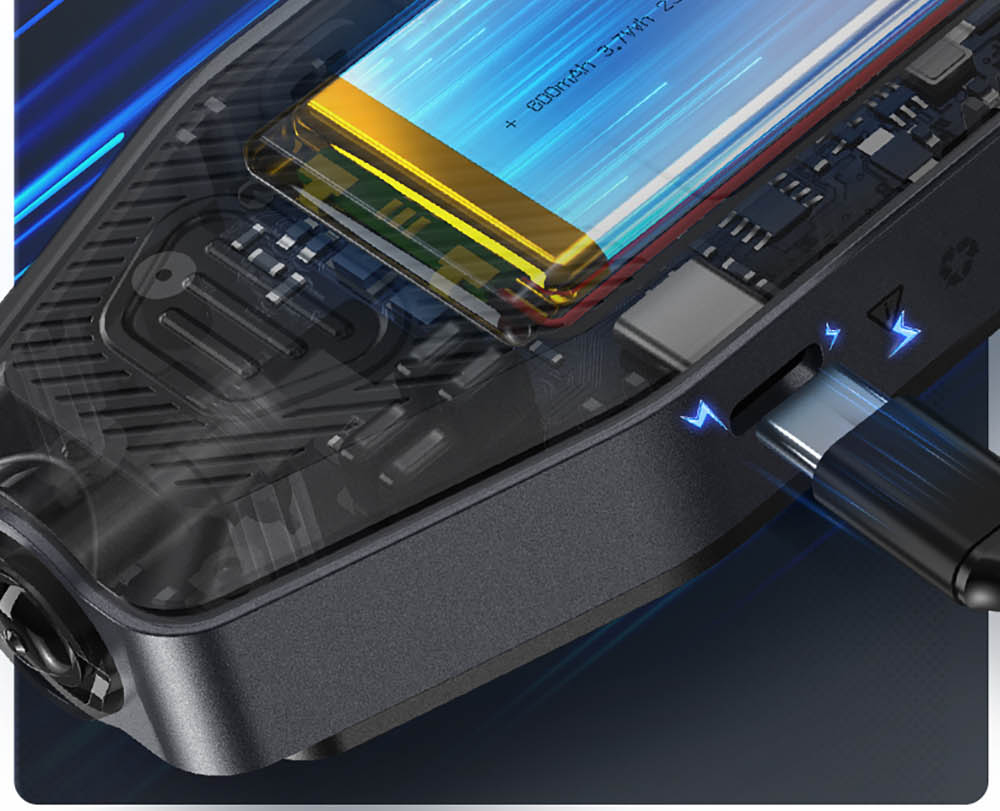

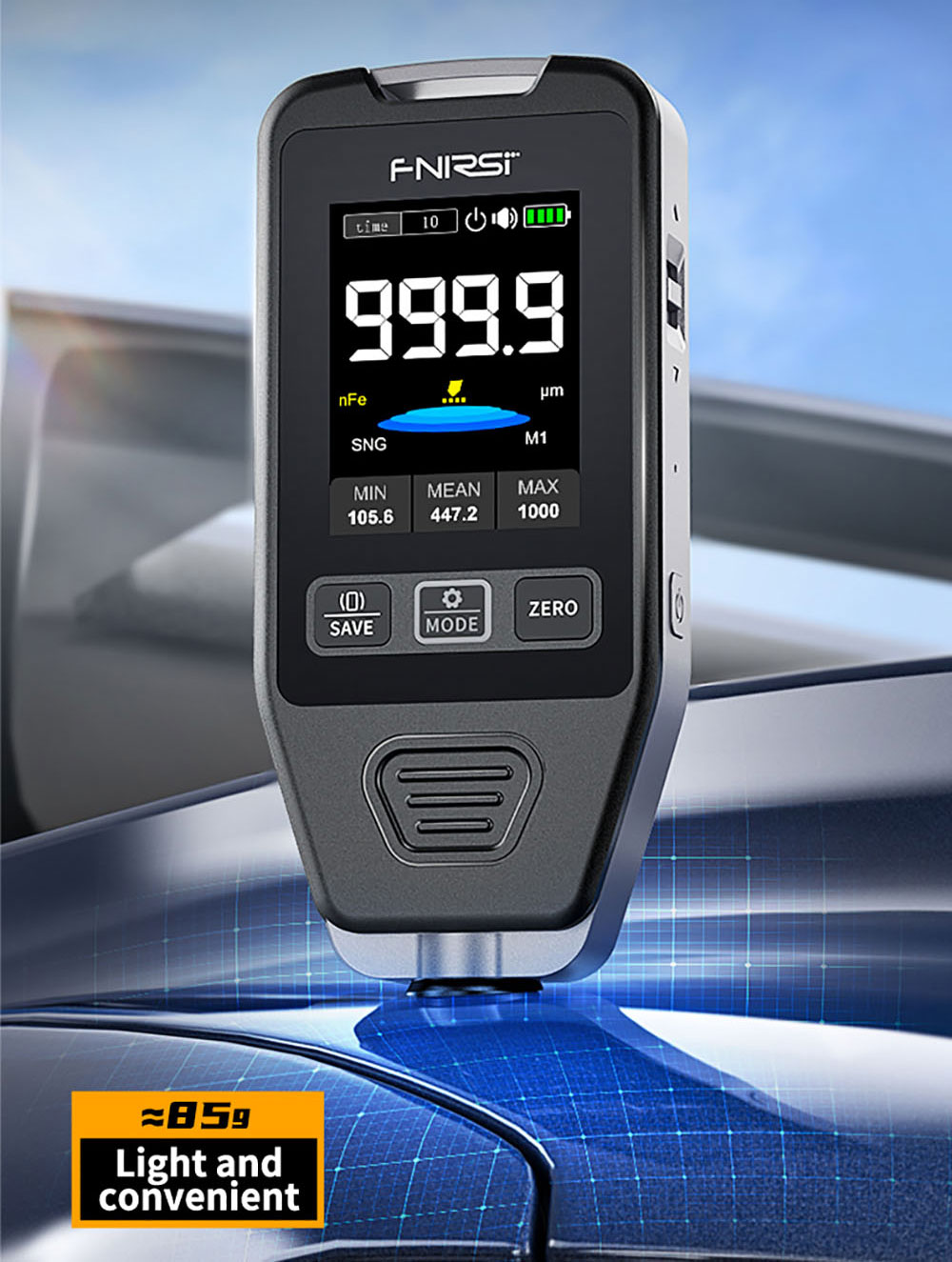

This product is a coating thickness gauge used to measure the thickness of electroplated coatings or coatings on metal surfaces. lt has the ability to measure the thickness of the nonmagnetic coating (such as paint)on magnetic materials such as steel/iron, as well as the thickness of the coating (such as paint)on nonmagnetic materials such as aluminum. Built-in precision probe, lithium battery charging. Automatically detect substrate properties and detect coating thickness through electromagnetic induction and eddy current effects. This instrument can non-destructive measure the thickness of the coating, with fast speed and high accuracy. Widely used in manufacturing, chemical industry, automotive and other testing fields.
Specification
| General | Brand: FNIRSI Type: Paint Thickness Gauge Model: CTG-20 Color: Black |

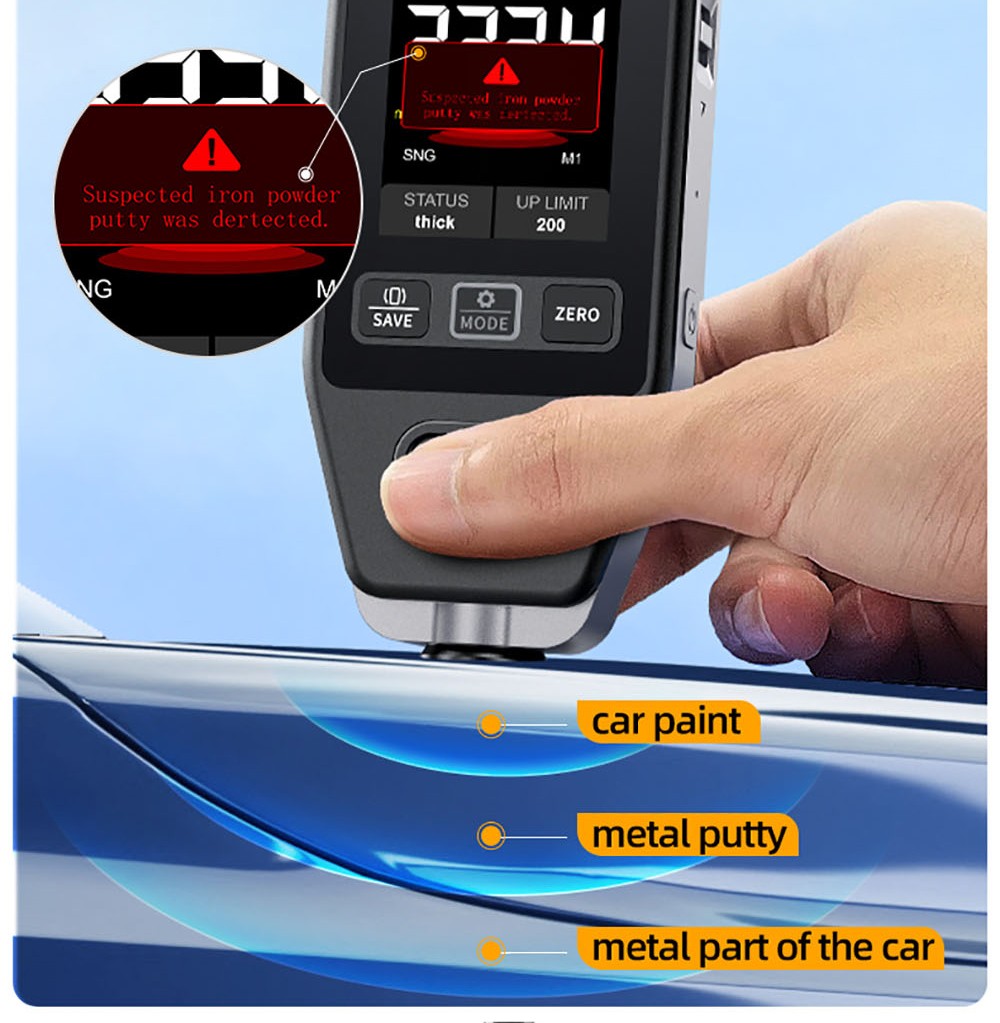

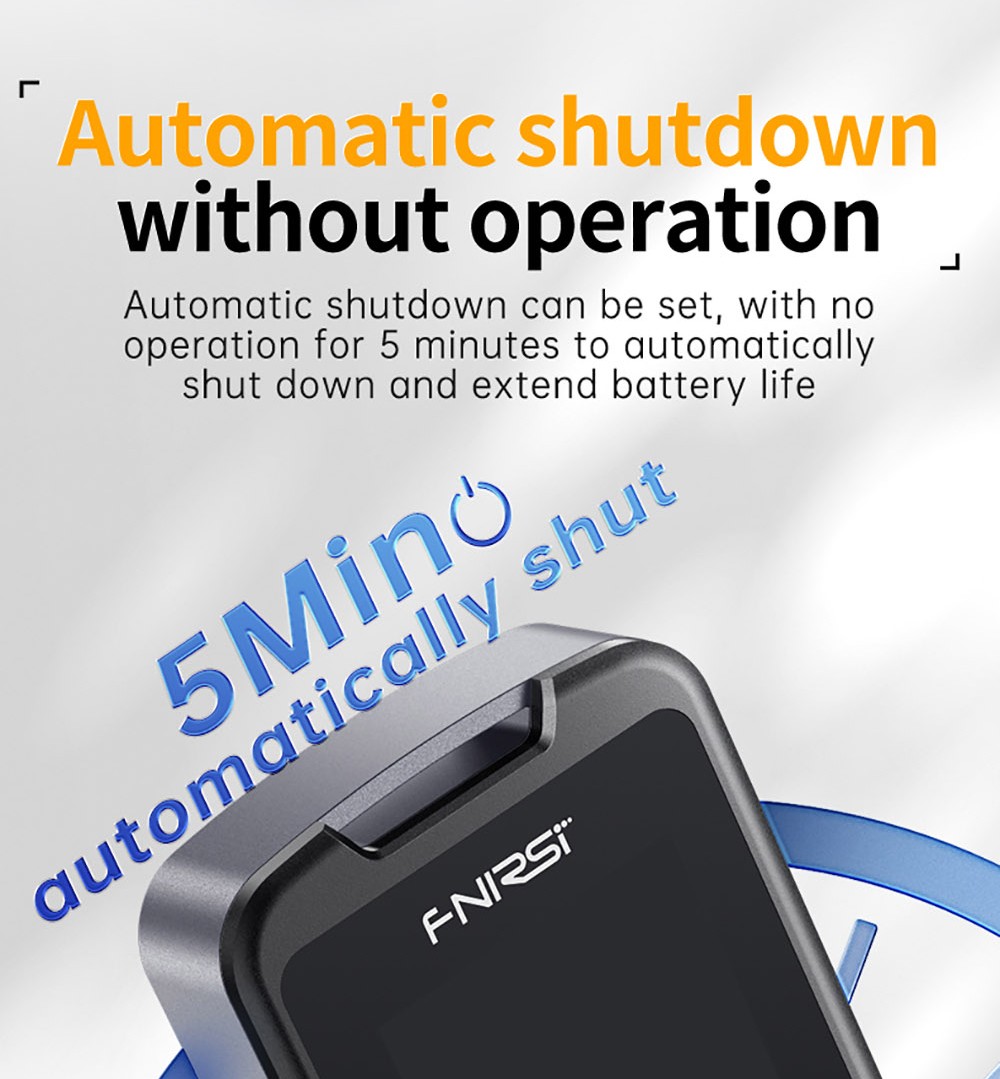

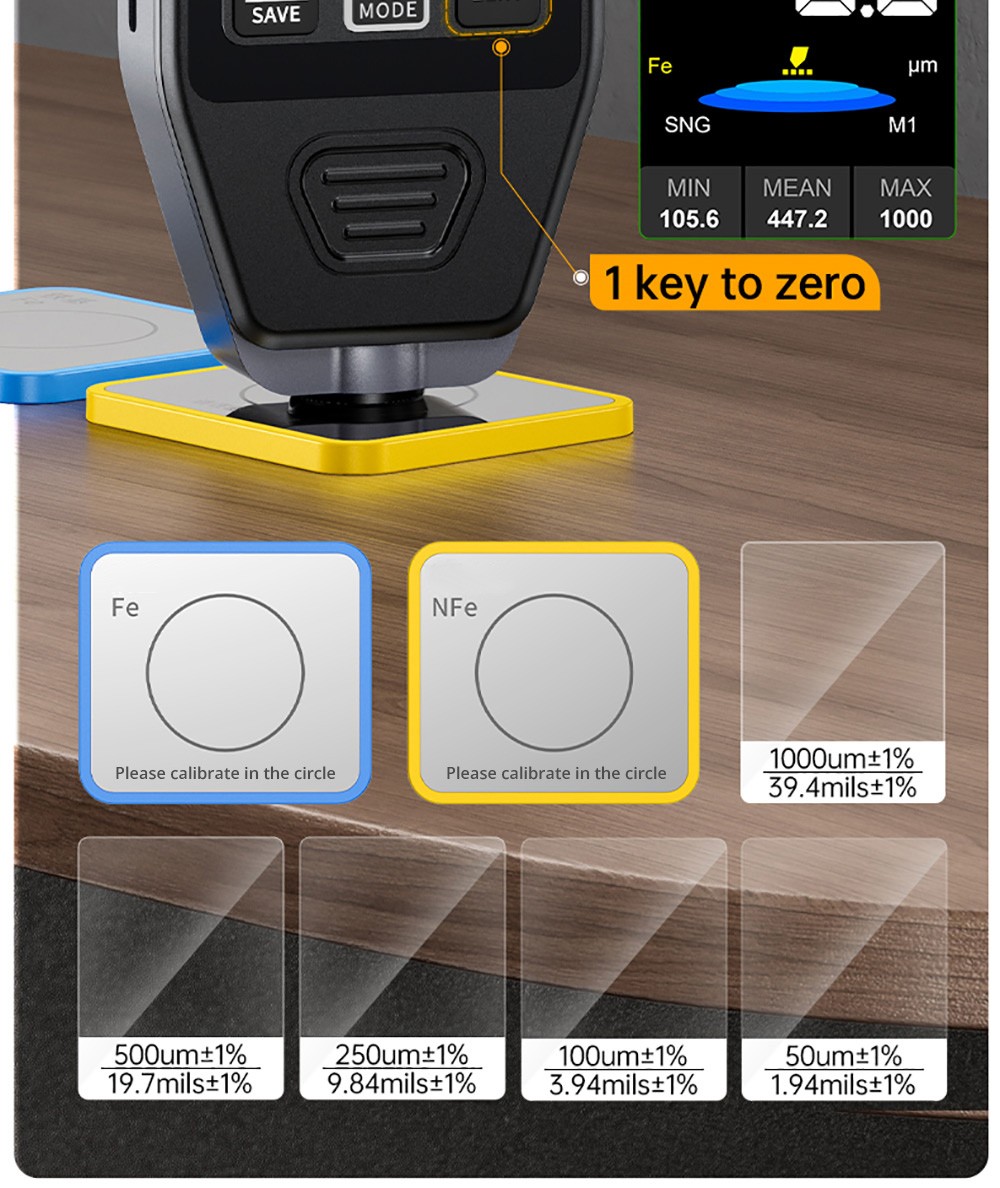

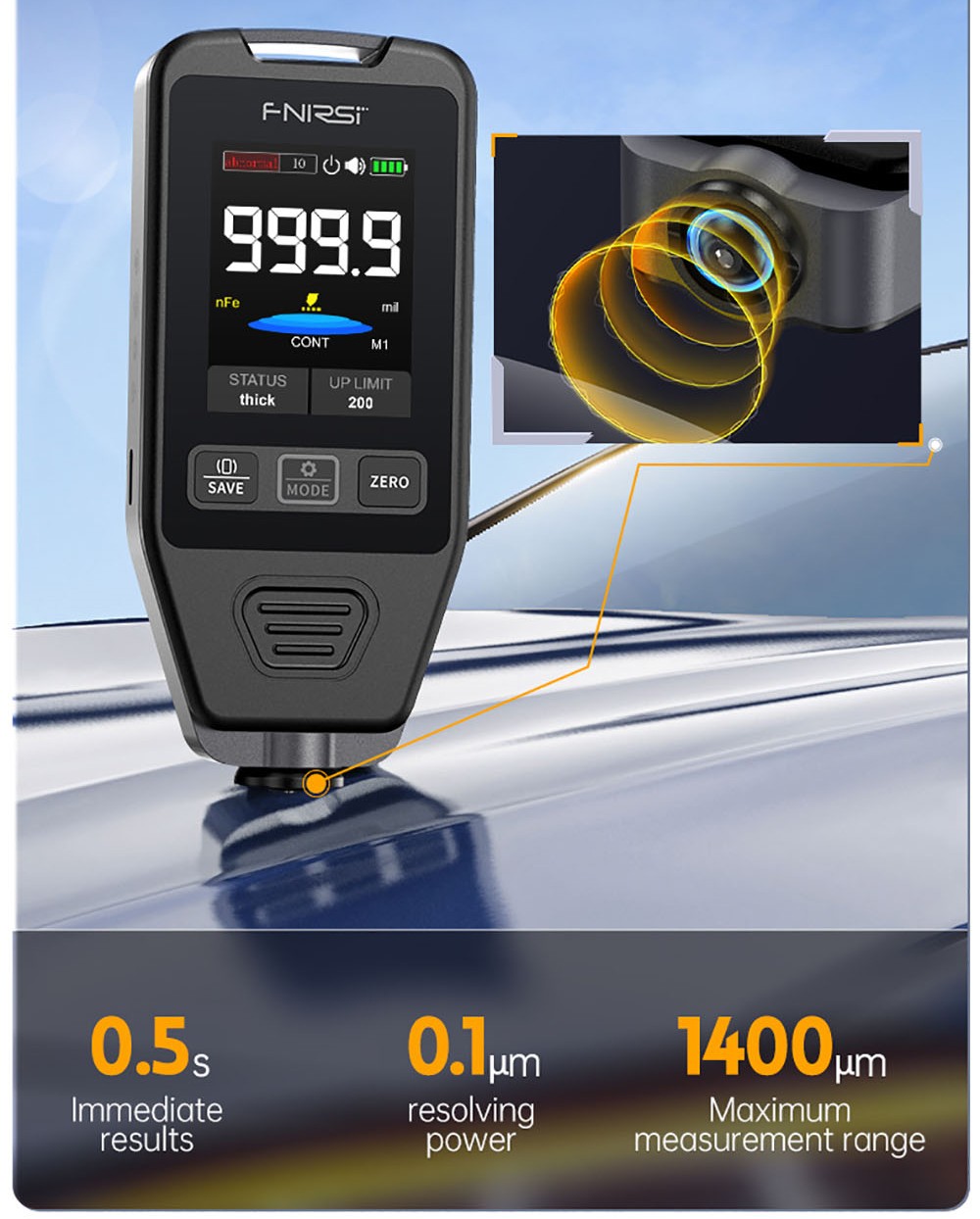

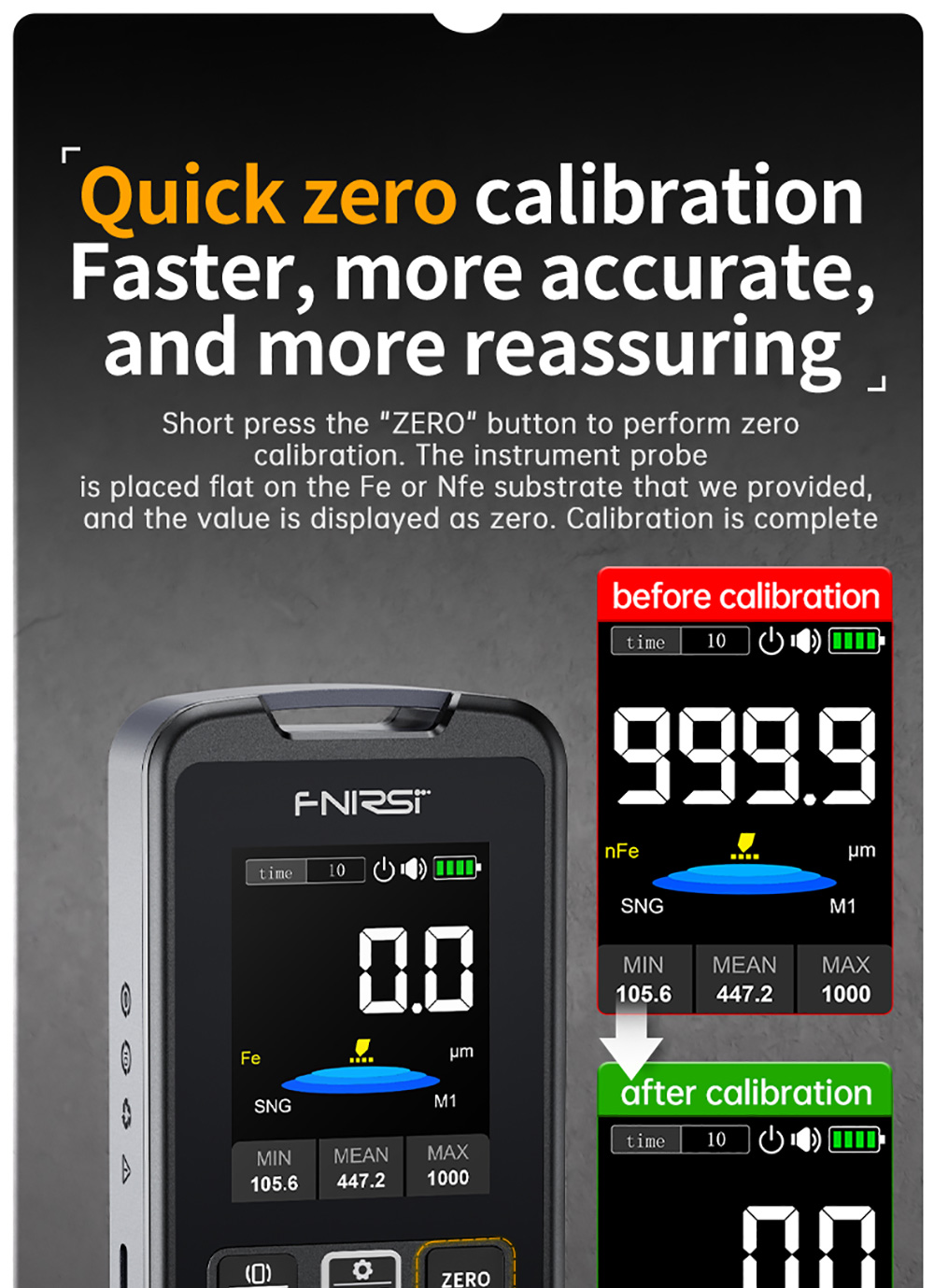

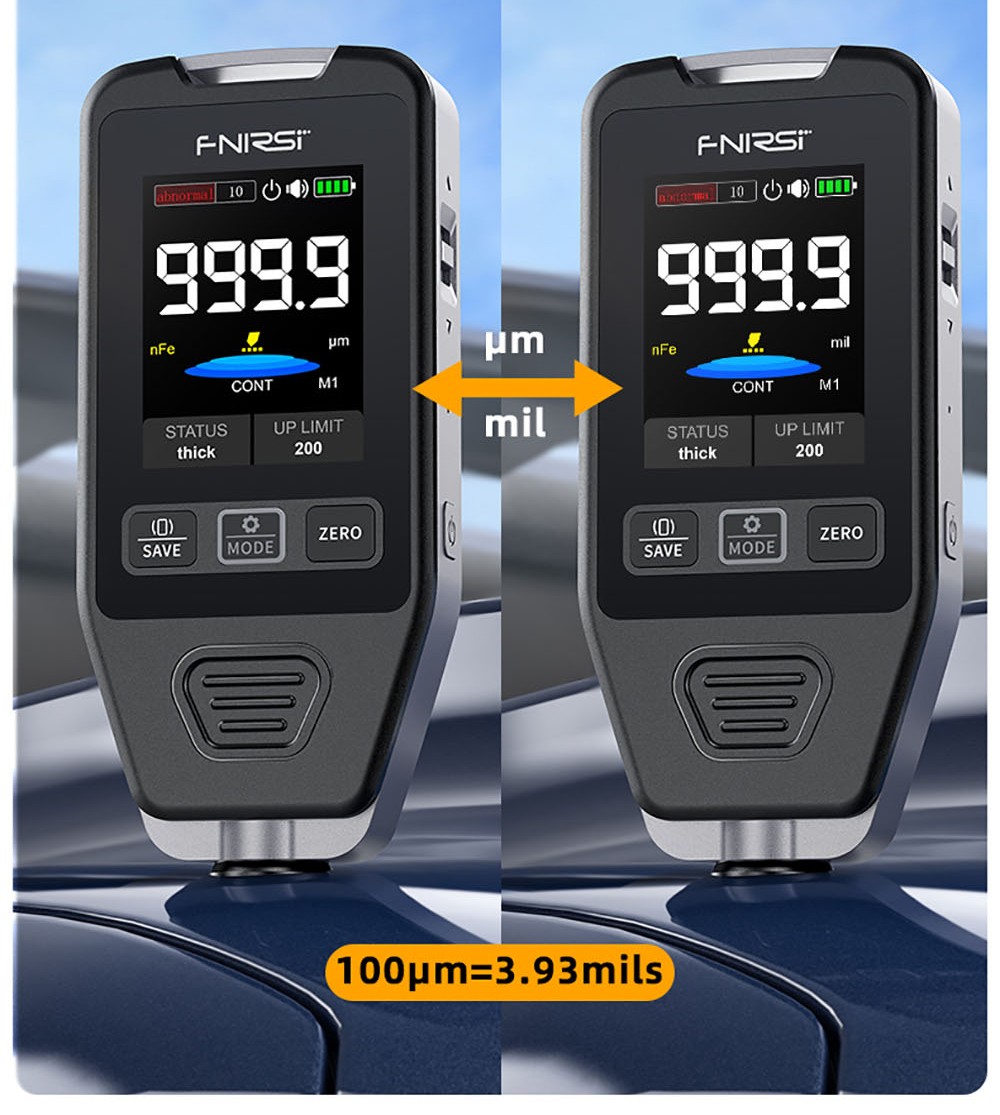

| Specification | Measuring Range: 0-1400μm Accuracy: ±3%+2μm Resolution Ratio: 0.1μm Calibration: Zero point calibration; Multi-point calibration Unit: μm, mil Mini Convex Curvature Radius: 5mm Mini Concave Curvature Radius: 25mm Mini Measurement Area Diameter: 20mm Work Environment: No strong magnetic field Work Temperature: -10 ℃ -50 ℃ Humidity: 20% -90% RH Battery: 600mAh Lithium battery Data storage: Support Putty powder test: Support Rotatable screen: Support Auto Power Off: Support |

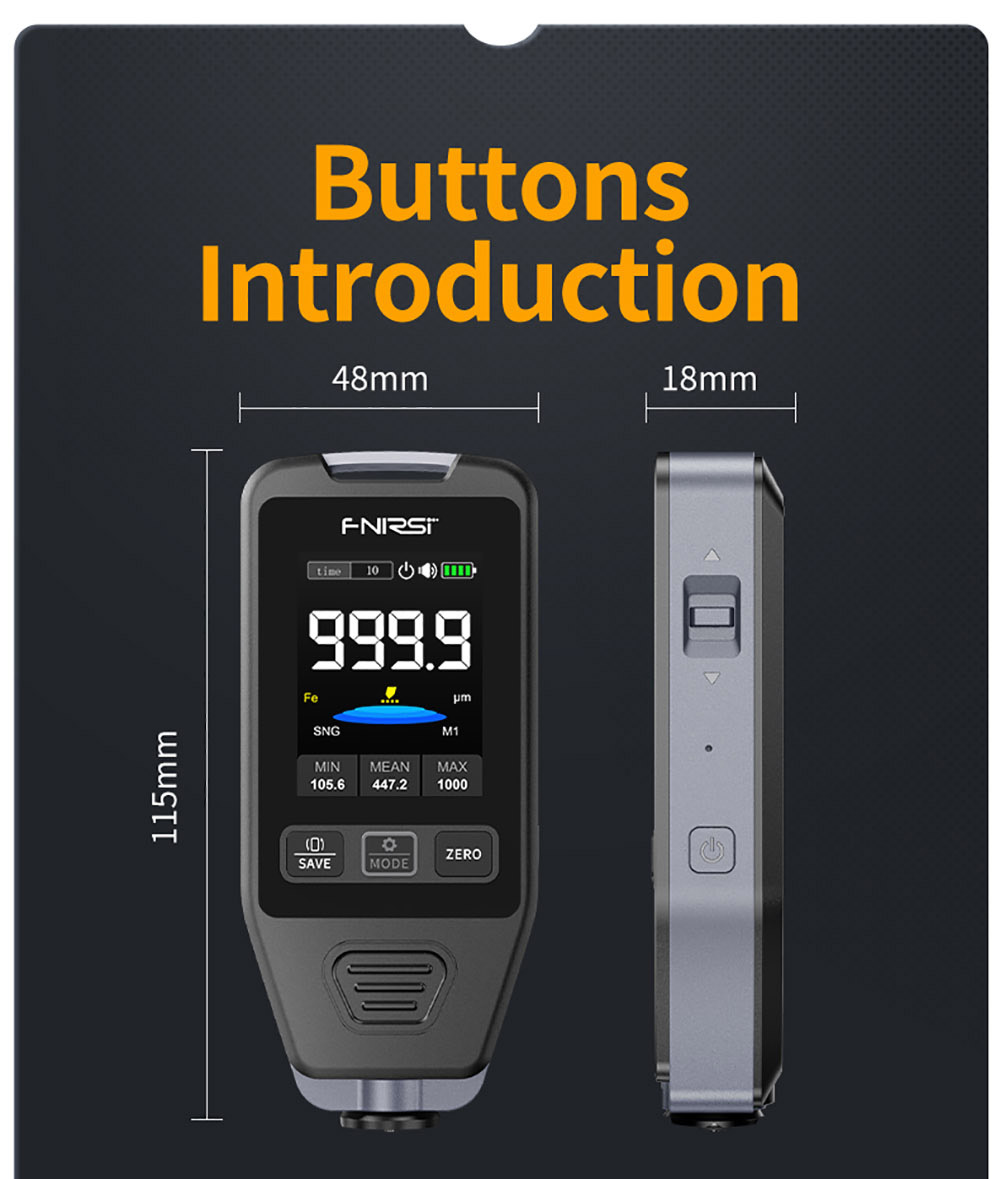

| Weight & Size | Product Weight: 89.2g Package Weight: 189.4g Product Size(L x W x H): 115x48x18mm Package Size(L x W x H): 178x8x48mm |

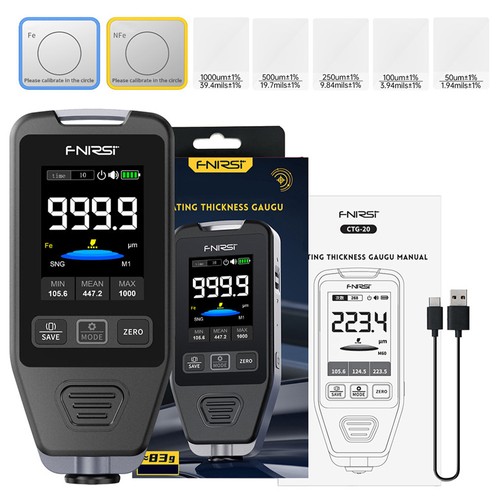

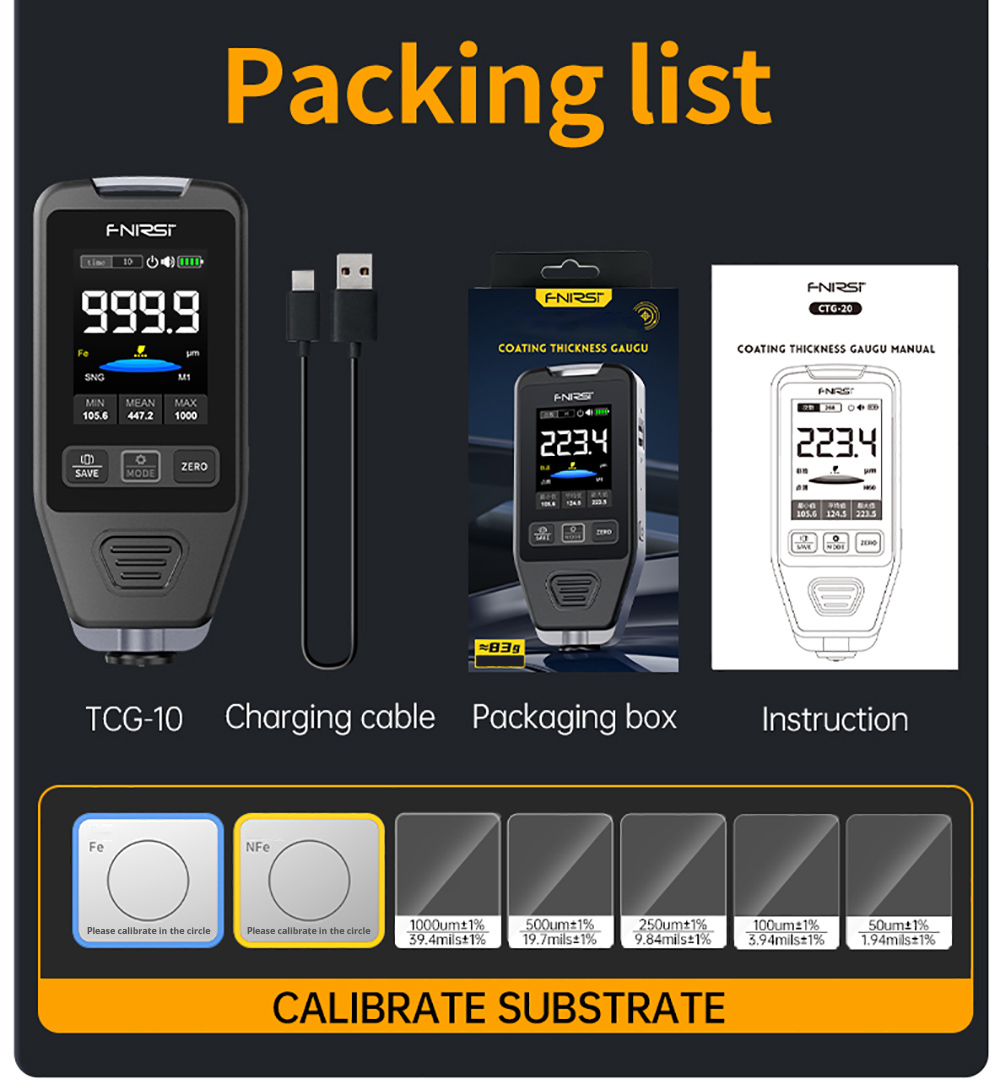

| Package Contents | 1 x Paint Thickness Guage 1 x Charging Cable 1 x Packaging box 1 x User Manual |
