Highlights
Bidirectional High Current Detection

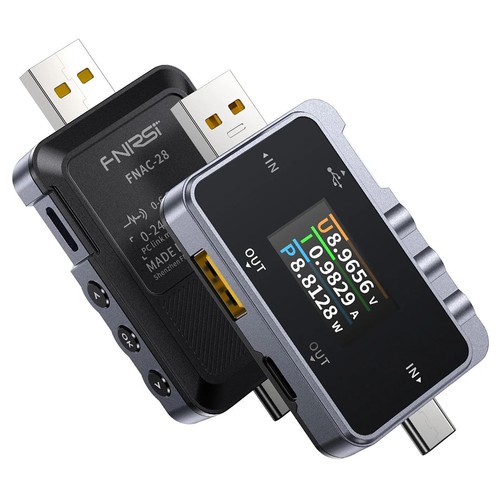

FNIRSI FNAC-28 USB tester supports 6.5 A bidirectional current detection, USB-A/Type-C interface compatible, accurately measures power supply and power consumption, and provides users with detailed data support.
High-Precision Measurement Chip
The USB power meter uses an external 16-bit ADC to ensure accurate measurement of voltage and current data, effectively reducing the error range and improving the professionalism of the test.
Multi-Functional Data Analysis
USB cable tester supports battery capacity testing, stores 5 sets of data; supports curve display, waveform pause, and the time base range can be adjusted, and the data carefully.
Fast Charging Protocol Support
The voltage tester supports QC2.0/QC3.0, FCP/SCP, AFC, VOOC/WARP, SVOOC 1.0/SVOOC2.0 triggering. All the above protocols support automatic detection to meet various testing needs.
Cable Detection and Simulation
The USB detector uses the differential pressure method to measure the internal resistance of the cable, simulate APPLE 2.4 A, DASH fast charging, and read DASH cable information.
Specification
General | Brand: FNIRSI Type: Type-C USB Tester Model: FNAC-28 |
Specification | Screen: 1.06-inch color screen Monitored Voltage: 4~24V Monitored Current: 0~6.5A Monitored Power: 0~156W Temperature symbol: ℃ and ℉ switch |
Weight & Size | Product Weight: 21g Package Weight: 52.5g Product Size(L x W x H): 7.3x3.6x1.2cm Package Size(L x W x H): 11.5x5.3x3.3cm |
Package Contents | 1 x Type-C USB Tester 1 x User Manual |
