GTMEDIA V8 Finder PRO 2 Satellite Finder ATSC-C Digital Satellite Signal Detector, Support DVB-S2X/S2/S, DVB-T2/T, DVB-C - Orange, EU Plug

Name: GTMEDIA V8 Finder Pro 2 Satellite Finder - Orange, EU Plug
Brand: GTMEDIA
SKU: 523982
Price: 106.72 USD
Availability: InStock
Rating: 5 (10 reviews)

Share to

5 10Reviews

Brand: GTMEDIA Item Code:523982

Get Coupons

G-coin

Get Now

G-coin

Ship from:

Option:

EU Plug

Notify Me

Authorized Seller

14-Day Return & Refund

1-2 Year Warranty

Payment:

Price Match

Wholesale

Tax

Ship to:

United States

Select the desired shipping method

Shipping Company Estimated Delivery Time Shipping Cost

*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

0 item(s) added

View CartContinue Shopping

Description
Reviews
Q&A
Support & Firmware
Learn More

Notify Me

Highlights

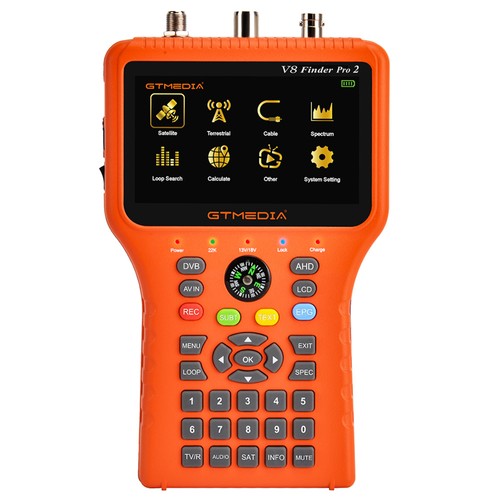

GTMEDIA V8 Finder Pro is a handheld combination meter that complies with DVB-S2X/S2/S/T2/T/C and MPEG-2/4 H.264/H.265 (10-bit) standards, with compact size and lightweight, intuitive and other advantages. Featuring a user interface, long battery life, and rich feature set, this meter provides all the functionality needed to install and verify digital satellite television service, antenna signals, and cable signals for a residential or multi-dwelling unit.

4.3-inch high-definition TFT LCD screen
Fully compatible with DVB-S2X/S2/S/T2/T/C, MPEG-2/MPEG-4
Support H.264/H.265 (10 Bit) hardware decoding
Digital signal strength and quality measurement devices. Supports presetting all satellite information
Support loop search
Spectrum analyzer
Support automatic, blind scan, manual or NIT scanning
Lock signal sound
Automatically calculate AZ and EL angles
Support DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz audio
Speaker integration
Support AV input
Support HDMI output
AHD 1.0 input: Test CCTV cameras (MAX 1080P)
Support DC12V 500mA output
Support compass function
Support real-time battery display and low-battery reminder
Support USB wifi 2.4G Youtube
LNB short circuit protection
Comes with 7.4V/4000mAh lithium-ion battery
Software upgrade via USB interface
Easy to carry

GTMEDIA V8 Finder PRO 2 Satellite Finder ATSC-C Digital Satellite Signal Detector, Support DVB-S2X/S2/S, DVB-T2/T, DVB-C - Orange, EU Plug

Specification

General	Brand: GTMEDIA Type: Satellite Signal Finder Model: V8 Finder PRO 2 Color: Orange
Transmission Standard	DVB-S2X/S2/S,DVB-T2/T,DVB-C,MPEG-2,MPEG-4,H.264/H.265(10 Bit) Supports softcam: BISS auto roll, PowerVu auto roll, TNT(19.2E) Support VCM, ACM, multi-stream, T2MI, Multi-PLP Supports IKS: CCCAM, NEWCAM, MGCAM
Satellite Input/Demodulation	Connector Type: F Type Input Frequency: 950 to 2150 MHz Signal Input Level: ‐65 to ‐25 dBm Band Switch Control: 22KHz LNB Supply: 13V/18V, Max 350mA Demodulation Type: DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK Symbol Rate: 2<Rs<49Mband(SCPC/MCPC)
DVB-T2/T/Cable Input/Demodulation	Connector Type: F Type Input Frequency: 48 to 862 MHz Signal Input Level: -80 dBm(MAX) ANT Supply: 5V DC @ 120mA MAX Demodulation Type: QPSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
LCD Features	LCD Type: 4.3'' high-resolution digital display LCD Number of Dots: 800 RGB(H) 480(V) Active area (WH): 95.04*53.86mm
HD Output: On Satellite Finder State	Format: HDMI 1.3a Resolution: Optional 480i, 480P 576i, 576P, 720P, 1080i, 1080P
AV Input Interface	Connector Type: 3.5 mm jack Video Input: CVBS Audio Input: Stereo Audio L/R input
AHD Tester	Connector Type: BNC Female Impedance: 75Ω Frequency Range: DC～2GHz Video input support: NTSC/PAL AHD input: 720P 960P 1080P HD video input, display picture
Audio/Video Processing	Video decompression: MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 / H.265 MP&HP@L4, HW JPEG decoder Resolving rate: PAL-25 frame@720576, NTSC -30 frame@720480 Signal compatibility: Support conversion for different video formats Video Format: 4:3, 16:9, By Pan & Scan and Letter Box conversion Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II Audio Output Mode: Stereo, Mono, R/L
Data Service Port	Connector: USB Data Protocol: USB 2.0 interface File Management System: NTFS, FAT32, FAT16 Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp Audio: wma, mp3 Photo: jpg, jpeg, bmp, img PVR Option: Support software upgrade and PVR, supports external HDD via USB, power wanted if necessary WIFI Option: Support networking via USB WIFI
Power Supply	Li-Lon Battery: 7.4V/4000mAh (The machine behind labeling shall prevail) Battery power: Build-in Lithium battery find satellite around 3 hours Battery play time (AV input): about 5 hours Adapter output: DC 9V/2A Adapter input: 100～240VAC 50/60Hz (Will be subject to actual configuration) Power Consumption: Max.10W
Dimensions & Weight	Product Weight: 0.6kg Package Weight: 0.85kg Product Size: 12320445mm Package Size: 26020057mm
Package Contents	1 x Satellite Signal Finder 1 x Power Adapter 1 x Carry Bag 1 x User Manual
