Highlights
DVB-S/S2/S2X,DVB+T/T2/Cable(J83.A/B/C)/ISDBT.
Support Full PowerVu, DRE &Biss key
Support FULL HD 1080P (AVS+, H.265)

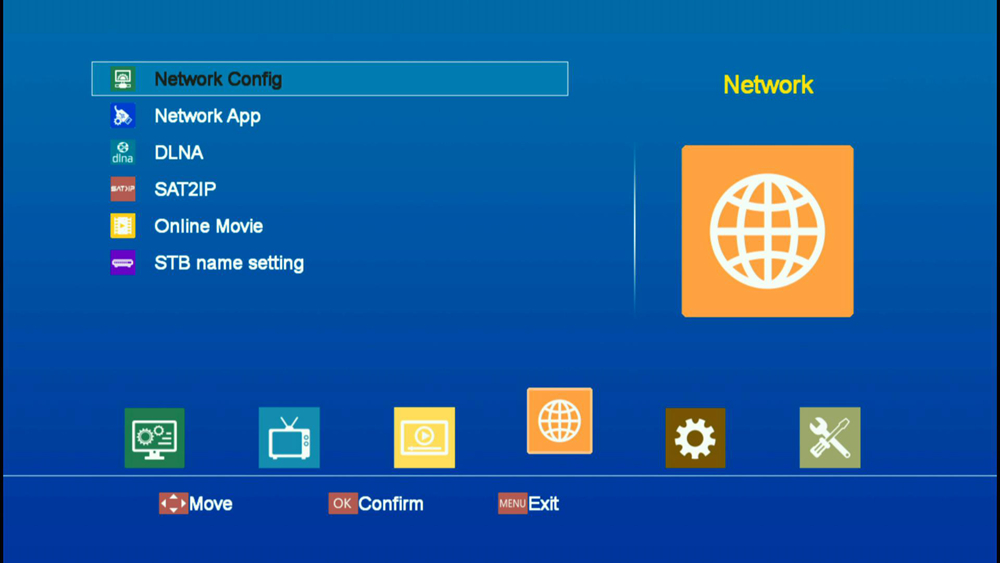

Support DLNA, SAT To IP

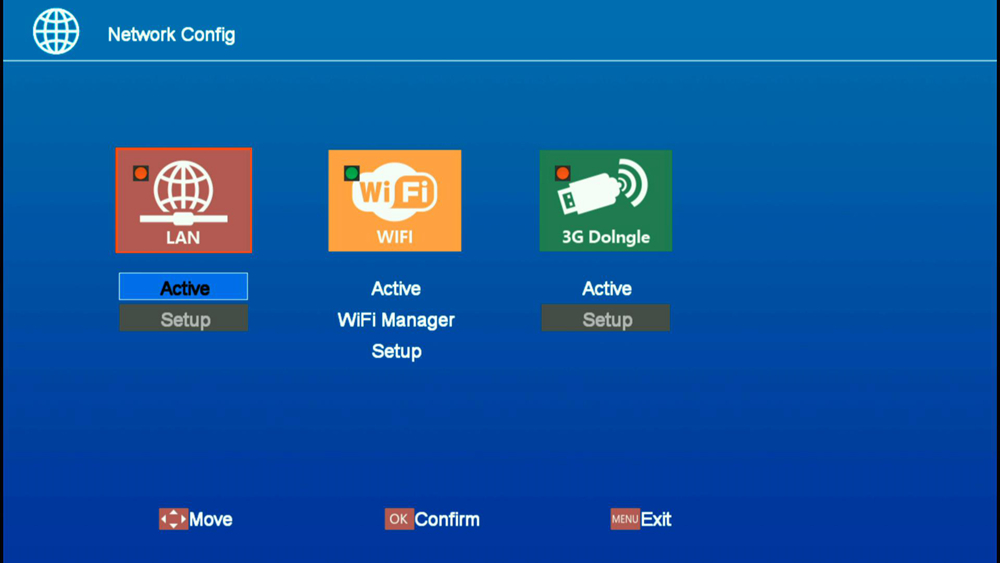

Support Built-in WIFI module, Ethernet,Full speed 3G usb dongle

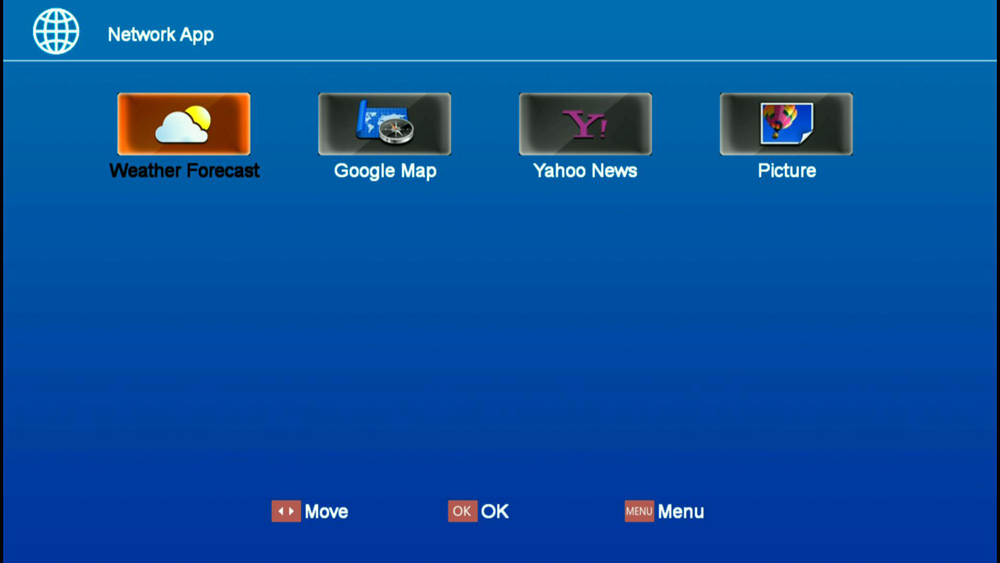

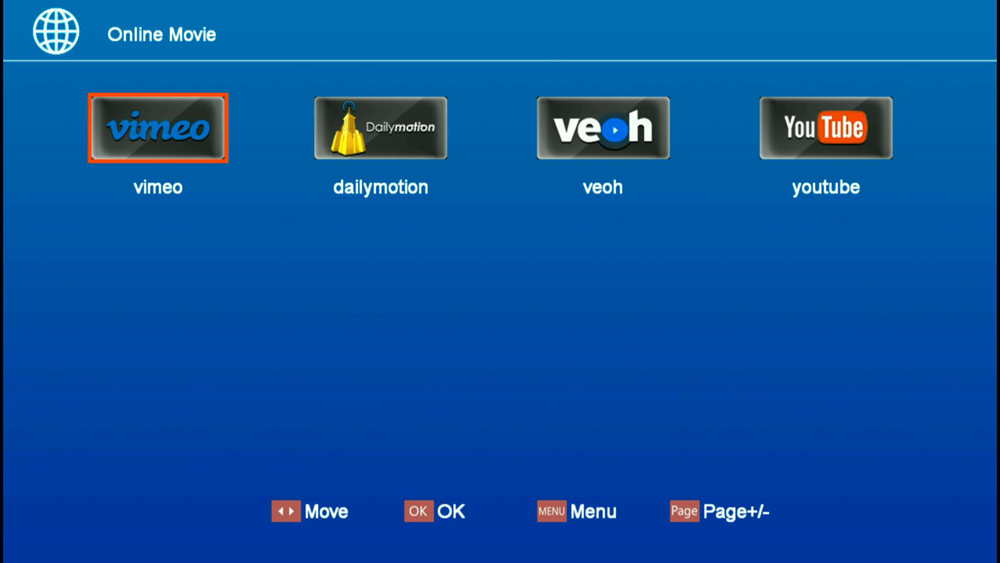

Support IPTV,Youtube,Youporn,Redtube; Weather forecast,Jamendo,Yahoo news, Picture etc.
Support Network Sharing Cccam,Newcam,Mgcam.
Specification
| General |
Brand: GTMEDIA |
| Communication |
WiFi: 2.4G WiFi |
| Media |
Video Decode: MPEG-2 MP@HL;MPEG4/H.264,H.265, BP MP&HP@L4.1; AVS profile@L6.1/4.0/2.0 |
| Interface | 1*USB HOST 1*RJ45 1*RS232 (3-pin 3.5 mm jack) |
| DVB-S2 | DVB-S/S2\S2X system standard: ETS 302 307 Symbol Rates: QPSK,8PSK Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 Symbol Rates: 1- 55 Msps Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 Input Signal level: -84 dBm to 0 dBm (average power) ANT. Connector: IEC TYPE F |
| DVB-T2 | DVB-T/T2 system standard: ETSIEN 302 755 Support MPLP Demodulation: QPSK,16QAM,64QAM or 256QAM Forward error correction rate 1/2,2/3,3/4,3/5,5/6 Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128 Bandwidth: 6/7/8MHz Input France range:54--860MHz Input Impedance:75 Ω Input Signal level: -84 dBm to 0 dBm (average power) ANT. Connector:IEC TYPE, female |
| DVB-C | IEC 169-24 female 75Ω for input Demodulation: 16QAM,32QAM,64QAM,128QAM,256QAM Input France range:50--860MHz Input Impedance:75 Ω Input Signal level: -84 dBm to 0 dBm (average power) ANT. Connector:IEC TYPE, female |
| ISDBT | SDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DivX FFT Mode: 2K/ 8K/32K Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK Forward error correction rate 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic Guard interval: 1/4,1/8,1/16,1/32 Bandwidth: 6/7/8MHz Input Frange range:VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz Input Signal level: -83 dBm to 0 dBm (average power) ANT. Connector:IEC TYPE, female |
| Other Features | Panel display: 4-digit white LED display LED Indicator: Power ON: Green; Standby: Red Rear Panel: ANT IN ( EC-type IEC169-2 Female) LNB IN (Frequency Range950MHz to 2150MHz) HDMI 1.4 (V1.0/V1.1) AV OUT (4-pin 3.5 mm jack) Power (Input 110V ~ 240V, 50/60Hz DC12V/1.5A) Standard: Fully comply with DVB-S/S2 (SCPC and MCPC receivable from C/Ku band satellite), DVB-T/T2/Cable(J83.A/B/C)/ISDBT, MPEG-2/4 H.265 Standard Switch protocol: DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 450mA MAX,Overload Protection, 0/22K Channels Number 10000 channels TV and Radio programmable Favorites: 31 different favorite groups selection OSD Language: OSD Multi-language for options EPG: Fully support to 7 days Electronic Program Guide(EPG) OSD Color: 32-bits OSD with anti-flickering Channel Search: Supports NIT Search, Automatic network search for newly added transponders Channel Edit: Various channel editing function(favorite,move,lock,skip, delete,rename,find,sort) Parental Ctrl: Parental control for channels Easy Menu: Plug and Play installation, with an easy to use Menu System PAL/NTSC: Automatic PAL/NTSC conversion SoftUpgrade: Software upgrades through USB port, or RS232 for PC upgrade. Channel:Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) Subtitle: support DVB EN300743 and EBU Teletext: support DVB ETS300472 by VBI and OSD Time Set: Time set by GMT offset automatic and manual,Summer Time support Timer: 5 event timers,off/Once/Daily/Weekly Mode USB 2.0 Support FAT/FAT32 big capacity hard disk |
| Dimension&Weight | Product Size: 185*100*35MM (L*W*H) Packaged Size: 242*157*59MM Weight: 0.65 KG |
| Package Contents |
1x TV Box |
