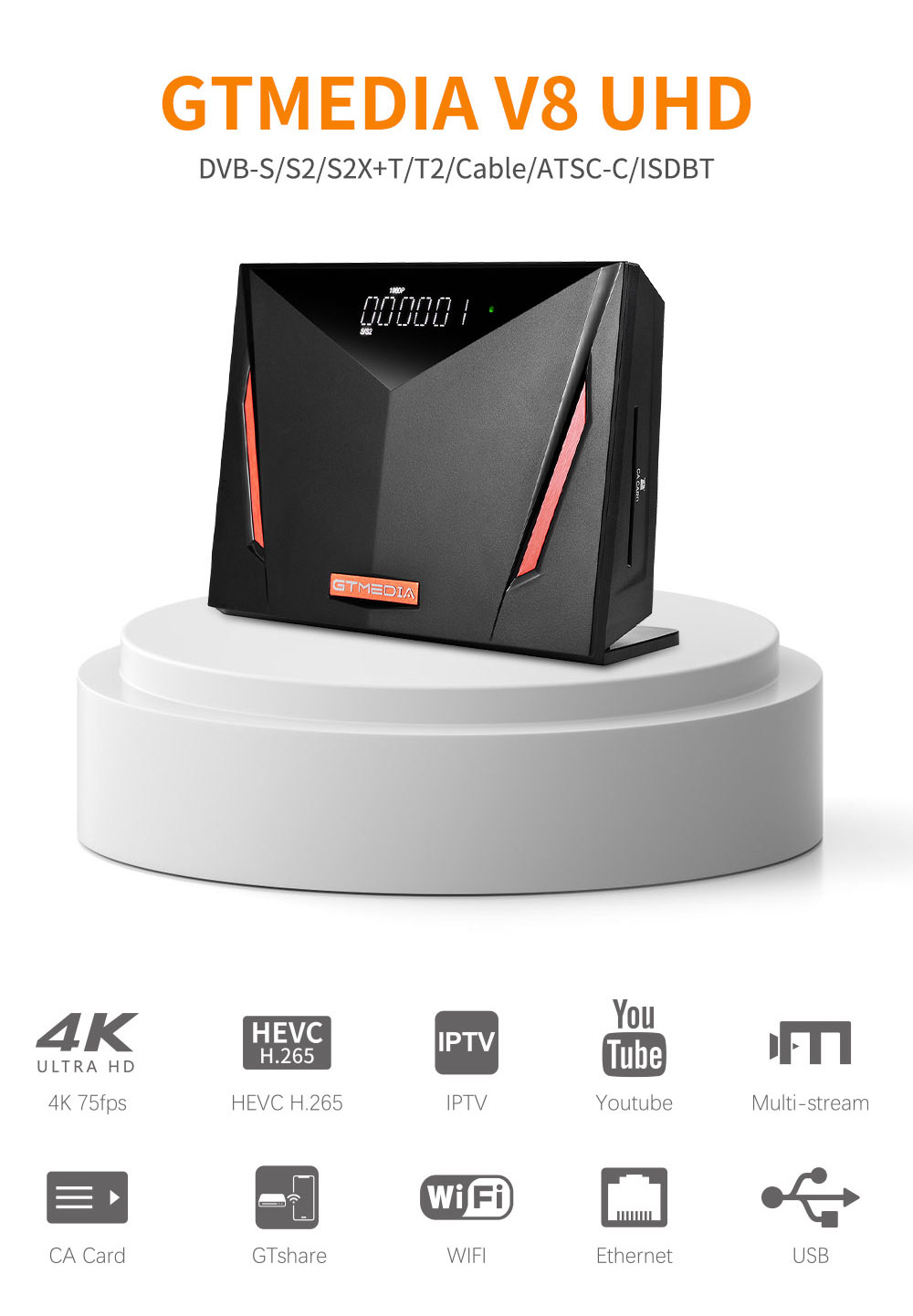

GTMEDIA V8 UHD 4K Satellite Receiver, DVB-S/S2/S2X, DVB+T/T2/ISDB-T/Cable(J83.A/C)/ATSC-C(J83.B), Built-in 2.4G WiFi, Supports CA Smart Card - EU Plug

Demultiplexer: ISO/IEC 13818-1
Input Bit Rate: 2 parallel TS input ports @864Mbps in parallel mode

Video Decode: MPEG-2 ISO/IEC 13818-2 MP@ML, ISO/IEC 14496-2 (MPEG4) compliant, Supports SP@L3 to ASP@L5, Multi-format ultra-high definition video decoder (MPEG1/2/4, H.264/265, VC-1, AVS/AVS+, VP8 and VP9)
Video Resolution: By Source, 480i, 480P, 576i, 576P, 720P_50, 720P_60, 1080i_25, 1080i_30, 1080P_25, 1080P_24, 1080P_30, 1080P_50, 1080P_60, 4K2K_25, 4K2K_30, 4K2K_50, 4K2K_60;
Video DAC: 1 x 10bit DAC for CVBS output, Composite NTSC M/N/J, NTSC-4.43, Composite PAL M/N/B/D/G/H/I, PAL-60
Aspect Mode: Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
HDMI deep color: Auto, Normal, None, HDMI deepcolor 24, HDMI deepcolor 36

Audio Decode: MPEG-1/2 Layer I/II, AAC/HEAAC v1/v2, Dolby Digital (AC3),Dolby Digital Plus (EAC3),RealAudio,WMA/WMA Pro,MP3,OGG,APE,FLAC,ALAC
Sound Mode: LEFT/RIGHT/STEREO/MONO
Audio DAC: Supports 2 channels, 16-bit resolution and 8k-192k sample rate
Audio Out: LPCM Out, BS Out

Panel display: 8-digit white LED display, With multiple function indicators
LED Indicator: Power ON: Green; Standby: Red

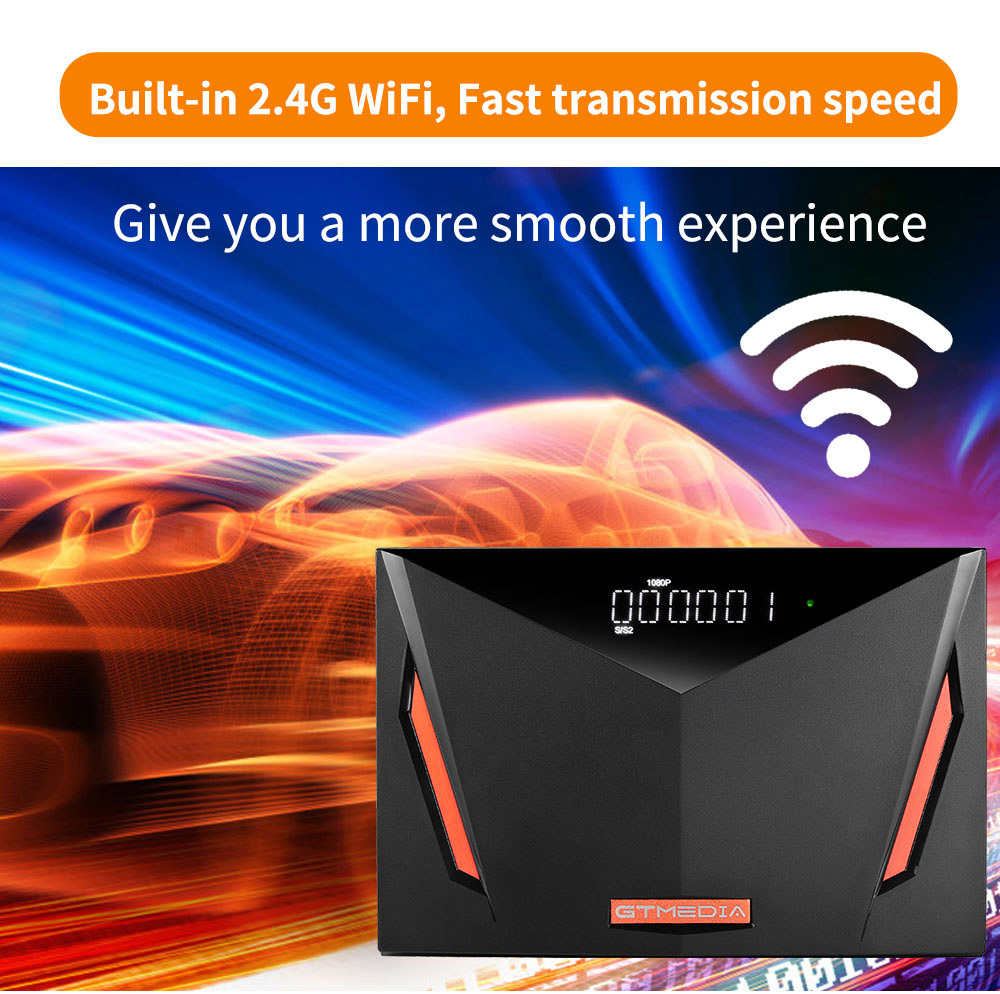

Wifi: Built in 2.4G WiFi  Support IEEE 802.1.1b/g/n
IR: Exit IR for 38KHz, Infra Remote control

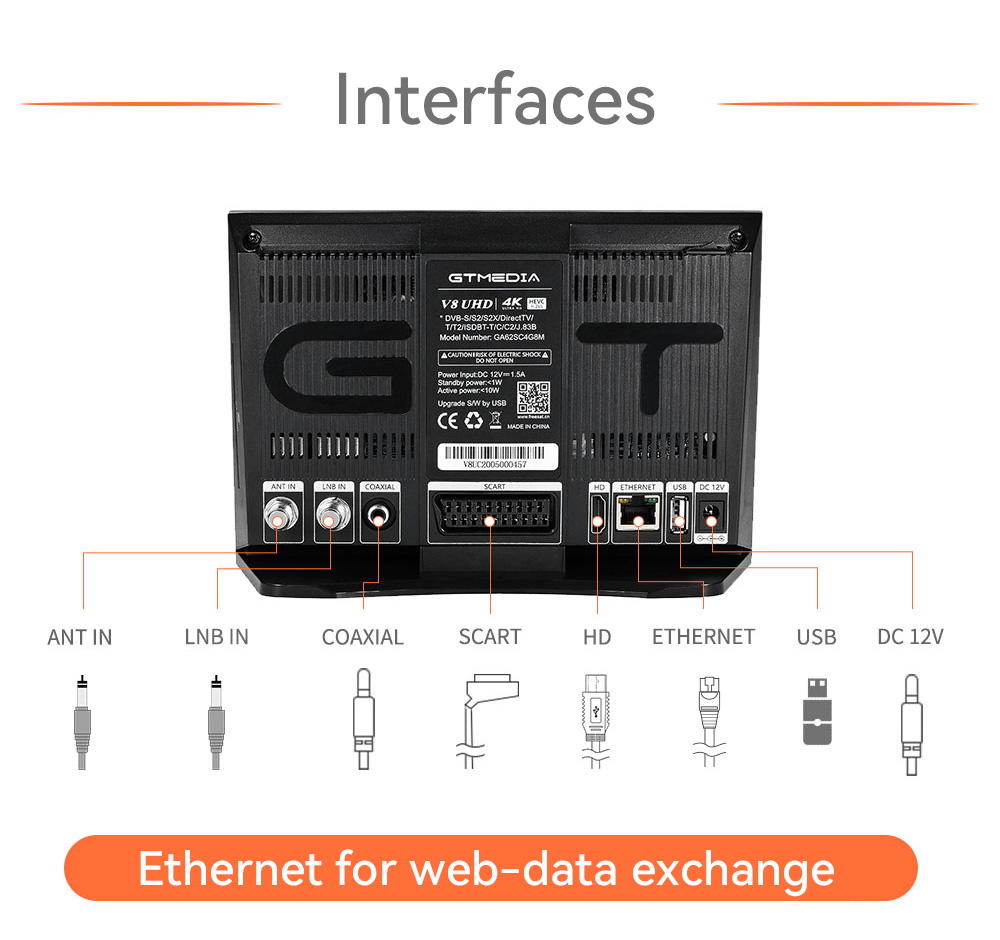

Rear Panel: ANT IN   ( EC-type IEC169-2 Female), LNB IN  (Frequency Range950MHz to 2150MHz), HD OUT(HDMI2.0, up to 4kx2kp50/60 output ), SCART OUT, 1*Coaxial (RCA:black), 1*USB2.0 HOST, 1*RJ45 (For 10M/100M MAC), 1*CA card solt, DC IN (DC12V/1.5A)

System standard: ETS 302 307
Frequency Range: 950~2150MHz for DVB-S/S2/S2X baseband demodulator
LNB Power and Polarization: DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection
Input Level Range:  -80dBm ~ -20dBm (average power)
Symbol Rates: DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Forward error correction rate: 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Symbol Rates: Symbol rate range: QPSK/8PSK/16APSK 56M, 32APSK 49.6M, 64APSK 41.3M
Roll-off factors: Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Code Rates: 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6,8/9,9/10 for DVB-S2,
DVB-S2X Normal Frame and Short Frame FEC code rates
Features: Supporting CCM/VCM/ACM, Supporting PLHEADER Scrambling (AMC), Integrating LDPC and BCH decoders
ANT. Connector: Connector: IEC TYPE F, Input Impedance:75 Ω

System standard: ETSIEN 302 755
Frequency Range: VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2
Demodulation: COFDM, 16QAM, 64QAM, 256QAM
Bandwidth model: 6MHZ, 7MHZ and 8MHZ
Country: Italy, Poland, Russia, Spanish, Sweden, United Kingdom, Germany, Greek, Slovenia, Argentina, Australia, Denmark, Finland, France, England, Brazil, Chile, Peru, Colombia, India, Georgia, Indonesia.
FEC Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
FFT: 2K and 8K
Guard interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Input Signal level: Min -80dbm max -20dbm (64QAM,8K 1/8,7/8)
Antenna Power: 5V DC @ 150mA MAX
ANT. Connector: IEC 169-2, female.  Input Impedance:75 Ω

System standard: ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DiVX
Frequency Range: VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz
Country: Brazil and Japan
FFT: 2K/ 8K/32K
Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC Code Rate: 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard interval: 1/4,1/8,1/16,1/32

Frequency Range: 50--858MHz For DVB-Cable (J.83A/B/C)
Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
FEC Code Rate: 1/2, 2/3, 3/4, 5/6, 6/7 or 7/8
Input Signal level: Min -80dbm max -20dbm
Country (ATSC-C): U.S.ATSC Cable STD/U.S.ATSC Cable IRC/U.S.ATSC Cable HRC for ATSC-C

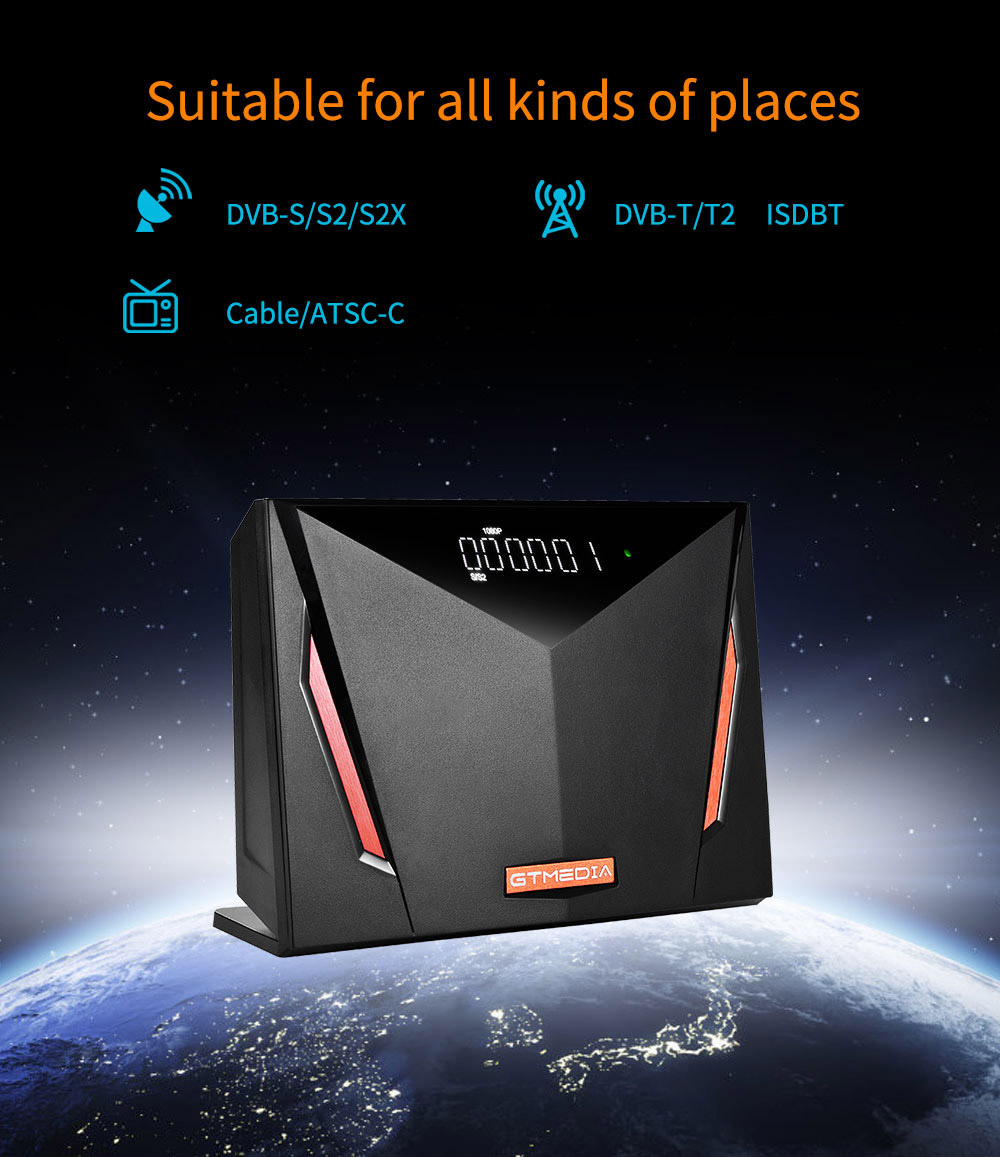

Standard: Fully comply with DVB-S/S2/S2X (SCPC and MCPC  receivable from C/Ku band satellite), DVB-T/T2/Cable(J83.A/B/C)/ISDBT, MPEG-2/4 H.265 Standard
Channel Search: Supports Automatic network search for newly added transponders, and Supports NIT Search for DVB-T/Cable.
Channels Number: 6000+ channels TV and Radio programmable
Channel Play Type: Can choose All, Free and Scrambled.
Channel: You can switch to any other channel while recording the channel; Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort);
Favorites: 32 different favorite groups selection
OSD Language: English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Arabic, Persian, Thai, Vietnam, Czech, Armenian, Georgian, Ukrainian, Albanian, Hungary, Malay, Indonesian, Dansk, Greek, Serbian.
OSD Color: 32-bits OSD with anti-flickering
OSD Setting: Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3. Support menu in the small window to play programs
Other Setting: Sets up multiple habitual operation Settings
Parental Ctrl: Parental control for channels
Easy Menu: Plug and Play installation, with an easy to use Menu System
EPG: Fully support to 7 days Electronic Program Guide(EPG)
Subtitle: support DVB EN300743 and EBU
Teletext: support DVB ETS300472 by VBI
Auto Standby: Can open STB to enter play auto standby.
Soft Upgrade: Software upgrades through USB port, or FTP upgrade
Time Set: Time set by GMT offset automatic and manual, Summer Time support
Timer: Time set by GMT offset automatic and manual, Summer Time support

USB 2.0: Support FAT/FAT32/NTFS big capacity hard disk
PVR Option: USB 2.0 for PVR, TIMESHIFT, media files playback
Media Codec: TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
Audio Codec: WMA, MP3
Photo Codec: JPG, BMP, PNG, GIF

Power Supply: AC 100V ～250V, 50/60Hz
Power Consumption: 12W in operation
≦1 W Standby Power Mode

Product Weight: 400g
Package Weight: 850kg
Product Size: 12.5 x 12.5 x 3.8cm
Package Size: 22 x 16 x 6.3cm
