Specification
| General |
Brand: HGLRC |

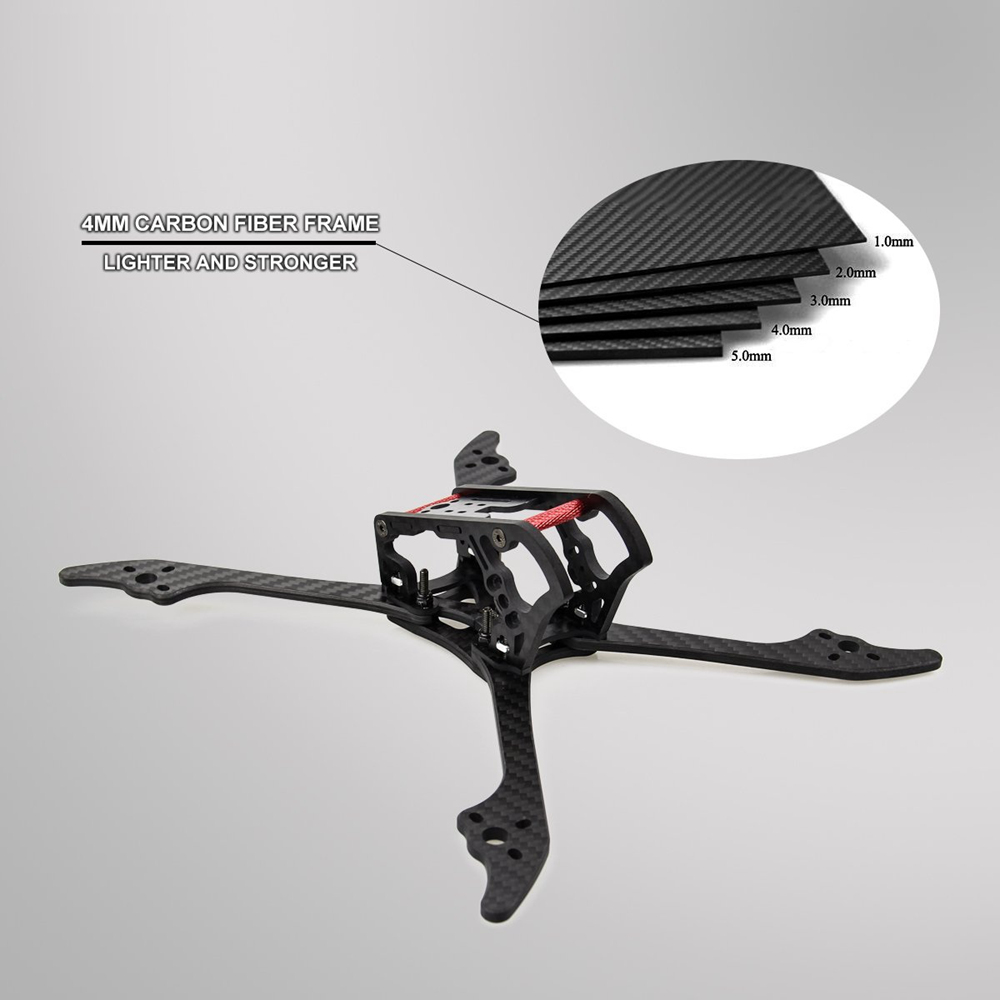

| Mefisto 226MM Frame Kit | Mefisto 226MM Carbon Fiber Frame Kit Wheelbase: 226mm Arm Plate Thickness: 4mm Bottom Plate Thickness: 4mm Material: Carbon Fiber Weight: 76g |
| Airbus F4 Flight Control |
Airbus F4 OSD Flight Control Board ( D-Shot Version) |
| BL32 3-6S 4-in-1 ESC | DinoShot 60A BL32 3-6S 4-in-1 ESC Input Voltage: 3-6S Lipo battery Constant Current: 60A-4S/50A-5S/40A-6S Peak Current: 70A BEC Ouput: NO Firmware:32bit ESC with BLHELI_32 firmware Size: 36x36mm (main board)/40x48mm (including pad) Installing Hole: 30.5x30.5mm,M3 Weight: 12.9g CPU:STM32F051 MOS Tube: TOP QUALITY MOSFET Protocol:DSHOT1200/600/300/150/Oneshot125/42,MultiShotDamped |
| GTX226 V2 VTX | GTX226 V2 VTX (Transmitter) Output power: PIT/25mW/100mW/200mW/400mW switchable Control mode:BFOSD control(RX)/button BAT: 7-26V,BEC 5V-1A 240mA----400mW Video system: NTSC/PAL Antenna: IPX Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ Size: 20mm×25.5mm×8.5mm Weight: 5.3g |

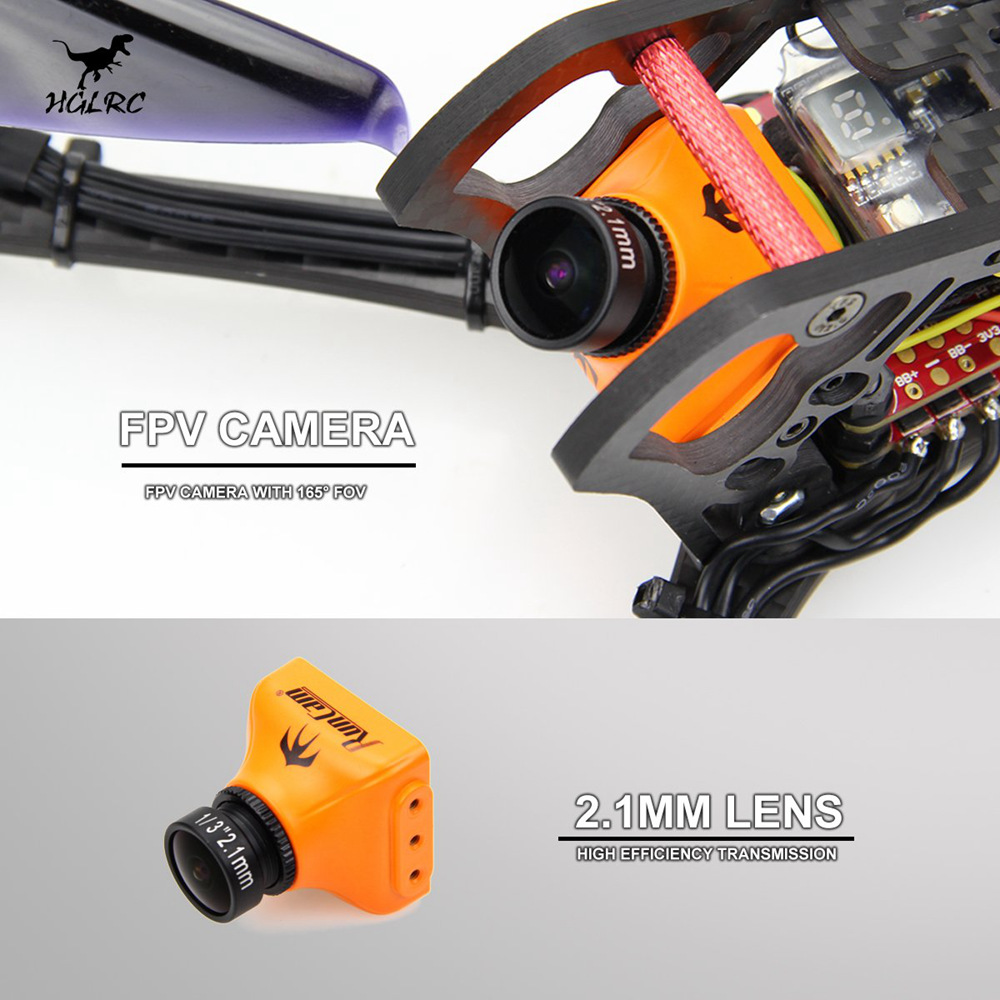

| RunCam Swift 2 CAMERA | RunCam Swift 2 CAMERA Image Sensor: 1/3" SONY Super HAD II CCD Horizontal Resolution: 600TVL Lens: 2.1mm Lens FOV: 160 degree(2.1mm) Signal System: PAL S/N Ratio: >60dB(AGC OFF) Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000 AutoGain Control(AGC): YES Back light compensation(BLC): YES Min.illumination: 0.01Lux/1.2F WDR: D-WDR DNR: 2DNR Day/Night: Color / Auto / B&W Power: DC 5 to 36V Net weight: 14g Dimensions: 28.5mm * 26mm * 26mm |

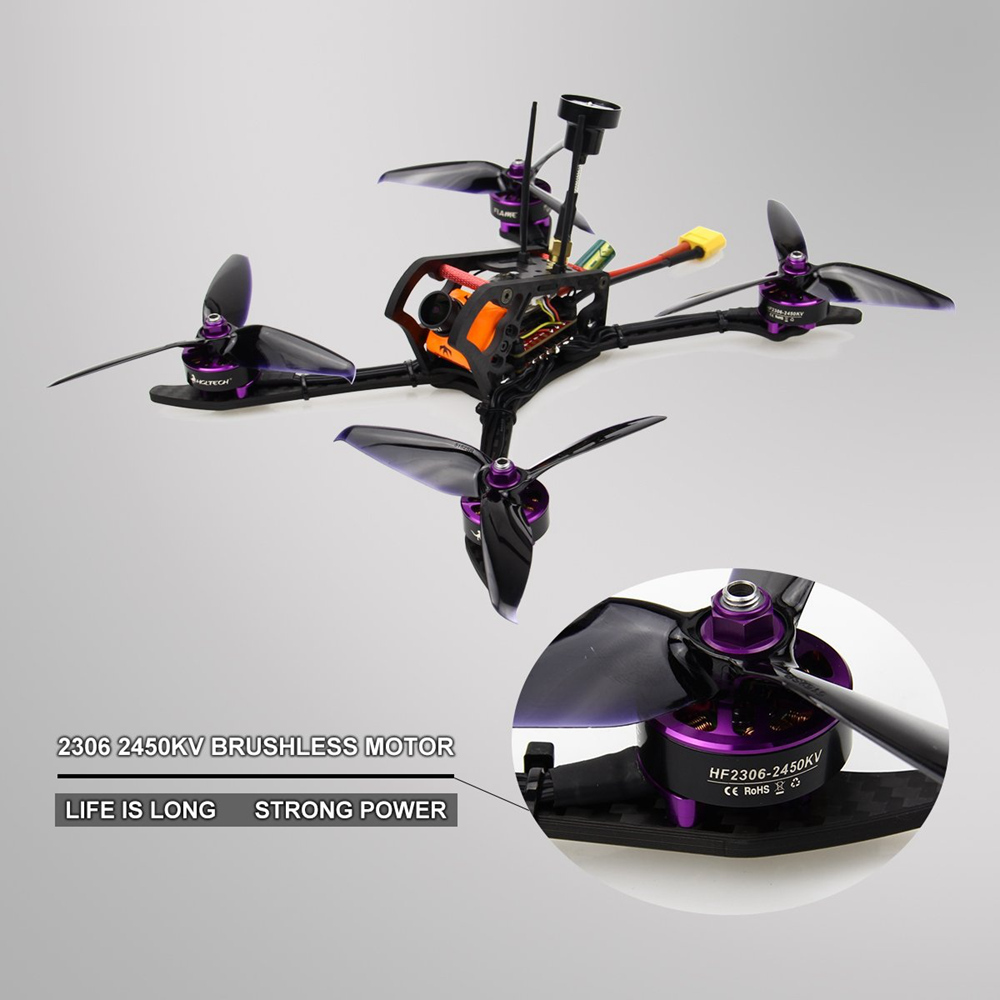

| HF2306 2450KV 4-5S Motor | HF2306 2450KV 4-5S Motor KV: 2450KV Stator Diameter: 23mm Stator Thickness: 6mm No.of Stator Arms: 12S No.of Rotor poles:14P No-load Current(A/10V):1.6A Motor Resistance:49mΩ Max Continuous Current:41.4A Max Continuous Power:660W Weight:32g Rotor Diameter:28.72mm Shaft Diameter:5mm Body Length:16.1mm Overall shaft Length:29.7mm No.of Cells(Lipo):4S~5S Wire type:20AWG 110mm |
| Gemfan 5152 Propeller | Gemfan 5152 5 Inch 3-Blade Propeller Color: Black Quantity: 3 CW & 3 CCW |
| Package Contents |
1 x HGLRC AIRBUS F4OSD Flight Control Board |
