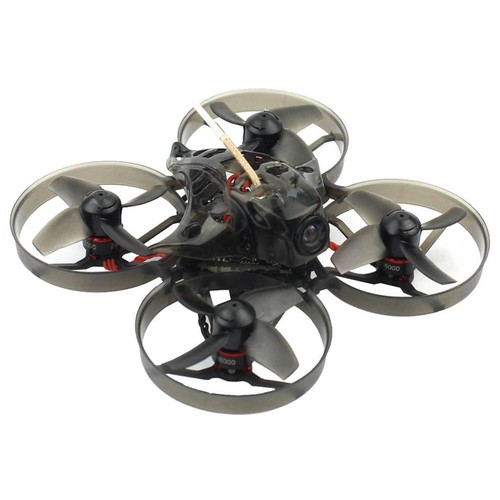

Happymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard Version

Brand: Happymodel 0Answered Questions Item Code:405066
Price:
Ship from:
QTY:
Shipping:
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping
Frequently Bought Together

Happymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard Version

$112.99
Selected: 0

Total Price: $112.99

Sold Out

=
  • Description
  • Videos
  • Reviews
  • Q&A
  • Support & Firmware
  • Sold Out

Highlights

Versatile performance

It is compatible with New Crazybee F3 PRO Flight controller 1-2s Lipo,  Betaflight-support and multi-flight mode, namely ACRO/AIR/ANGLE.

More Flight Time

With the 2S Whoop you get more power and more flight time.

Upgraded Equipment

With the new 0802 High-efficiency Brushless motor and Smooth ESC, The 2S Whoop has ultra-responsive control.

Other

DSM2/DSMX and Frsky EU-LBT version is a Serial-based receiver, so Smart audio is not compatible; however Frsky EU-LBT version supports the Frsky EU-LBT firmware transmitter.

Happymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard VersionHappymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard VersionHappymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard VersionHappymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard VersionHappymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard VersionHappymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard VersionHappymodel Mobula7 75mm 2S Whoop FPV Racing Drone F3 FC OSD Upgrade BB2 ESC Frsky EU-LBT Receiver BNF - Standard Version

Specification

General

Brand: Happymodel
Item No.: Mobula7
Wheelbase: 75mm
Size: 98 x 98 x 36mm
Weight: 25.9g (without battery)

Crazybee F3 Pro Flight Controller
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Receiver ( Frsky EU-LBT version)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
Firmware
(Frsky EU-LBT version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS

Onboard 5A 4 In 1 ESC
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
MCU upgraded to EFM8BB21
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7
Default protocol: DSHOT600

Onboard Frsky EU-LBT Version(External XM+ receiver)
Operating Voltage Range: 3.7-10V
Operating Current: 30mA @5V
Operating Range: Full range
With RSSI output on board: Analog 0-3.3V
Firmware Upgradeable, Default firmware EU-LBT with RSSI

SE0802 16000KV Motor
Model: SE0802
KV: 16000KV
Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 2mm
Shaft Diameter: Φ1.0
Motor Dimension (Dia.*Len) : Φ10.5*14.5mm
Weight: 1.8g
Support 1-2S Lipo
No.of Cells: 1S Lipo

Propeller
40mm 3-blade Propeller ( 4 CW + 4 CCW)

5.8G VTX AIO Camera
5.8G 40CH 25mW VTX
Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)

700TVL FOV120 Camera
Camera resolution: 700TVL
Field of view: 120°
Video Format: NTSC
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready(Frsky EU-LBT and DSMX version not compatible)
Size: 13.9"12.0mm ( L*W )
Weight: 3g

Lipo Battery
Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 55mmx12mmx7mm
Weight: 6.5g
Connector: PH2.0
Notes: Need 2pcs batteries for Series circuit

Version: Basic Version / Standard Version ( Optional)
The difference of them is the packaged charger.
Basic Version: USB Charger
Standard Version: 6-way Charger

Package Contents

1 x Mobula7 75mm FPV Drone
4 x 40mm 3-Blade Propellers (4 CW & 4 CCW)
4 x 3.8v 250mah 30C/60C Lipo battery
1 x 1S06 6 Way Lipo/LIHV charger
1 x Propeller Disassemble Tool
1 x Fixing Mount for Lipo Battery
1 x Screwdriver
