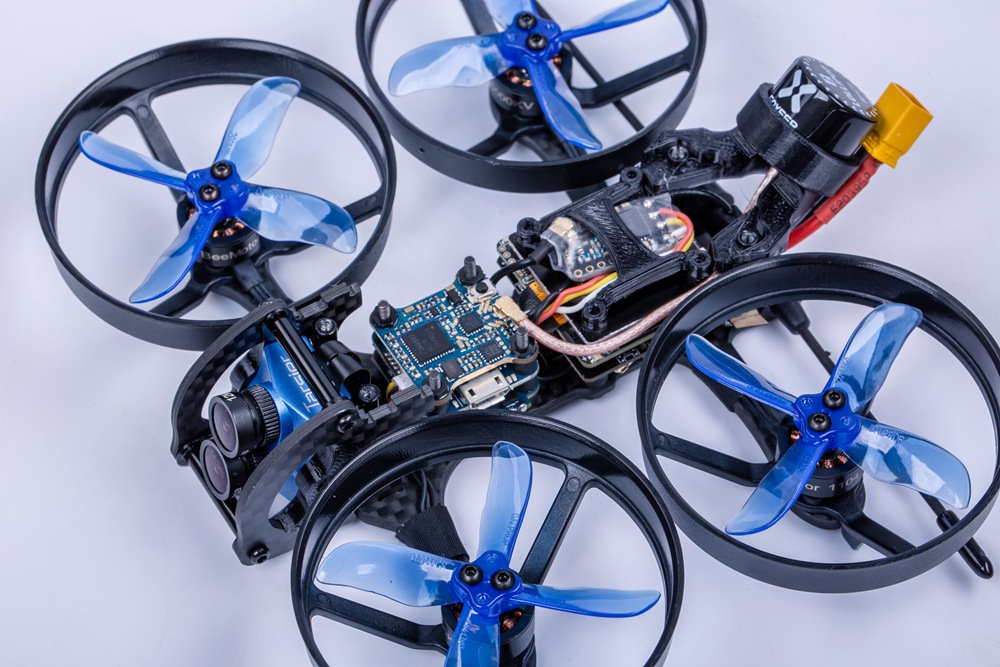

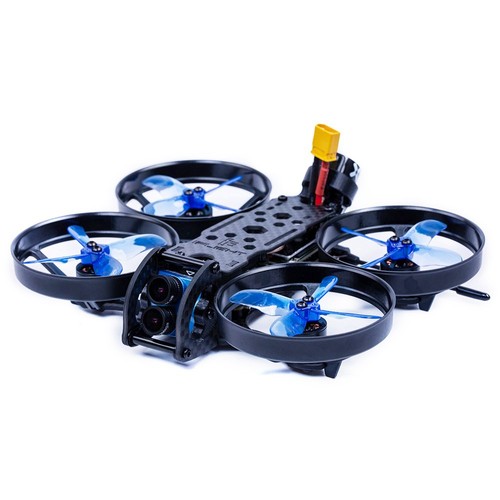

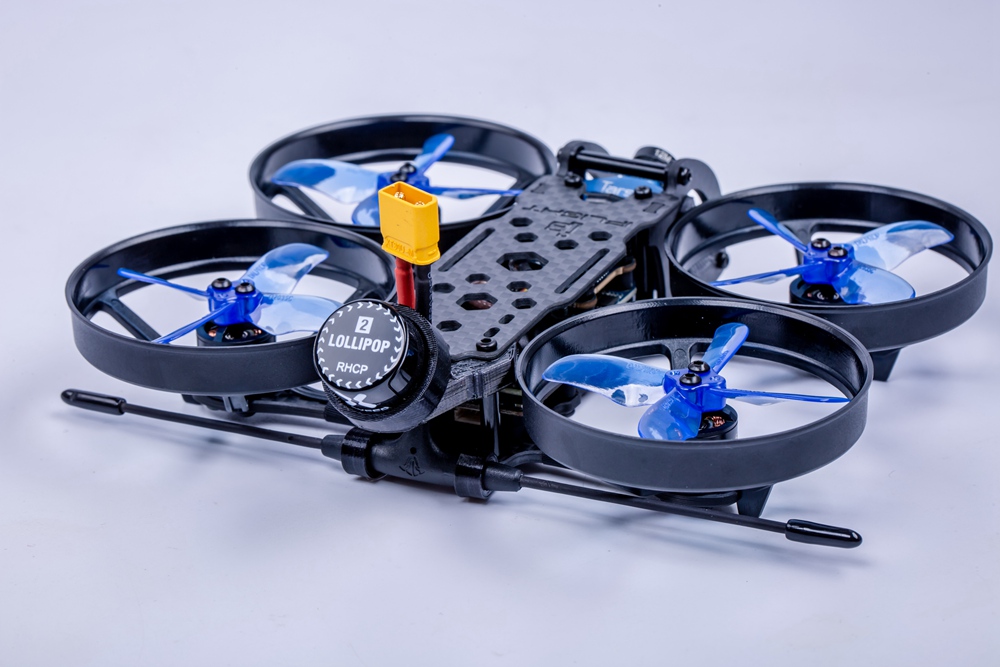

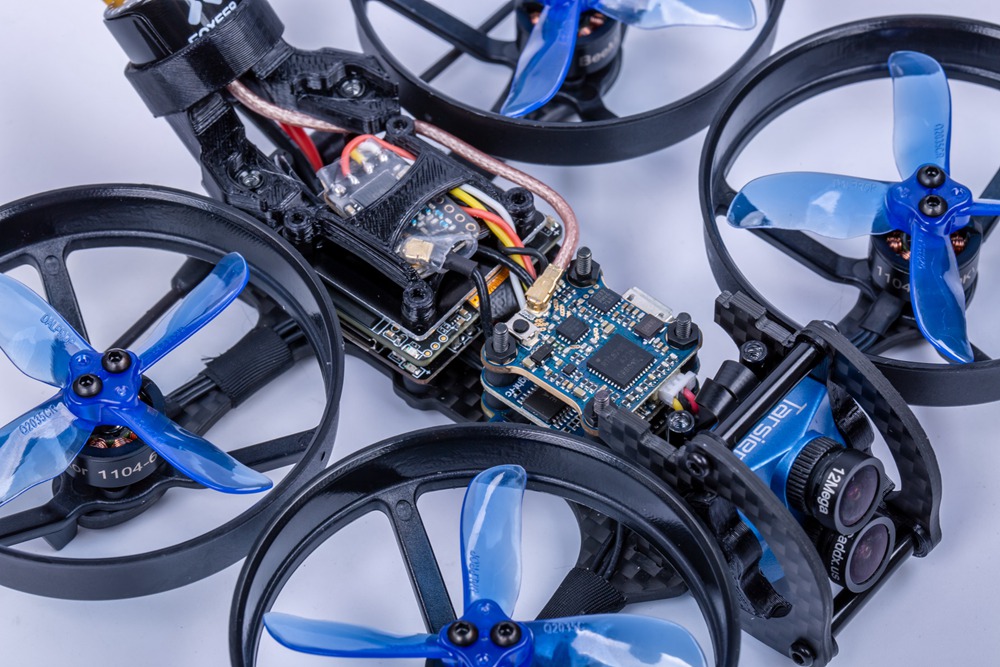

Iflight CineBee 4K 2-3S 107mm Whoop FPV Racing Drone Caddx Tarsier Cam BNF - Frsky XM+ Receiver

General

Brand: Iflight
Item Name: CineBee
Version: BNF (With Frsky XM+ Receiver)

Specification

Frame Wheelbase: 107mm
Build Weight:  106 grams
Succe X Micro 16x16 Tower 2-4S
iFlight 1104 9500kV motors (1.5mm shaft)
Caddx.us Tarsier 4K 1200TVL Dual Lens
Dalprop Q2035 4-blade
iFlight Prop Guards 2 inch

SucceXMirco F4 Flight Tower System 16x16mm

SucceX F4 Flight Controller

STM32F411
Input voltage 2-4S LIPO
Gyro: MPU6000
2x UART ports
4x motor outputs
OSD inbuilt
No Blackbox FLASH
BEC 5V 2A cont.
Size: 21mm*21mm
Mounting holes: 16*16
Weight: 2.5g
BF target : MATEKF411

SucceXMirco 12A Brushless ESC

Firmware: BlheliS
Input voltage : 2-4S LIPO
Continuous current: 12A
MCU: BB21F16G
BEC : None
ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
Size: 23mm*21mm
Mounting hole 16*16mm
Weight: 2.7g

SucceXMirco VTX

Power : PIT/25/100/200mW
Antenna interface : IPEX (UFL)
Telemetry: IRC Tramp
Size: 17mm*27mm
Mounting holes: 16*16mm
Weight: 1.6g

Motor kV Variants:
We offer several motor setups to fit your desired performance, equipment or just preference.
(2S), (3S) will be available.

VTX control implementation:
VTX can be conveniently set up in your OSD.

Package Contents

1 x CineBee4K
1 x Dalprop Q2035(set)
1 x User Manual
