Highlights
Versatile Measurement Capabilities

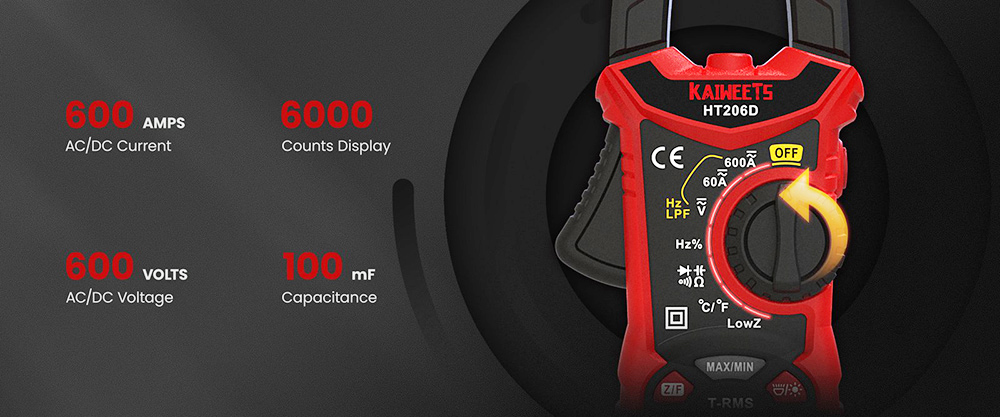

Accurately measure AC/DC Current, AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. True RMS ensures precise readings on non-linear loads. Ideal for use in labs, factories, and households.
Low Input Impedance & Low Pass Filter (LPF)

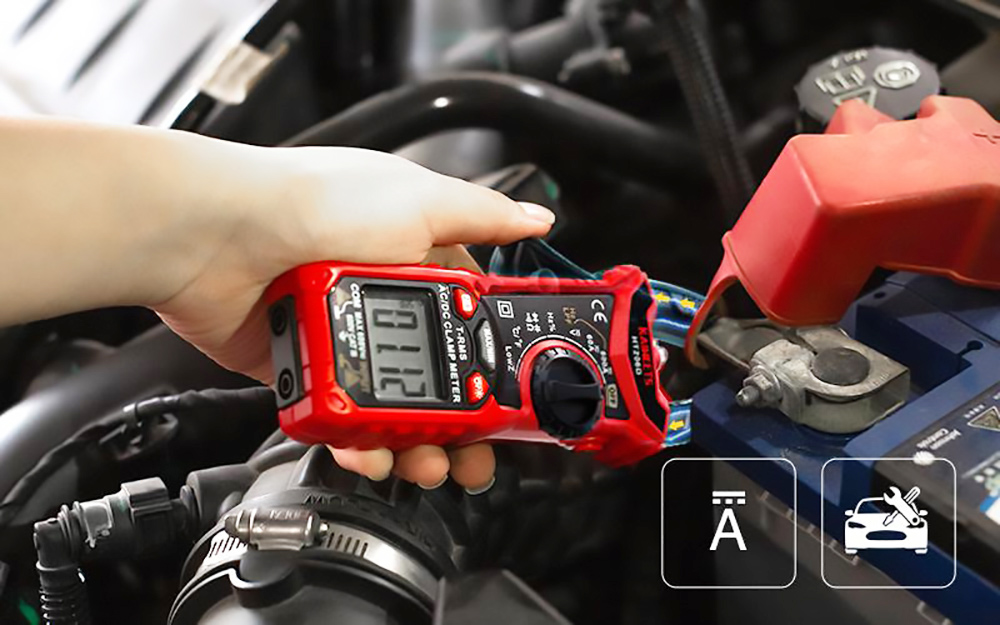

Features low input impedance to avoid ghost voltage interference and a Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformers. Measure current by clamping the meter around one wire, not the entire power cord.

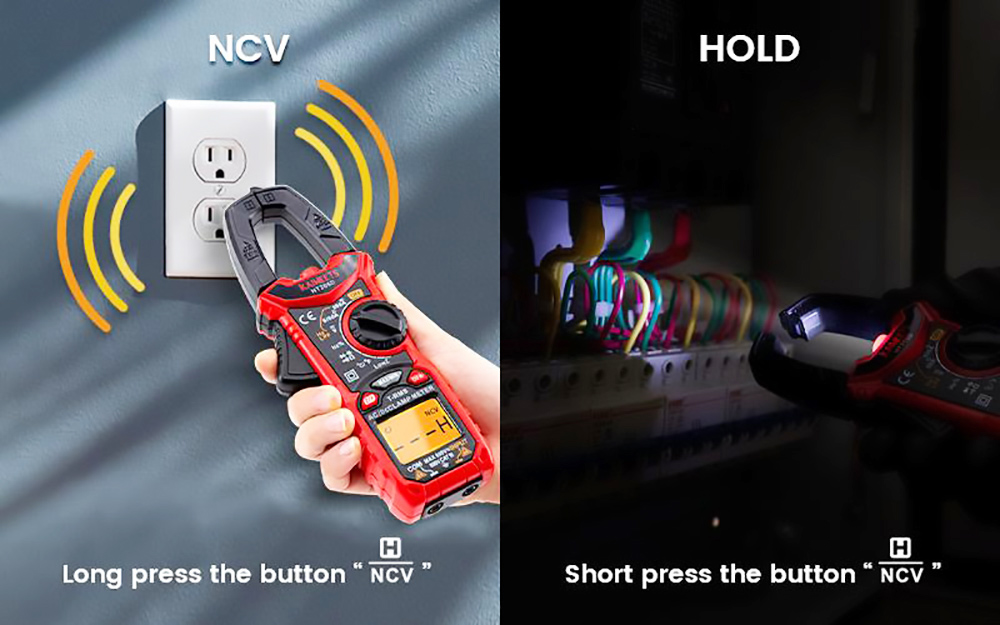

Non-Contact Voltage Detection
The NCV function checks electrical status by measuring EM field intensity without touching wires. The NCV button is conveniently located on the right side. Simply press it with your thumb for easy use.
Multi-Functional with Safety Alerts

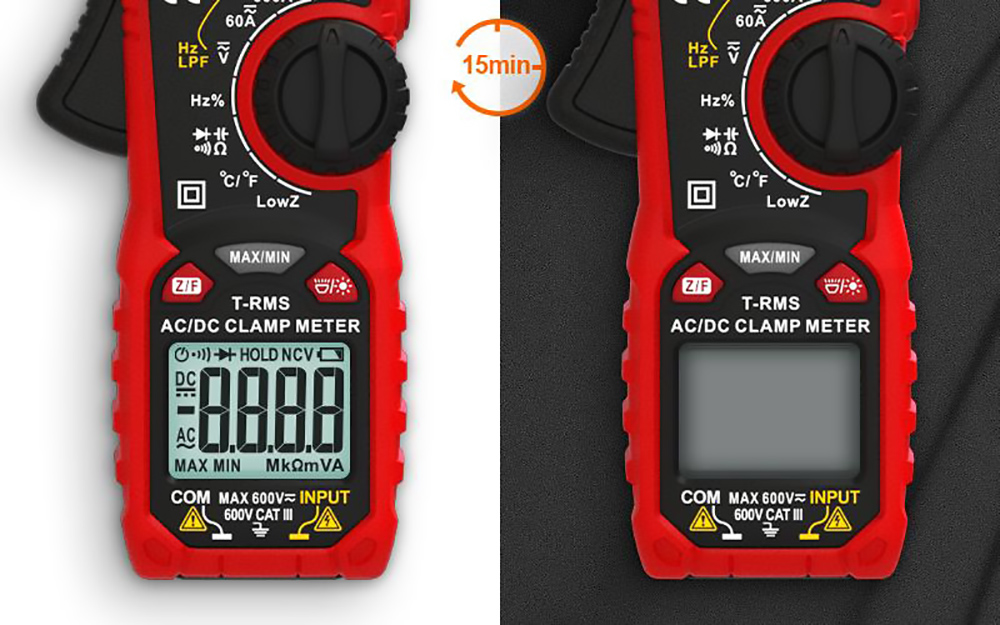

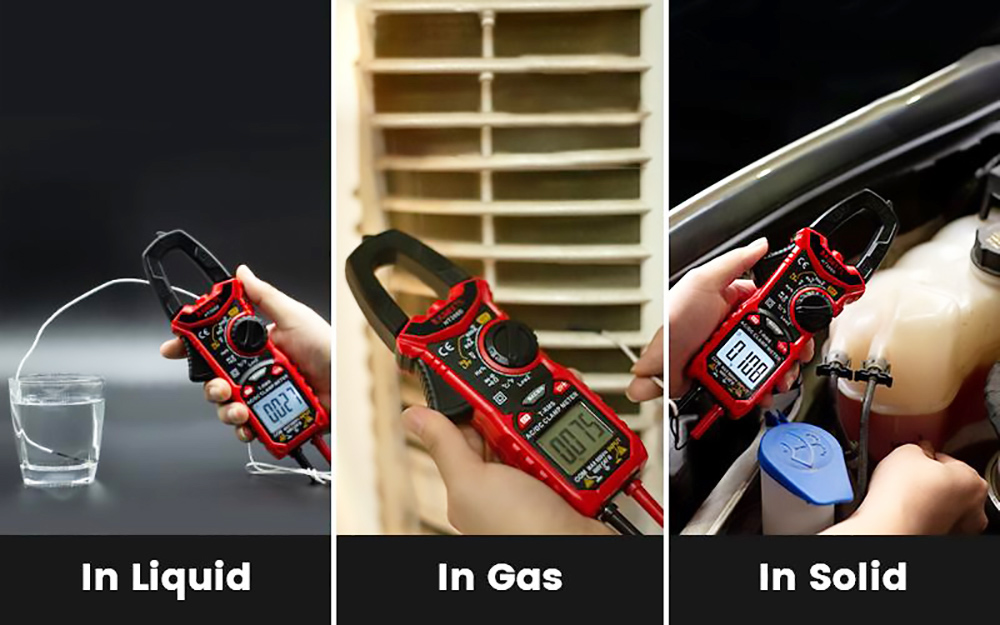

Equipped with a two-color backlit LCD display that turns red when voltage exceeds 80V or current exceeds 3A, warning of high voltage. Additional features include an LED flashlight, temperature measurement with a K-Type thermocouple, low battery indication, and auto power-off after 15 minutes of inactivity.
Specification
| General | Brand: KAIWEETS Type: Digital Clamp Meter Model: HT206D Color: Black + Red |
| Specification | DC Voltage: 600mV/6V/60V/600V, ±(0.5%+5) AC Voltage: 6V/60V/600V, ±(0.8%+5) DC Current: 60A/600A, ±(2.5%+5) AC Current: 60A/600A, ±(2.5%+5) Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ, ±(1.0%+5) Capacitance: 4nF/40nF/400nF/4μF/40μF/400μF/4mF, ±(4.0%+5) Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/10MHz, ±(1.0%+3) Duty: 1%~99%, ±(3.0%+3) Temperature: -40°C-1000°C ±(1.0%+2), -40℉-1832℉ ±(1.0%+2) Counts: 6000 |
| Weight & Size | Product Weight: 0.22kg Package Weight: 0.22kg Package Size(L x W x H): 19.1x7.1x3.3cm |

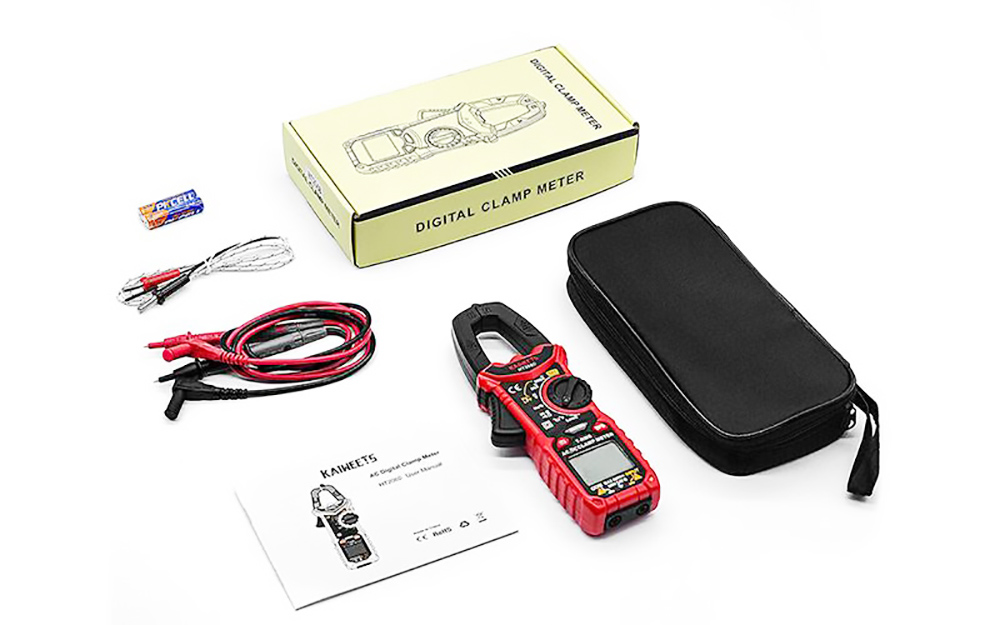

| Package Contents | 1 x Digital Clamp Meter 2 x Test Leads 1 x User Manual 1 x Thermocouple 2 x AAA Batteries 1 x Durable EVA Bag |
