Highlights

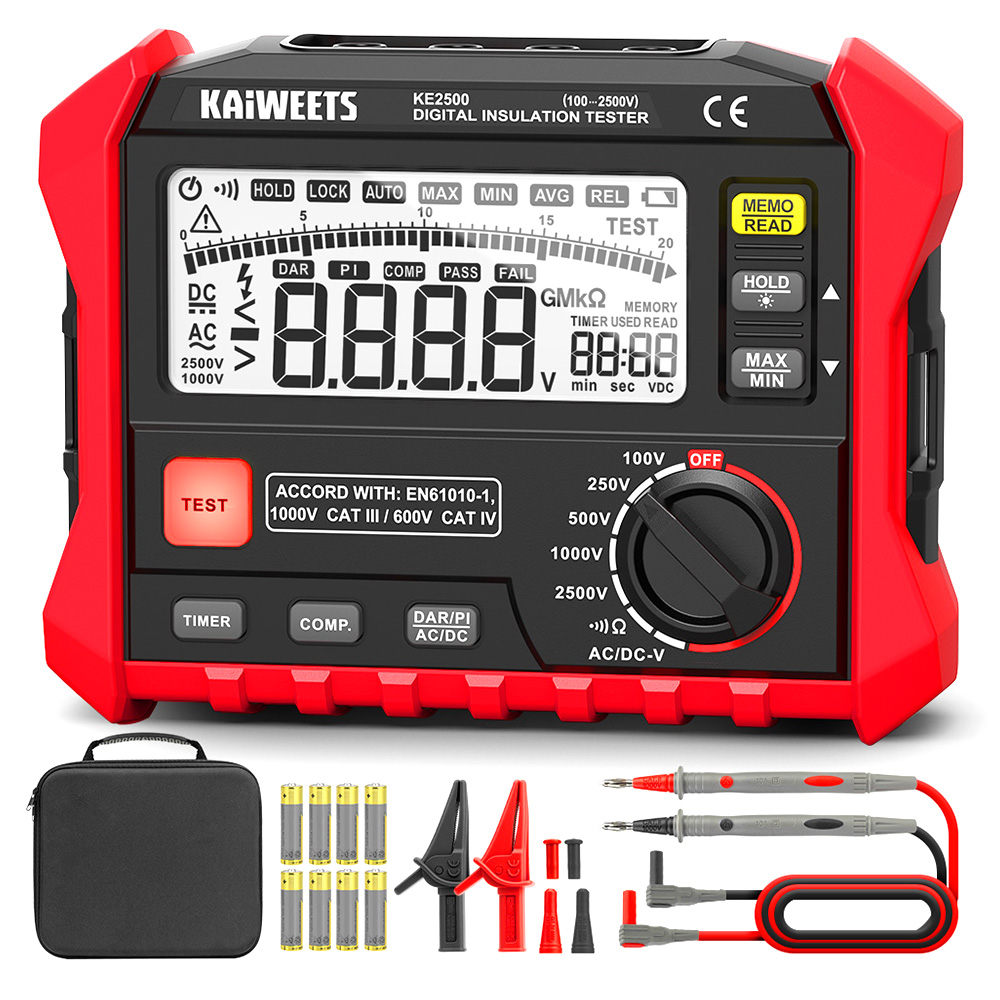

Professional 5-Range Insulation Tester
Measure insulation resistance from 0.1MΩ to 200GΩ with 5 selectable test voltages (100V/250V/500V/1000V/2500V). Designed for professional use in motor testing, cable inspection, industrial maintenance, and electrical safety checks.
Advanced DAR & PI Diagnostics
Automatically calculates DAR (60s/15s) and PI (10min/1min) with one button. Easily assess insulation condition, detect aging, and identify potential faults for proactive maintenance.
Instant PASS/FAIL Evaluation
Set custom thresholds and get real-time PASS/FAIL results. Simplifies testing workflows, improves efficiency, and ensures consistent quality and safety verification.
Multifunction & Smart Features
Built-in multimeter functions with AC/DC voltage measurement (up to 750V AC / 1000V DC) and continuity test (buzzer alert). Stores up to 100 readings with Data Hold, features a backlit LCD for low-light visibility, auto power-off, and low battery indicator.
Pro-Grade Safety & Durable Design
IEC/EN 61010-1 certified with CAT III 1000V / CAT IV 600V protection. Rugged double-insulated housing with anti-drop silicone cover ensures durability in harsh working environments.
Specification
| Brand | KAIWEETS |
| Type | Insulation Resistance Tester |
| Model | KE2500 |
| Color | Red & Black |
| DC Voltage Measurement | Range: 1000 V Resolution: 1 V Accuracy: ±(1.0% reading + 5 digits) |
| AC Voltage Measurement | Range: 750 V Resolution: 1 V Accuracy: ±(1.0% reading + 5 digits) |
| Frequency Range | 40–400 Hz (Sine wave) |
| Continuity Measurement | Range: 200.0 Ω Resolution: 0.1 Ω Accuracy: ±(1.0% reading + 5 digits) Buzzer: Sounds when resistance < approx. 50 Ω |
| Insulation Resistance Measurement (100V) | Range: 0.1MΩ–1.000GΩ Resolution: 0.01MΩ / 0.1MΩ / 0.001GΩ Accuracy: ±(3% reading + 5 digits) |
| Insulation Resistance Measurement (250V) | Range: 0.1MΩ–2.000GΩ Resolution: 0.01MΩ / 0.1MΩ / 0.001GΩ Accuracy: ±(3% reading + 5 digits) |
| Insulation Resistance Measurement (500V) | Range: 1MΩ–20.00GΩ Resolution: 0.01MΩ / 0.1MΩ / 0.001GΩ / 0.01GΩ Accuracy: ±(3% reading + 5 digits) |
| Insulation Resistance Measurement (1000V) | Range: 3MΩ–100.0GΩ Resolution: 0.01MΩ / 0.1MΩ / 0.001GΩ / 0.01GΩ / 0.1GΩ Accuracy: ±(3% reading + 5 digits) (ranges 1–4), ±(5% reading + 5 digits) (range 5) |
| Insulation Resistance Measurement (2500V) | Range: 5MΩ–200.0GΩ Resolution: 0.01MΩ / 0.1MΩ / 0.001GΩ / 0.01GΩ / 0.1GΩ Accuracy: ±(3% reading + 5 digits) (ranges 1–4), ±(8% reading + 5 digits) (range 5) |
| Product Weight | 1.6kg |
| Package Weight | 1.625kg |
| Product Size (L x W x H) | 180×140×65mm |
| Package Size (L x W x H) | 330×268×90mm |
| Package Contents | 1 x KE2500 Insulation Resistance Tester 2 x Test Leads 8 x AA Batteries 1 x Packaging Box 1 x Durable EVA Bag 1 x User Manual |
