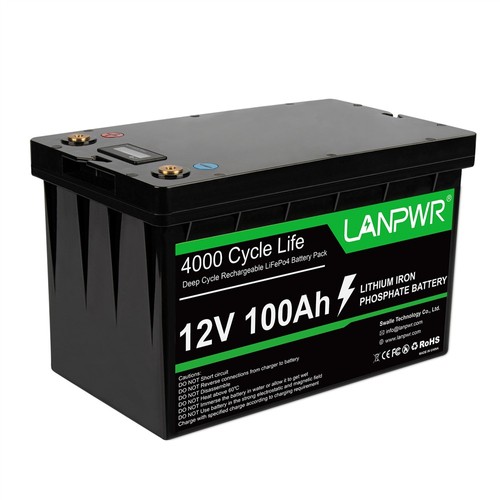

LANPWR 12V 100Ah LiFePO4 Lithium Battery Pack Backup Power, 1280Wh Energy, 4000+ Deep Cycles, Built-in 100A BMS, 24.25lb light weight, Support in Series/Parallel, Perfect for Replacing Most of Backup Power, RV, Boats, Solar, Trolling motor, Off-Grid

Highlights

10 Years Lifetime & Lightweight Design
LANPWR LiFePO4 battery provides 4000+ cycles, which is more than 10 times Lead Acid with 200-500 cycles, helping to minimize replacement cost and reduce the total cost of ownership. Weighs only 1/3 the weight of lead-acid batteries, which makes it an easy choice for RVs, Marine, and Off-Grid Applications.

Automotive Grade Lithium Battery & Eco-friendly
LANPWR 12V 100Ah batteries are manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance, and greater power. With no acid in the battery, you're able to safely mount it in any position. LiFePO4 batteries can be recycled and do not produce elements that are harmful to the environment, but lead-acid batteries pollute the environment.

Capacity Expansion
LANPWR LiFePO4 battery can be connected in parallel and in series for larger capacity and voltage. Max connection in series: up to 4 identical batteries for up to 48V connecting in series. Connection in parallels: it can connect multiple batteries, suggesting no more than 4pcs in parallel. Allow being extended up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (Max 400Ah) and higher voltage (24V, 36V, 48V). When the batteries are used in parallel or series, the battery voltage and capacity must be the same and purchased in near time(within 3 months).

100A Battery Management System
LANPWR LiFePO4 battery has built-in 100A BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuits with an excellent self-discharge rate. Built-in high-temp cut-off prevents charging over 122°F (50°C). Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. LANPWR LiFePO4 battery is IP65 level.

About Trolling Motor
LANPWR 12V 100Ah LiFePO4 battery is designed for energy storage battery rather than starting battery, this battery is NOT suitable for starter batteries or golf cart batteries. Recommended: 12V 100Ah battery for 30-70lbs thrust trolling motor.

We suggest that the battery series/parallel connection should meet the following demands:

1. The same battery capacity (Ah);
2. From same brand (as lithium battery from different brands has their special BMS);
3. Purchased in near time (within three months);
4. Series Connection up to 4 identical batteries for up to 48V (51.2V);
5. Parallel Connection up to 4 identical batteries for up to 400Ah.

Multiple Recharge Methods for 12.8V 100Ah LiFePO4 Battery

1. Solar Panel + 12V MPPT controller
2. 14.6V Dedicated liFePO4 Battery Charger
3. Alternator/Generator + 12V DC-DC Charger

• Because of the uniqueness of the LiFePO4 battery, it is recommended that all charging devices be compatible with LiFePO4 battery charging.

Specification
