Highlights

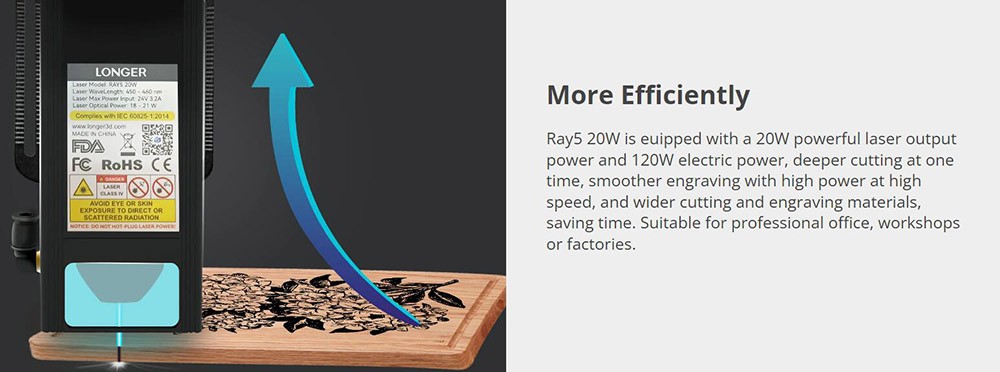

20W Powerful Cutting
Longer RAY5 20W laser engraver adopts the highest power quad-core diode laser engraving and cutting, which can cut 0.05mm stainless steel sheets, and cut 10mm basswood, 15mm pine, and 8mm acrylic in one pass.

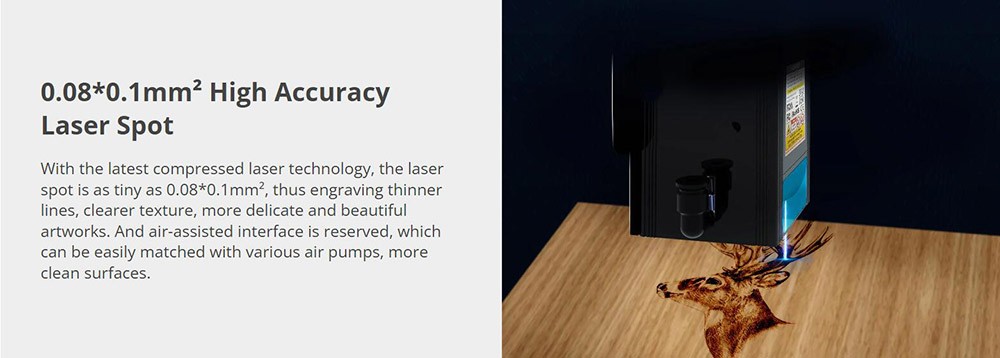

0.08*0.1mm High Accuracy Laser Spot
With newly upgraded 32 bits chipsets, the motherboard works more smoothly and stably. The advanced built-in 256-bit color scale with 0.08*0.1mm ultra-fine laser focus area achieves a finer engraving result and a higher contrast effect.

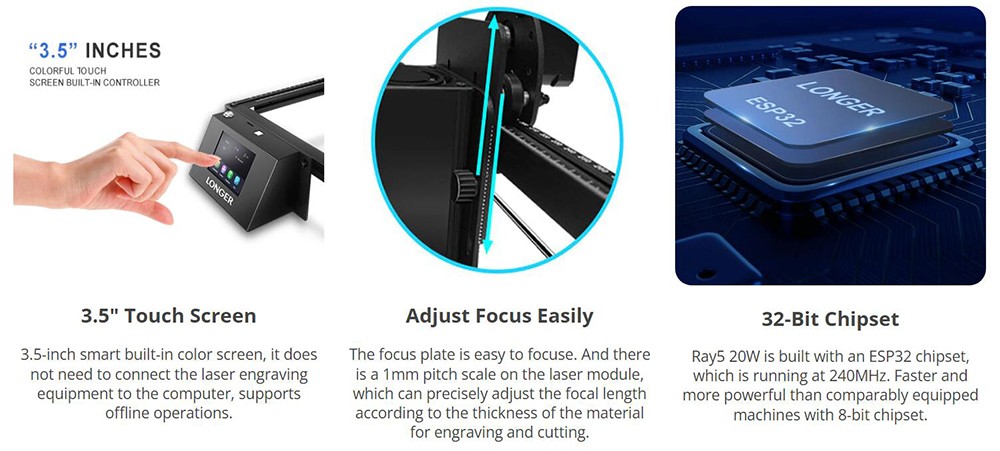

3.5inch Color Touchscreen & 4 Connection Methods<
Longer RAY5 20W laser engraver equips a 3.5-inch color touchscreen with a user-friendly interface that allows the users to directly operate the machine through the touchscreen, such as checking the engraving progress, adjusting the engraving speed, or other operations. And it supports WiFi, APP, USB cable, and TF cards data transmission.

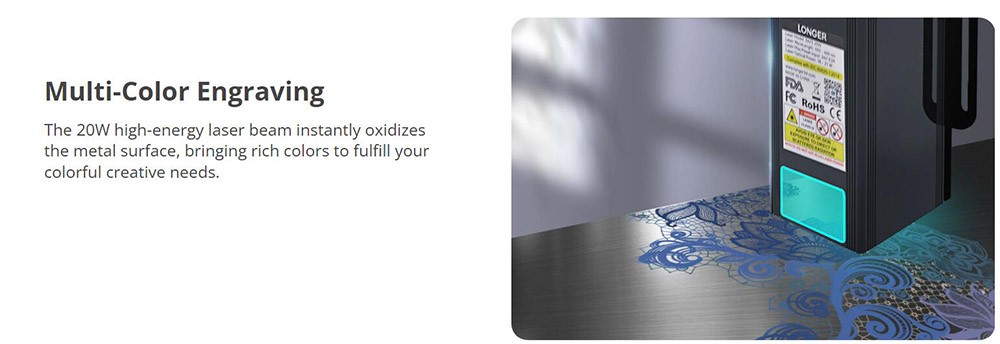

Multi-Color Engraving
The 20W high-energy laser beam instantly oxidizes the metal surface, bringing rich colors to fulfill your colorful creative needs.

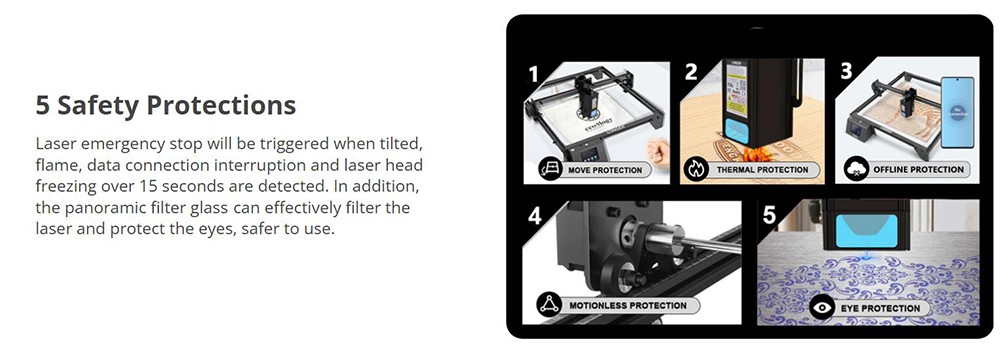

5 Safety Protections
A laser emergency stop will be triggered when tilted, flame, data connection interruption, and laser head freezing over 15 seconds are detected. In addition, the panoramic filter glass can effectively filter the laser and protect the eyes, safer to use.
Multiple Machines Control
One computer can control multiple RAY5 laser engravers work parallelly, Whether it is RAY5 5W, RAY5 10W, or RAY5 20W, and improve the production efficiency.
Wide Compatibility
RAY5 20W laser engraver is compatible with various mature carving software, such as LaserGRBL, and LightBurn, and supports Windows 7+, macOS, and Linux; carving file formats support JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.

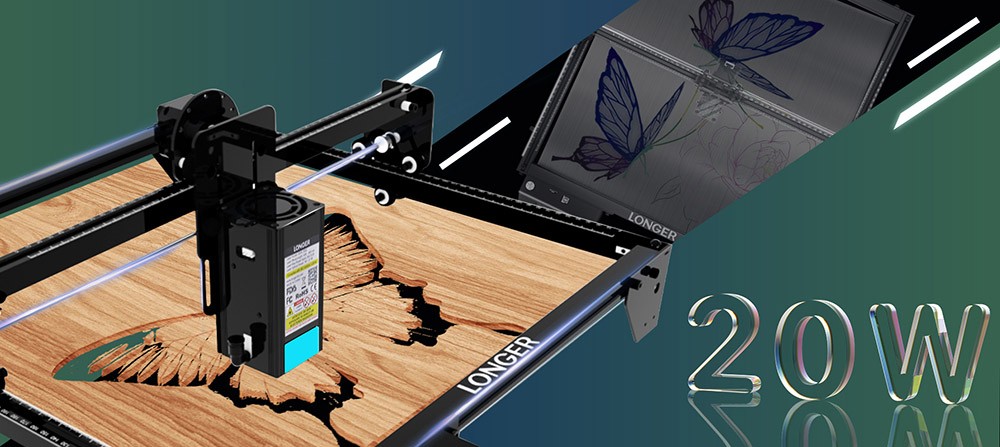

20W Laser Cutting by Longer Ray5 20W Laer Engraver
Longer Ray5 20W Laer engraver can cut 0.59"/15mm pine wood and 0.31"/8mm acrylic in one pass, 25mm wood and 35mm acrylic in multiple passes, in addition to 0.002"/0.05mm stainless steel.
Specification
| General | Brand: LONGER Type: Laser Engraver Model: RAY5 20W Color: Black |
| Specification | Laser Technology: Dioser Technology Working Area: 400x365 mm Laser Wavelength: 450 - 460 nm Focal Length: Fixed Focus-50mm Optical Output Power: 18 - 21 W Power Max Consumption: 120W Engraver Output: DC 24V 5A Engraver Input: AC 220V Z Axis-Height Range: Up to 47mm Fastest Working Speed: Speed 24000mm/min Software: LaserGRBL & LightBum Input Image Format: JPG, PNG, BMP, GIF, SVG, AI, etc. Connection Type: USB/TF Card/WiFi Limit Switches: Yes Air Assist Interface: Yes |
| Weight & Size | Package Weight: 5.51Kg Product Size(L x W x H): 610 x 670 x 200mm Package Size(L x W x H): 621 x 347 x 127mm |
| Package Contents | 1 x X-Axis Frame 1 x Laser Module 1 x Timing Belt 1 x Limit Switch 1 x Rear Frame 1 x Left Frame 1 x Right Frame 1 x Front Frame 1 x Power Cable 1 x Safety Glasses 1 x USB Cable 1 x Plywood 1 x Support Feet 1 x Control Box 1 x Card Reader & TF Card 1 x Cable Tie 1 x Wooden Brush 1 x Nylon Isolation Column 1 x Laser Focus Plate 4 x Corner Groove 4 x T-shaped Screw 2 x M5 Flat Washer 1 x Wrench 4 x M5*25 8 x M5*16 1 x M5*8 4 x M5*6 2 x M3*6 4 x Allen Wrench 2 x Thumb Screw 1 x User Manual |
Loger Ray5 20W vs 10W vs 5W
| Model Number | Ray5 20W | Ray5 10W | Ray5 5W |
|---|---|---|---|
| Laser Technology | Dioser Technology | Dioser Technology | Dioser Technology |
| Working Area | 400x365 mm (15.75x14.37 inch) | 400x400mm (15.75x15.75inch) | 400x400mm (15.75x15.75inch) |
| Laser Wavelength | 450 - 460 nm | 450nm | 450nm |
| Focal Length | Fixed Focus-50mm | Fixed Focus-50mm | Fixed Focus-30mm |
| Laser Spot Size | 0.08x0.10mm | 0.06x0.06mm | 0.08x0.08mm |
| Optical Output Power | 18 - 21 W | 10W | 5W |
| Power Max Consumption | 120W | 60W | 40W |
| Engraver Output | DC24V5A | DC12V5A | DC12V5A |
| Engraver Lnput | AC110-240V | AC110-240V | AC110-240V |
| Z Axis-Height Range | Up to 47mm | Up to 47mm | Up to 47mm |
| Fastest Working Speed | Speed 24000mm/min | Speed 24000mm/min | Speed 24000mm/min |
| Software | LaserGRBL&LightBurn | LaserGRBL&LightBurn | LaserGRBL&LightBurn |
| Input Image Format | JPG, PNG, BMP, GIF, SVG, AI, etc. | JPG, PNG, BMP, GIF, SVG, AI, etc. | JPG, PNG, BMP, GIF, SVG, AI, etc. |
| Connection type | USB/TF Card/Wifi | USB/TF Card/Wifi | USB/TF Card/Wifi |

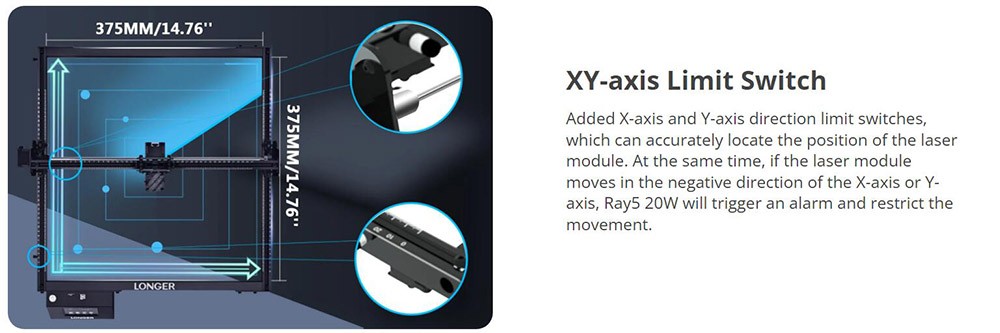

| limit switches | Yes | Optional | Optional |
| Air assist interface | Yes | Optional | Optional |
| Laser Engraver Size | 610 x 67 x 200 mm (24.02 x 26.38 x 7.87 inch) |
586 x 583 x 176.5mm (23.07x22.95x6.95inch) |
586 x 583 x 176.5mm (23.07x22.95x6.95inch) |
| Packaging Size | 621 x 347 x 127mm (24.45 x 13.66 x 5 inch) |
621x299 x 127mm (24.45 x11.77 x 5 inch) |
621 x 299 x 127mm (24.45 x 11.77 x 5 inch) |
