Highlights
32" IPS Full-View Display with Stunning Visual Performance
Featuring a premium BOE/AUO TFT LCD IPS panel with a 32-inch 16:9 widescreen design, this smart mobile screen delivers crisp FHD 1080P resolution and supports WQHD & UHD content for enhanced clarity. With 300 nits brightness, 1300:1 contrast ratio, 95% sRGB color gamut, and 16.7 million colors, it provides vivid, lifelike visuals from every angle thanks to its 178° ultra-wide viewing experience.
10-Point Full-Laminated Touchscreen for Smooth & Precise Control
Equipped with a high-precision G+G & OGF capacitive touchscreen, supporting responsive 10-point multi-touch for seamless interaction. The 0.70mm chemically tempered glass with 7H hardness ensures excellent durability and scratch resistance, while AG anti-glare coating reduces reflections for comfortable viewing. The ultra-narrow bezel full-screen design enhances both aesthetics and immersion.
Powerful Octa-Core Performance with Expandable Storage
Powered by optional MediaTek MTK8788 / MT6769 series chipsets and an octa-core processor architecture (4×A73 + 4×A53), paired with ARM Mali-G72 MP3 graphics for smooth multitasking and media performance. Supports 4GB–8GB LPDDR4x RAM and 64GB–256GB UFS 2.1 storage, expandable up to 2TB. Pre-installed with Android 13 for a fast, stable, and user-friendly experience.
Wireless Connectivity & Large Battery for Mobile Freedom
Supports dual-band WiFi (2.4GHz/5GHz), Bluetooth 5.0, and 100M Ethernet for stable and flexible connectivity. Built-in 10000mAh polymer battery with optional expansion up to 33000mAh delivers 4–5 hours of runtime and fast 3–4 hour charging, making it ideal for mobile office setups, presentations, entertainment, and commercial display applications.

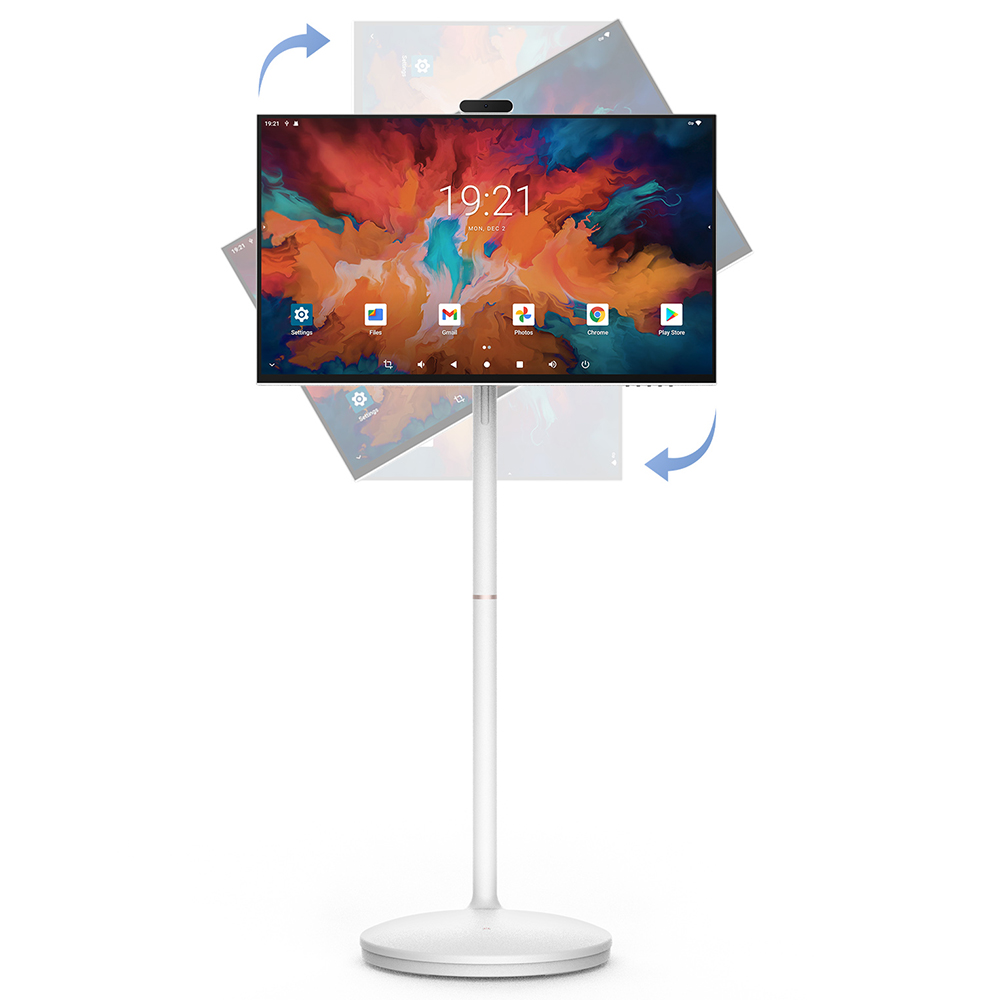

Flexible Adjustable Stand & Rich Connectivity Options
Designed for versatile usage with wall-mount support, ±35° tilt adjustment, 170mm height adjustment, and 90° vertical rotation for optimal viewing comfort. Equipped with USB Type-A, USB Type-C (OTG), HDMI-IN, and 3.5mm audio ports, allowing easy connection to smartphones, laptops, cameras, and more. Includes infrared remote control for convenient operation across home, office, education, and retail scenarios.
Specification
| Brand | MESWAO |
| Type | Smart Mobile Screen |
| Color | White |
| Panel Brand | BOE / AUO TFT LCD Panel |
| Panel Type | A-Si TFT-LCD IPS Technology |
| Screen Curvature | Flat |
| Aspect Ratio | 16:9 |
| Screen Size | 32.0" |
| Resolution | Standard: 1920 × 1080 (FHD) Supported: 2560 × 1440 (WQHD), 3840 × 2160 (UHD) |
| Backlight Type | LED |
| Backlight Power | 42V–50V / 640mA, 1 Channel, 22W–26W |
| Brightness | 300 cd/m² (Typ.) |
| Color Temperature | 6500K |
| Contrast Ratio | 1300:1 (Typ.) |
| Color Display | 16.7 Million Colors |
| Color Gamut | sRGB: 95% NTSC: 75% |
| Pixel Pitch | 0.24825 × 0.24825 mm (H×V) |
| Viewing Angle | 89° (H / V) |
| Response Time | 5ms |
| Refresh Rate | 60Hz |
| MPRT | N/A |
| Touchscreen | Full-Laminated G+G & OGF Capacitive Touchscreen 10-Point High-Precision Touch |
| Surface Treatment | 0.70mm Chemical Tempered Glass 7H Hardness Protection Ultra-Narrow Bezel Full-Screen Design AG Anti-Glare Etching Treatment |
| MTK Mainboard Options | MTK8788 / MT6769 / MT6765 / MT8183 |
| Configurations | 4GB+64GB / 6GB+128GB / 8GB+128GB |
| Processor | MediaTek Octa-Core Processor 4× Cortex-A73 2.0GHz + 4× Cortex-A53 2.0GHz |
| GPU | ARM Mali-G72 MP3 800MHz OpenGL ES 3.0 3D Graphics Accelerator |
| Memory | RAM: 4GB–8GB LPDDR4x Storage: 64GB–256GB UFS 2.1 Expandable Storage: Up to 2TB |
| Operating System | Android 13 |
| Ethernet | 100M Ethernet via USB Adapter |
| Wi-Fi | 802.11 a/b/g/n/ac Dual-Band 2.4GHz / 5GHz |
| Bluetooth | Bluetooth 5.0 |
| Camera Support | 5MP / 8MP / 13MP MIPI or USB Interface |
| Built-in Sensors | Gravity Sensor Light Sensor Proximity Sensor |
| Physical Controls | Power On/Off Volume Up/Down |
| Power Input | DC 12V 2A Integrated 4-Pin DC Jack Design |
| I/O Ports | 1× USB 2.0 Type-A 1× USB 2.0 Type-C (OTG Supported) 1× 3.5mm Audio Jack 1× HDMI-IN Port |
| Remote Control | Infrared Remote Control Effective Distance: < 15m Voice Control: Not Supported |
| Battery Type | Lithium Polymer Battery |
| Battery Specification | 13.5V 6A Main Display Battery: 19.0V 3.42A |
| Battery Capacity | Standard: 10000mAh Expandable Up to 33000mAh |
| Charging Time | 3–4 Hours |
| Battery Life | 4–5 Hours |
| Maximum Power | ≤60W |
| Standby Power | ≤1W |
| Shutdown Power | ≤0.5W |
| Power Adapter | Input: AC100–240V, 50–60Hz Output: DC12V 4A |
| Power Indicator | Blue LED Indicator |
| Audio | Digital Power Amplifier 3.5mm Audio Port Speakers: 4Ω 5W ×2 |
| Wall Mount Support | Yes |
| Adjustable Stand | Forward/Backward Tilt: Supported Elevation Angle: +35° ~ -35° Lifting Stroke: 170mm Vertical Rotation: 90° |
| Default Language | Chinese |
| Language Support | Supports Multilingual OSD Menu |
| Storage Temperature | 0°C ~ +60°C |
| Operating Temperature | -20°C ~ +60°C |
| Product Weight | 16.5kg |
| Package Weight | 20.5kg |
| Product Size(L x W x H) | Touch Display: 715×425×60mm; Chassis: 400mm×86mm |
| Package Size(L x W x H) | 830×530×230mm |
| Package Contents | 1 x Smart Mobile Screen 1 x User Manual |
