Highlights

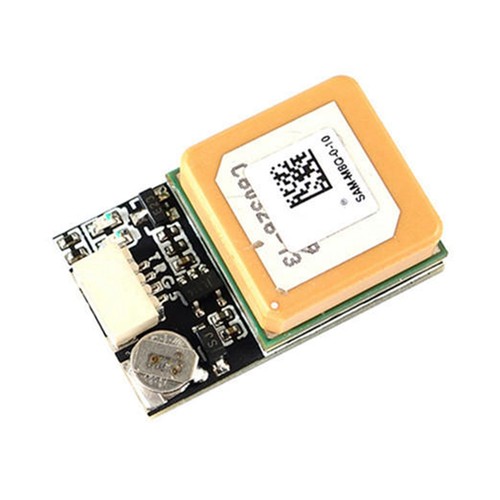

72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
Build-in embedded GNSS patch antenna, low power consumption
The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated in any design.
Max navigation update rate
Single GNSS up to 18 Hz
2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz
Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP
Velocity accuracy 0.05m/s, Cold start 26 s, Aided cold starts: 2 s, Hot start 1 s
Specification

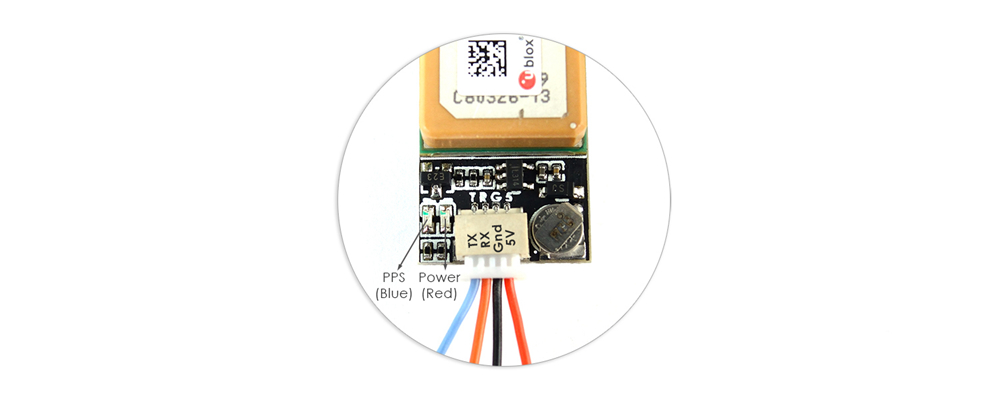

General | Brand: Matek System Item No.: SAM-M8Q Input voltage range: 4-6V Uart (Tx,Rx) interface Battery for HOT module start Power LED(Red) & Time pulse LED(Blue) Baudrate 9600 default Dimensions: L26 x W16 x H7.5 mm Weight: 7 gram Can be easy mounted in your case by double sided tape Supported by INAV/Betaflight/Ardupilot, ect. |
Sensitivity | Tracking & Navigation: –165 dBm Reacquisition: –158 dBm Cold start: –146 dBm Hot start: –155 dBm |
Tips | GPS, GLONASS, SBAS, QZSS are enabled by default Blue PPS LED blinking(1Hz) means 3D fixed update rate 1Hz & baudrate 9600 default Baud 9600~115200 supported by INAV update rate 5Hz with INAV UBLOX Protocol update rate 10Hz with INAV UBLOX7 Protocol BF doesn't support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last. The scratches on ceramic antenna are the result of tuning the antenna by ublox. Placing small nicks in the centre of the long edges, or corners, brings them into spec. |

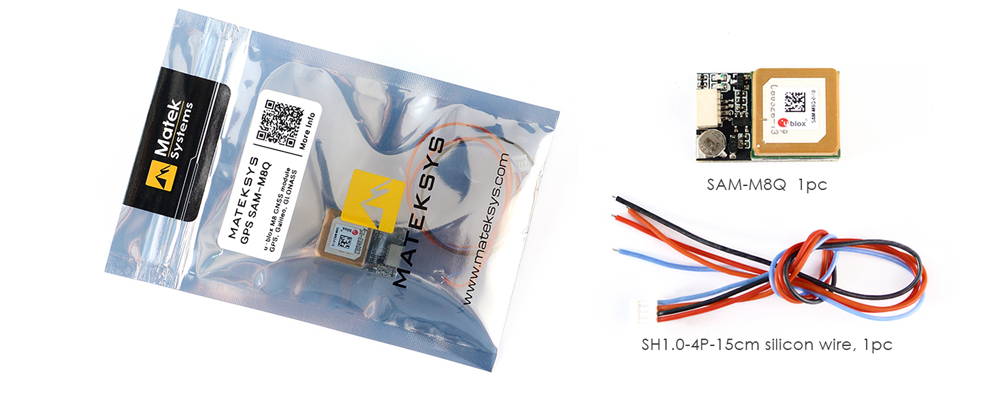

Package Contents | 1 x SAM-M8Q GPS Module 1 x SH1.0-4P 15cm silicon wire 1 x Transparent PVC Heat-shrink tube |
