1 x Digital Oscilloscope
2 x Probe
1 x Power Cord
1 x Power Adapter
1 x USB Cable
1 x User Manual
Ship to:
United States
Select the desired shipping method
- Shipping Company Estimated Delivery Time Shipping Cost
Highlights
12-bit High-Resolution ADC
This High-Resolution Oscilloscope delivers 4096 vertical levels (16x clearer than 8-bit scopes), capturing µV-level signal details for precise power ripple and noise analysis.
Ultra-Fast 1.25 GSa/s Sampling
The 1.25 GSa/s Oscilloscope ensures accurate real-time signal capture with a 50M record length, ideal for debugging high-speed circuits.
700,000 wfms/s Waveform Capture
Detect transient anomalies 10x faster than standard scopes with this 700,000 wfms/s Waveform Capture oscilloscope.
7-inch Multi-Touch Display
Operate this 7-inch Touchscreen Oscilloscope like a smartphone, with customizable shortcuts and a 1024×600 resolution for intuitive analysis.
Advanced Protocol Decoding
Built-in CAN/LIN Bus Decoding Oscilloscope supports UART, I2C, SPI, CAN, and LIN protocols for embedded system debugging.
Five-in-One Multifunction Tool
Combines a Digital Oscilloscope, Protocol Analyzer, FFT Spectrum Analyzer (1M-point), 4-Digit Voltmeter, and 6-Digit Frequency Counter in one device.
Expandable & Remote-Controlled
Connect peripherals (mouse/keyboard) or use the embedded web server to operate this Multifunction Protocol Analyzer remotely via Wi-Fi.
12-bit High-Precision Multifunction Digital Oscilloscope
- 50M Record Length
- 700,000 wfms/s Waveform Refresh Rate
- 500μV Vertical Resolution
- 256 level Grayscale Display
- 7" Multi-Touch
- CAN CAN Bus Decoding
- LIN Bus Decoding
- 1M FFT Spectrum Analysis
- 43 Auto Measurements
- External Mouse
- External Keyboard
- External Wi-Fi Module (options)
12-bit High-Resolution Oscilloscope
4096-level vertical resolution(16x higher than standard oscilloscopes), capturing uV-level signal fluctuations for precise power ripple and noise analysis.
Ultra-low Noise and High Dynamic Range
Vertical Sensitivity: 500uV-10V, distortion-free display of both strong and weak signals on the same screen.
Rapid Capture, Precise Analysis
Waveform Capture Rate: 700,000 wfms/s Transient anomaly detection success rate improved by over 10x.
Advanced Triggering and Hardware-Decoding Capabilities
2-Channel Hardware-Decoding
4th Generation Multifunction Digital Phosphor Oscilloscope
Five-in-One Multifunctional
- Digital Oscilloscope
- Protocol Analyzer
- High-precision Frequency Counter
- Voltmeter
- FFT Spectrum Analyzer
7-inch Multi-Touch Screen
Smartphone-like Operation with User-customizable Shortcut Keys.
7-inch TFT-LCD screen
Resolution:1024X600 pixels
Remote Control
Embedded WebServer allows browser-based access and operation of the oscilloscope
Multi-Touch Screen
User-Customizable Menu Support
Hardware Expansion
Supports external Wi-Fi modules and network printers
More Features
- 43 Auto Measurements with Advanced Math Functions
- Glossary of technical terms for Quick Auto Measurement Setup
- Parametric Statistics
- Cursor Gating with Visual Indicators
- Rich Interfaces
- Durable Electroplated Knob with Metallic Finish
Specification

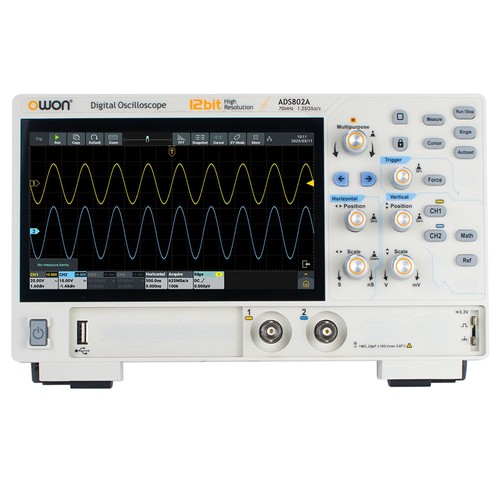

| General | Brand: OWON Type: Digital Oscilloscope Model: ADS802A |
| Specification | Bandwidth (-3 dB): 70MHz Channel: 2 Max. sample rate: Max. 1.25GSa/s Acquire mode: Sample, Peak, High Res, Average, Segmentation DC Gain Accuracy: 3% (≤1mV); 2% (2mA); 1.5% (≥5mV) Max. waveform capture rate: Max. 700,000wfms/s Max memory depth: 50M Vertical Sensitivity Range: 500μV/div - 10 V/div Vertical resolution: 12 bits Sampling rate range: 1ns/div - 1000s/div, step by 1-2-5 Relay time accuracy: ±25ppm (typical) Input Impedance: 1.0MΩ±20%, parallel with 20 pF±5 pF Probe Attenuation Coefficient: 1.00x - 1.00Mx, step by 1-2-5, support custom Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic Bus decoding: RS232/UART, I2C, SPI, CAN, LIN Auto measurement: Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty, -Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑), Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓), Phase(A↓-B↓), FRR(A↑-B↑), FRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑), LFF(A↓-B↓) Waveform Math: +, -, *, /, &, |, ^, !, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject) Frequency counter: 6-digit frequency counter. 7 - Maximum frequency: maximum analog bandwidth of oscilloscope Voltmeter: Support DC, AC+DCrms, ACrms. Resolution: 4 digits (ACV/DCV) Communication Interface: HDMI, USB device, USB Host, Trig Out(P/F), LAN Display: 7 inch (1024×600), capacitive multi-touch screen Power supply interface: Type-C |
| Weight & Size | Product Weight: 1.5kg Package Weight: 2.58kg Product Size(L x W x H): 260x160x78mm Package Size(L x W x H): 300x220x200mm |
| Package Contents |
|
