Highlights

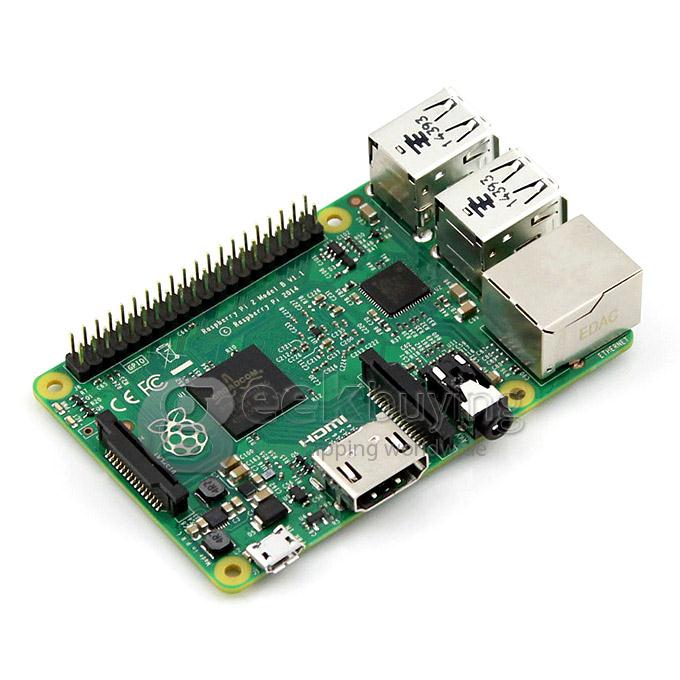

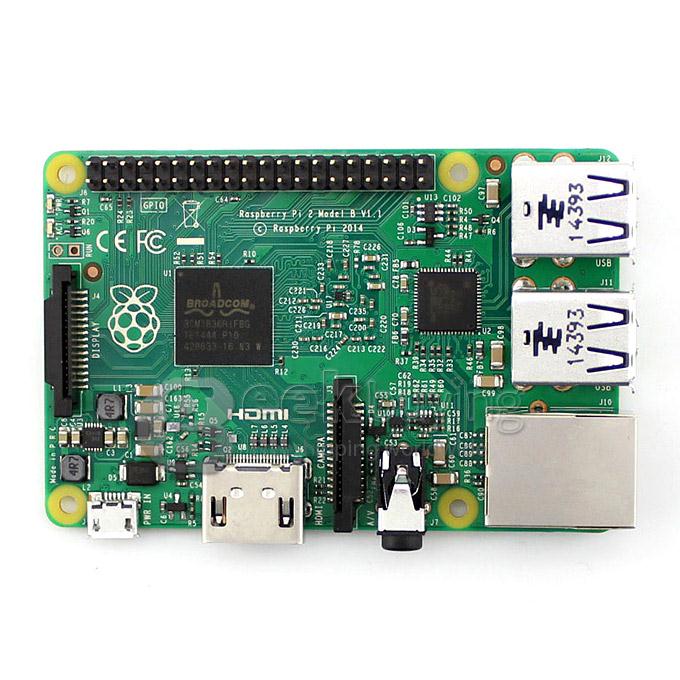

- Raspberry Pi 2 Model B Product introduction:
- Broadcom BCM2836 900 MHZ 4 nuclear ARM architecture (A7 with VideoCore IV dual-core CPU to GPU
- GPU support Open GL ES 2.0, OpenVG hardware acceleration, 1080 p30 h. 264 hd decoding
- GPU bandwidth gpixel 1 / s, 1.5 Gtexel/s or 24 gflops DMA texture resolution
- 1GB of memory
- With a Micro SD card slot (support through its boot Linux operating system, such as Fedora)
- 10/100 adaptive network card
- HDMI interface
- USB 2.0 x 4
- Micro SD card slot
- MicroUSB interface power supply
- The 3.5 mm audio output interface
- 40 pin interface
- Camera interface
- LCD interface
- Size: 85 x x 17 mm to 56
Specification
| Accessories | Instructions |
| RPi2 B | / |
| USB WIFI RTL8188CUS | USB WIFI 150M |
| Micro SD Card 8GB | Speed 10 8GB microsd card |
| USB Camera 0307 | USB camera |
| Mini Wireless Keyboard | Mini wireless keyboard with touch pad |
| HDMI to VGA (with audio power supply) | Convenient access to the VGA display |
| 5V 2A power | Load more when needed |
Family chords
| Project | Type A + | Type B | Type B + | 2 Generation of Type B |
| SoC (system-on-a-chip) |
Broadcom BCM2835 (CPU, GPU DSP and SDRAM) |
Broadcom BCM2836 | ||
| CPU | ARM1176JZF -s core (700 MHZ mononuclear ARM11 series) |
The ARM architecture (4 nuclear A7 900 MHZ) |
||
| The GPU (graphics processor) |
Broadcom VideoCore IV, OpenGL ES 2.0, 1080, p 30 h. 264 / mpeg-4 AVC hd decoder |
|||
| Memory | 256MB | 512MB | 1GB | |
| USB 2.0 |
1 hub extension) |
2 hub extension) |
4 hub extension) |
|
| Video output |
RCA video output interface (only 1 B this interface),support NTSC and PAL formats that support HDMI (1.3 and 1.4), |
|||
| A resolution of 640 x 350 to 1920 x 1200 support PAL and NTSC format. | ||||
| Audio output | The 3.5 mm jack, HDMI (high definition audio/video interface) | |||
| SD card interface | Micro SD card interface |
Standard SD card interface |
Micro SD card interface | |
| Network involved in | No (via USB) | 10/100 Ethernet interface (RJ45 interface) | ||
| Extension interface | 40 | 26 | 40 | |
| Rated power | Unknown, but a lower |
700 ma (3.5 W) | 600 ma (3.0 W) | 1000 ma (5.0 W) |
| Power input | 5 v, through MicroUSB or GPIO pins | |||
| Overall size | 65 × 56 mm | 85.60 × 53.98 mm | 85 x 56 x 17 mm | |
| Operating system | Debian GNU/Linux, Fedora, Arch Linux, RISC OS | |||
| 2 Generation of type B also supports Windows 10 and Snappy Ubuntu Core, the official will continue to update to support more operating system, please look! |
||||
What's in the box?
- 1 x RPi2 B

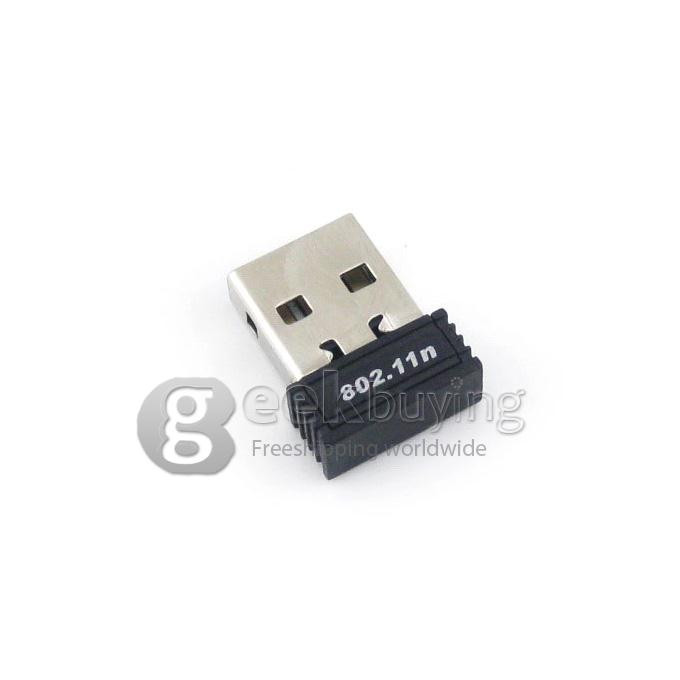

- 1 x USB WIFI 150M RTL8188CUS
- 1 x Micro SD Card 8GB(Class10)

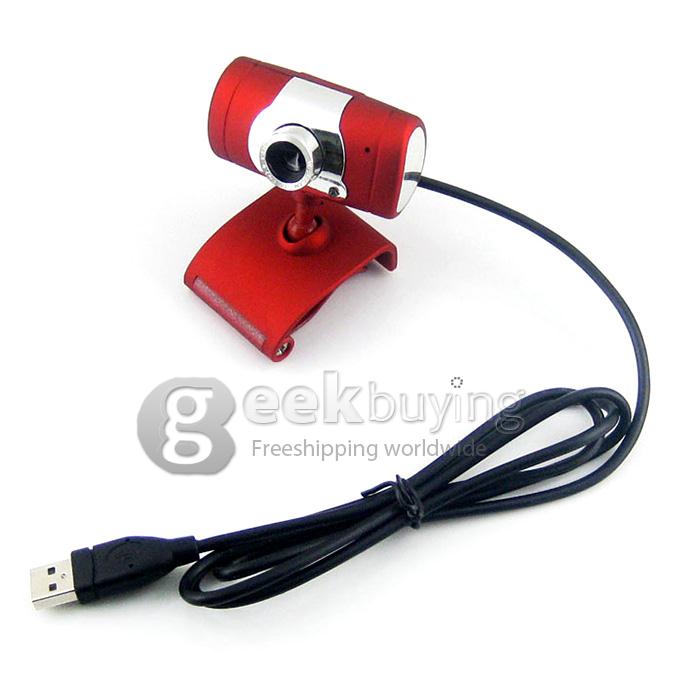

- 1 x USB Camera 0307

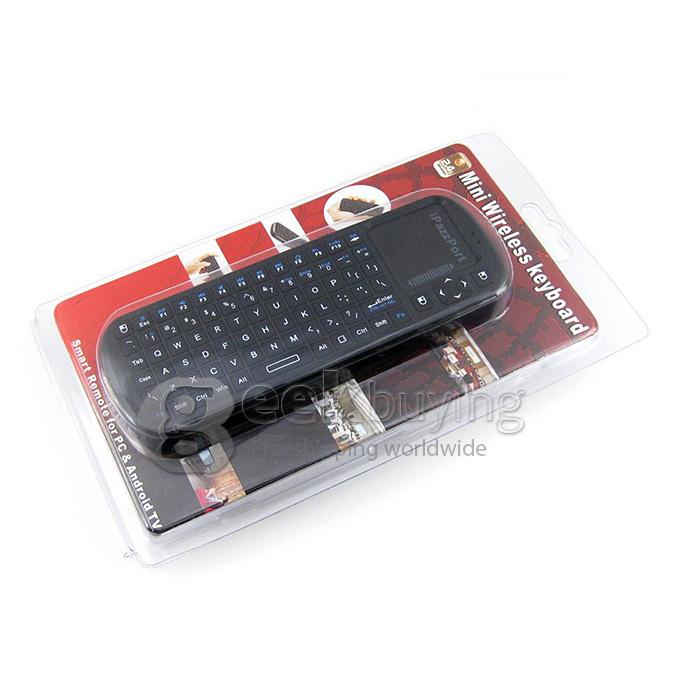

- 1 x Mini Wireless Keyboard
- 1 x HDMI male mouth turn VGA mother mouth turn 20 cm audio tape of power supply wiring

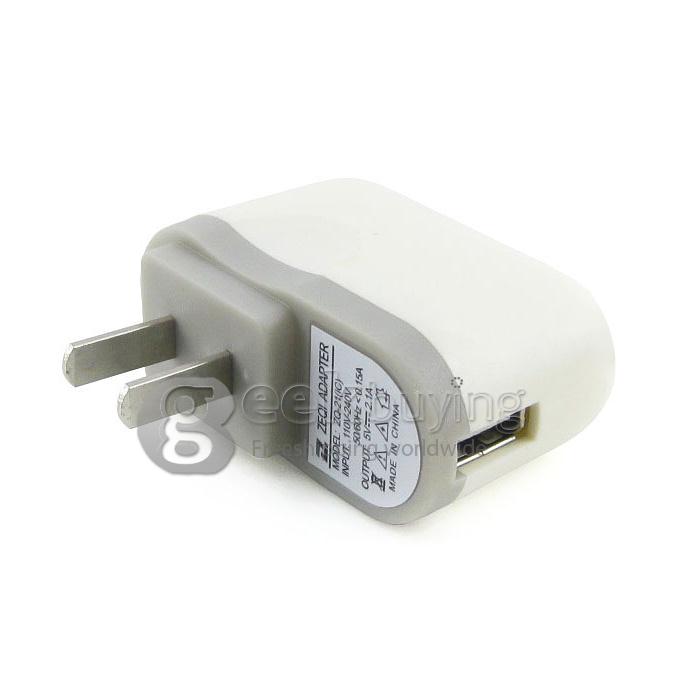

- 1 x The power supply the x1 ul 5 v 2.1 A USB interface
- 1 x USB cable type A male mouth turn micro
- 1 x 1.5 M cable directly connected (B) the
