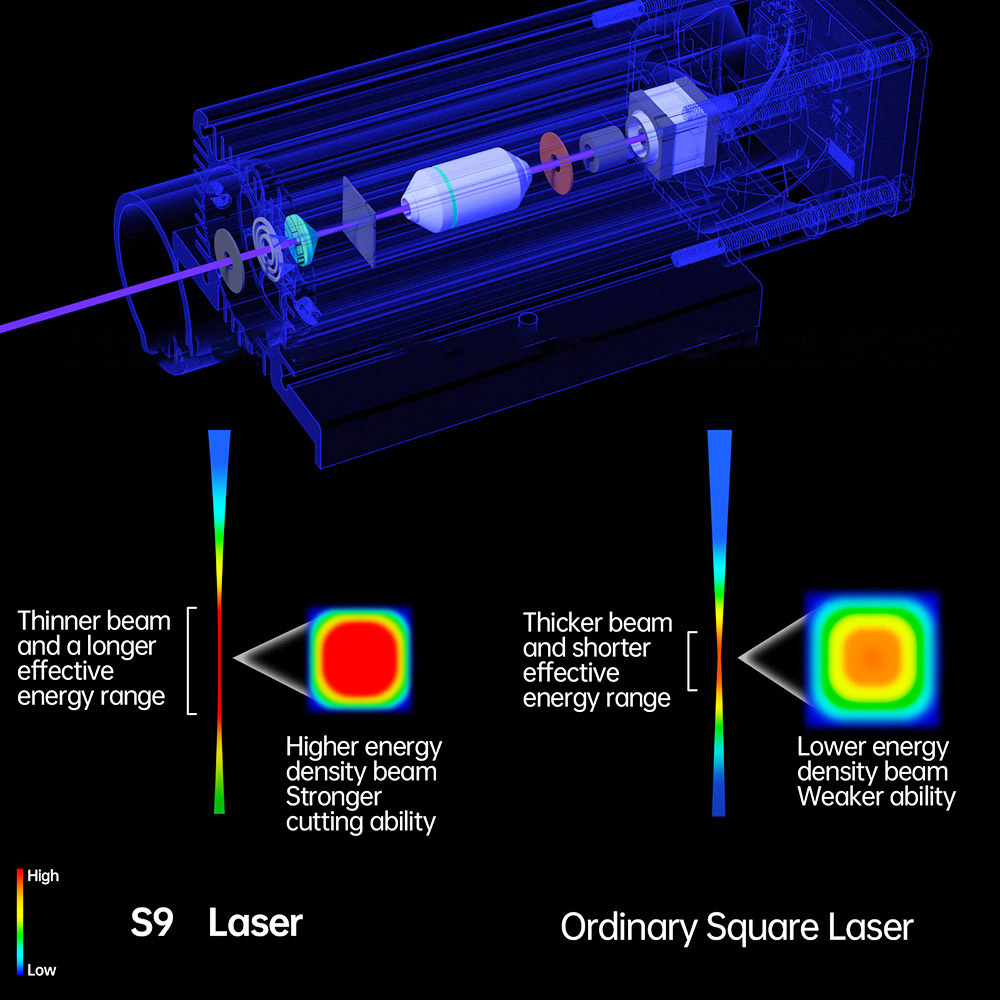

Latest Laser Beam Shaping Diode Laser: S9 laser engraver uses the latest 5.5W laser beam shaping technology diode laser, which has an ultra-fine 0.06mm sharp laser focus. With super cutting penetration and precision, he can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, this is almost beyond the effect of 90W CO2 laser.
Fast Focusing and High Accurancy Laser Engraving Machine: S9 laser engraver has the fastest focus design and sliding design, you only need to slide the laser and tighten the screw to complete fast focusing of the laser engraver machine. X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.
Security and Protection Designs: Compare to other laser engraving machine, our laser engraver is equipped with a very convenient power switch. There is also a A4 size steel pad that can well protect your table from laser damage. The laser filter cover filters 98% of the ultraviolet light to the eyes. People can watch laser engraving without wearing goggles.
Solid and Easy Assembly Structure Design: The full-metal structure design makes the laser engraver cutter machine extremely solid and improves the accuracy of engraving. The assembly can be completed in 10-20 minutes. The structural frame is very durable and remains open to upgrade. You can replace with other new lasers. Or replace longer metal beams to expand the engraving area.
Widely Compatibility: The S9 laser engraving machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, MAC system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, AI, G-code, NC, BMP, etc.
|Specification||Engraving size: 410*420mm
Engraving materials: wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, 304 Stainless steel, ceramic, dark stone
Cutting material: wood, acrylic, cardboard, fabric, bamboo, plastic board, KT board
Laser effect power: 90W (cutting effect compared to 90W CO2 laser)
Machine Electricity Power: 30W (It has nothing to do with cutting or engraving performance,just electricity consumes)
Diode laser power: 5.5-6W (Please note that this is light energy and not electric energy)
Laser wave length 455±5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser + sliding device
Laser protective cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.
Operating software: LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection
Power supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Certification: CE FCC RoHS FDA IEC
|Weight & Size||Product Weight: 3.0Kg
Package Weight: 4.4Kg
Package Size(L x W x H): 61.5*34.5*13cm
1× X axis assembly
