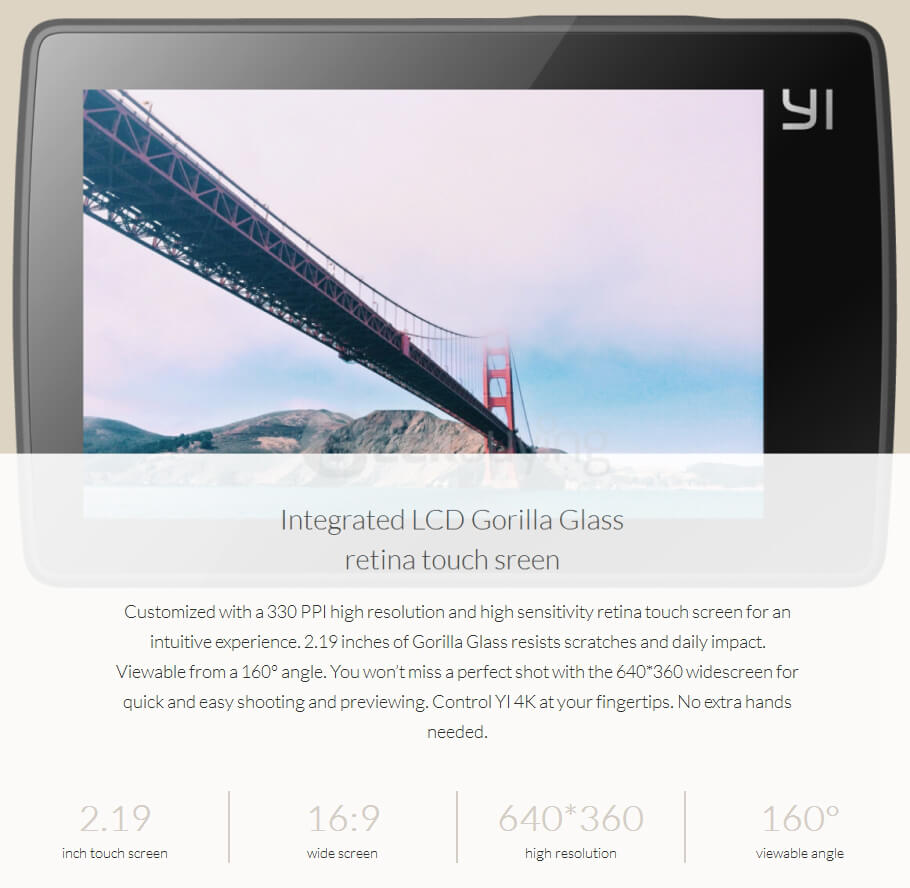

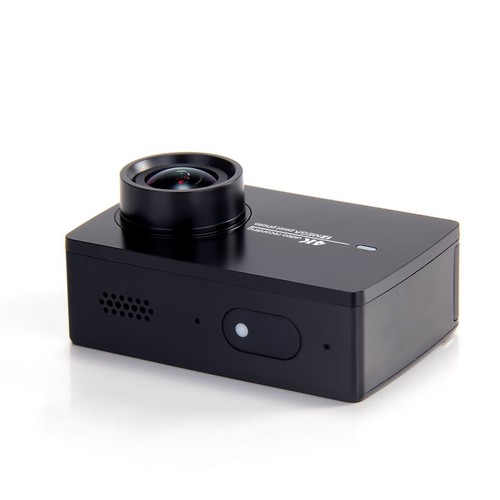

Xiaoyi YI 4K Action Camera II 2.19 Retina Screen Ambarella A9SE75 Sony IMX377 12MP 155‎ Degree Wide Angle 1200mAh EIS LDC Sport Camera International Version - Black

General

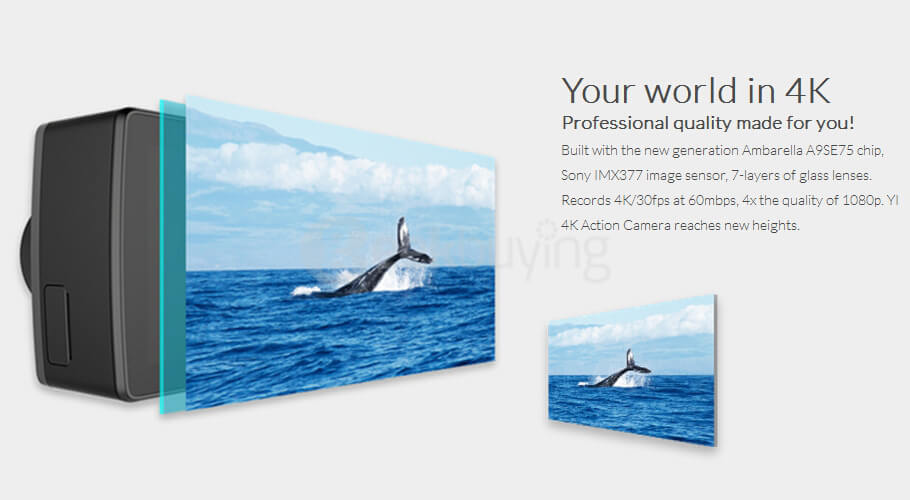

Chipset Name: Ambarella

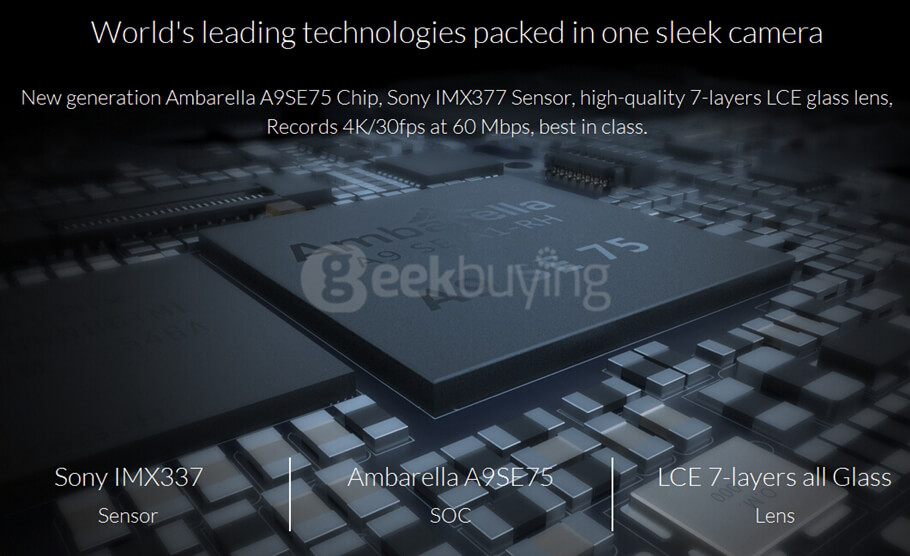

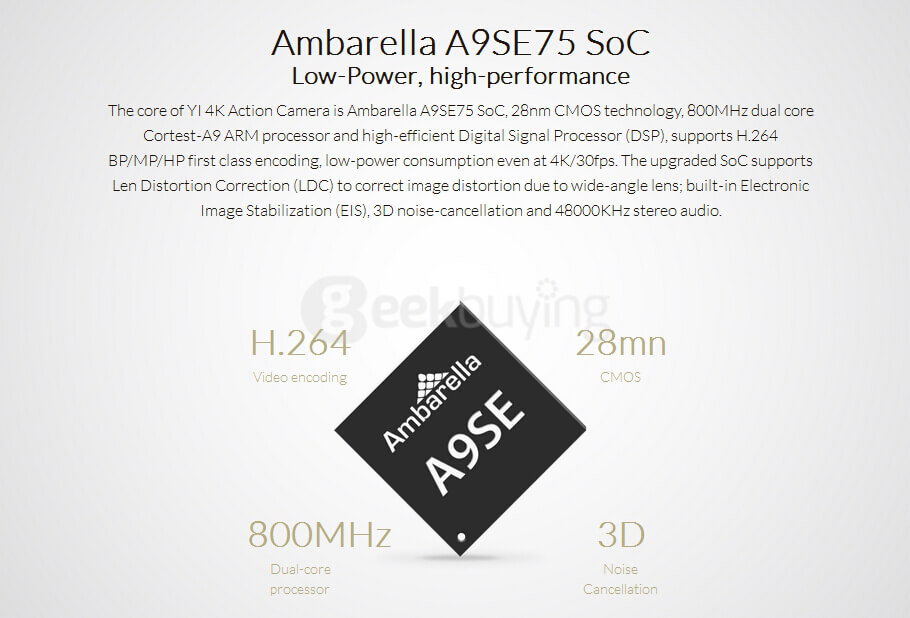

Chipset: Ambarella A9SE75, Cortex-A9 ARM CPU

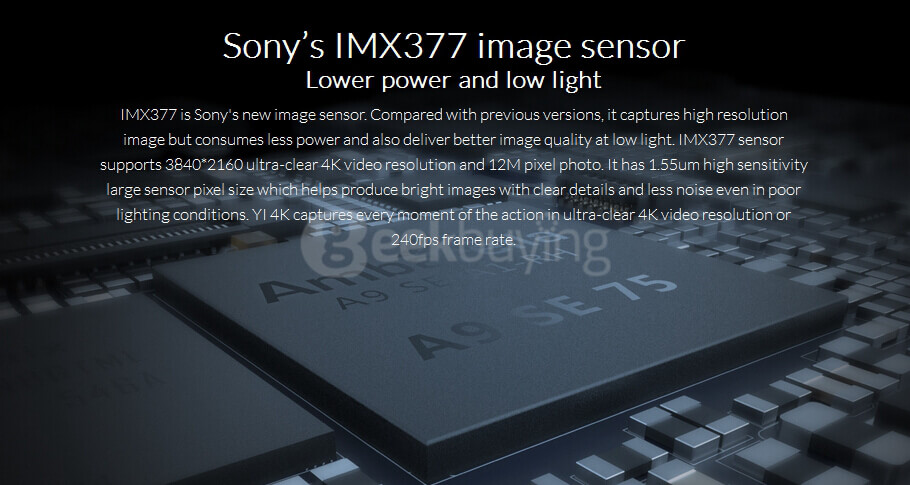

Image Sensor: SONY IMX377, 1/2.3", 12 megapixels

Max External Card Supported: TF 64G (not included)

Class Rating Requirements: Class 10 or Above
We recommend micro SD card below to ensure high-quality 4K video.
Transcend Ultimate 633x U3 / Lexar 1000x U3


Battery Type: Removable
Battery Capacity (mAh):1200/1230mAH(min/typ), 5.39/5.51Wh(min/typ)
Charge way: USB charge by PC
Input Current: 1A Input Voltage: 5V

Video Format:H.264 codec, .mp4 file format

Time Lapse Video
Creates video from frames captured at set intervals.
4K (16:9)\2.5K(4:3) fps:30\25
Interval:0.5, 1, 2, 5, 10, 30, 60s

Slow Motion
Record high frame rate video, play it at a low frame rates, form the slow motion video.
720p fps:60\120\240
Rate: 2\4\8

Video + Photo
Record video and capture Time Lapse photos at the same time.
1080p fps:60\50\30\25 1440p fps:30\25 2.5K fps:30\25
Interval: 5,10,30,60s

Loop
Record a continuous video loop and overwrites itself until you press the shutter button to stop it and save.
Video length:5 min, 20 min, 60 min, 120 min, Max

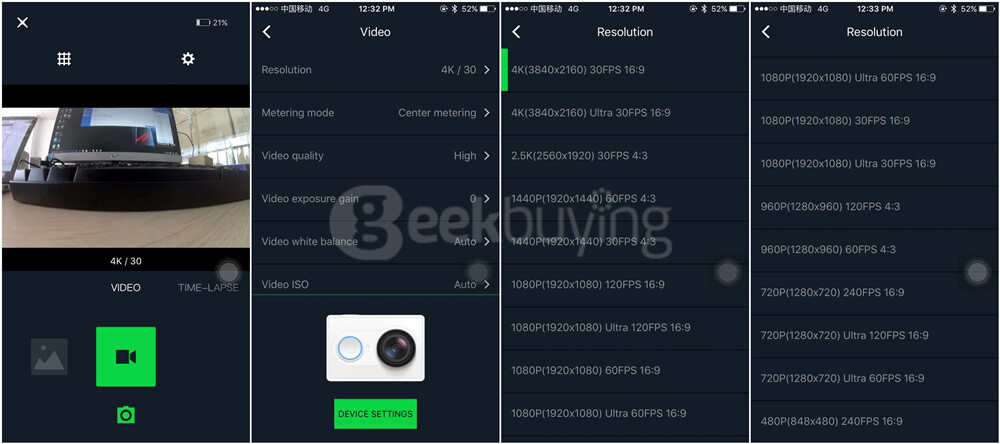

Video Resolution

1080P (1920 x 1080),1280 x 960,1920 x 1440,2.5K (2560 x 1920),4K (3840 x 2160),720P (1280 x 720),WVGA(800 x 480)

Photo Resolutions :12MP /4000x3000 ; 8MP / 3840x2160; 7MP W / 3008x2256; 7MP M / 3008x2256 ; 5MP / 2560x1920
Timer : Count down, then photo capture.
Countdown: 3, 5, 10, 15s
Burst :Press the shutter button to capture a series of photos.
Frequency: 3p/s, 5p/s, 10p/s, 10p/2s, 10p/3s, 30p/s, 30p/2s, 30p/3s, 30p/6s
Time Lapse Photo: Capture a series of photos at timed intervals.
Interval: 0.5, 1, 2, 5, 10, 30, 60s
Shutter : Only for Photo Mode and Timer Mode, which determines the length of time needed to open the shutter.
Shutter settings: Auto, 2s, 5s, 10s, 20s, 30s
Shooting speed: 1/4096s to 30s

Self-defined IQ parameters for demanding customers

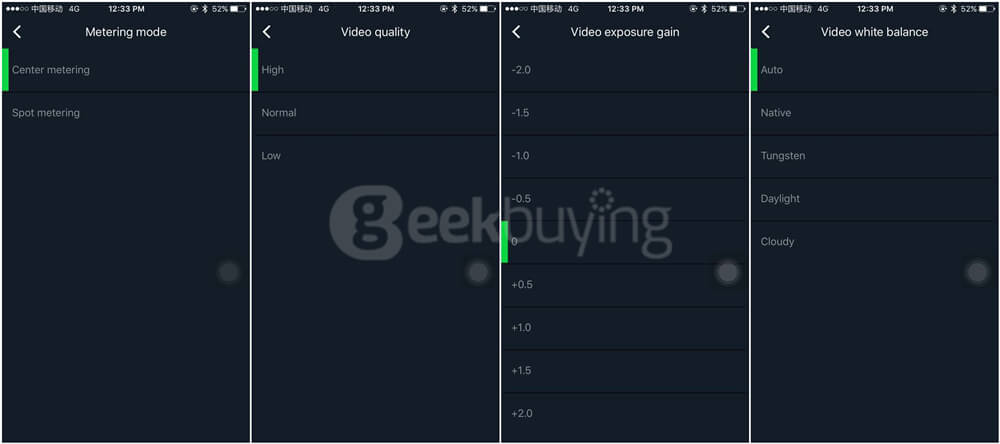

White Balance Setting
Auto (Default) : Automatically adjusts the white balance via environment, without human intervention.
Native:The original color
Tungsten:3000K, tungsten or sunrise / sunset lighting conditions
Daylight:5500K, cool fluorescent, average daylight conditions
Cloudy:6500K, cloudy environmental conditions

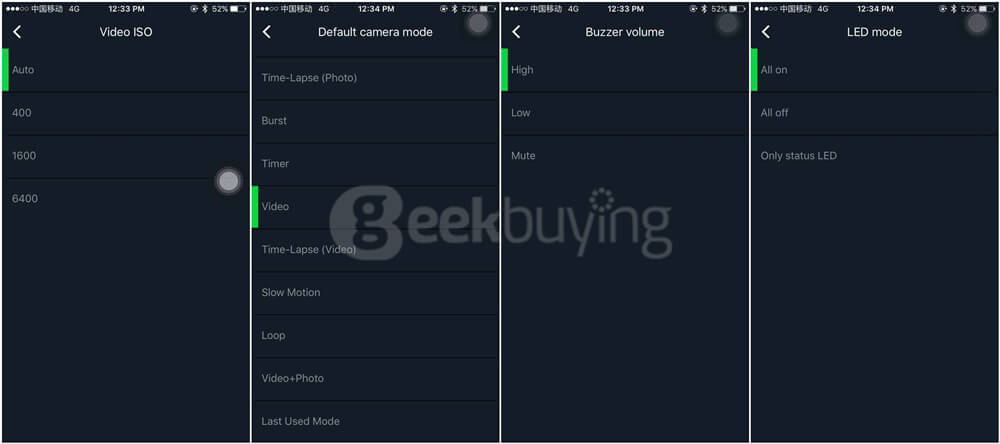

ISO for Video (Resulting Video Quality)
Auto (Default):Automatically adjusts the sensitivity according to the environmental conditions
400:Darker video in low light, minimum image noise
1600:Moderately bright video in low light, moderate image noise
6400:Brighter video in low light, highest image noise

ISO for Photo (Resulting Photo Quality )
Auto (Default):Automatically adjusts the sensitivity according to the environmental conditions
100:Bright photo in outdoor daylight, minimal image noise
200:Bright photo in indoor lighting, marginal image noise
400:Darker photo in low light, moderate image noise
800:Darker photo in very low light, increased image noise

Photo + Video Playback

WIFI: Yes

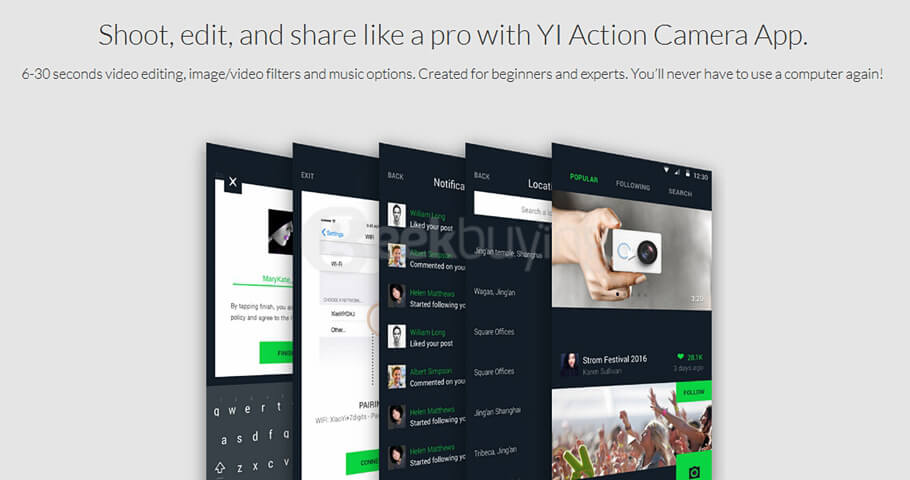

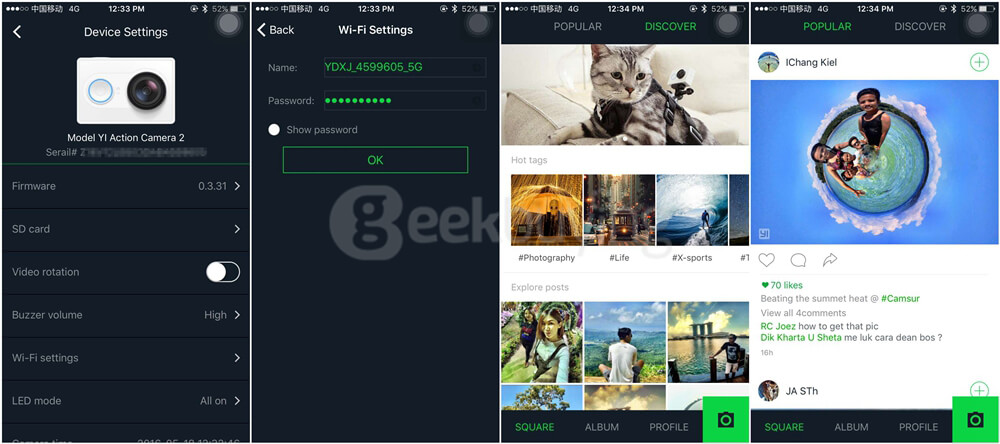

WiFi Function: Settings,Sync and Sharing Albums

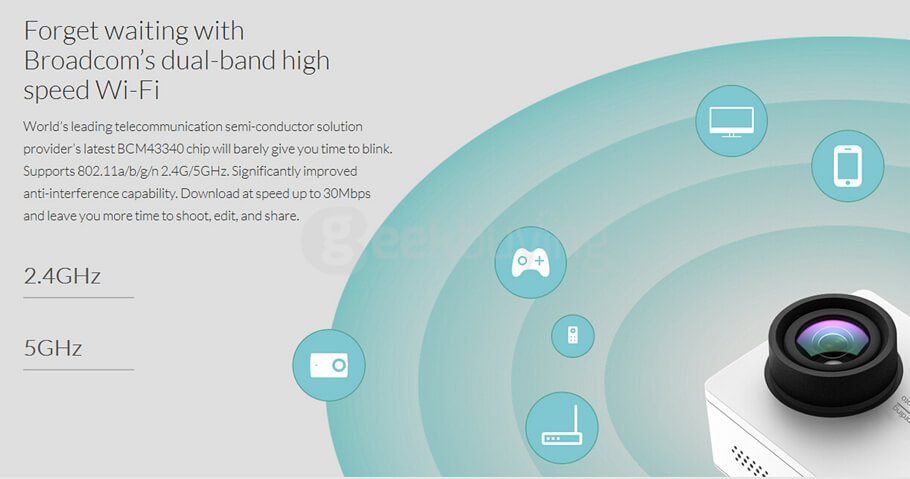

Wi-Fi: Broadcom BCM43340 Dual-band 5GHz /2.4GHz, built-in (802.11 abgn),offers 30Mbps download speed
Interface Type: Micro USB,TF Card Slot
System language: English

Operate Temperature:32°F-113°F
Operate Humidity:15~90%RH
Storage Temperatur:-4°F-140°F
Waterproof:Up to 40 meters with the waterproof case.
Bluetooth:Built-in 4.0BLE & 2.0 Dual
Remote Control:Bluetooth (4.0BLE low power consumption)/The following bluetooth remote control,camera parameters can be set flexibly
G-Sensor:Built-in Bosch BMI160, 6-axis gyroscopic, provides precise acceleration and angular rate measurement.
Indicator Light:Tricolor power indicator(red,blue,violet),a red status indicator.

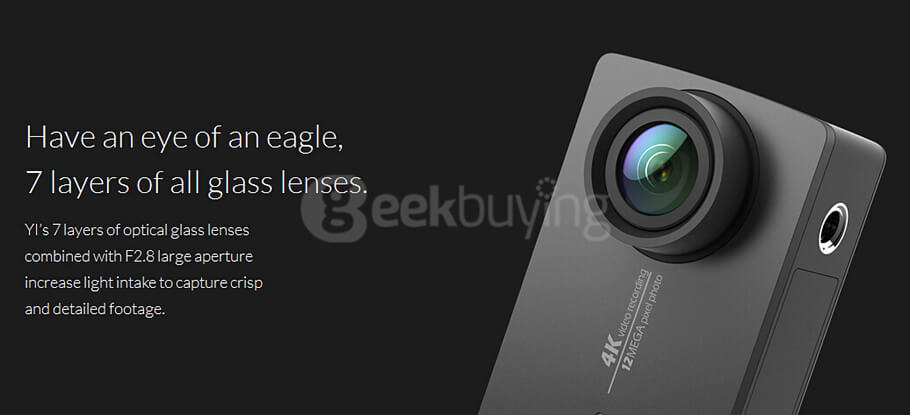

Focal length:2.73±5%mm
Mountable:Built-in tripod mount(1/4")
Average Power Consumption:2.5W

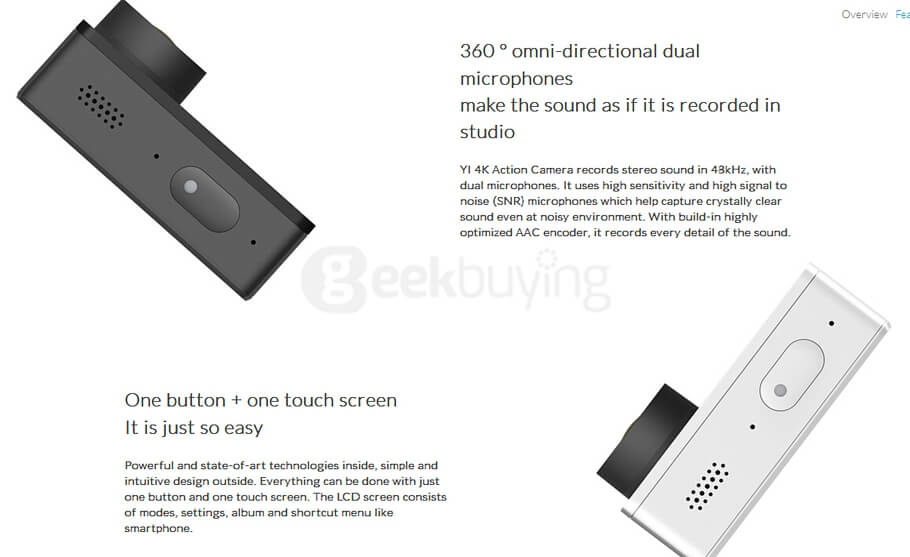

Audio:360° omni-directional dual microphones
Built-in speaker : stereo sound in 48kHz, with dual microphones.

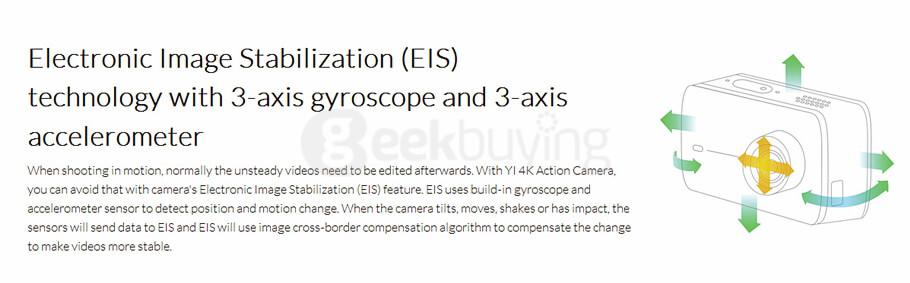

Electronic Image Stabilization
Built-in 3 axis gyroscope and 3 axis accelerometer. Uses a cross-border compensation algorithm to compensate the motion change to produce stable video quality
Resolutions supported:1080p fps:60\50\30\25 960p fps:60\50

Auto Low Light
With a normal camera, the user must manually adjust the parameters according to different light conditions. YI 4K Action Camera makes it easy for you, it senses the change of the light condition with CMOS, and ISP processor will adjust the frame rate and parameters automatically and to produce the highest image quality at low light.

Lens Distortion Correction
100% of the wide-angle lens distortion correction

1 x Camera
1 x USB Cable
1 x User manual
