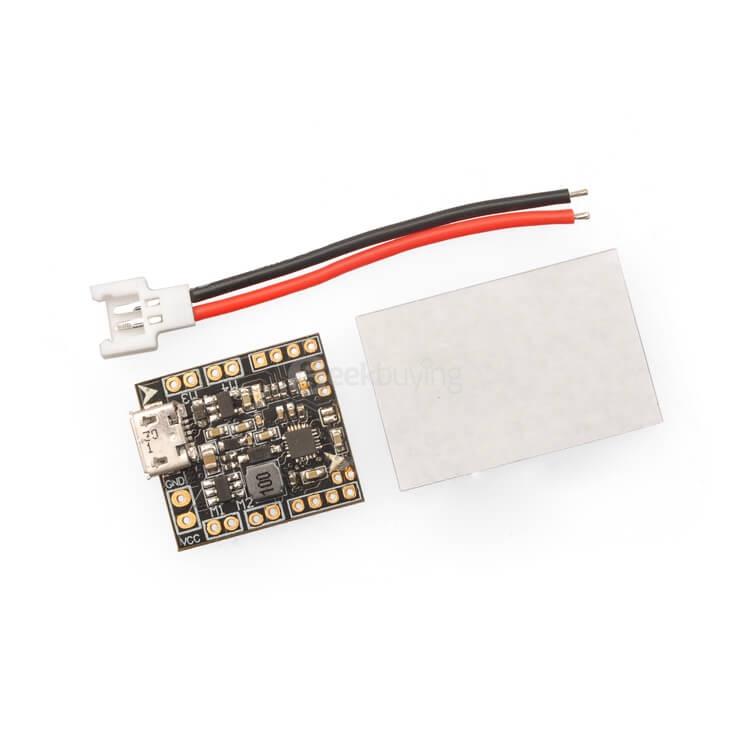

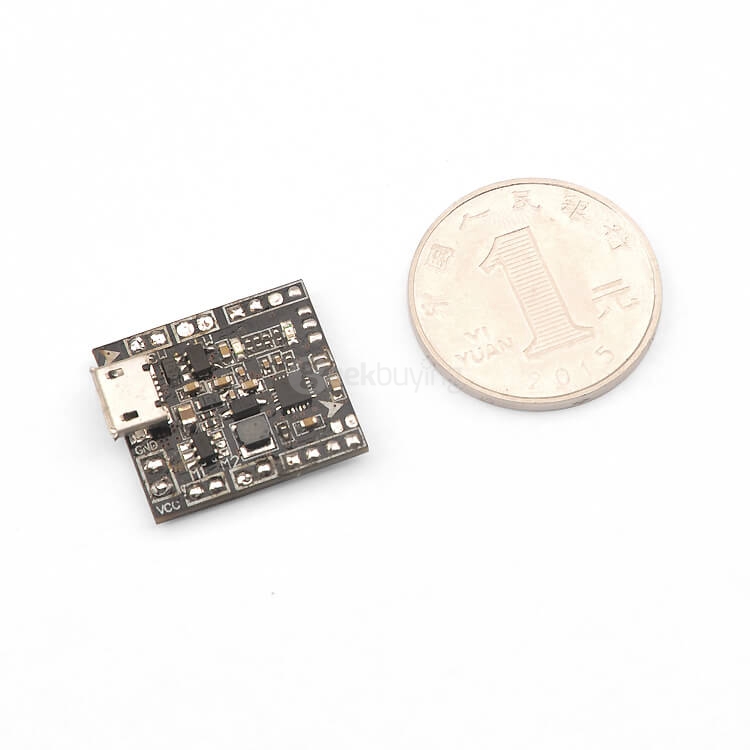

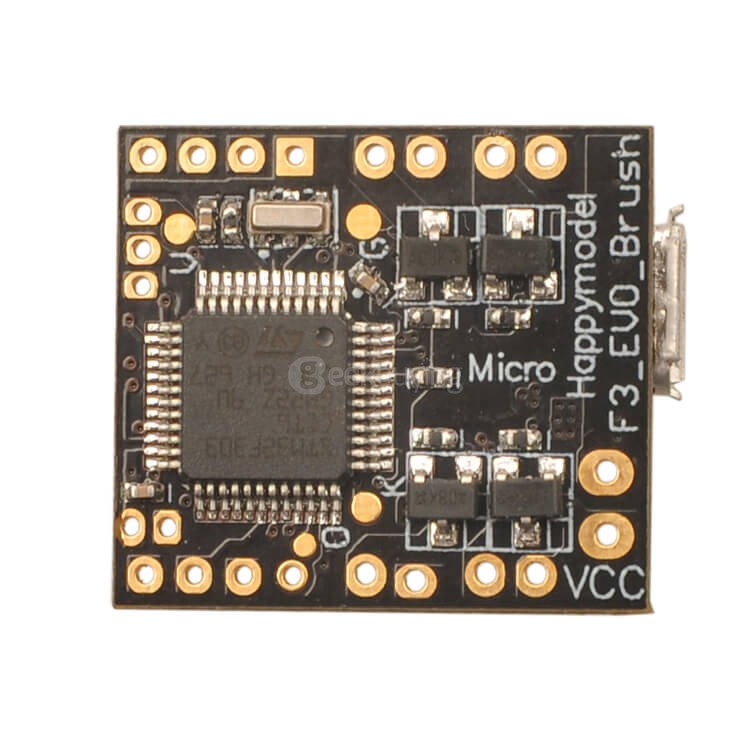

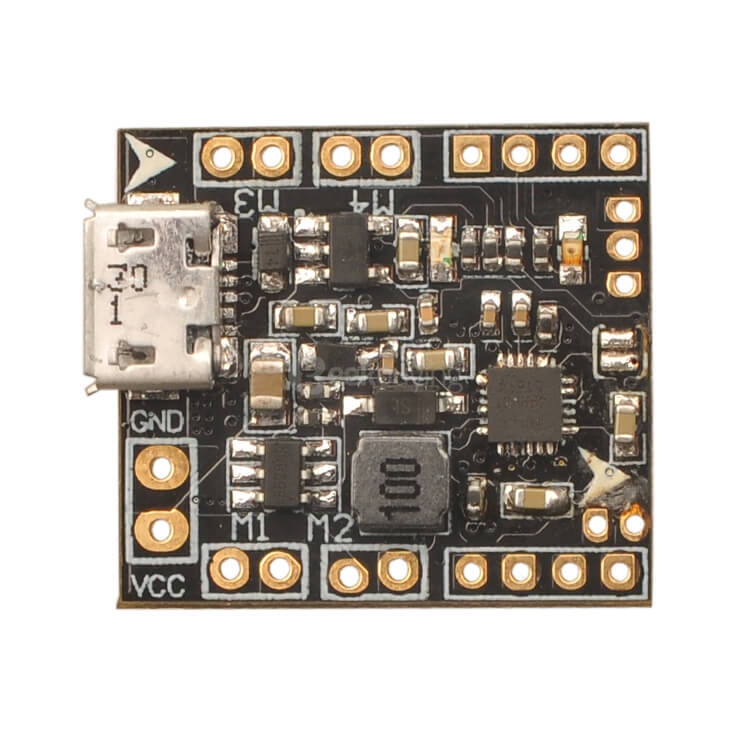

Tiny SP RACING F3 EVO BRUSH Flight Controller Board for Micro FPV Racing Quadcopters

Note

This Tiny F3 EVO_Brush flight controller is for BRUSH MOTOR only, Not compatible with BRUSHLESS MOTOR.

Highlights

Tiny F3_EVO_Brush revision is out of the F3 EVO SP RACING is based on a SP RACING F3 EVO firmware 32 brush flight control

The flight control support 1S (4.2V)

Independent design of the circuit structure, comes with the Voltage control technology, 1S lipo battery input, the UART1/2/3 output 5V, DSM port output 3.3V

Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight

With a large current NMOS transistors, operating current of up to 10A or more. Each Brushed motor is equipped with freewheeling diodes

Support for PPM, SBUS, DSM/DSM2/DSMX receiver input signal

In support of almost all hollow cup motors, including 1020 coreless motor

Specification

General	Type:Flight Controller     Model:Tiny SP RACING F3 EVO      Quantity:1 Piece  Compatible:Micro FPV Racing Quadcopters

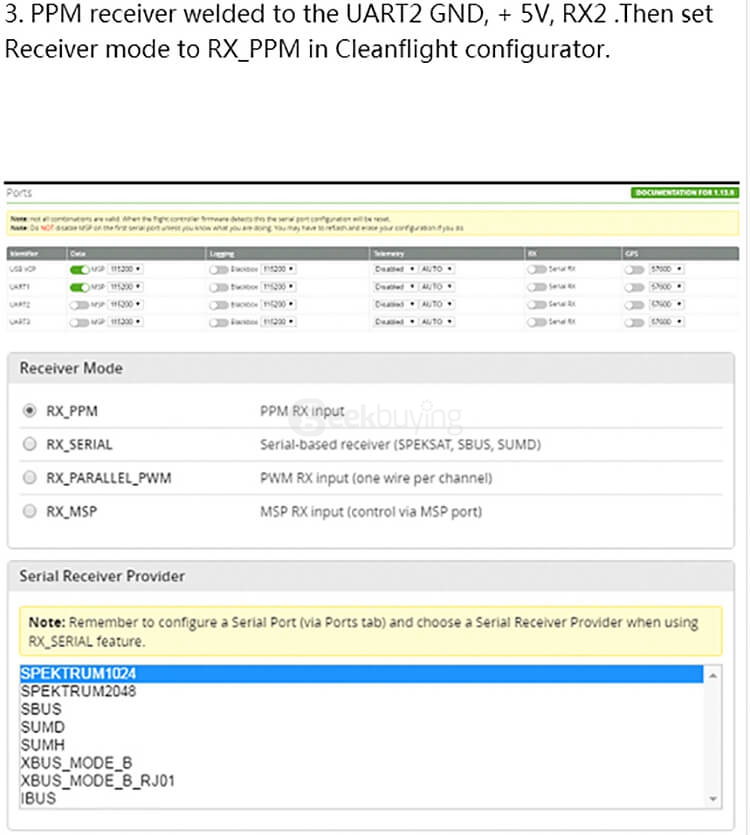

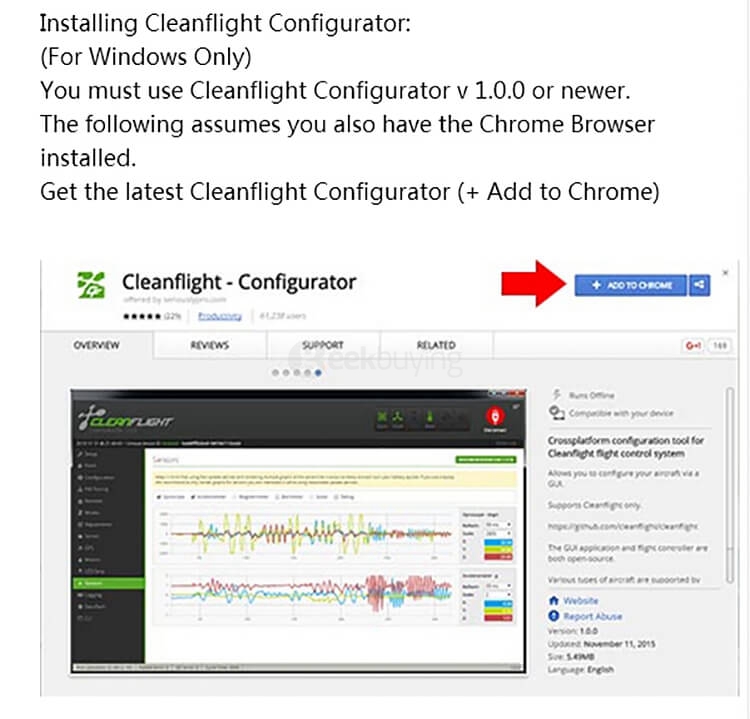

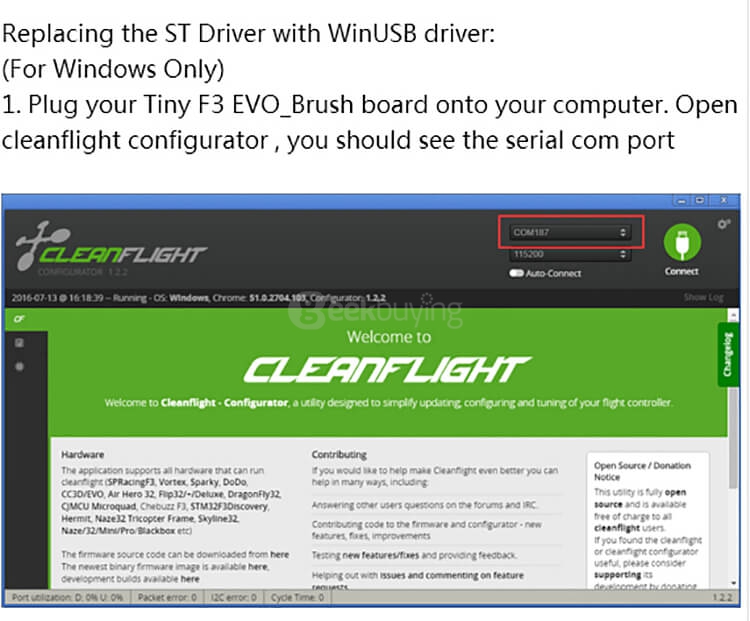

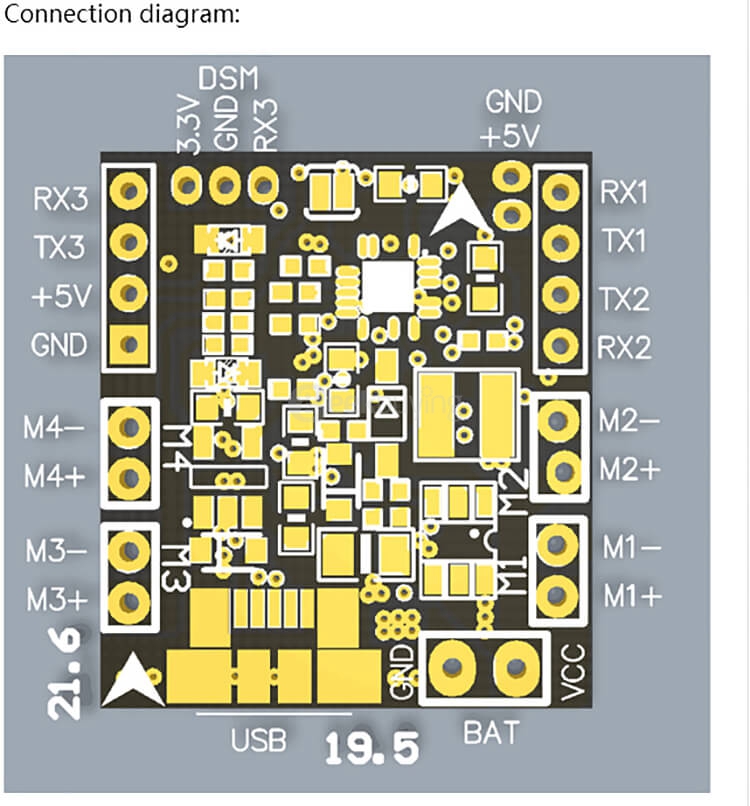

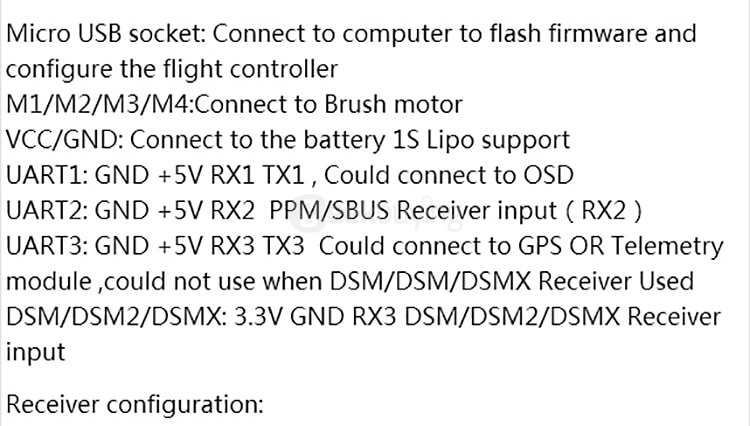

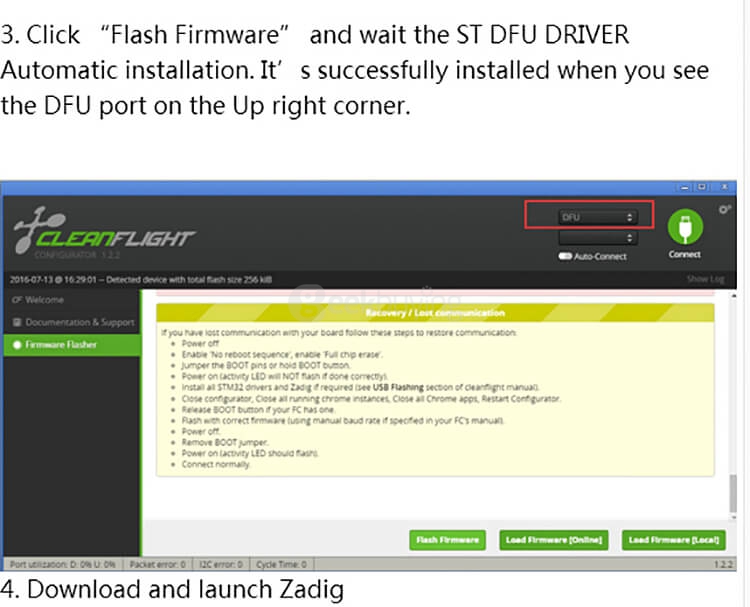

Receiver Configuration	DSM receiver soldered directly to the DSM interface 3.3V, GND, RX3, Enable Seria_RX for UART3 and Set Receiver mode RX_SERIAL, Select Spektrum1024(DSM/DSM2)  or Spektrum2048(DSMX) in Cleanflight configurator. SBUS receiver welded to the UART2 GND, + 5V, RX2 . Then Enable Seria_RX and Set Receiver mode RX_SERIAL ,Select Sbus signal in Cleanflight configurator. PPM receiver welded to the UART2 GND, + 5V, RX2 .Then set Receiver mode to RX_PPM in Cleanflight configurator.

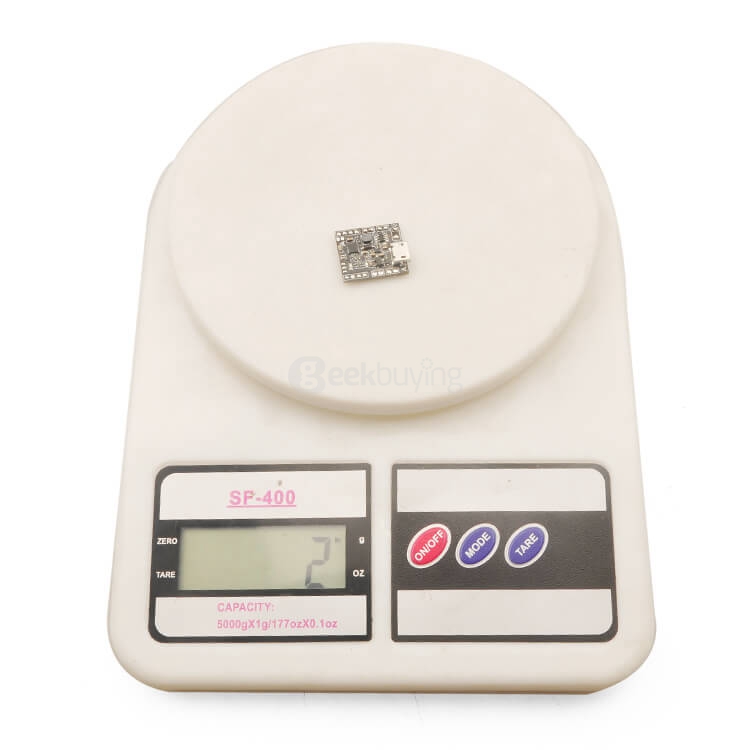

Dimensions&Weight	Dimension:23mm*19.5mm*5mm Thickness:1.2mm Weight:2g
Package Contents	1*Flight Controller Board
