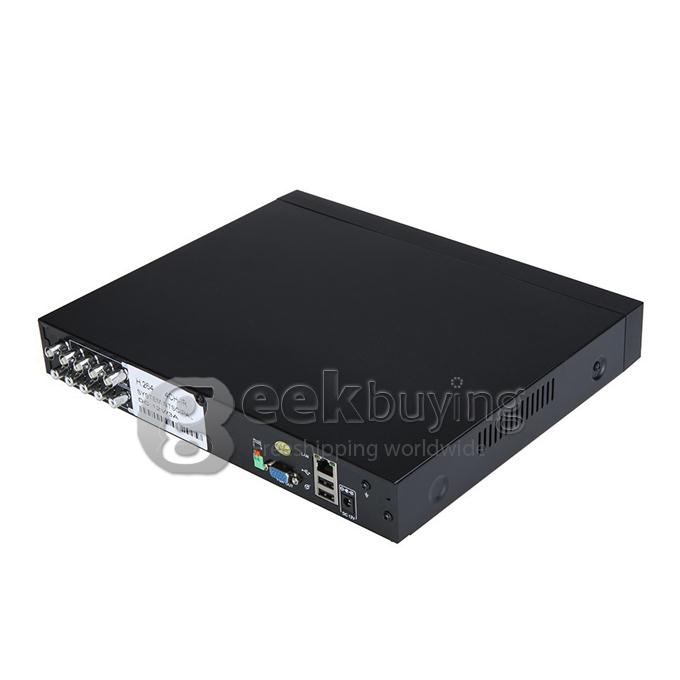

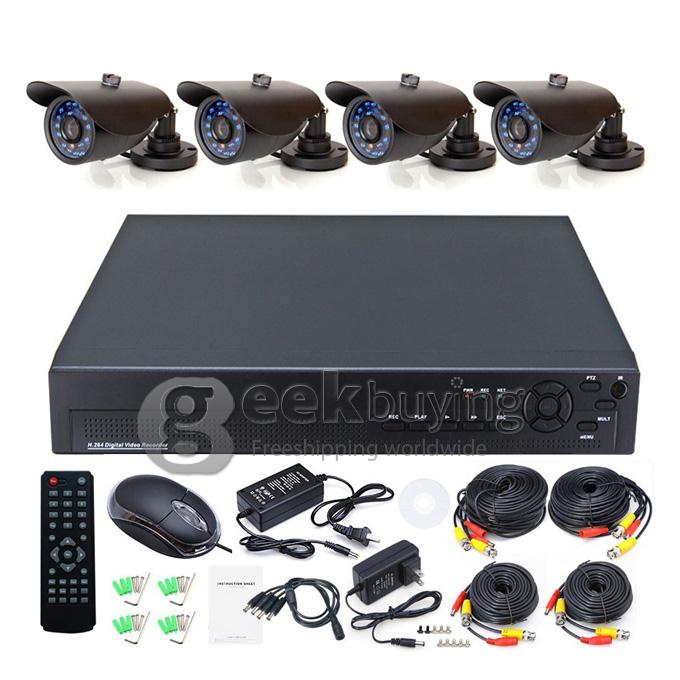

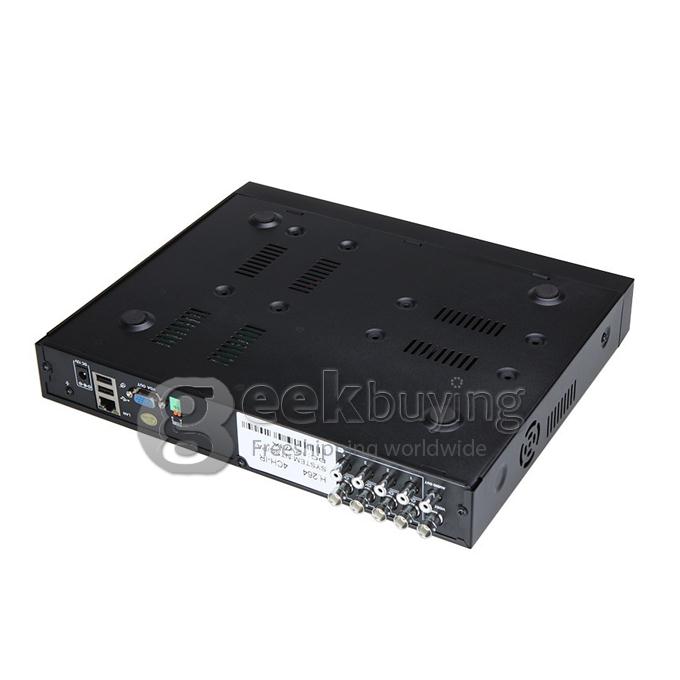

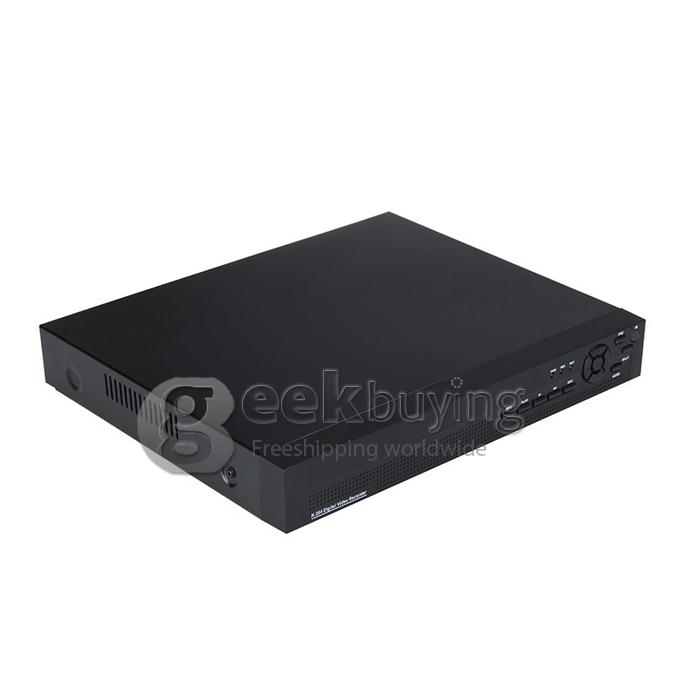

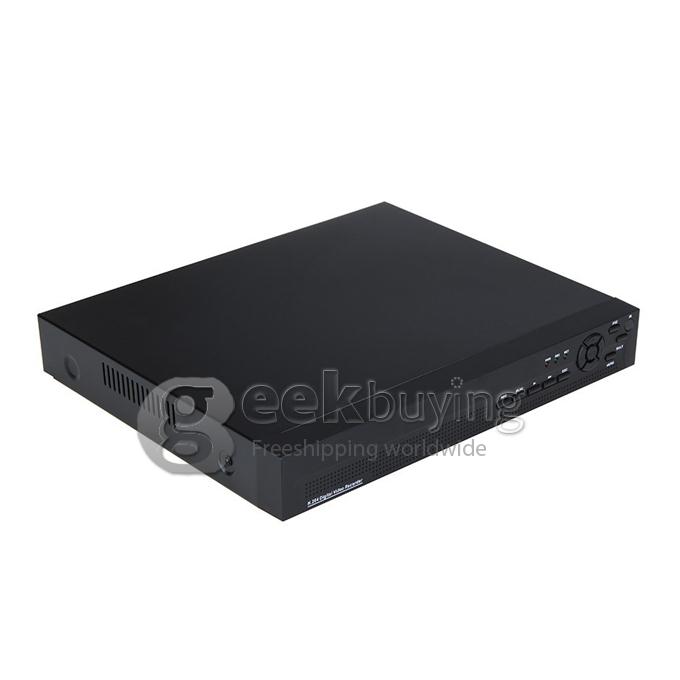

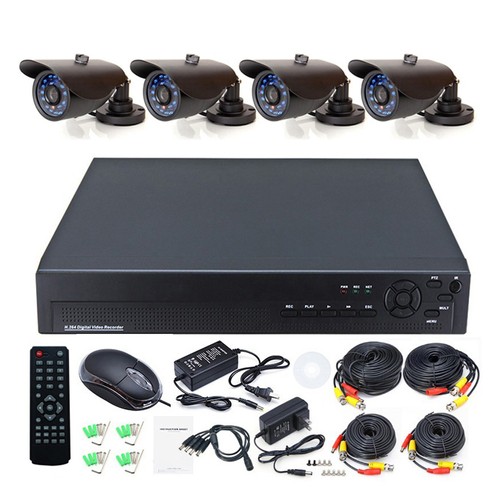

StandAlone DVR |
Operating System |
Linux Based |
Video Compression |
H.264 |
Video System |
NTSC/ PAL |

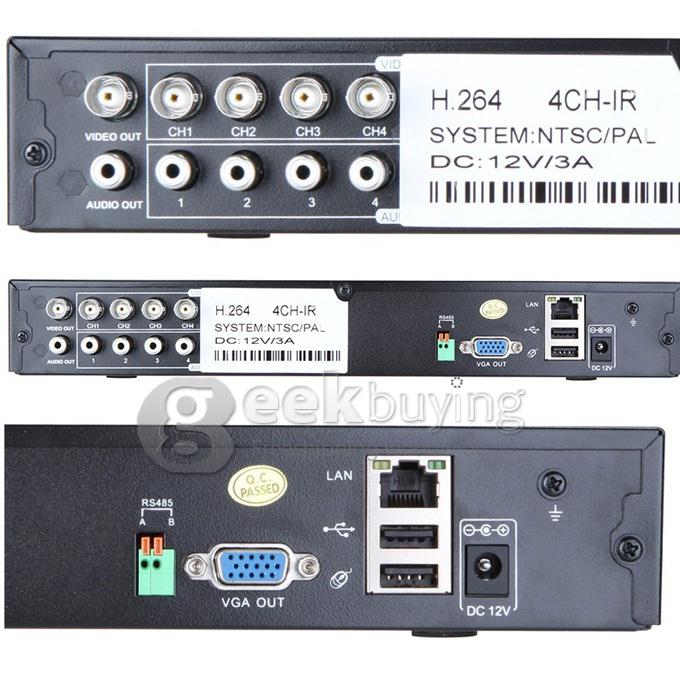

Video Input/Output |
BNC 4-Channel Input/BNC 1-Channel Output |
Other Video/Output |
VGA |
Audio Input/Output |
RCA 1-Channel Input / RCA 1-Channel Output |
Record |
Resolution |
NTSC: D1(704 * 480); HD1(704 * 240); CIF(352 * 240) |
PAL: D1(704 * 576); HD1(704 * 288); CIF(352 * 288) |
Frame Rate |
NTSC: 120 fps @ CIF / PAL: 100 fps @ CIF |
Modes |
Continuous / Time Schedule / Motion Detection |
Pack Time |
15/30/45/60 mins Selectable |
Display |
Resolution |
NTSC: D1(704 x 480) / PAL: D1(704 x 576) |
Frame Rate |
NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
HDD Interface |
SATA, support between 250GB and 2TB |
Playback Search |
Time & Date / Event List |
Playback Modes |
Normal Play / Fast Forward / Fast Rewind / Frame by Frame |
Backup |
USB flash drive, USB hard disk, USB CD/RM, Network |
USB |
USB Backup / USB 2.0 |
PTZ Control |
RS-485 |
Simplex / Duplex / Triplex / Pentaplex |
Pentaplex |
Network Interface |
RJ45, 10M/100M |
Network Protocol |
TCP/IP, PPPoE, DHCP and DDNS |
Remote Access |
LAN or Internet Browsing |
Alarm |
No |
Remote Control |
IR Remote Control |

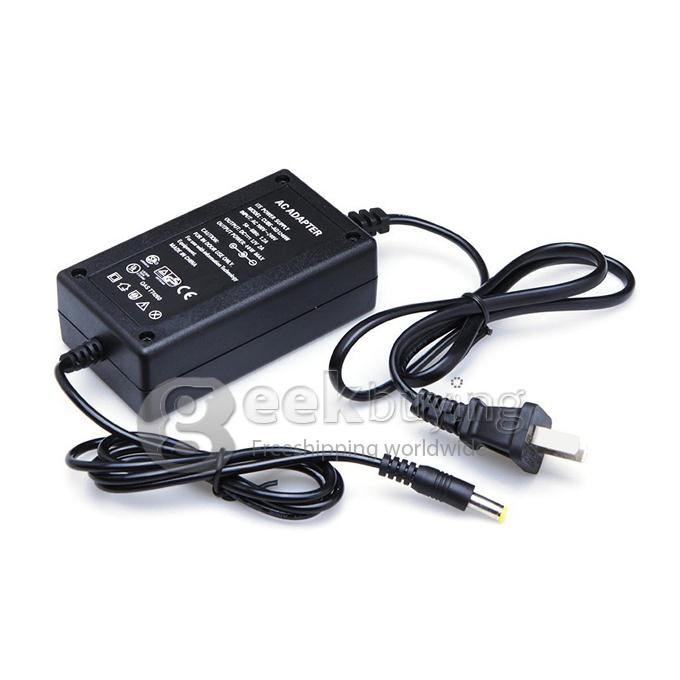

Power Supply |
Input: 100-240V AC 50/60Hz; Output: 12V |
Casing Material |
Metal |
Language |
English, French, Greek, Hebrew, Italian, Portuguese, Russian, Spanish, Thai, Turkish, Japanese, Korean, Persian, Polish, Arabic, German, Simplified Chinese, Traditional Chinese, etc. |
Support System |
Windows XP, Windows7, Apple's operating system, Android |
DVR Dimension |
25.5 * 23.3 * 4.7cm / 10 * 9.2 * 1.8in |
DVR weight |
895g / 1.97Lb |

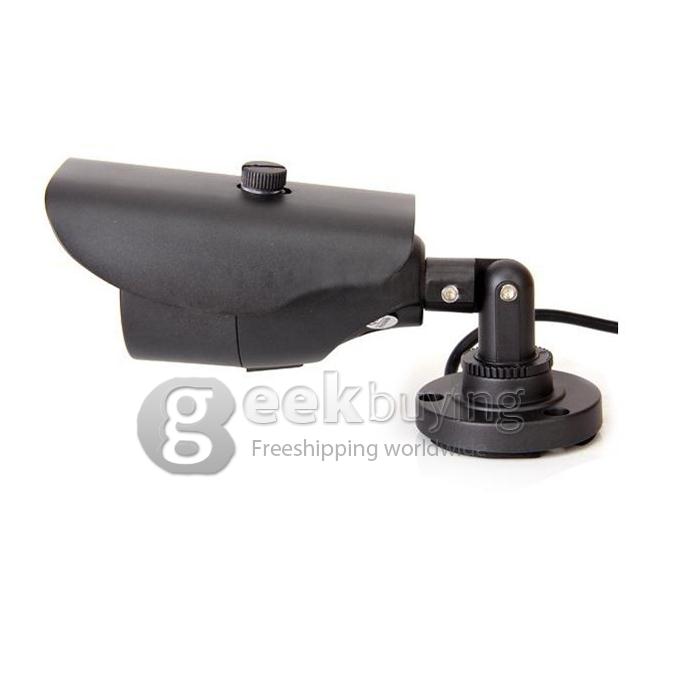

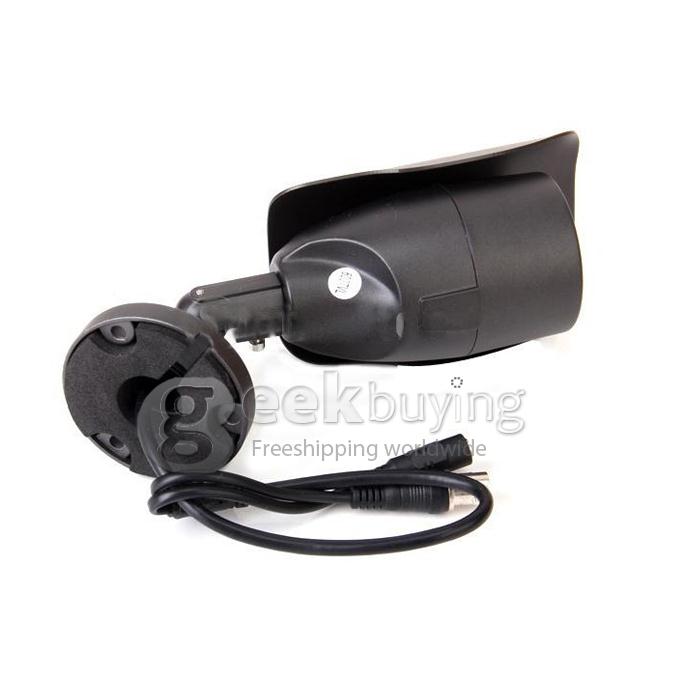

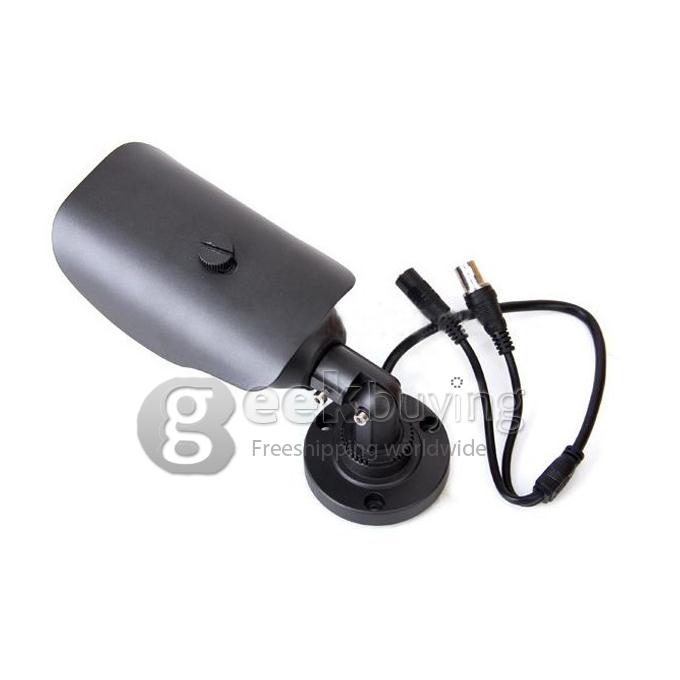

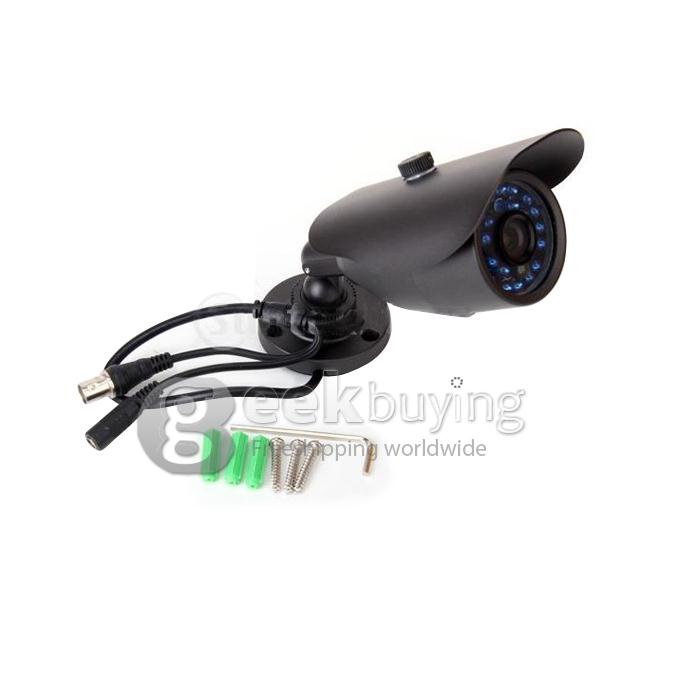

IR Security Camera |
Image Sensor |
1/4" Color CMOS |
Lens |
3.6mm |
TV System |
PAL |
Effective Pixels |
752 (H) * 582 (V) |
Horizontal Resolution |
480 TV Lines |
Infrared Illumination (Night Vision) |
Up to 30ft (10~15m) |
Minimum Illumination |
0.0 Lux |

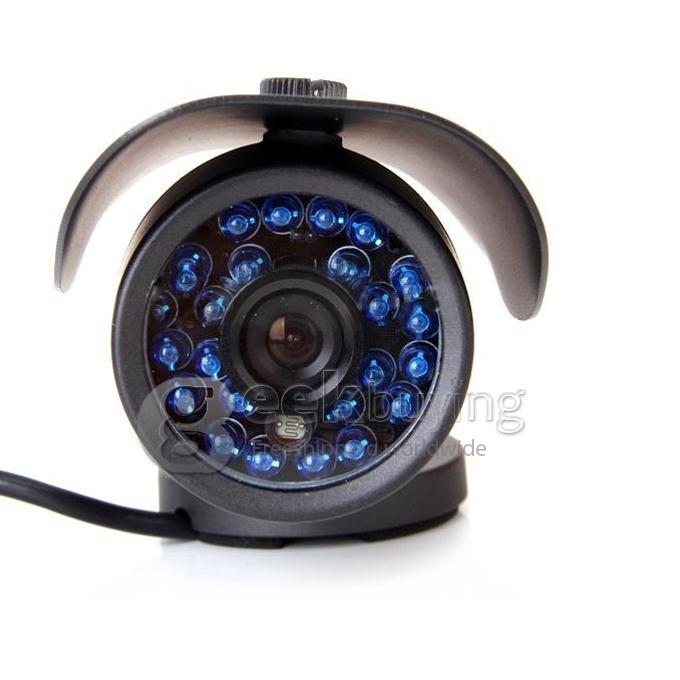

Number of IR LEDs |
24 pcs |
S/N Ratio |
> 45.6dB |
Video Output |
1.0Vp - p/75Ω |
Material |
Metal Shell |
Operation Temperature |
-25°F~122°F / -32°C ~50°C |
Weatherproof |
Yes |
Power Supply |
Input: 100-240V 50-60Hz; Output: DC12V |
General |
Package Size |
44 * 17.5 * 28.7cm / 17.3 * 6.9 * 11.3in |
Package Weight |
4960g / 10.93Lb |
