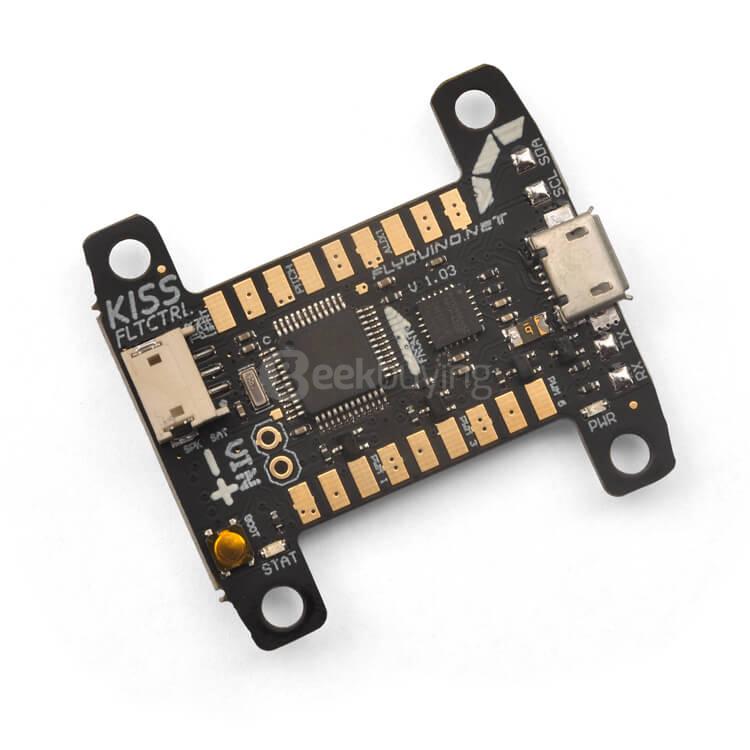

KISS FC 32bit Flight Controller V1.03 for Multirotor Racing Quadcopters

Item Code: 373480 Write a review
Price:
  • 43.99
Reg. Price:
  • USD 69.62   Save: 37%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
22867

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A
  • Support & Firmware

Highlights

Designed in Germany by Flyduino, the KISS FC is specifically geared and optimized for racing. Running its own proprietary custom firmware, it is a stripped down version compared to other Cleanflight\Betaflight 32 bit controllers: the KISS FC has no barometer, magnetometer, or on board flash chip for recording flight logs.

By omitting certain (newbie friendly) features that are not necessary for fast racing, the 32 bit processor is freed up to focus all its power on calculating the flight control functions, allowing for super fast control loop times and an incredibly precise and responsive quad.

The KISS FC is specifically designed to work with KISS ESC such as the 24 amp or the 30 amps ones. These KISS ESCs can communicate with the FC to give voltage and amp data that can be displayed in On Screen Display of your video goggles. (It will work with other ESCs as well, such as our 30 amp LittleBees).

The custom KISS software is also simplified when compared to Cleanflight, with only two screens to set your parameters.



Specification

General Type: Flight Controller
Model: KISS FC
Quantity: 1 Piece
Compatible: Multirotor Racing Quadcopters
STM32 F3 MCU with MPU6050 Gyro/ACC Input voltage: 2-6S LiPo
6 motor outputs
Integrated 500mA 5V BEC (78M05G)
Supports Telemetry data  from KISS 24A ESCs (battery voltage, current or ESC temperature)
Supports SBUS + Smart Port Telemetry (and other radio receivers and telemetry)
Reverse polarity protection
Supported copter types Tri
Quad +/x
Hexa +/x
Supported RX types PPM Sum
Spektrum Sat. (serial / DSM2 & DSMX)
Futaba / Taranis SBUS
Jeti ExBus
Graupner SumD / SumO
MultiPlex
Classic RX with single channel output

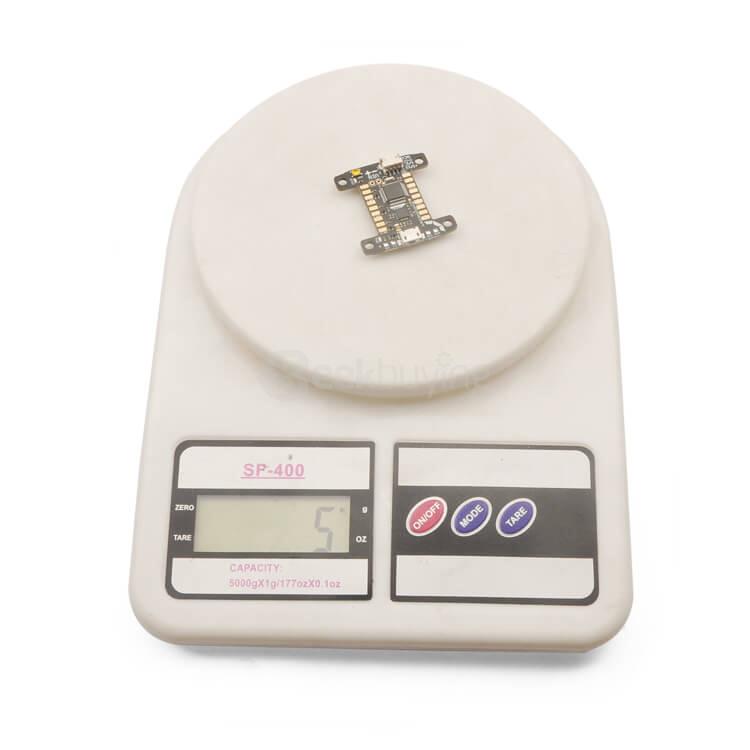

Weight: 4.6g
Mounting Holes: 3x3cm pattern, with 3.2mm holes (widely compatible)
Voltage: 2-6S
Driver for STM32F303CCT6 Normally you dont need to download any driver for the USB support.
Windows 7 8 and 10 care for this on their own after you connected the device.
The connection diagramm / Pinout you find in KISS-FC GUI.
Package Contents 1x Flight Controller
