Highlights

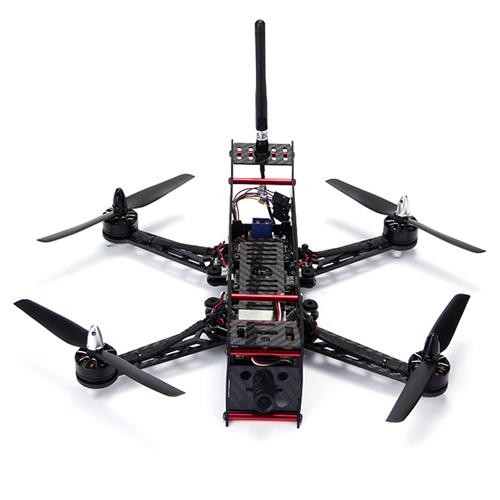

A full 280 wheelbase, 3k pure carbon fiber frame and screws
Modular and detachable MWC 32 bit flight control
Base plate with open source ESC, fuselage LED and the port of wheelbase LED lights with XT60 plug
Modular and can plug 5.8G Picture transmission with dual antenna: tail has 5.8g antenna, the bottom of the fuselage has panel antenna
Picture transmission has bulit-in Mini Osd, and it has brushed Rush-Osd firmware
Customized motor 2204 is 2300kv, tough nylon fiberglass propeller 6030
Video glasses which is special version with built-in 5.8G receiving and binocular big-screen
FlySky I6 2.4G FM remote control ; Flight control default is optimized code, you can brush the latest firmware MWC, but requires players to have the ability to debug, and brush the special solid of AlienCopter so as to perfectly rein the AlienCopter cross V1.
Specification
General | |
---|---|
Brand | Redpawz |
Model | CMR280 |
Color | Black |
Specification | |
Operating Temperature | -10 C to + 50 C (You have to keep the IMU warm if you want to use it under low temperature, could be -10 C or lower) |
Take-off Weight | 0.5KG~1 KG |
Hovering Accuracy (GPS Mode) |
NO GPS |
Max Tilt Angle | 180 |
Max Ascent / Descent Speed | ±10m/s |
Max Flight Velocity | 18m/s |
Diagonal distance (motor center to motor center) |
600mm |
Working FrequencyISM | 2.4GHz ISM |
Control Channels | 8 Channels |
Communication | 1000m; (maybe more) |
View | Super Vision - can not see the propeller and Tripod |
FPV | Be specifically designed |
Flying Attitude | Very clear |
Air Line | Very suitable for turning |
Diy Space | Big Space |
Weight | 383g |
Package size | |
FPV Camera | |
Sensor | 1/3 inch HD Color CMOS |
Video format | PAL |
Effective pixels | PAL = 720 (H) * 576 (V) / NTSC = 720 (H) * 487 (V) |
Definition | 600TV Lines (HD) |
Minimum illumination | 0.01Lux (Low illumination) |
Video Output | 1.0Vp-p / 75 |
Power consumption | 40MA ± 10% |
Synchronization System | Internal Synchronization |
SNR | greater than 50dB |
An electronic shutter (N) | 1 / 60-1 / 10000s, (P) 1 / 50-1 / 10000s |
Operating voltage | DC5-15V ± 10% (wide range power supply) |
Working temperature | 0 ~ 45 degree RH95% |
Max Storage temperature | -40 ~ 85 degree RH95% Max |
Weight | about 15g |
Product size | 21 * 21 * 28mm ± 0.5mm |
What's in the box?
1 x Copter
1 x Antenna
1 x Guide
8 x Propeller
