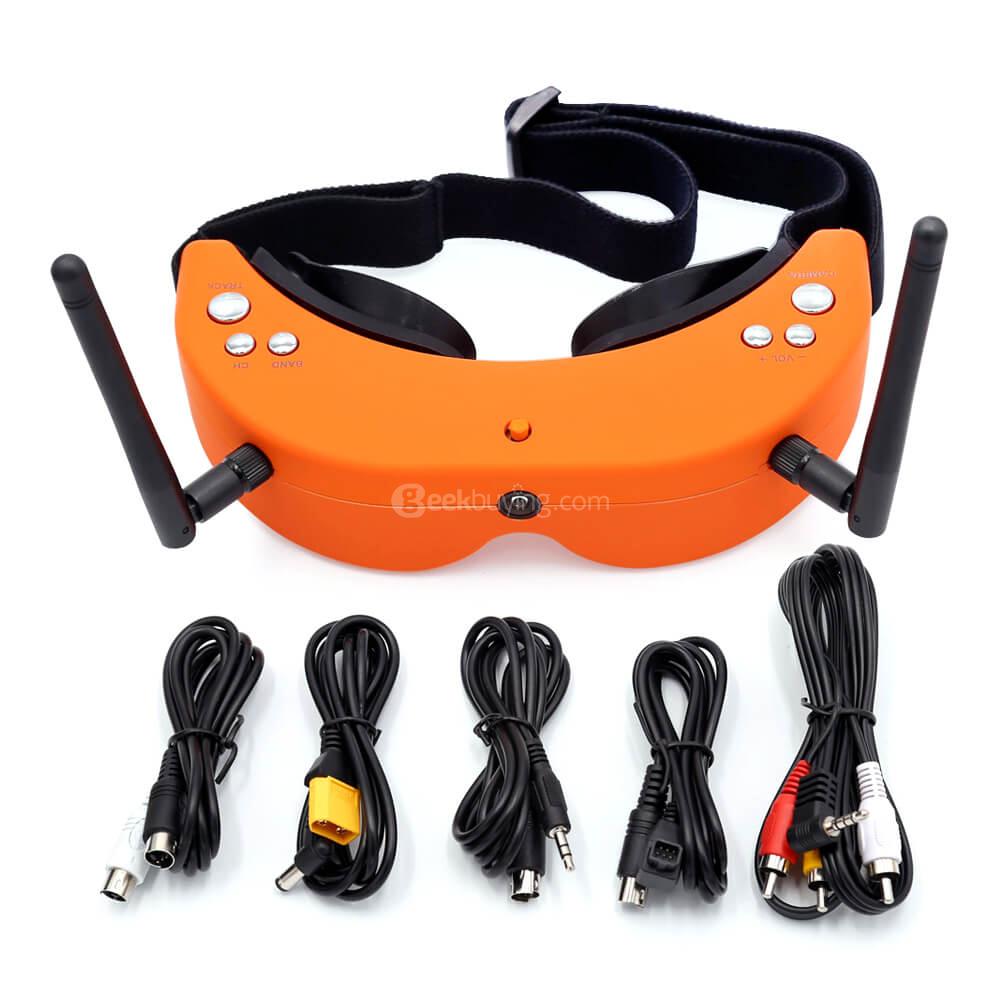

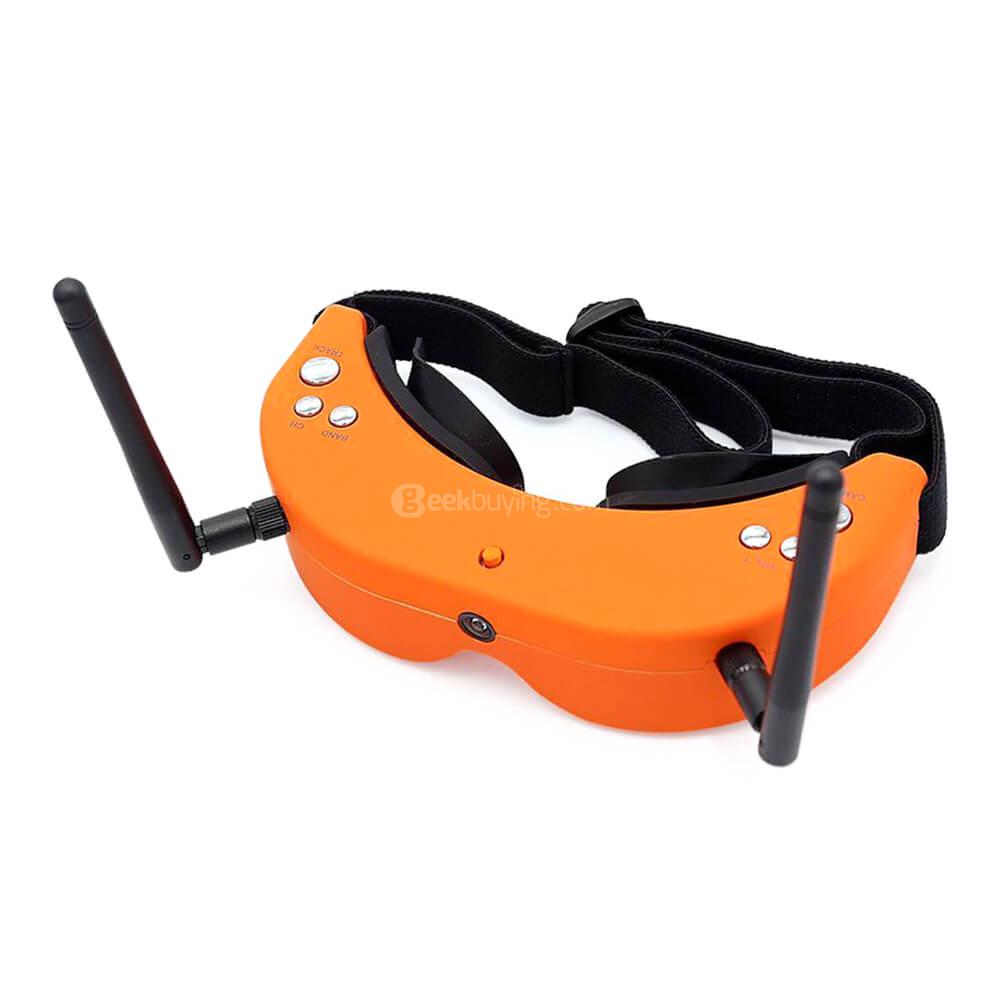

Skyzone 01S 5.8G 48CH 854 X 480 FPV Goggles with 640 X 480 FOV 120 Degree Front Cam Lens Adjustable - Orange

Item Code: 378495 Write a review
Price:
Reg. Price:
  • USD 359.99   Save: 22%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
4161

Shipping: in 2-7 business days FREE SHIPPING

Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

New Bound Auto Search Function

A B E F R L Six Bands 48CH Available

120 Degree 640 X 480 Front Cam

Head Tracking Function

IPD 60-68mm Adjustable



Skyzone 01S 5.8G 48CH 854 X 480 FPV Goggles with 640 X 480 FOV 120 Degree Front Cam Lens Adjustable - OrangeSkyzone 01S 5.8G 48CH 854 X 480 FPV Goggles with 640 X 480 FOV 120 Degree Front Cam Lens Adjustable - OrangeSkyzone 01S 5.8G 48CH 854 X 480 FPV Goggles with 640 X 480 FOV 120 Degree Front Cam Lens Adjustable - OrangeSkyzone 01S 5.8G 48CH 854 X 480 FPV Goggles with 640 X 480 FOV 120 Degree Front Cam Lens Adjustable - OrangeSkyzone 01S 5.8G 48CH 854 X 480 FPV Goggles with 640 X 480 FOV 120 Degree Front Cam Lens Adjustable - OrangeSkyzone 01S 5.8G 48CH 854 X 480 FPV Goggles with 640 X 480 FOV 120 Degree Front Cam Lens Adjustable - Orange

Specification

General

Brand: Skyzone
Item No.: 01S
Item Name: 5.8G 48CH FPV Goggles

Display:
FOV: 30 degrees(Diagonal)
Resolution: 854 X 480(WVGA),1,229,760 Color Sub-pixels
Brightness: 350cd/Square meters
Interpupillary Distance(IPD): 60-68mm Adjustable

Front Camera:
Fov: 120 Degrees(Diagonal)
Resolution: 640X480(VGA)
FOCAL LENGTH: f=0.95mm
F/NO: F/NO=2.0

Head Tracker
Sensor: Magnetic, Inertial and gyro
Output: PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH

AV Port:
Div. AV OUT(3.5mm4P): Diversity Video,Audio output
EAR OUT(3.5mm3P): 32Ω/75mW or 16Ω/105mW, With volume control
AV IN(3.5mm4P):Video, Audio input

Power Supply:
DC IN  DC 7~28V/ 1A
Power Consumption:12V input: 4.3W
Dimensions:168(L)X92.5(W)X41(H)mm (Not include prominent part)
Weight: About 200g
Operating Temperature: 0degree~+55degree

Wireless Receiver:

ISM 5.8GHz 48 Channel, Diversity receiver

Band  CH1   CH2    CH3    CH4    CH5    CH6    CH7    CH8
A     5865M  5845M  5825M  5805M  5785M  5765M  5745M  5725M
B     5733M  5752M  5771M  5790M  5809M  5828M  5847M  5866M
E     5705M  5685M  5665M  5645M  5885M  5905M  5925M  5945M
F     5740M  5760M  5780M  5800M  5820M  5840M  5860M  5880M
R     5658M  5695M  5732M  5769M  5806M  5843M  5880M  5917M
L     5362M  5399M  5436M  5473M  5510M  5547M  5584M  5621M
Sensitivity: -90dBm±1dBm
Antenna port: 2 X SMA,50ohm
Video Standard: NTSC/PAL
Video output level: 1.0Vp-p Typ / 75ohm
Audio output level: 1.0Vp-p Typ / 10Koh

Package Contents

1 X Skyzone 01S FPV Goggles
