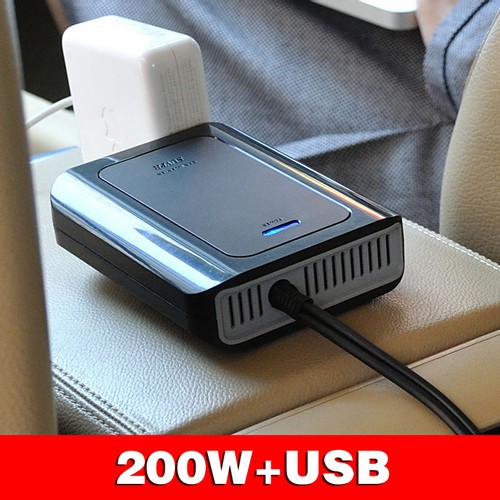

200W DC 12V to AC 220V Car Power Inverter Adapter with USB & Cigarette Lighter Socket DY-200N

Highlights

• The car power inverter allows you to power or recharge AC-equipped devices right in your car. Whether you're at home, on the road, in the air, or any remote location, this portable and backup power solutions to keep your important electronic devices powered up. Simply plug the Car Power Inverter into your vehicle's DC outlet, and connect your electronic device to the inverter's AC outlet or USB port. The Auto Power Inverter will charge or operate a cell phone, iPod, BlackBerry, video camera, laptop and more. These Car Power Inverters power two devices simultaneously and fits in your pocket, purse, laptop bag or glove box.It is perfect for recharging your laptop or MP3 player on the go. Conveniently plugging into your Notebook computers, camcorders, cameras, lighting, CD, fan, refrigerator, TV.

Specifications

• Housing material: PC ABS
• Input voltage: DC12V
• Output voltage: AC220V
• Rated Power: 200W
• Prolonged use of power: 160W
• Output frequency: 50 ± 2Hz
• USB: DC 5V
• Overload protection: with
• Short circuit protection: with
• Low voltage protection: 9.5V ~ 10.5V /
• Over-voltage protection: 14.5V ~ 15.5V
• Ambient temperature (degrees): -5 to 50
• Weight (grams): 0.26kg / 9.17oz
• Product Size (L x W x H mm) 12 × 9.2 × 3cm

How to Install a Car Power Inverter?

• Park the vehicle and open the hood. Disconnect the battery by loosening the positive cable with a wrench and pulling it free with your hand
• Mount the power inverter. Pick a location which will allow plenty of air flow around the inverter as they heat up when used. A typical mounting location is on the lower kick panel in the passenger side of the vehicle under the dash. Apply the adhesive side of the hook and loop material to the under side of the inverter and peel the protective strip off of the reverse side. Stick the inverter in the desired mounting location and press firmly to set adhesive in place. Separate the inverter from the kick panel to wire the connections
• Wire the inverter. Run a length of wire (0 to 4 gauges) from the positive side of the inverter to the car's battery by running the wire through a grommet in the firewall. Simply find a location where wires pass through the fire wall and push your new positive wire through the center of the existing wires. Locate the new wire on the engine side of the firewall and pull it through until it reaches the positive side of the battery. Cut the wire with wire cutters. Tie the wire out of the way by zip tying it to the existing wiring. Strip 1/4 inch of plastic shielding from each end of the wire. Place a terminal end on each end of the wire and crimp in place with a crimping tool. Do not connect this wire to the battery at this time. To connect the ground, run a short length of wire from the inverter's negative wire to the vehicle's chassis (any bolt under the dash will work fine)
• Connect the wires. Connect the new positive and negative wires to the wires coming from the inverter to the wires you installed into the vehicle by placing terminal ends on the wires and crimping them in place in the same manner as the positive wire at the battery. Loosen the bolt you identified under the dash with a wrench and place your ground wire on the bolt. Tighten the bolt. Place the inverter on the kick panel by pushing the hook and loop material together. Connect the positive wire to the battery's positive terminal post and reconnect the cars positive cable back onto the battery. Tighten the terminal in place with a wrench
• Use the inverter. You are now able to operate 120 volt electronics from your vehicle by simply plugging them into the outlets on the inverter while your engine is running

Detail

What's in the box?

• 1 x 200W DC 12V to AC 220V Car Power Inverter Adapter
