Highlights
Survey-Grade RTK Precision Positioning
Equipped with an integrated RTK module, the Raven Max RTK delivers highly accurate coordinate positioning and spatial alignment for professional surveying, GIS mapping, infrastructure inspection, and engineering-grade data collection.

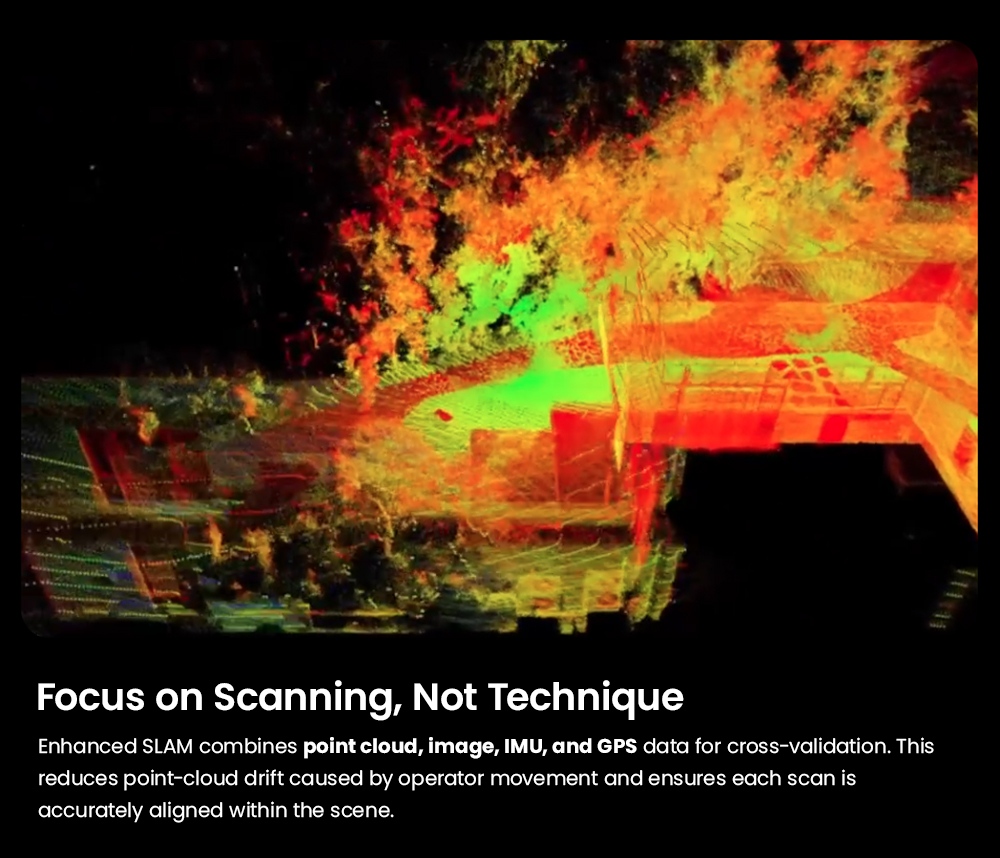

Advanced SLAM + RTK Hybrid Mapping System
By combining real-time SLAM scanning with RTK global positioning technology, the system achieves improved tracking stability, higher reconstruction accuracy, and more reliable large-scale outdoor mapping performance.
Built for Large Outdoor & Engineering Projects
Optimized for construction sites, industrial facilities, terrain surveying, road mapping, and urban-scale spatial capture, the scanner efficiently handles complex outdoor environments and long-distance scanning workflows.

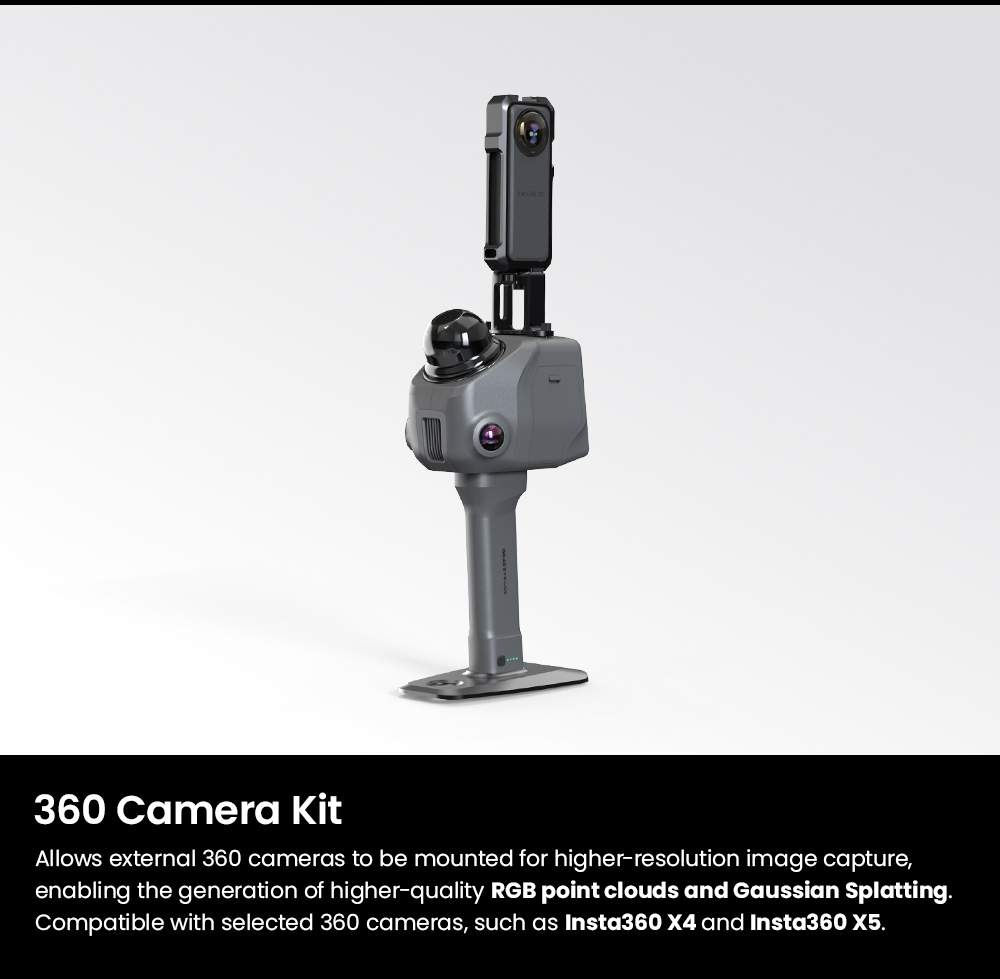

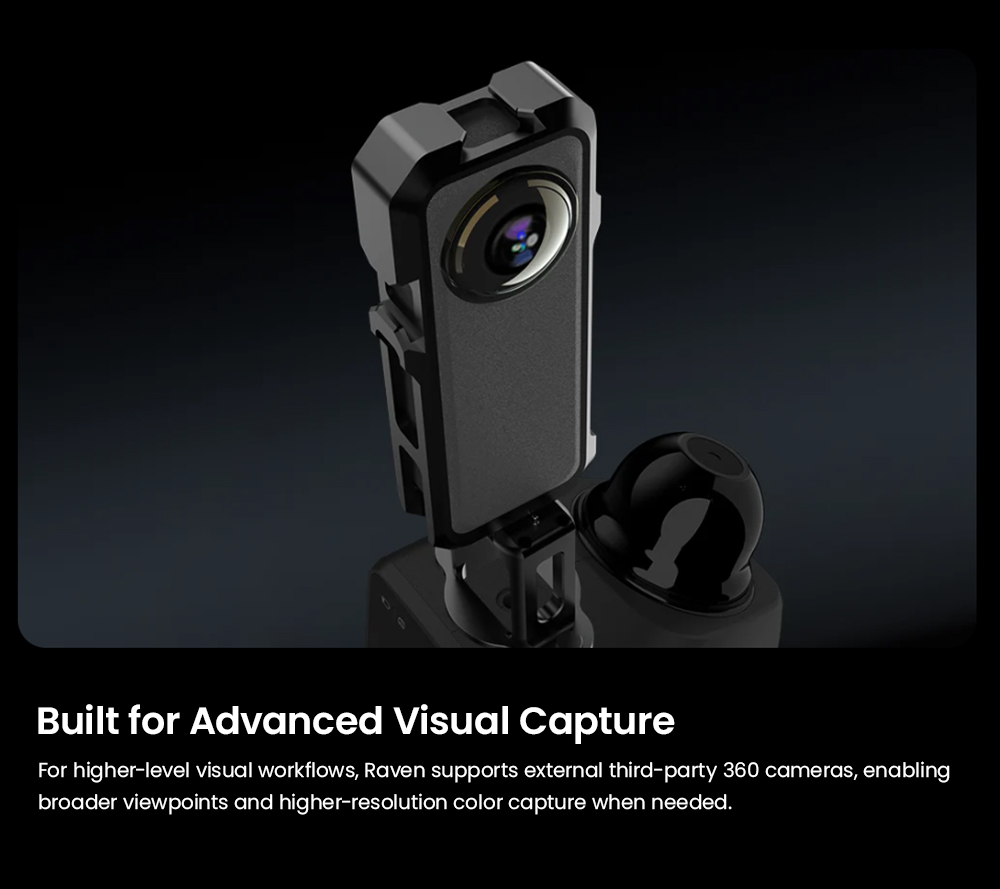

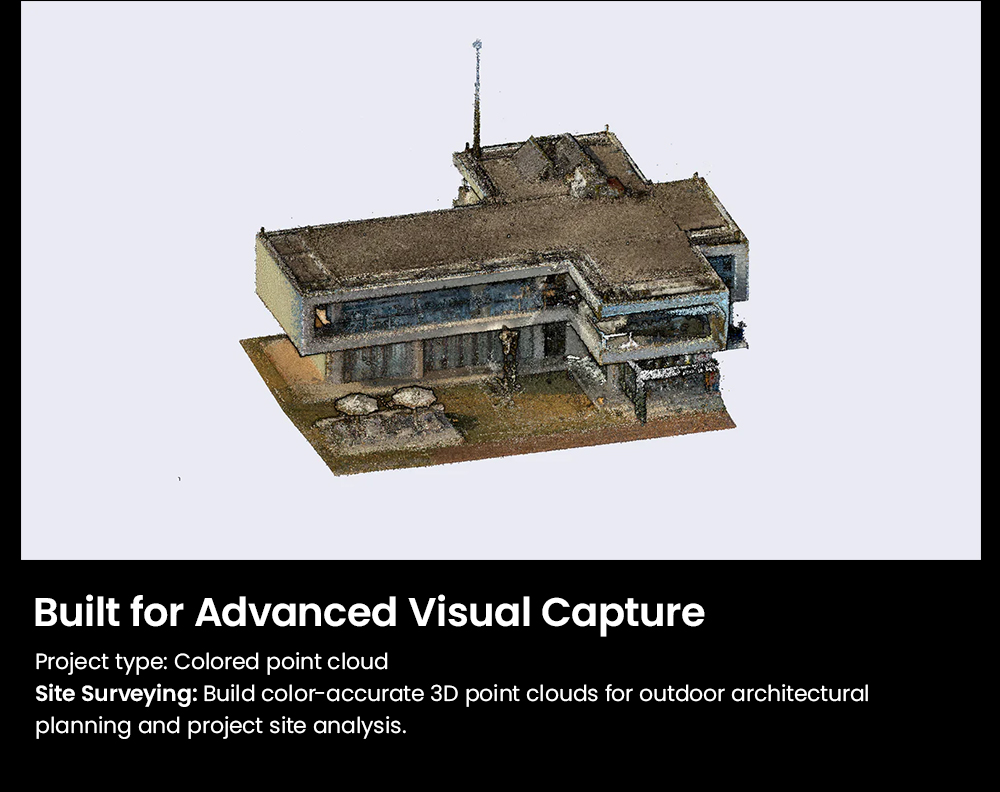

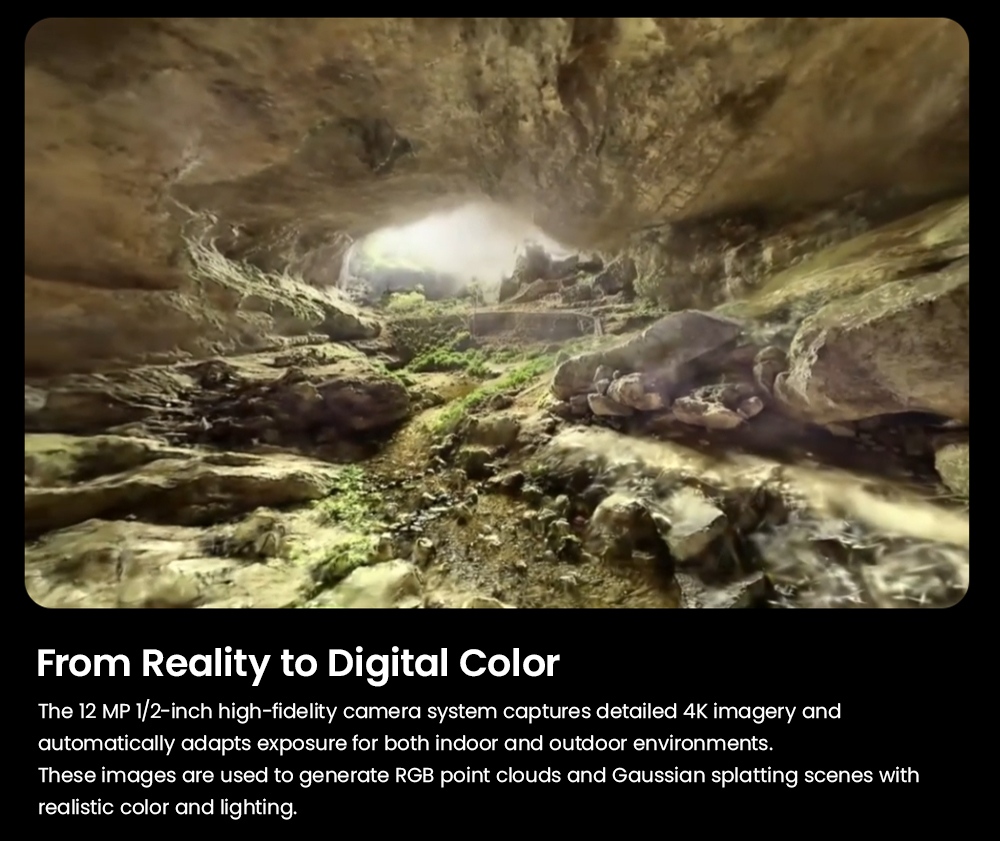

Dual 12MP Cameras for High-Fidelity RGB Point Clouds
The advanced dual-camera imaging system captures rich texture and color information, generating highly detailed RGB point clouds and realistic digital twin reconstruction results.

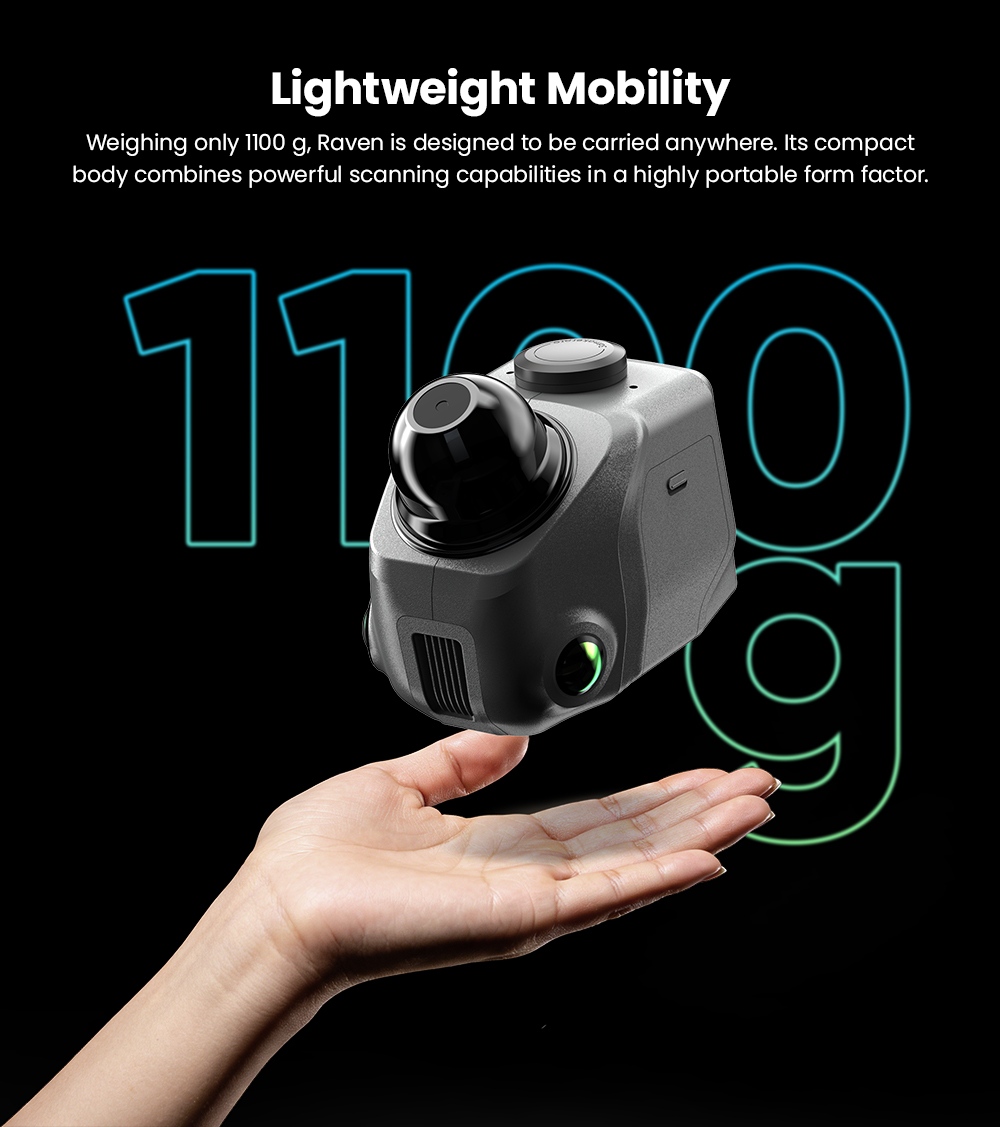

Lightweight Portable Design for Field Operations
Despite its professional RTK integration, the Raven Max RTK maintains a compact 1.1kg handheld form factor, enabling flexible mobile surveying and efficient all-day field operation.
Specification
| Brand | 3DMakerpro |
| Type | 3D Scanner |
| Model | Raven Max RTK |
| Color | Gray & Black |
| Accuracy | 2cm @ 10m / 3cm @ 20m / 5cm @ 40m |
| Scan Radius | 40m @ 10% reflectivity / 50m @ 80% reflectivity |
| Scan Range | 80–100m |

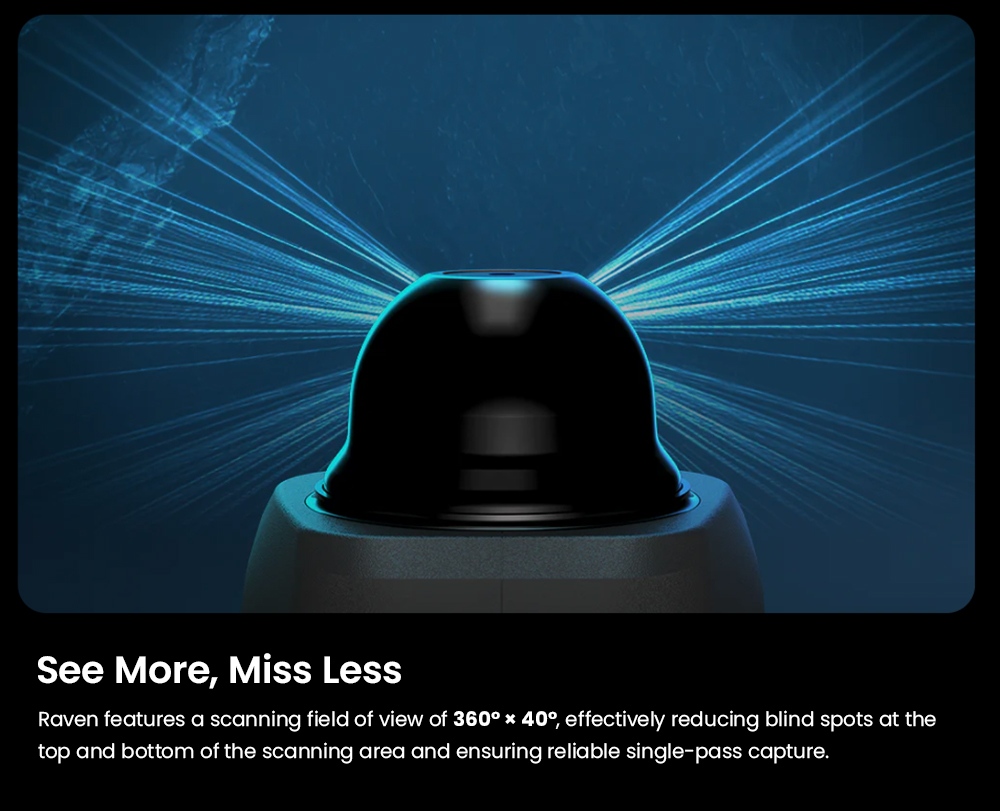

| Field of View | 360° Horizontal / 40° Vertical |
| Point Cloud Frequency | 150,000 points/s |
| Camera System | Dual 12MP Cameras |
| Sensor Size | 1/2" |
| Color Capture | 4K True-Color Capture |
| RGB Reconstruction | Enhanced RGB Point Cloud Reconstruction |
| RTK Positioning | Integrated RTK Positioning System |
| Mapping Support | Survey-Grade Outdoor Mapping Support |
| Laser Wavelength | 905nm |
| Laser Safety Class | Class 1 (IEC60825-1:2014) |
| Processor | 8-Core 2.4GHz |
| Memory | 32GB |
| Storage Expansion | TF Card Supported |
| Display | 3.9" AMOLED Screen |

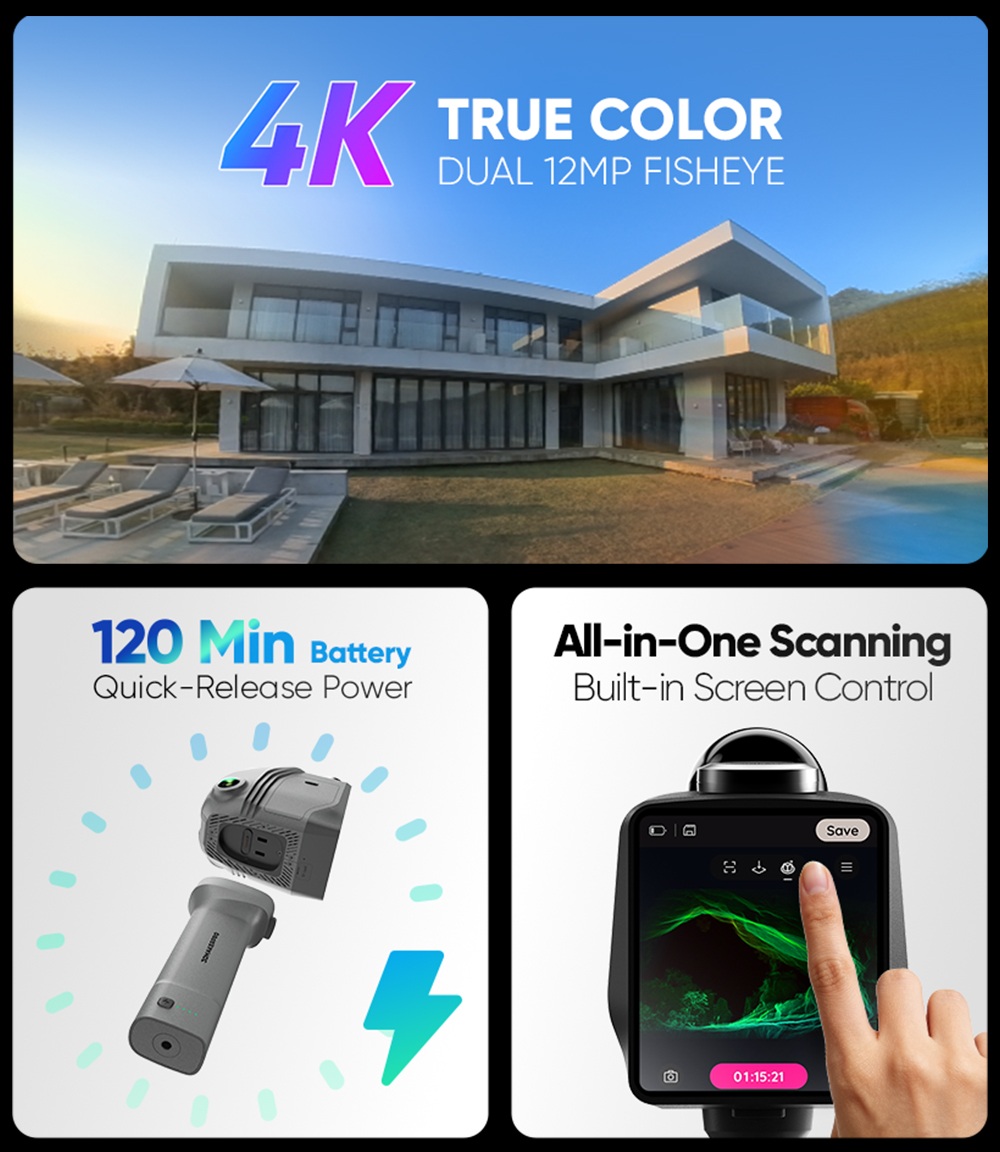

| Battery Capacity | 12000mAh |

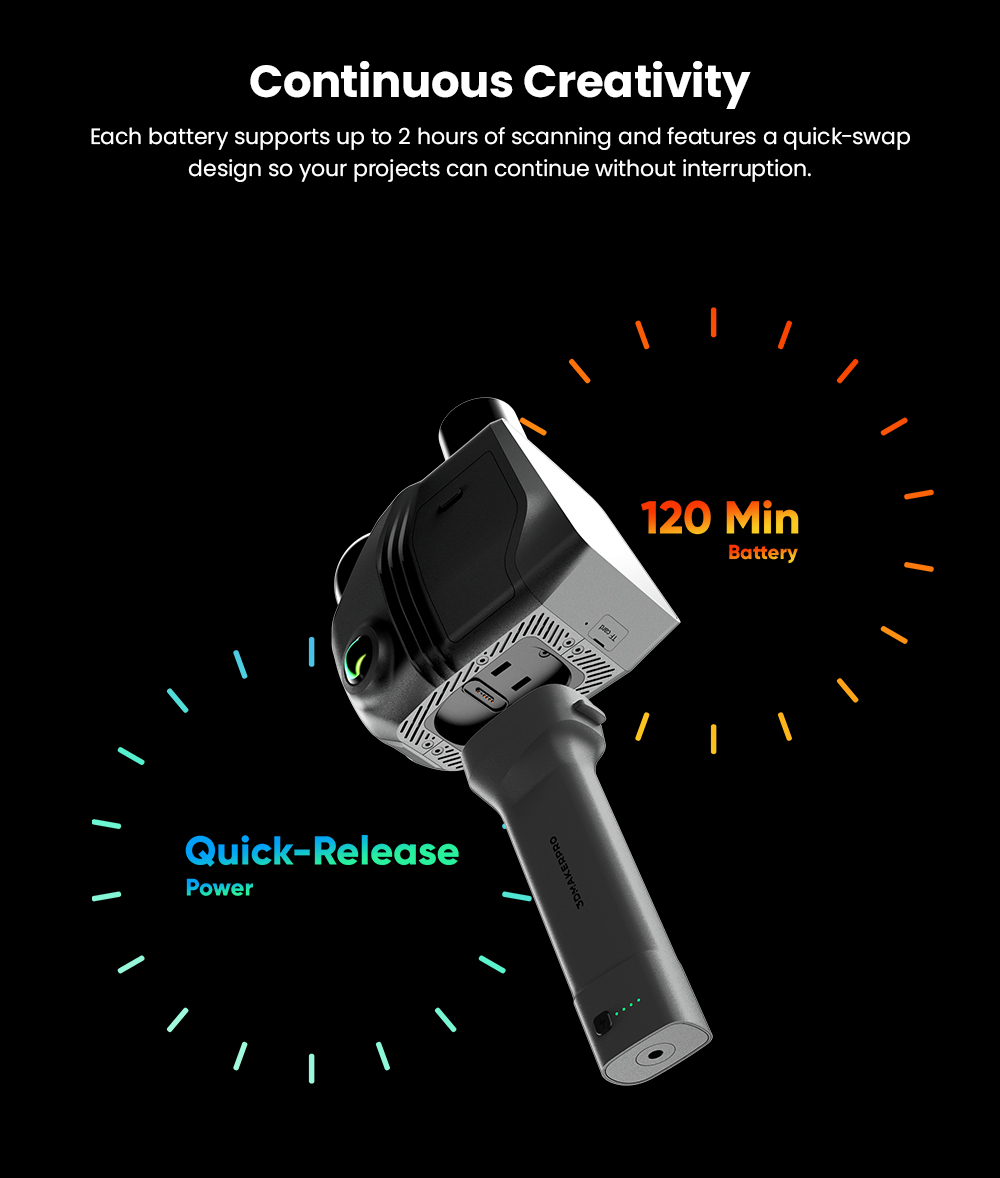

| Battery Life | Up to 2 Hours |
| Charging | Supports Charging While Operating |
| Data Interface | USB Type-C |
| Fast Charging | PD 65W USB Type-C Charging |
| Wireless | Wi-Fi 5 Connectivity |

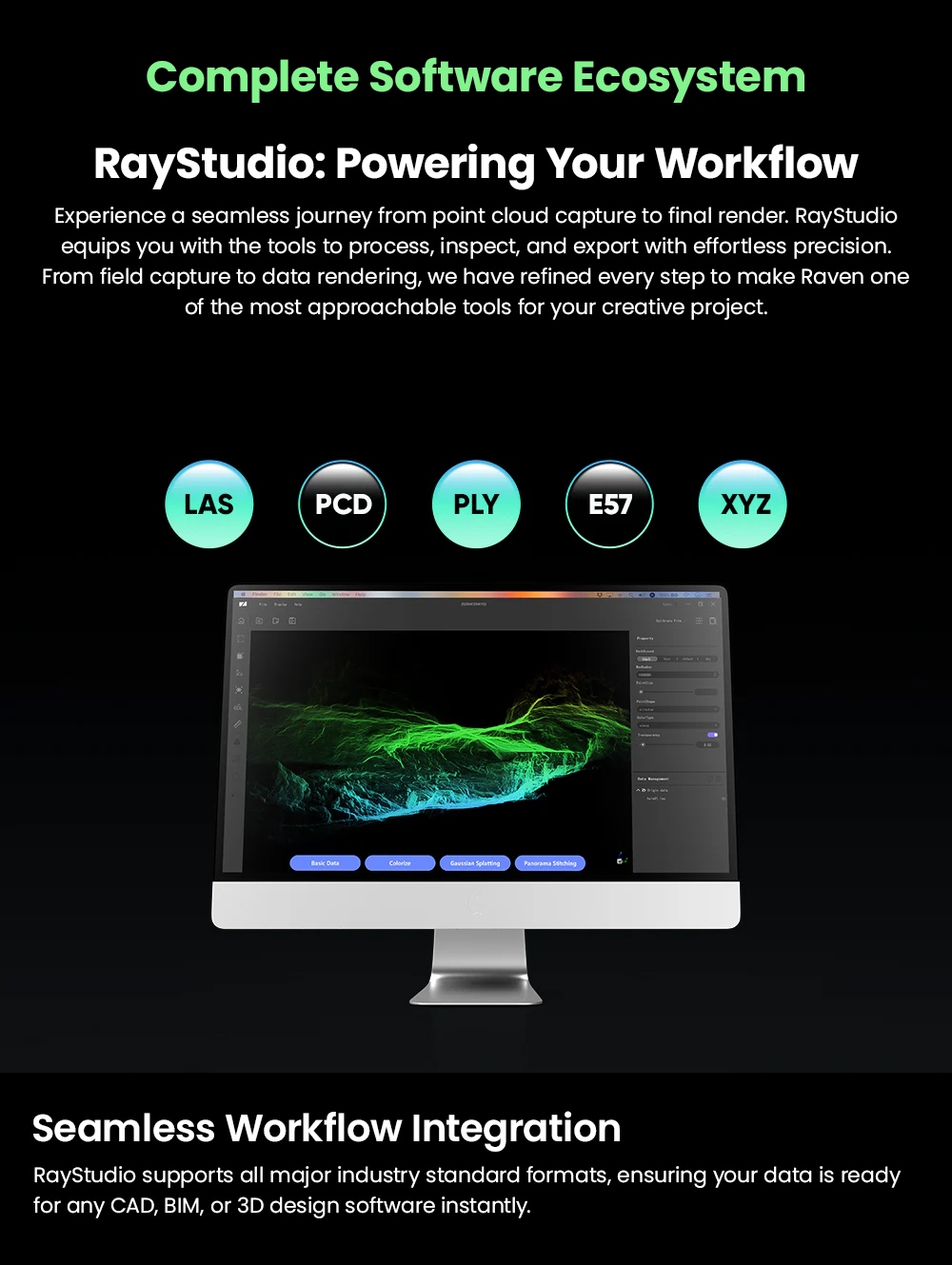

| Export Formats | LAS / PCD / PLY / OBJ / E57 / XYZ |
| System Support | Windows 11 or Above / macOS Not Supported |
| Product Weight | 2.45kg |
| Package Weight | 4.2kg |
| Product Size | 31 × 22 × 12cm |
| Package Size | 37 × 35 × 15cm |

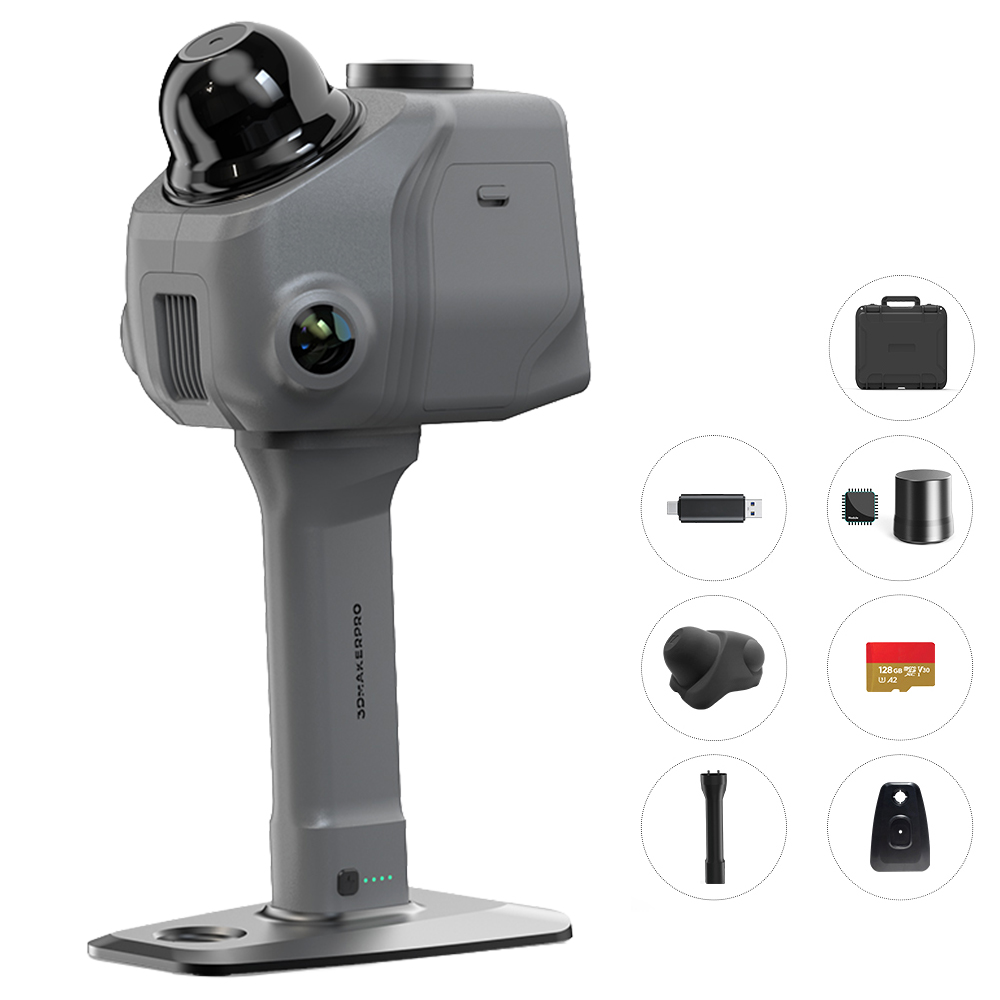

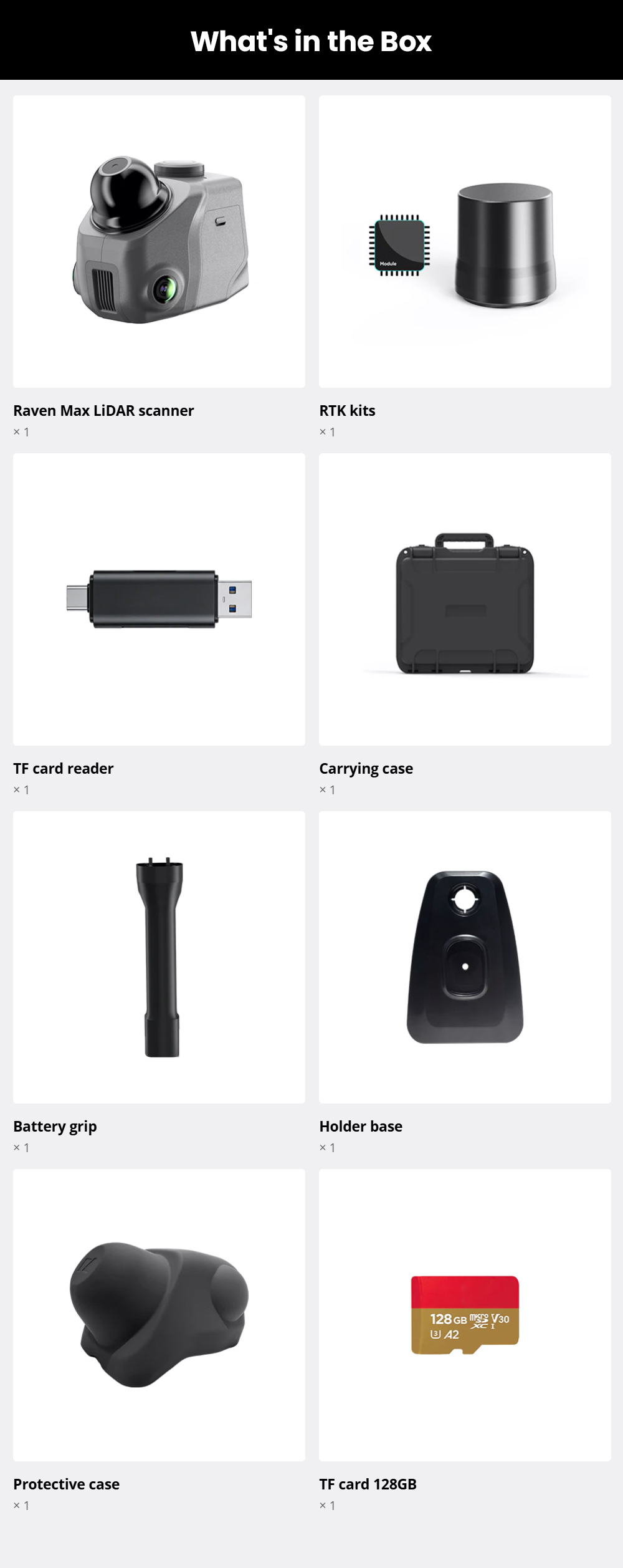

| Package Contents | 1 x Raven Max LiDAR Scanner 1 x Battery Grip 1 x Holder Base 1 x Protective Case 1 x TF Card 128GB 1 x RTK Kits 1 x TF Card Reader 1 x Carrying Case |
