Highlights
- Interchangeable air and ground modules
- Micro-USB port
- 6-position DF13 connector
- 100mW maximum output power (adjustable)
- -117dBm receive sensitivity
- Based on HopeRF’s HM-TRP module
- RP-SMA connector
- 2-way full-duplex communication through adaptive TDM
- UART interface
- Transparent serial link
- MAVLink protocol framing
- Frequency Hopping Spread Spectrum (FHSS)
- Configurable duty cycle
- Error correction corrects up to 25% of bit errors
- Open-source SIK firmware
- Configurable through *Mission Planner and *APM Planner
Specification
| General | |
|---|---|
| Type | Dual Radio Module |
|
Supply Voltage |
3.7-6 VDC (from USB or DF13 connector) |
| Transmit Current | 100 mA at 20 dBm |
| Receive Current | 25 mA |
| Serial Interface | 3.3 V UART |
| Size/Weight |
Size: 53 x 25 x11mm (without antenna) |

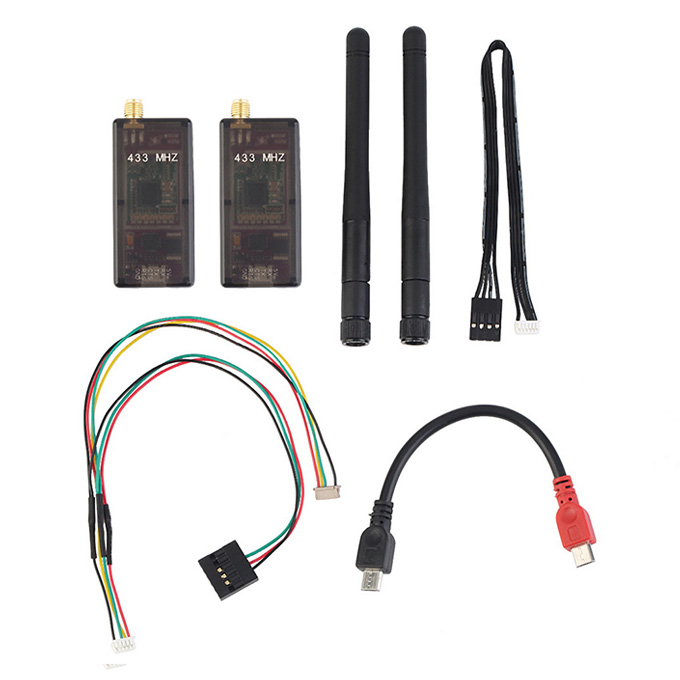

| Package Contents | |
|
2* Modules with antenna 433Mhz |
|
| 1* Micro-USB cable | |
|
1* Android OTG adapter cable |
|

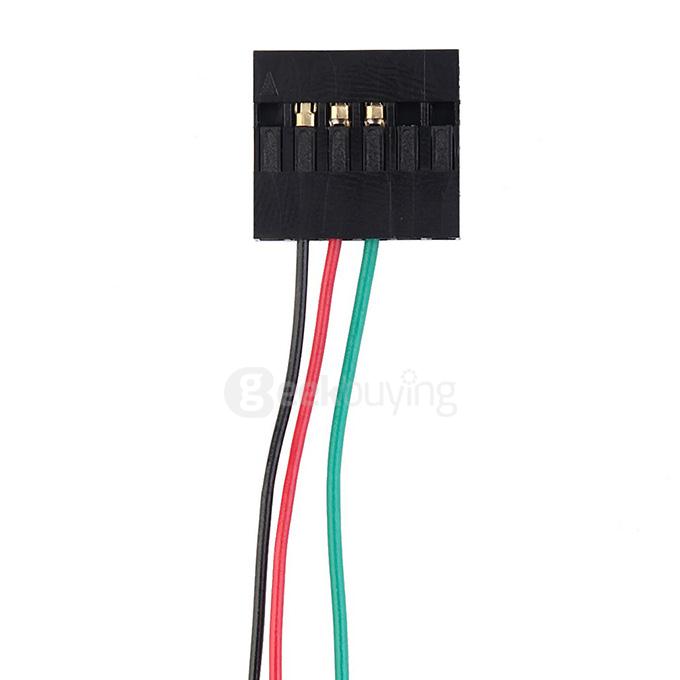

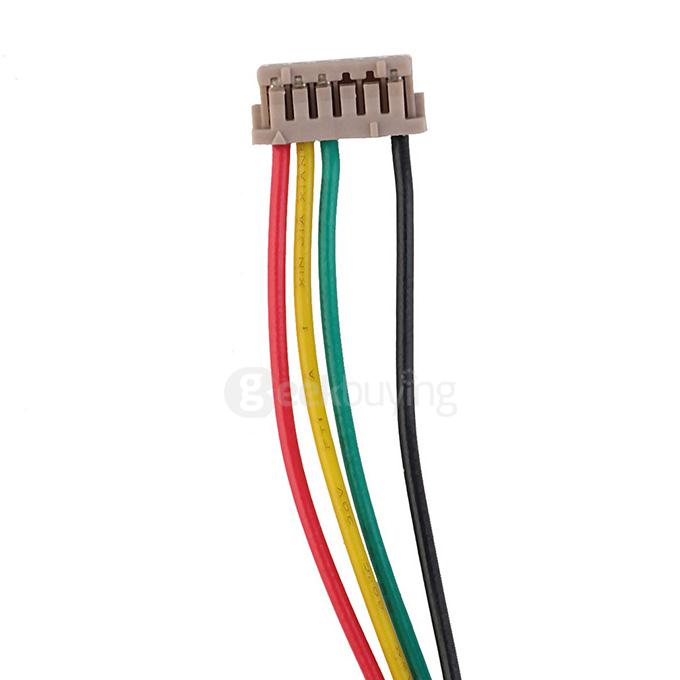

| 1* 6-wire Pixhawk connector cable | |
|
1* 6-to-5-position APM and PX4 connector cable |
|
