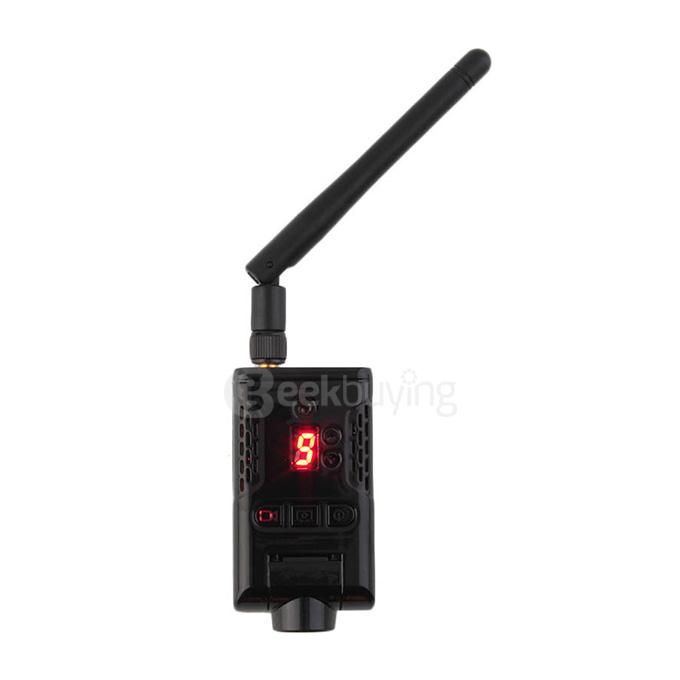

Highlights
- Full HD 1080p 30fps
- Built-in 4 Bands 32CH 5.8Ghz 400mw transmitter

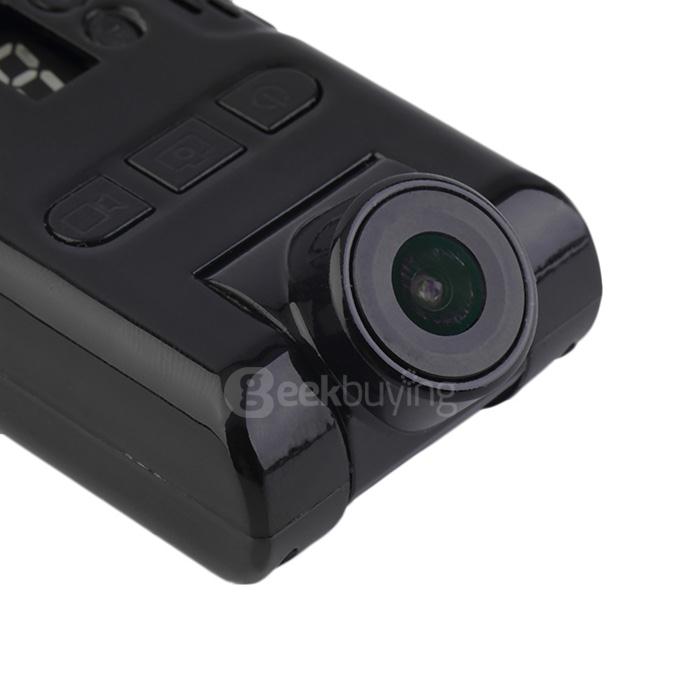

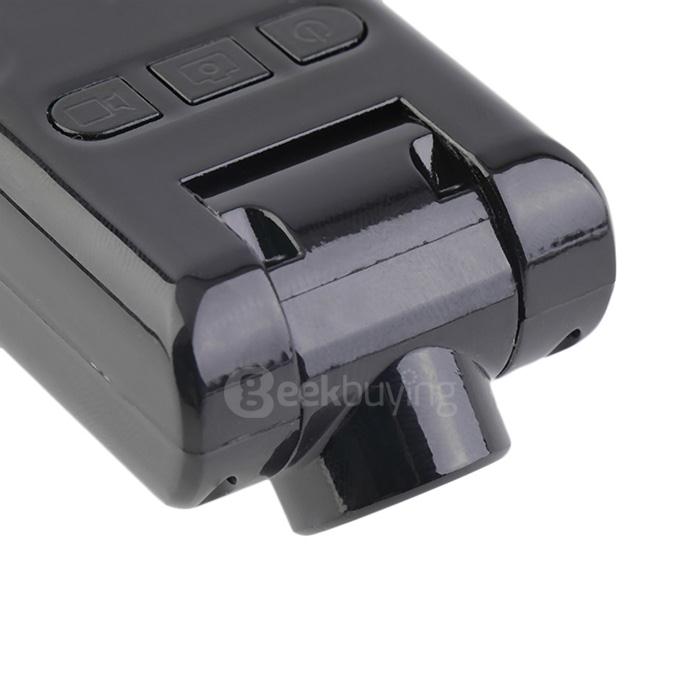

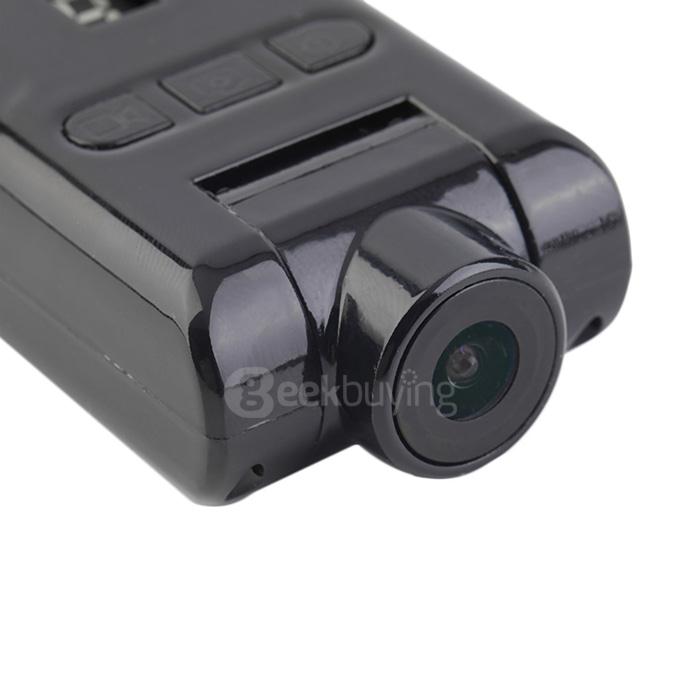

- LENS Rotation range: ±45 degrees
- FOV angel: 150 degrees (Diagonal)
- Suport PWM remote control
- Support OSD
Specification
| General | |
|---|---|
| Type | Frame Kit Combo |
| Menu List | Video Size:1080p30(default)/720p60/720p3 Video quality:High(default)/Medium/Low Video Length:30Min.(default)/20Min./10Min./Min. Auto REC:On(default)/Off Time Stamp:Off(default)/Date Only/Date&Time Audio Record:On(default)/Off EV:+0.0 Orientation:Normal(default)/180 OSD:On(default)/Off |
| Setup | Language:English(default)/Simplified Chinese/Traditional Chinese/French/Germany/Italian/Spanish/Portuguese/Japanese Date Input:2015 / 08 / 10 Time Input:10:35:00 Date Format:YY/MM/DD MM/DD/YY DD/MM/YY Format Auto shutdown:Off(Default)/5Min/10Min/15Min/20Min/30Min Light Freq.:60Hz(default)/50Hz TV Output:NTSC(Default)/PAL USB:DC IN(Default)/Disk Drive Sys. Reset FW Upgrade FW Version:2015.03.10.01 |
| Camera | FOV:150 degrees (Diagonal) LENS Rotation range:±45 degrees Resolution:1920x1080p30,1280x720p60, 1280x720p30 Micro SD:Support to 32GB Video Compression:h.264 Picture:JPEG Record quality:High,Mid,Low Microphone:Digital |
| Wireless Transmitter | ISM 5.8GHz 32 Channel, Transmitter Frequency Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 A 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M B 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M E 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M F 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M |
| Output / USB | RF Output Power:24dBm±1dBm RF Output Impedance:50ohm, SMA port USB:Micro USB 5Pin, High speed USB 2.0 |
| Power Supply |
DC 5 / 1.2A Built-in 3.7V/ 500mAh Li-Ion battery Dimensions:65(L)X37(W)X20(H)mm (Not include prominent part) Weight:72g |

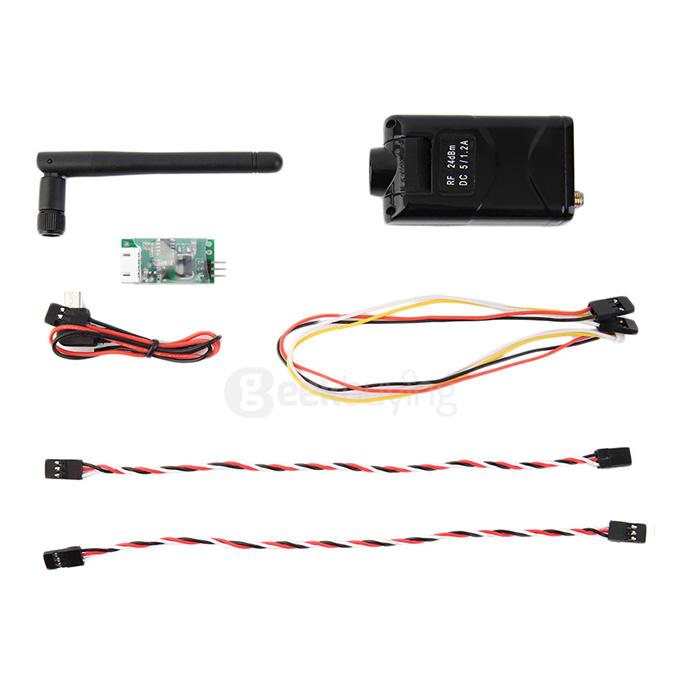

| Package Contents | |
| 1*SKY-HD01 | |
| 1*5.8G 2dBi antenna | |
| 1*7-30V to 5V Power Board | |
| 1*Micro 5Pin USB Cable | |
| 1*4Pin OSD Cable | |
| 1*USB Power cable | |
| 1*3P TX Remote control cable | |
