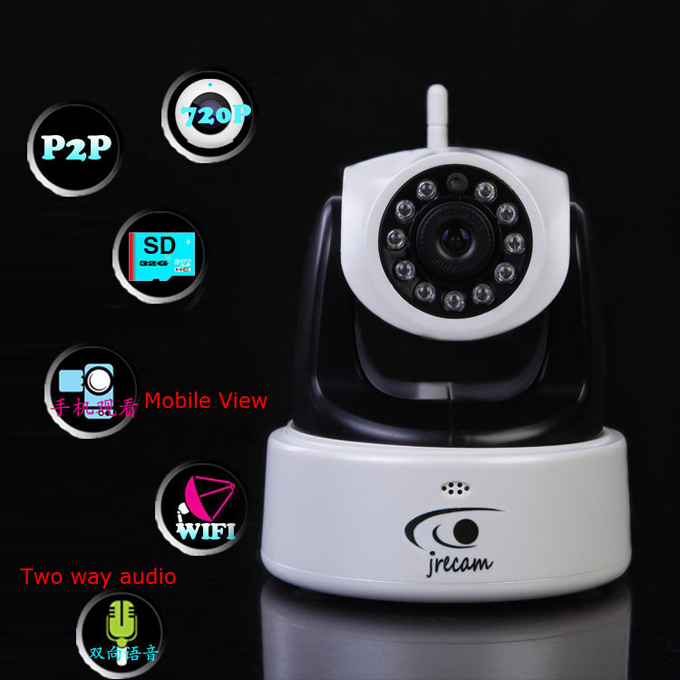

Highlights
Unique and elegant design.
Support smart mobile remote surveillance anywhere anytime.
High sensitivity sensor CMOS.
PT control Horizontal angle 330degree;Vertical angle 90degree
Adopt optimized H264 video compression format.

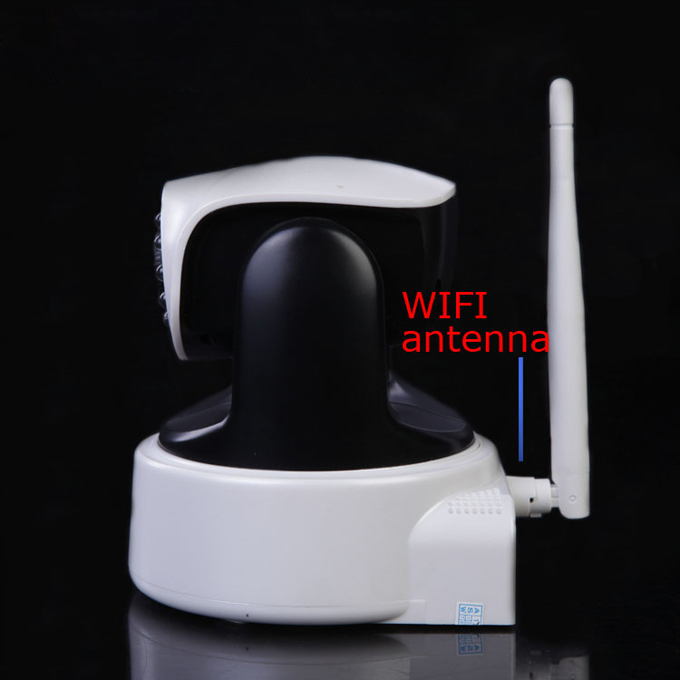

Support WIFI:802.11b/g/n wireless networking.
Support Motion Detection alarm function.
Support image snapshot.
Factory Free DDNS service.
Support 32G TF card.
Support PNP P2P Play & Plug.
IR-CUT.
Specification
What's in the box?
1 x IP Camera
1 x Bracket
1 x Power Adaptor
1 x CD
Catalogue | Type | Parameters |
Features | View by phone | |

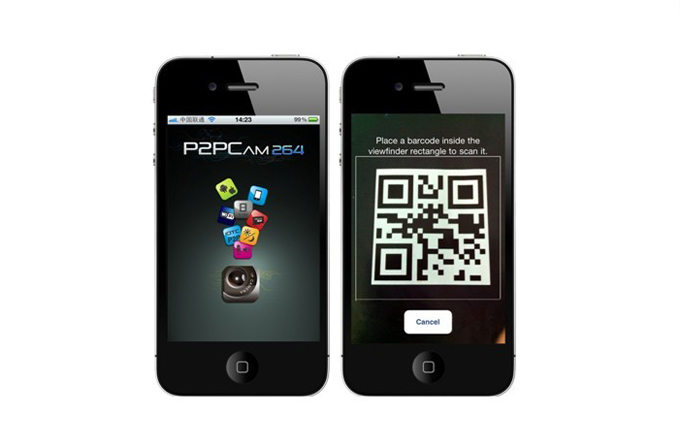

Mobile Platform | No need to install software, Multi-screen monitoring and managing by mobile phone,alarming,viewing. | |
View on PC | Internet Explorer 6.0 or higher version, firefox, chrome,safri | |
Local Memory | Support 32G TF Cards | |
Super Client | 1,4,9,16,25,36, 64,81-channel , no user limited, centralized monitor, remote record and playback | |
System | Operation system | 32Bit rsic Embedded Processor |

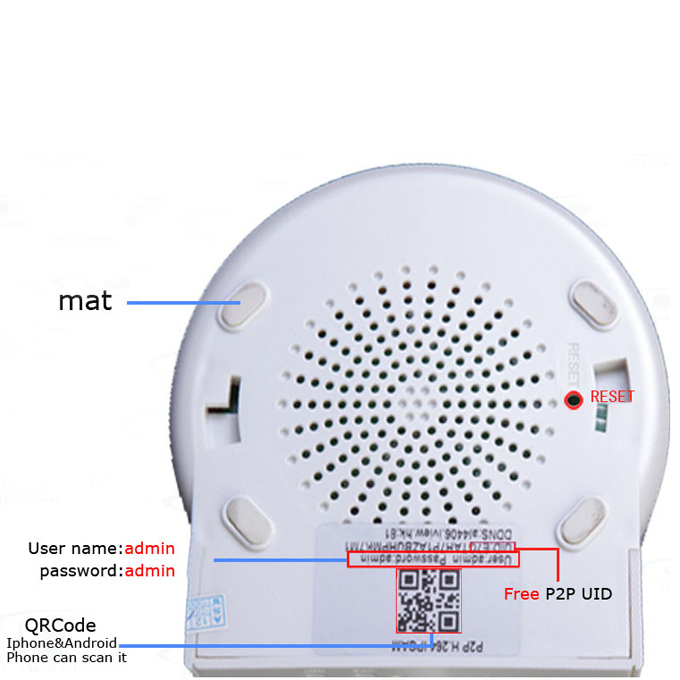

System security | Supports three-level account, password, user multi-level authority management | |
DDNS | Provide DDNS for free, like demo.gocam.so | |
Collection | Image sensor | 1/4 inch 1 Mega pixel line by line CMOS sensor |
SNR | about 50dB | |
Minimum Illumination | 0.3 Lux | |
3A | Auto White Balance,Auto Exposure,Automatic Gain | |
Lens | Standard 3.6mm | |
Video | Compression Format | H.264 |
Resolution | 720P(1280*720)/VGA(640×480)/QVGA(320*240) | |
Maximum frame rate | 25fps | |
Bit Rate | 32Kbps-4Mbps can be set | |
Adjustment | light intensity,contrast ratio,saturation level are adjustable. | |
Nightvision | IR-CUT | Built in IRCUT, no color cast in day, clearer images at night |
Effect | 12pcs IR LEDs IR Distance 10 m | |
Audio | Encode Formats | G.711 |
Input | Built in Microphone | |
Output | Normal connector Of 3.5mm | |
Memory | Memory Socket | Automatic pop-up slot for Micro SD card |
View by SD Card | Remote browsing, download of content from 32G TF Card | |
Network | Socket | RJ-45 10/100Mb self-adaptable Ethernet slot |
Protocol | ||
WIFI | IEEE 802.11 b/g/n WEP WPA/WPA2 Encryption | |
Visitors Online | Support 20 visitors viewing online at the same time | |

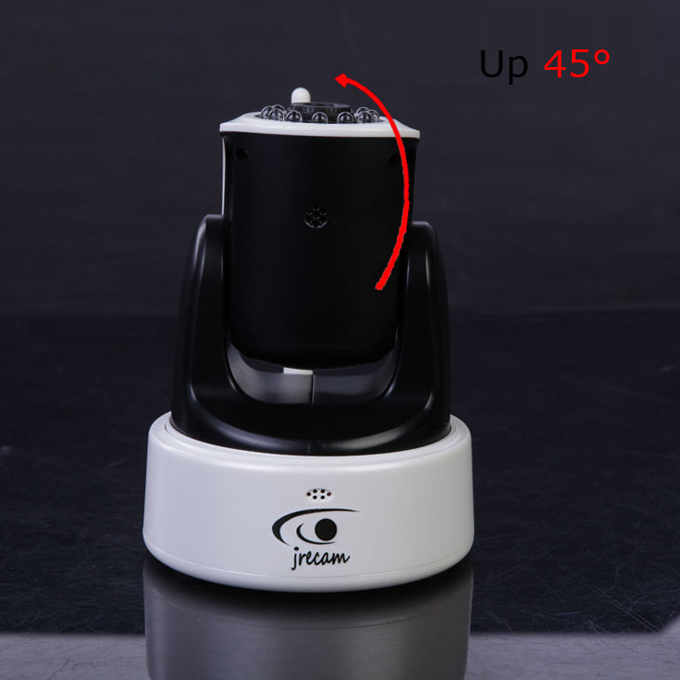

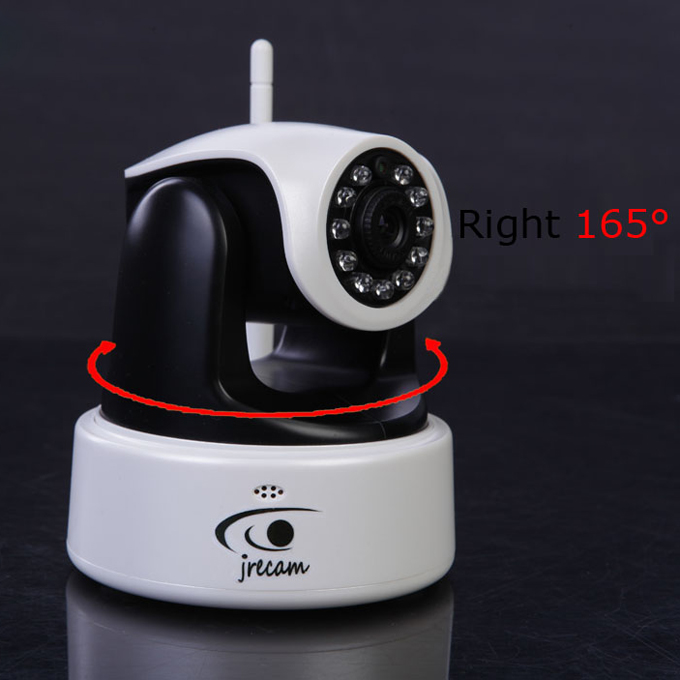

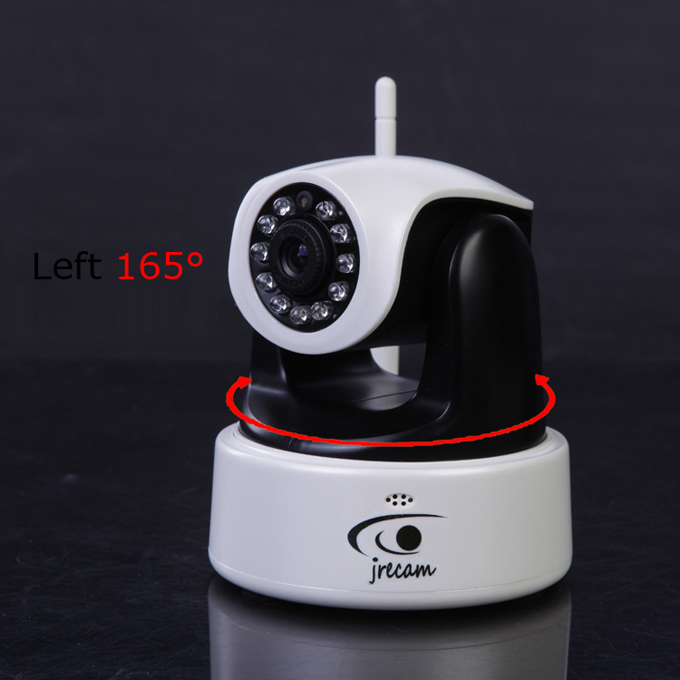

P/T | Control Method | Pan 330 degree, Tilt 90 degree (speed can be set)Highest speed 70 degree /s |
Alarm | Alarm Detection | Support motion detecting / 1 way input triggered |
Alarm action | 1 way output/E-mail pictures / upload video by FTP/messages alarm(coordinate to server) | |
Physical index | Power | DC 5V2A |
Consumption | about 6W | |
Temperature | 10-50 degree | |
Humidity | 10-85 | |
Weight | Gross 656g (Note in kind prevail) | |
Package size |
