Highlights
- Hidden non-lighting night vision LED
- Unique alarm design and function customization
- Flexible and Adsorption function bracket
- Lens inserted under glass
- Real Plug & Play technology
- Advance AP mode and push notification
- IOS & Android APP remote viewing
Specification
|
Specification |
Model:APM-100S1 |
|
|
Image Sensor |
Image Sensor |
1/4" Color CMOS Sensor |
|
Display Resolution |
1280*720 Pixels(1.0 megapixel) |
|
|
Min Illumination |
0.5Lux |
|
|
Lens |
Lens Type |
Glass Lens |
|
Focal Length |
2.8mm |
|
|
Viewing Angle |
100° |
|
|
Day/Night Viewing |
IR-CUT Automatically Switches |
|
|
Night Vision |
10 IR LEDs,5-8meters |
|
|
Software Features |
Image Compression |
H.264,MJPEG |
|
Multi-Stream |
1280*720(HD);640*368(VGA) |
|
|
P2P |
Support |
|
|
Motion Detection |
Support |
|
|
E-mail/FTP Alarm |
Support Gmail/Hotmail/etc |
|
|
Scheduled Recording |
Support |
|
|
UPnP |
Support |
|
|
Built-in DDNS Server |
Support |
|
|
Audio |
2-way Audio |
Support |
|
Built-in Microphone |
Support |
|
|
Built-in Speaker |
Support |
|
|
External Speaker |
None |
|
|
PTZ Parameters |
Horizontal Angle |
None |
|
Vertical Angle |
None |
|
|
Horizontal Speed |
None |
|
|
Vertical Speed |
None |
|
|
Preset Position |
None |
|
|
Connectivity |
Ethernet Interface |
Build in 10/100Mbps,Auto MDI/MDIX,RJ-45 |
|
Supported Protocol |
HTTP,FTP,TCP/IP,UDP,SMTP,DHCP,PPPoE,DDNS,UPnP |
|
|
Compress Rate Level |
128Kbps - 4Mbps |
|
|
Wireless Standard |
IEEE 802.11b/g/n |
|
|
Data Rate |
802.11b: 11Mbps (Max.) ; 802.11g: 54Mbps(Max.) ; 802.11n:150Mbps(Max.) |
|
|
RS-485 Interface |
None |
|
|
External Card Slot |
Support TF Card |
|
|
WPS |
Support |
|
|
PoE |
None |
|
|
Power |
Power Supply |
DC 5V/2.0A (EU,US,AU adapter or other types optional) |
|
Power Consumption |
8 Watts (Max.) |
|
|
Physical and Environmental |
Net Weight |
0.2kg |
|
Dimensions |
125(L)*35(W)*75(H)mm |
|
|
Operate Temperature |
0°C ~ 55°C (32°F ~ 131°F) |
|
|
Operating Humidity |
20% ~ 85% non-condensing |
|
|
Storage Temperature |
-25°C ~ 55°C(-13°F ~ 131°F) |
|
|
Storage Humidity |
0% ~ 90% non-condensing |
|
|
PC System Requirements |
CPU |
2.0GHZ or above |
|
Memory Size |
256MB or above |
|
|
Display Card |
64M or above |
|
|
Supported OS |
Windows 2000/XP/7/Vista/MAC |
|
|
Browser |
IE/Firefox/Safari/Google chrome or other standard browsers |
|
|
Certification |
CE, FCC, RoHS |
|
|
Warranty |
Limited 1-year warranty |
|

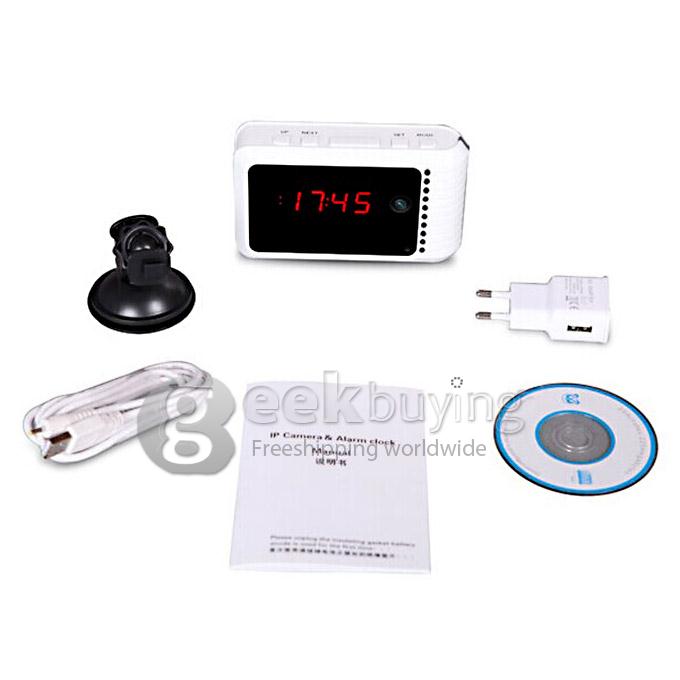

What's in the box?
- 1 x WiFi IP camera
- 1 x Power adapter
- 1 x Suction CAP mounting
- 1 x AC adapter
- 1 x User manual
