Highlights

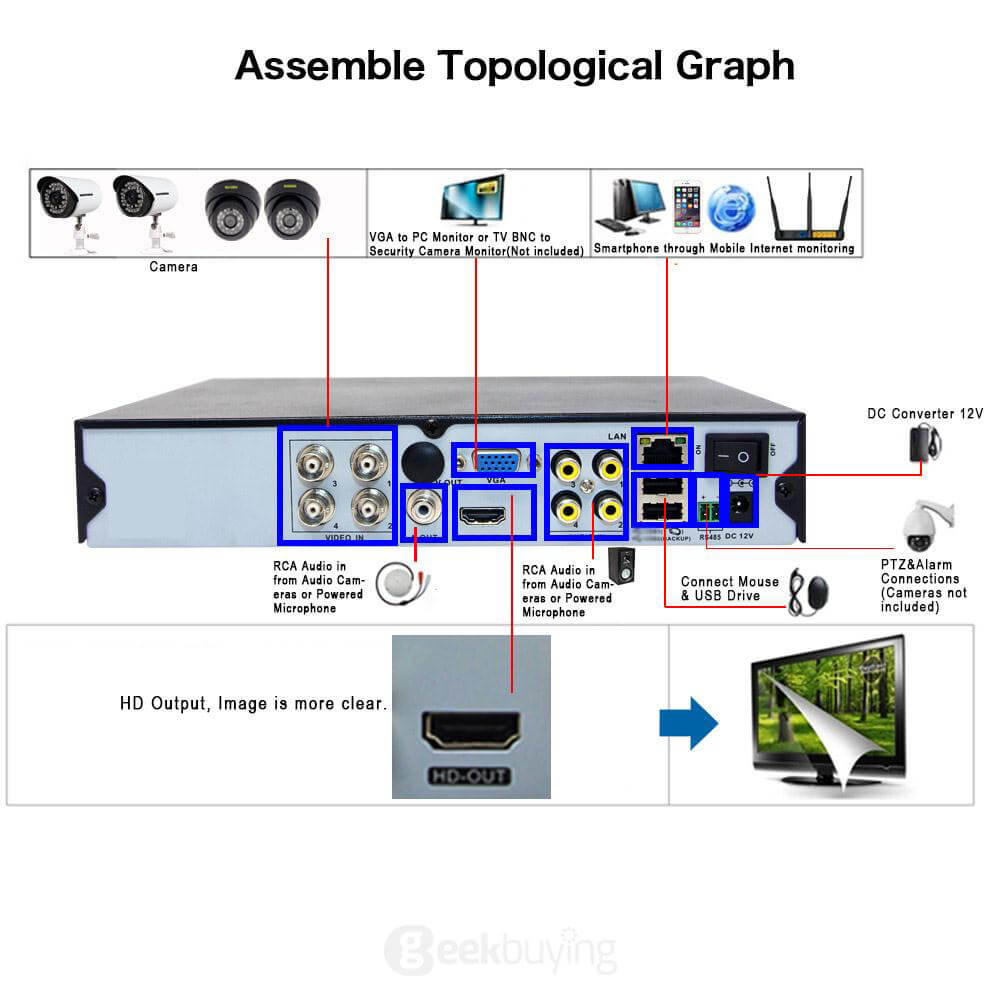

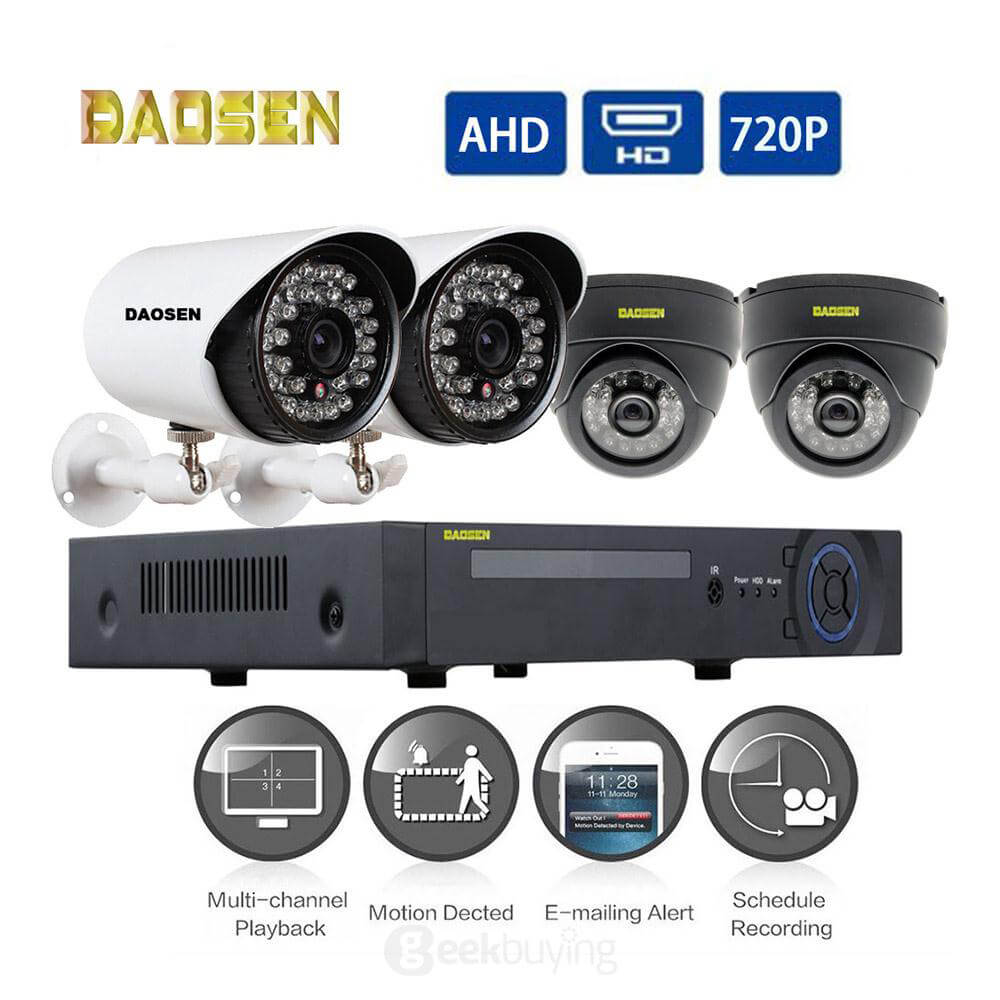

This all-in-one, four-channel AHD kit connects with 2 outdoor 720P cameras + 2 indoor 720P cameras and sets up in just minutes. 720P HD video cameras transmit both power and video using the same network cable. Simply plug in the AHD, connect the cameras to the AHD with the provided cables, and your system will automatically begin recording video. Connect the AHD to a monitor with your own VGA cable. With the latest version of our app, XMEye, you can also enjoy easy monitoring and control of your system on your smartphone or tablet. Connecting your new system to your Android or iOS device couldn't be simpler with XMEye's built in QR code scan.
- Smartphone quick remote access anytime anywhere
- 720P HD video for bigger and detailed image
- Delivers Power & Video in one cable
- Weatherproof housing cameras for indoor/ outdoor use
- Save and Relive Treasured Moments through updatable XMEye App
- Remote View on the Weshare web client: xmeye.net to login
Specification
| General | |||||||
|---|---|---|---|---|---|---|---|

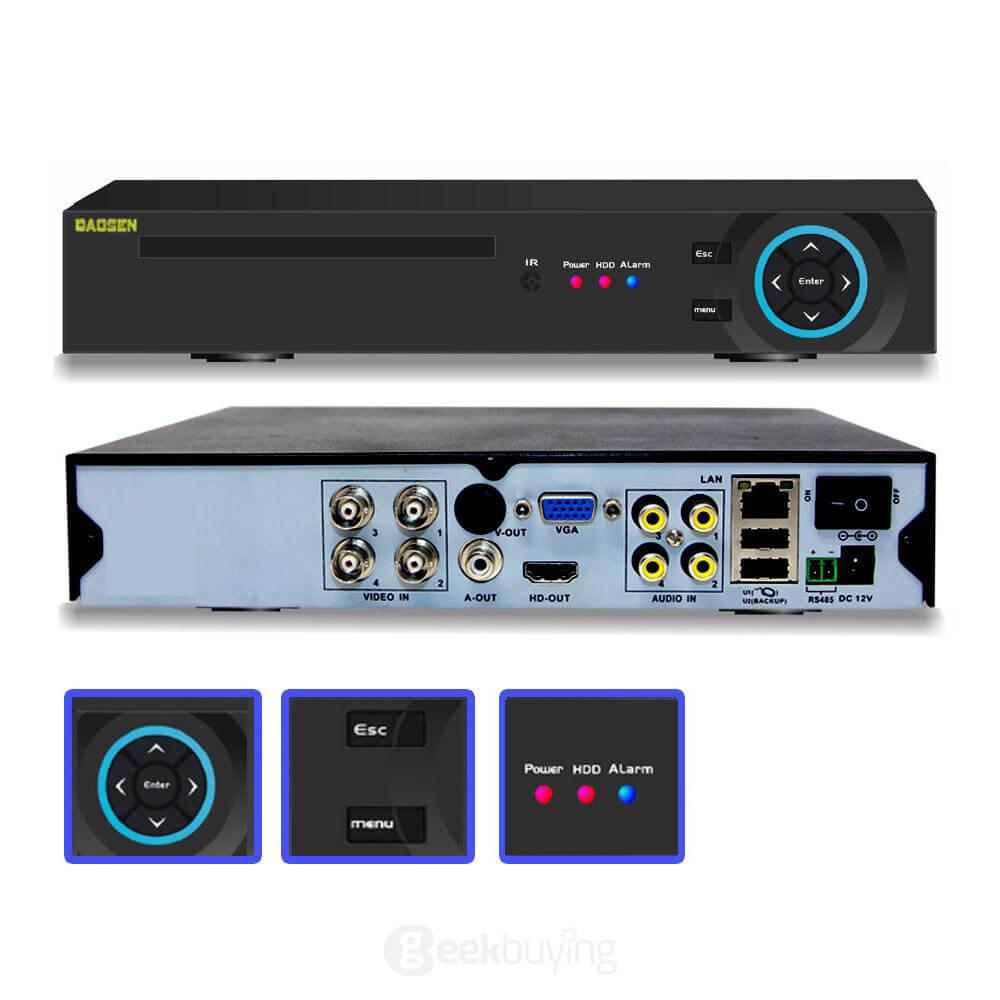

| Product Description | 4CH 720P HDMI Onvif AHD | ||||||
| Operation System | Embedded Linux | ||||||
| Video Compression | H.264 | ||||||
| Video | Video System | PAL/NTSC Switch Selectable | |||||
| Video Input | 4CH BNC Interface | ||||||
| Video Output | 1CH HDMI Interface/1CH VGA Interface | ||||||
| HD Output | HDMI (1920*1080) | ||||||
| VGA Output | (1920*1080,1440*900,1280*1024,1280*720,1024*768 Selectable) | ||||||
| Audio | Input | 4* RCA Interface | |||||
| Output | 1* RCA Interface | ||||||
| Remote Access | Cloud System For Remote Access, NO Port Mapping | ||||||
| Recording Mode | Schedule, Manual, Motion Detection Alarm | ||||||
| Backup | Flash Drive / USB HDD / Network | ||||||
| Hard Drive Interface | 3.5 inch SATA II Interface (Up to 2T Hard Disk) | ||||||
| Frame Rate | Main Stream: 1~25 FPS | ||||||

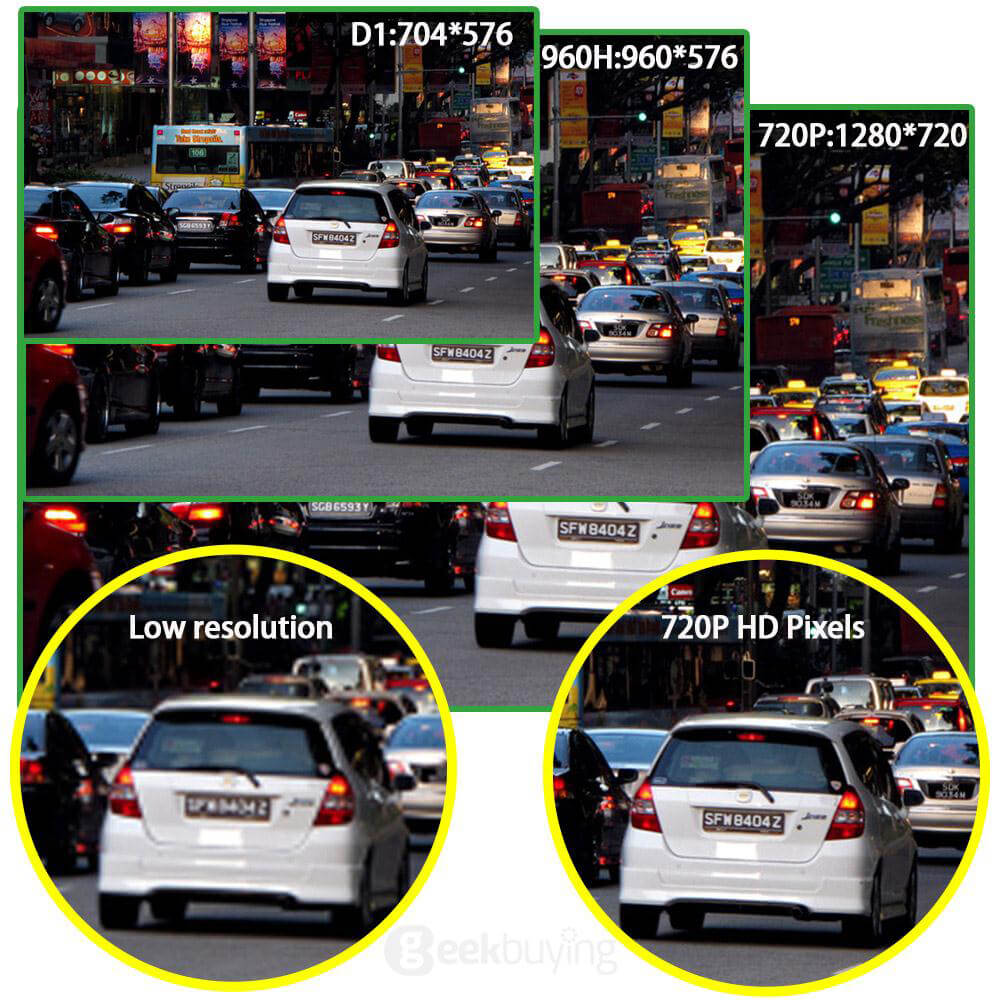

| Video Playback | CIF/DI/960H/720P/1080P Recording Playback | ||||||
| Mulitiplex Operation | Live Display/Record/Playback/Backup/Network Transmit | ||||||
| Ethernet Interface | 1*RJ-45 10M/100M | ||||||
| USB Interface | 3*USB Interface | ||||||
| Web Browser | Supports IE Browser/CMS Software Monitoring | ||||||
| Network Service | TCP/IP, UDP, HTTP, DDNS, SMTP, LAN, DHCP | ||||||
| Onvif Protocol | Onvif 2.0 | ||||||
| Mobile phone | IPhone, IPad, Android Remote View | ||||||
| System requirement | Windows XP/Vista/Windows 7/Windows 8 | ||||||
| Power Supply | 100V~240V 47Hz~63Hz | ||||||
| Working Temperature | -10ºC—55ºC | ||||||
| Working Humidity | 10%--90% | ||||||
| Accessories Included | User Manual/ CD Disk/ Mouse / Power Supply | ||||||
| Camera Specifications: | |||||||
| Image Sensor | Image Sensor Type | CMOS | |||||
| Sensor Size | 1/4 Inch | ||||||
| Signal System | PAL | ||||||
| Horizontal Resolution | 720P(1280X720 Pixels) | ||||||
| Lens | 3.6mm | ||||||
| Minimum Illumination | 0.1LUX/F1.2 | ||||||
| Day/Night | IR-CUT | ||||||

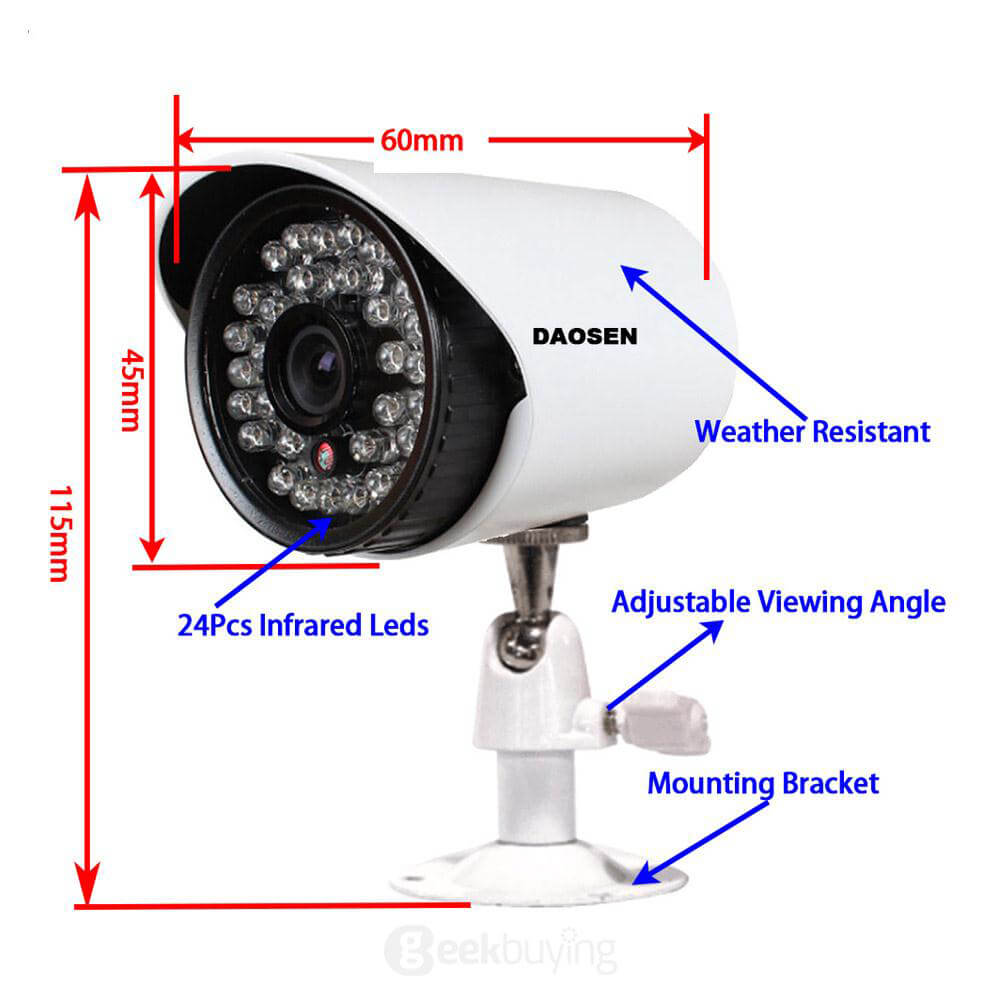

| Waterproof | IP66(2*Outdoor Bullet Cameras) | ||||||

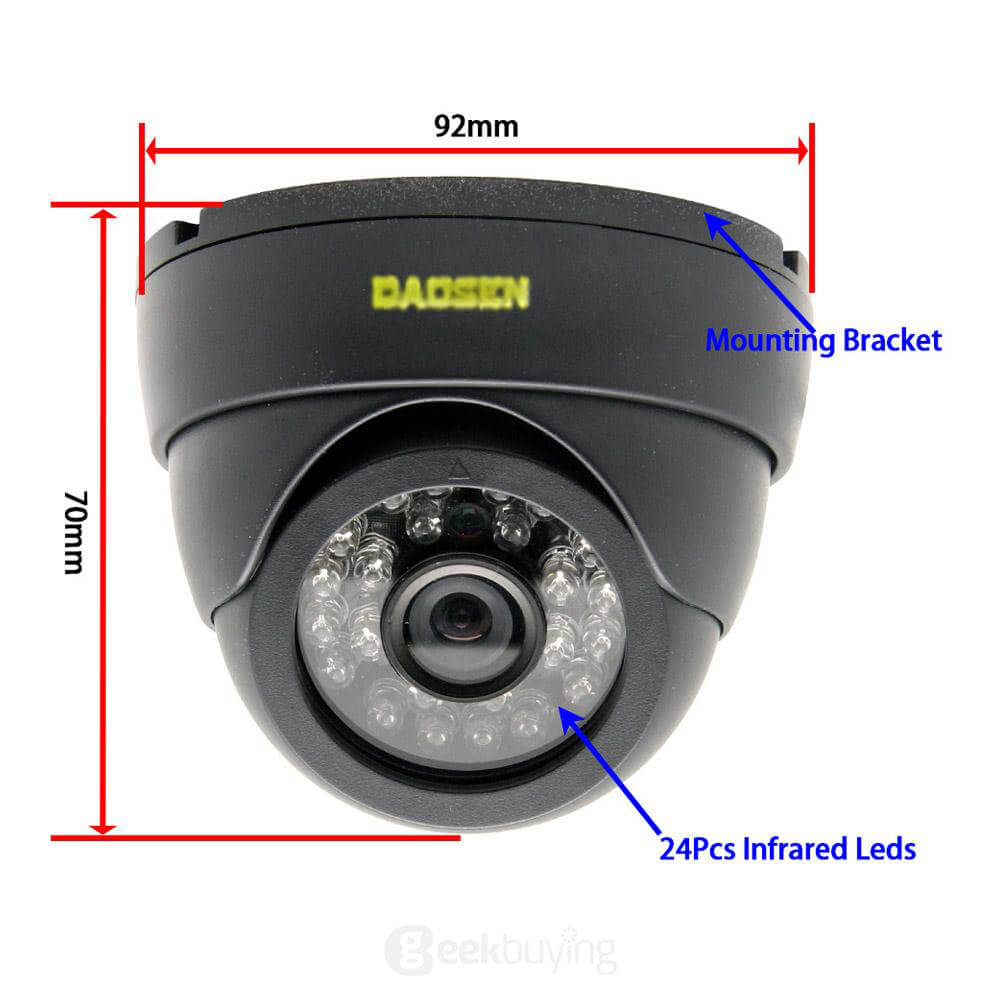

| Non-waterproof(2*indoor Dome Cameras) | |||||||
| Camera Features | IR Led | 24 pcs | |||||
| IR Irradiation Distance | 10m~20m | ||||||
| S/N Ratio | > 48dB | ||||||
| Video Output | 1.0Vp-p/75Ω BNC | ||||||
| White Balance | Automatic | ||||||
| Backlight Compensation | Automatic | ||||||
| Shutter Speed | Automatic electronic shutter 1/60-1/100000 Sec | ||||||
| Physical Environment | Power Supply | 12V DC | |||||
| Material | Metal Shell | ||||||
| Application | Outdoor/Indoor | ||||||
| Connector | BNC, DC | ||||||
| Operating Temperature | -10ºC~ 50ºC (14°F~122°F) | ||||||
| humidity | Below 90%RH | ||||||

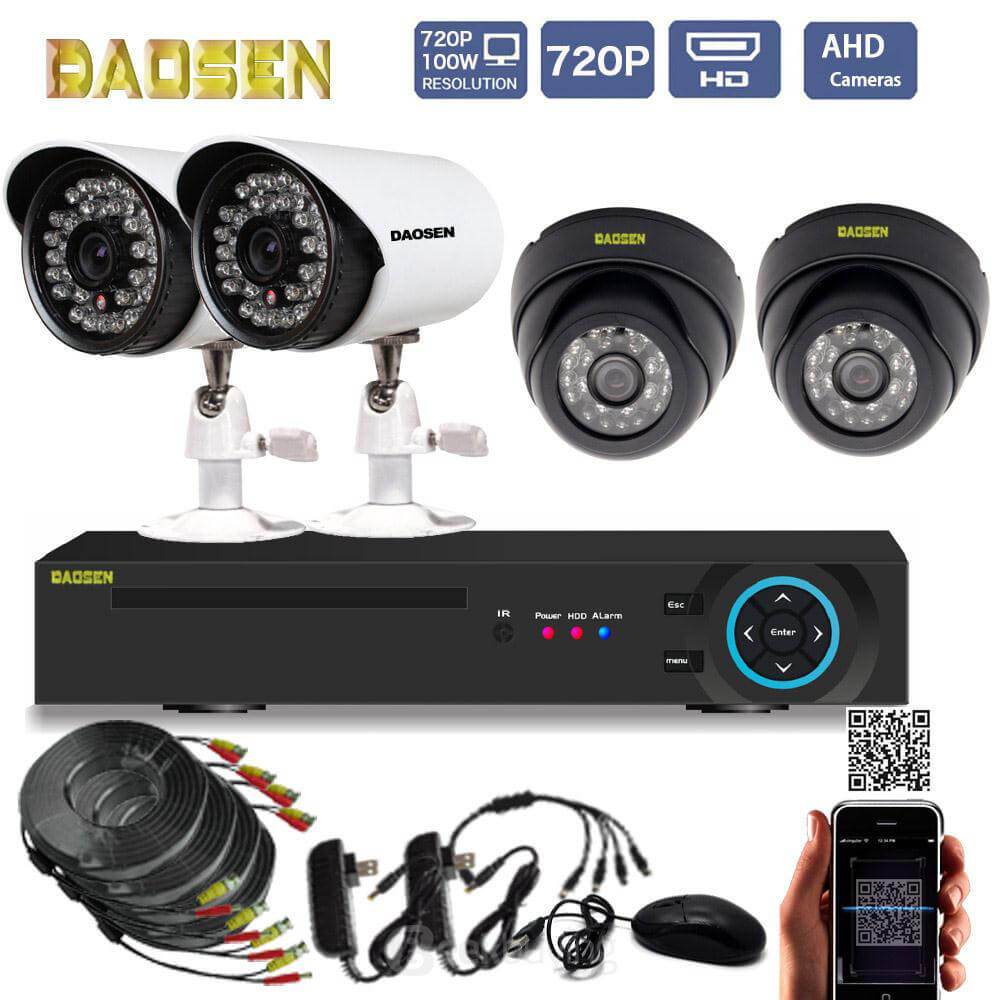

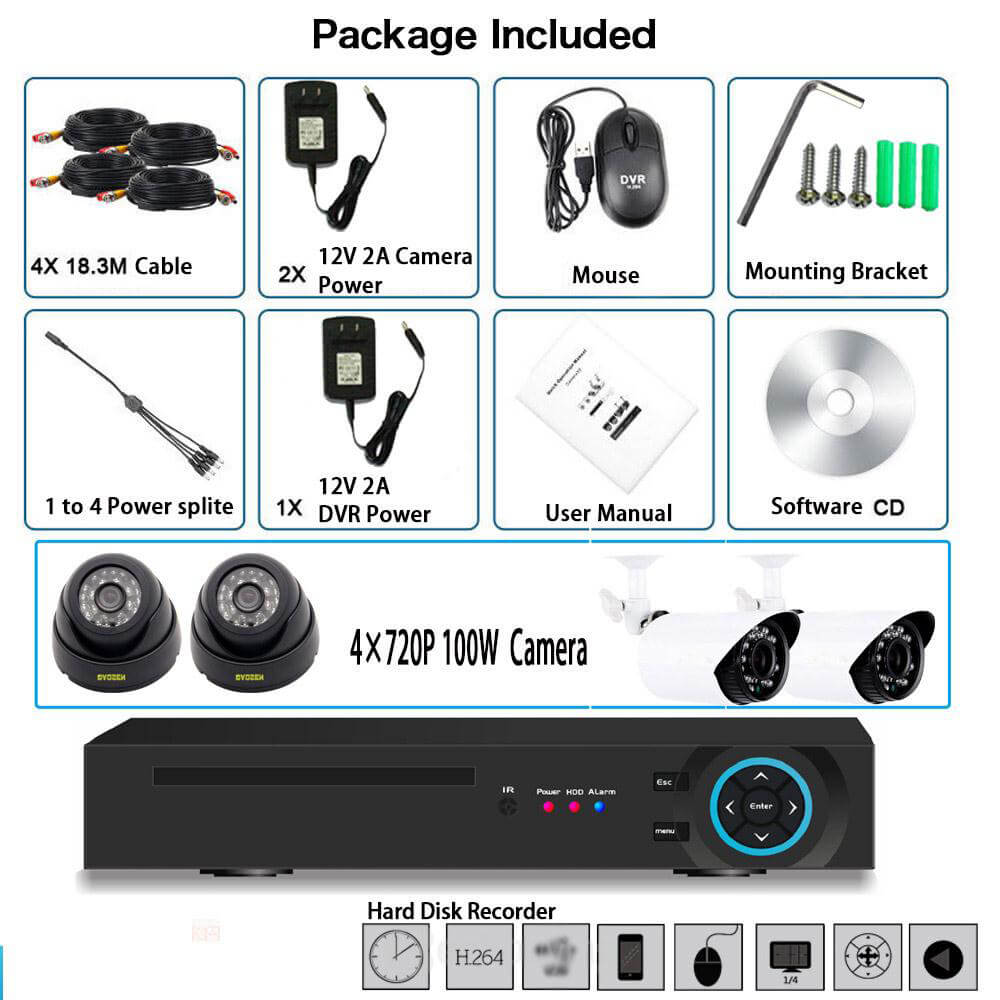

What's in the box?
- 1 X 4CH HDMI 720P HD video CCTV AHD (Hard Drive not Included)
- 2 X 100W HD Waterproof Outdoor IR-CUT Security Cameras
- 2 X 100W HD indoor IR-CUT Security Cameras
- 4 X 60ft(18.3M) Cable + Power Cable for Security Cameras
- 1 X 1-4 Power Splitter Cable for Cameras
- 1 X USB Mouse For DVR
- 1 X Power Supply for DVR (UK Plug)
- 1 X Power Supply for Cameras (UK Plug)
- 1 X English User's Manual
- 1 X CD Software
