Highlights
- Smartphone quick remote access anytime anywhere
- 720P HD video for bigger and detailed image
- Delivers Power & Video in one cable
- Weatherproof housing cameras for indoor/ outdoor use
- Adjustable viewing angles
- 36 pieces infrared lens
Specification
| General | |||||||
|---|---|---|---|---|---|---|---|

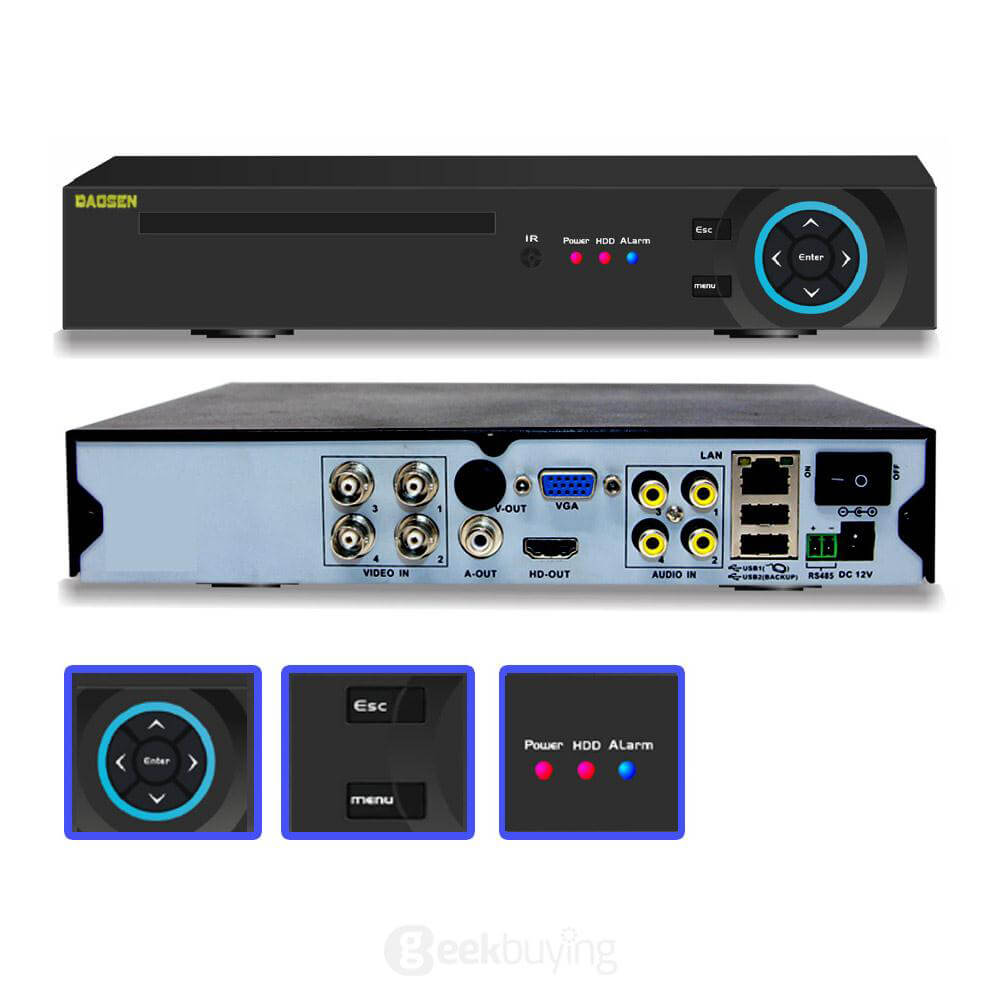

| Product Description | 4CH 720P HDMI Onvif AHD | ||||||
| Operation System | Embedded Linux | ||||||
| Video Compression | H.264 | ||||||
| Video | Video System | PAL/NTSC Switch Selectable | |||||

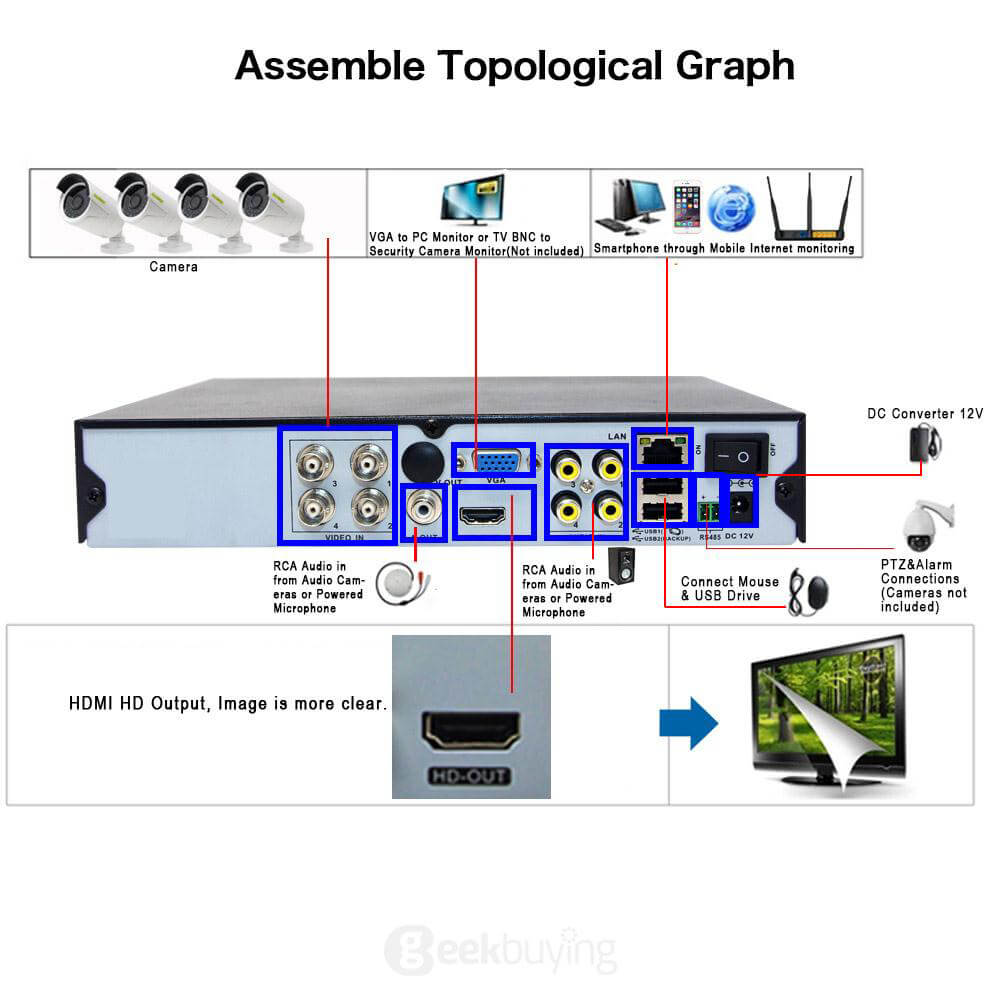

| Video Input | 4CH BNC Interface | ||||||
| Video Output | 1CH HDMI Interface/1CH VGA Interface | ||||||
| HD Output | HDMI (1920*1080) | ||||||
| VGA Output | (1920*1080,1440*900,1280*1024,1280*720,1024*768 Selectable) | ||||||
| Audio | Input | 4* RCA Interface | |||||
| Output | 1* RCA Interface | ||||||
| Remote Access | Cloud System For Remote Access, NO Port Mapping | ||||||
| Recording Mode | Schedule, Manual, Motion Detection Alarm | ||||||
| Backup | Flash Drive / USB HDD / Network | ||||||
| Hard Drive Interface | 3.5 inch SATA II Interface (Up to 2T Hard Disk) | ||||||
| Frame Rate | Main Stream: 1~25 FPS | ||||||
| Video Playback | CIF/DI/960H/720P/1080P Recording Playback | ||||||
| Mulitiplex Operation | Live Display/Record/Playback/Backup/Network Transmit | ||||||
| Ethernet Interface | 1*RJ-45 10M/100M | ||||||
| USB Interface | 3*USB Interface | ||||||
| Web Browser | Supports IE Browser/CMS Software Monitoring | ||||||
| Network Service | TCP/IP, UDP, HTTP, DDNS, SMTP, LAN, DHCP | ||||||
| Onvif Protocol | Onvif 2.0 | ||||||
| Mobile phone | IPhone, IPad, Android Remote View | ||||||
| System requirement | Windows XP/Vista/Windows 7/Windows 8 | ||||||
| Power Supply | 100V~240V 47Hz~63Hz | ||||||
| Working Temperature | -10ºC—55ºC | ||||||
| Working Humidity | 10%--90% | ||||||
| Accessories Included | User Manual/ CD Disk/ Mouse / Power Supply | ||||||

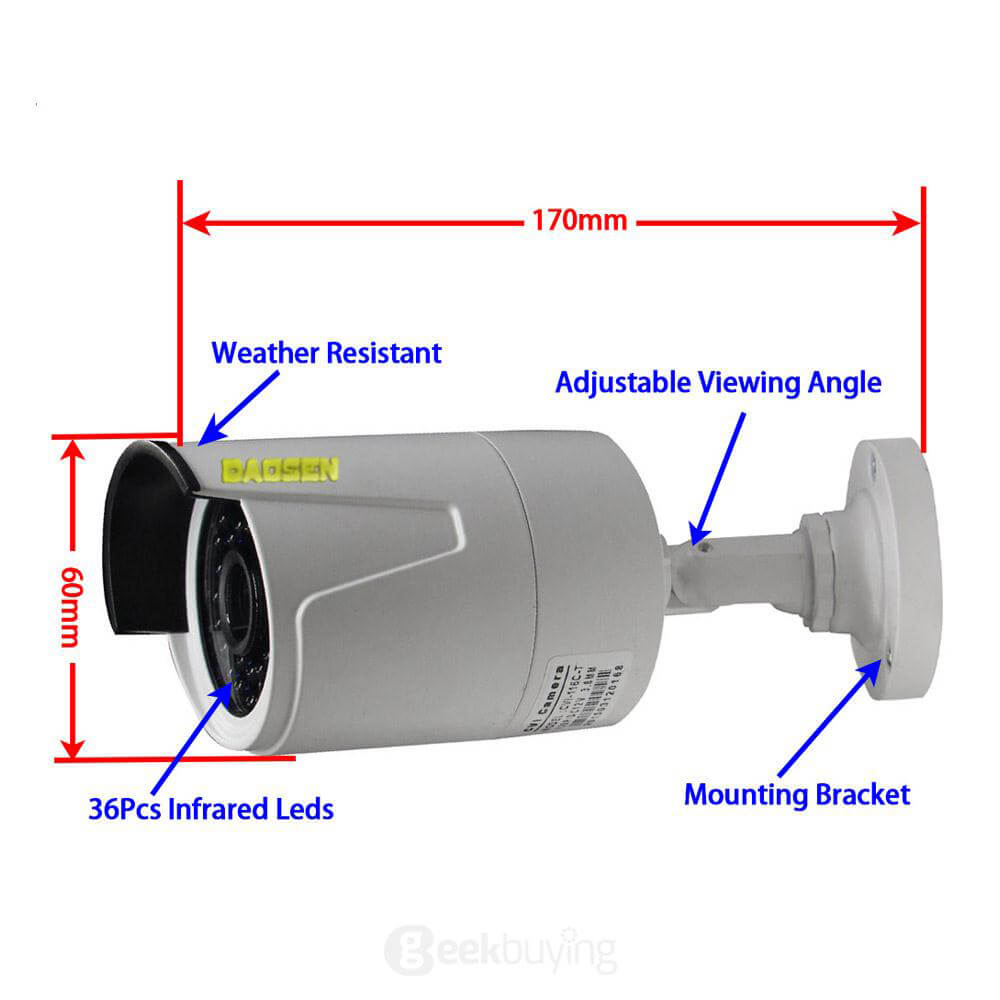

| Camera Specifications: | |||||||
| Image Sensor | Image Sensor Type | CMOS | |||||
| Sensor Size | 1/4 Inch | ||||||
| Signal System | PAL | ||||||

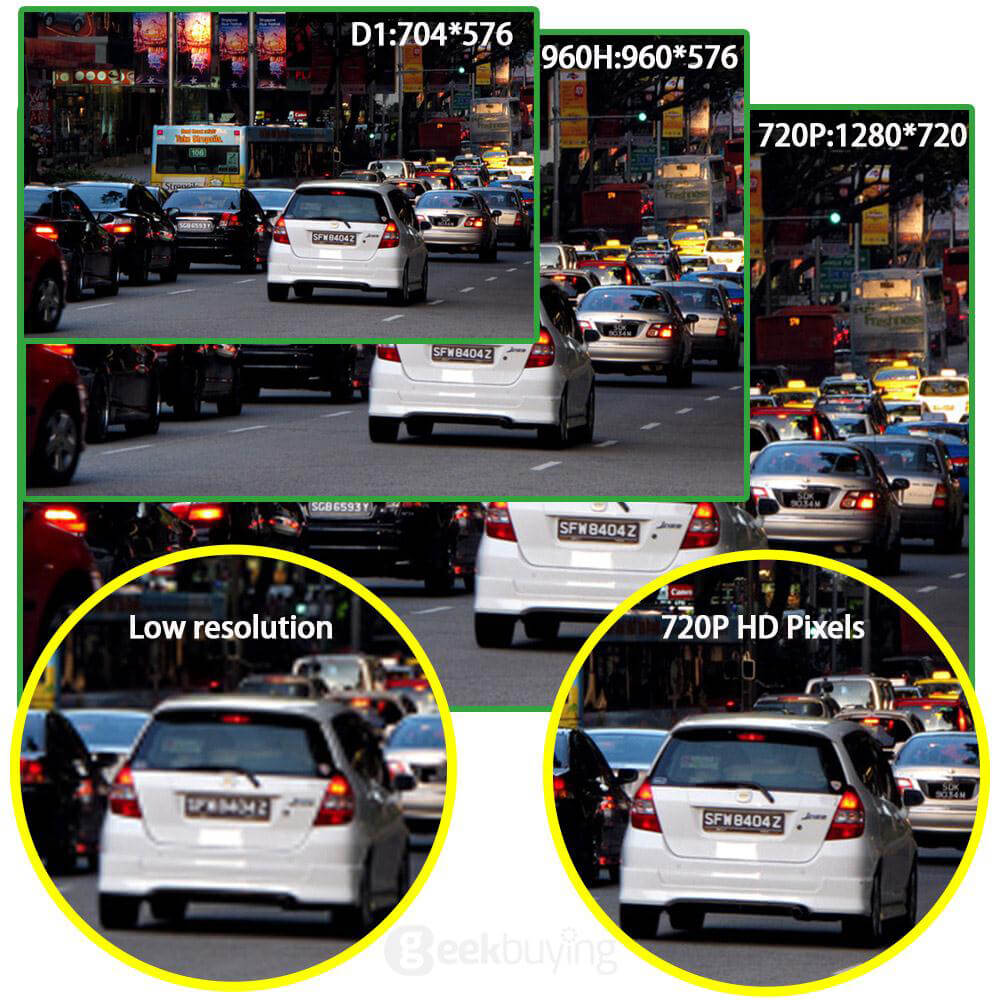

| Horizontal Resolution | 720P(1280X720 Pixels) | ||||||
| Lens | 3.6mm | ||||||
| Minimum Illumination | 0.1LUX/F1.2 | ||||||
| Day/Night | IR-CUT | ||||||
| Waterproof | IP66 | ||||||
| Camera Features | IR Led | 36 pcs | |||||
| IR Irradiation Distance | 10m~20m | ||||||
| S/N Ratio | > 48dB | ||||||
| Video Output | 1.0Vp-p/75Ω BNC | ||||||
| White Balance | Automatic | ||||||
| Backlight Compensation | Automatic | ||||||
| Shutter Speed | Automatic electronic shutter 1/60-1/100000 Sec | ||||||
| Physical Environment | Power Supply | 12V DC | |||||
| Material | Metal Shell | ||||||
| Application | Outdoor/Indoor | ||||||
| Connector | BNC, DC | ||||||
| Operating Temperature | -10°~ 50°C (14°F~122°F) | ||||||
| humidity | Below 90%RH | ||||||

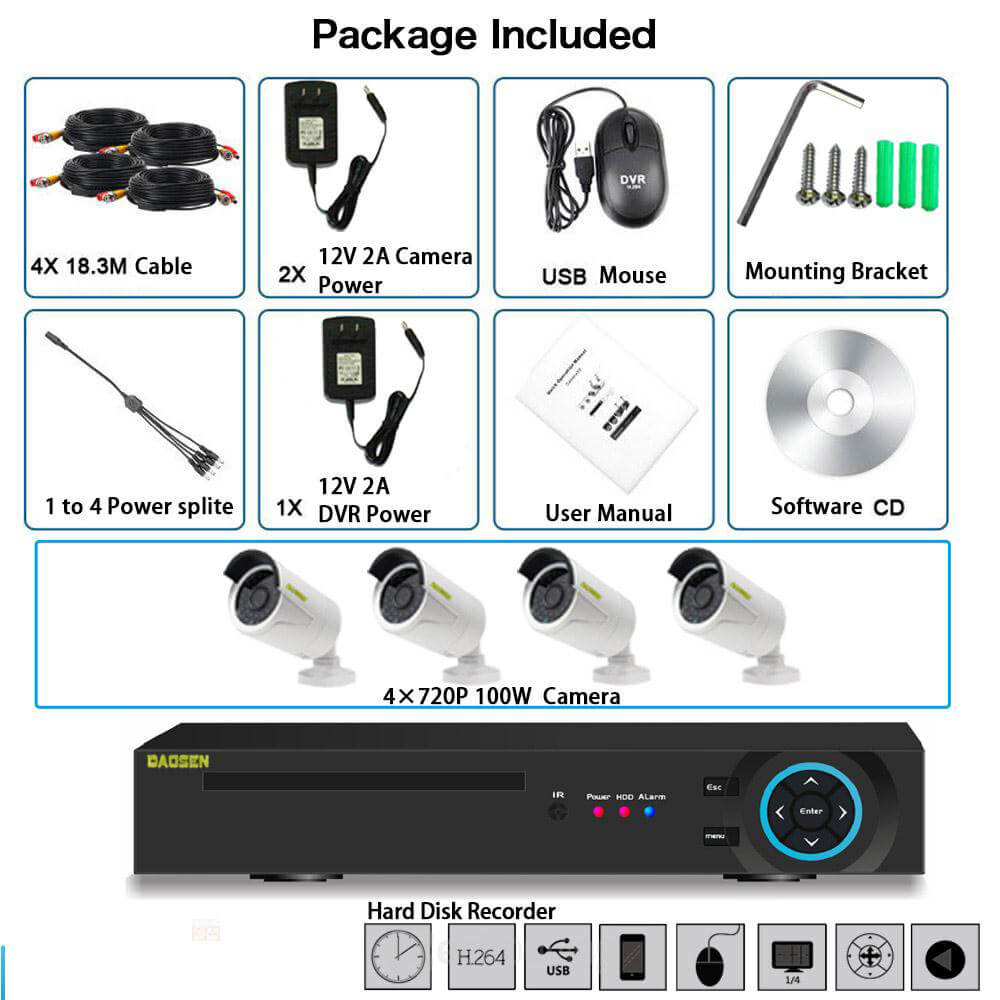

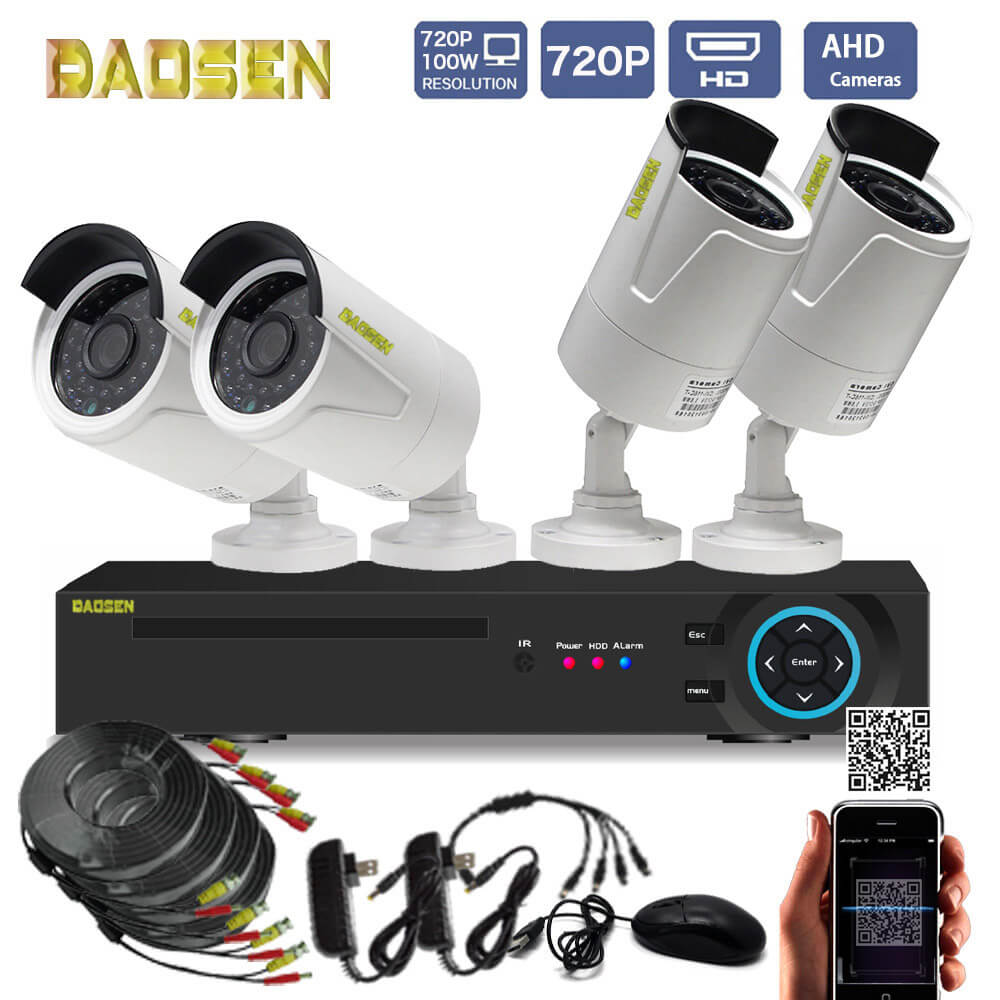

What's in the box?
- 1 X 4CH HDMI 720P HD video CCTV AHD?(Hard Drive not Included)
- 4 X 100W HD Waterproof Outdoor IR-CUT Security Cameras
- 4 X 60ft(18.3M) Video + Power Cable for Security Cameras
- 1 X 1-4 Power Splitter Cable for Cameras
- 1 X USB Mouse For DVR
- 1 X Power Supply for DVR
- 1 X Power Supply for Cameras
- 1 X English User's Manual
- 1 X CD Software
