Highlights
New Eye Protection Design
The laser protective cover perfectly protects your eyes, filters UV light for 95%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

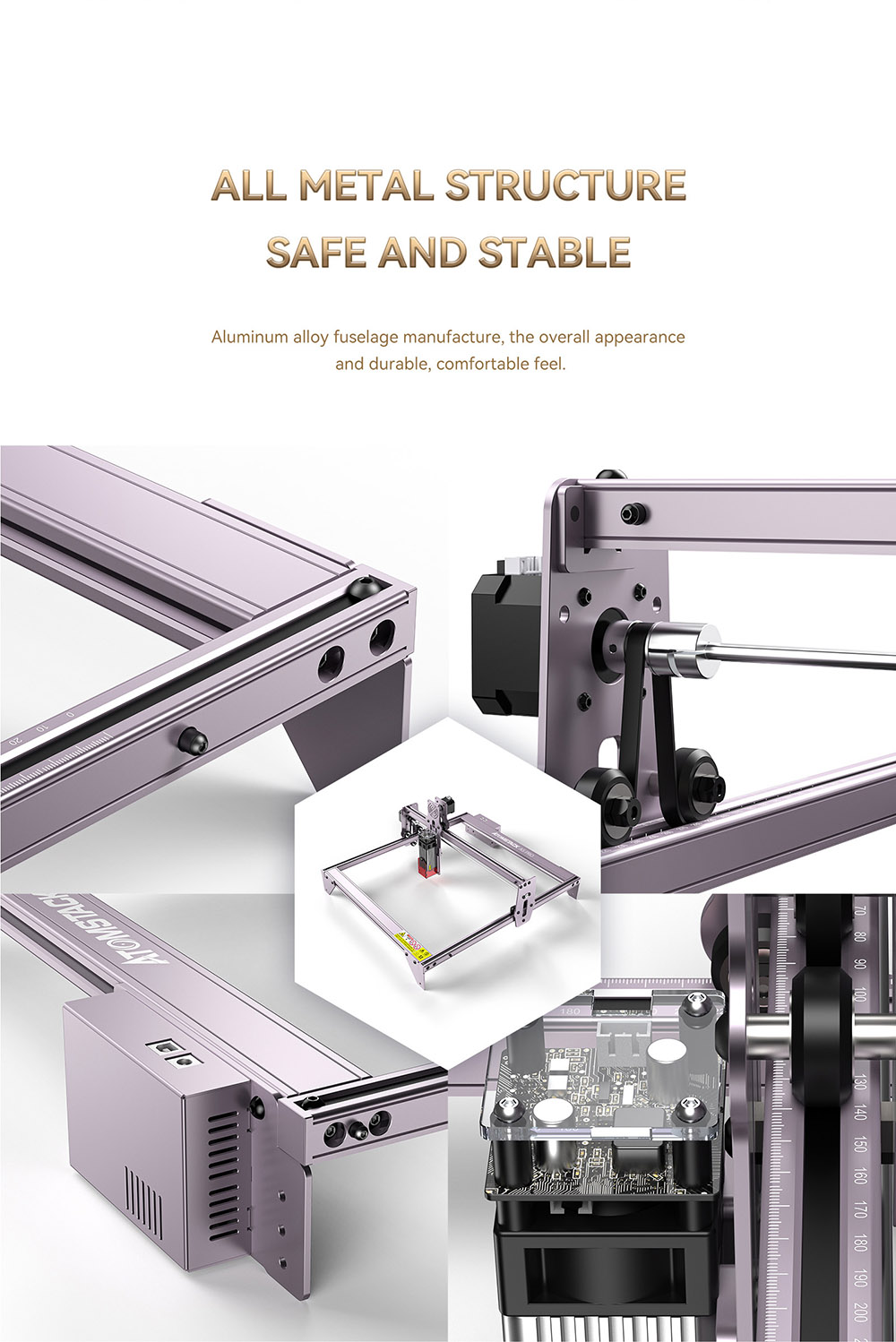

Solid and Easy Installation Structure Design
The full-metal structure design makes the machine more solid, it will reduce the vibration of the machine and improve the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

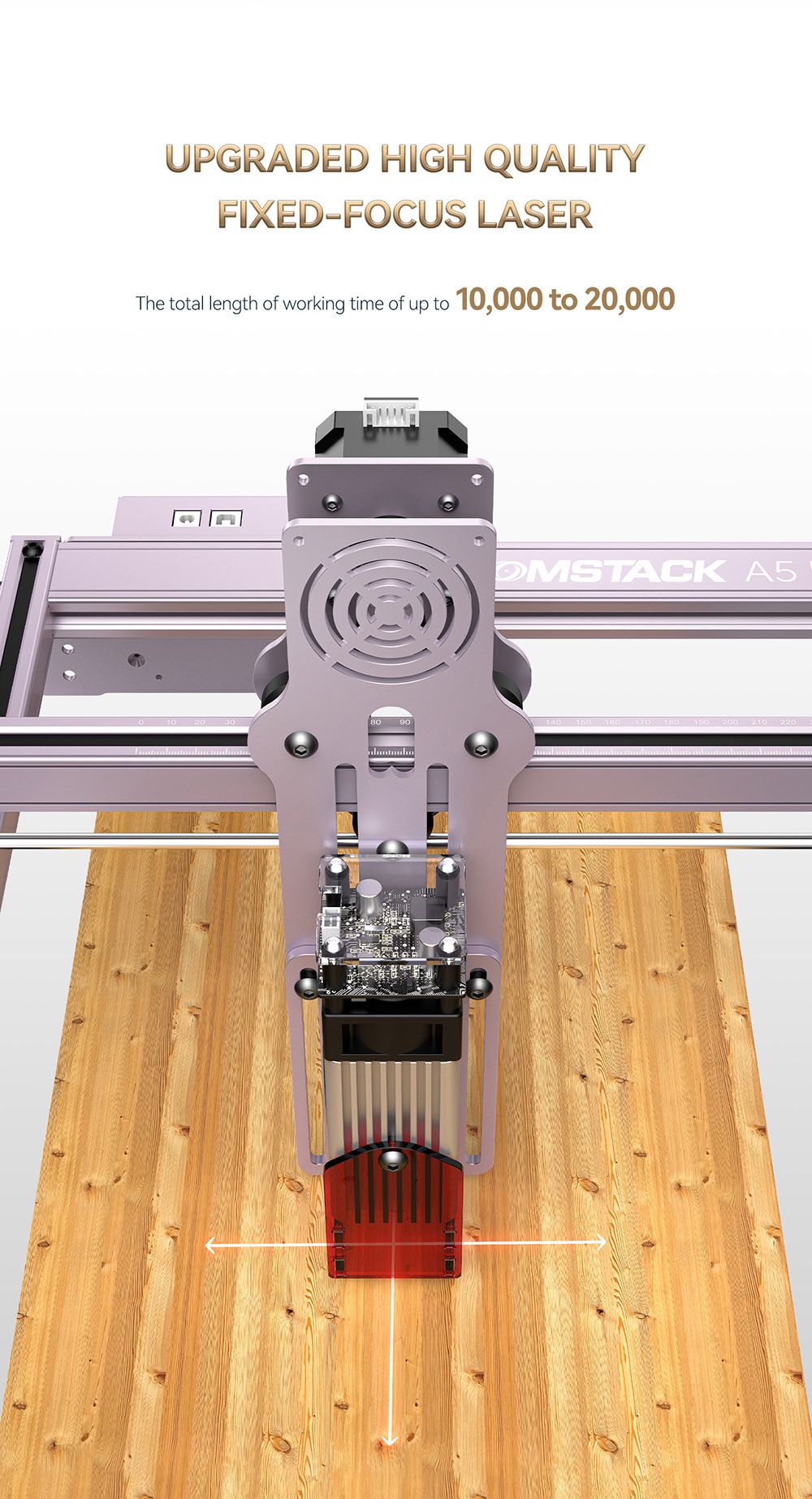

Fixed-Focus Laser
No need to rotate the lens to focus, the focal length of the laser is a fixed value, move the lens up and down close to the surface of the object to start carving.

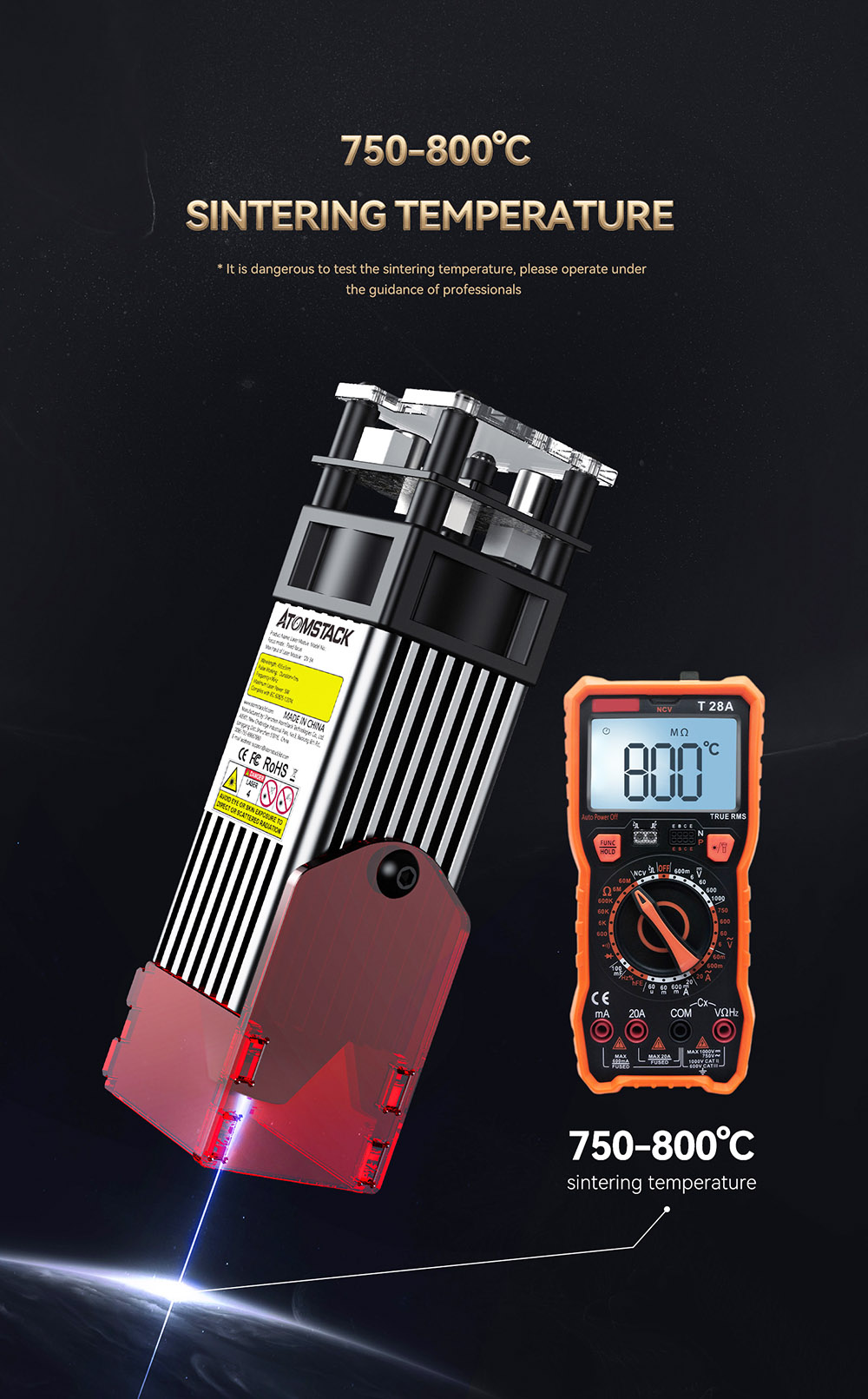

High-Energy, Ultra-Fine Laser
laser power is 5W-5.5W, ultra-fine laser focal area is reduced to 0.23mm^2, the high-density laser can easily cut 12mm thick wood, black acrylic; can directly engrave smooth stainless steel metal, ceramics.
Wide Compatibility
The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MACs system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF.etc.
Precise Scale Lines Axis
There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
Integrated Stepper Motor and Shaft
The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the laser movement more precise and the coupling more durable.
Specification
| General |
Brand: ATOMSTACK |
| Specification |
Print Size: Recommend Print Size 410x400mm
Carving Objects: All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, ceramics (Should be painted black)
Cutting Objects: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Laser Power: 40W
Laser Output Power: 5W-5.5W
Wave Length: 445 ± 5nm
Engraving Accuracy: 0.01mm
Focusing Method: Fixed focus laser, no need to focus
Laser Protective Cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data Transmission Method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Laser Spot: Compressed spot 0.16mm Height Adjustment: Hex wrench Switch Cable Line: No Certification: CE FCC RoHS FDA Weee
|
| Weight & Size | Product Weight: 4.0kg Package Weight: 5.2kg Product Size(L x W x H): 570x600x270mm Package Size(L x W x H): 618x342x129mm |
|
Package Contents |
A5 PRO LASER ENGRAVER PACKAGE: |
