Highlights

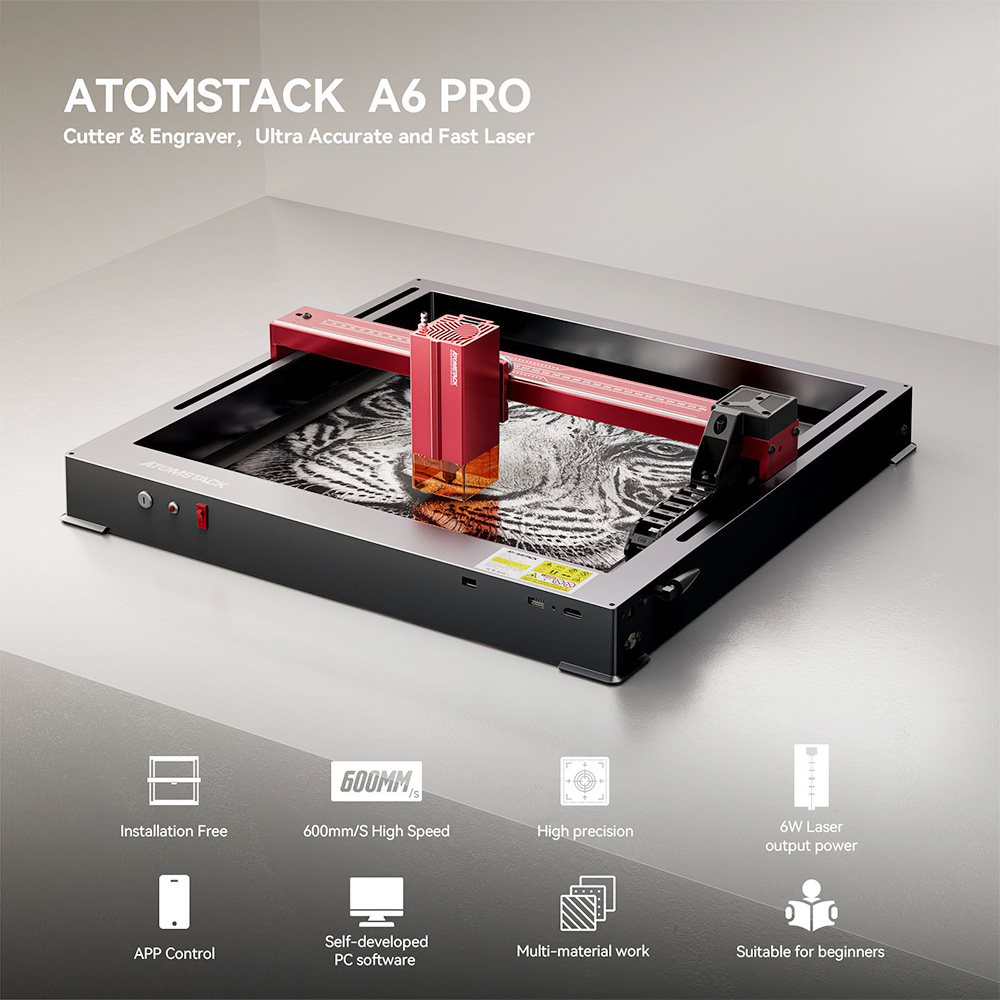

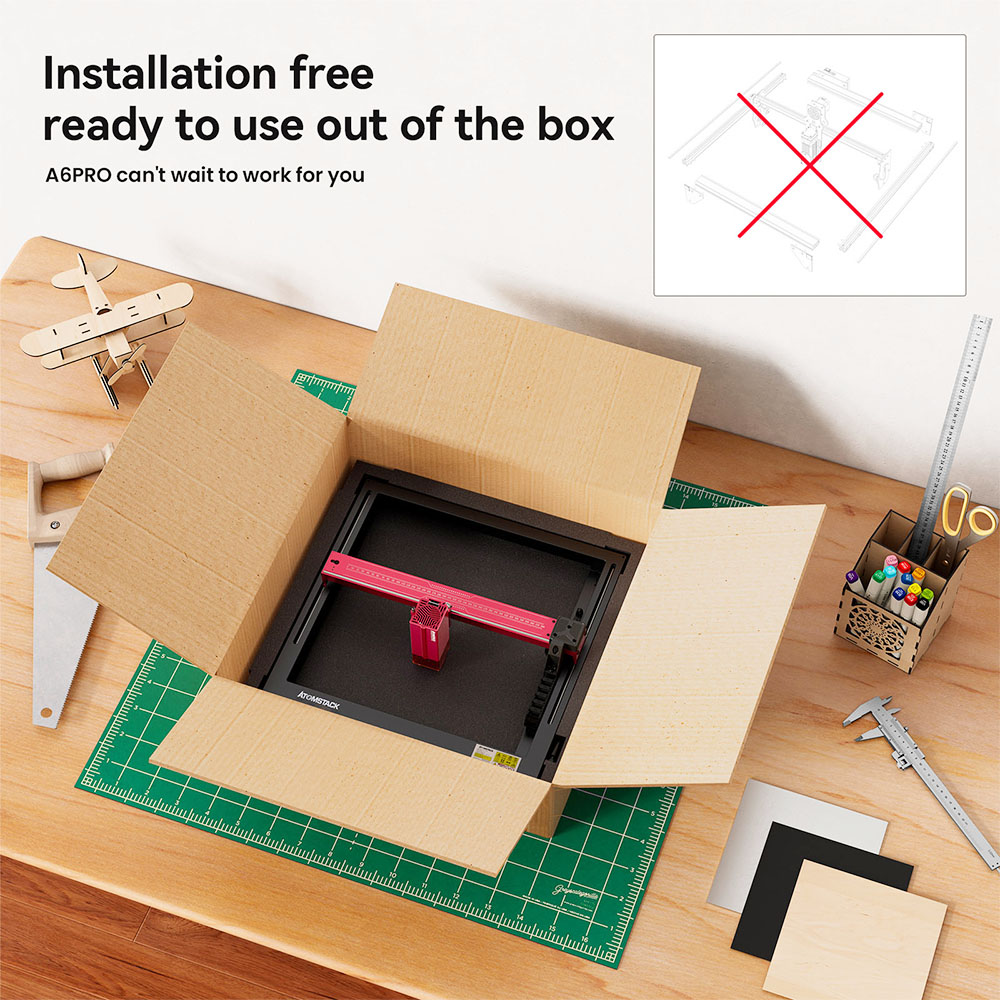

Installation Free
The A6 Pro's overall frame is made of aluminum alloy, which is cast and molded in one piece, providing no installation and excellent structural stability right out of the box.

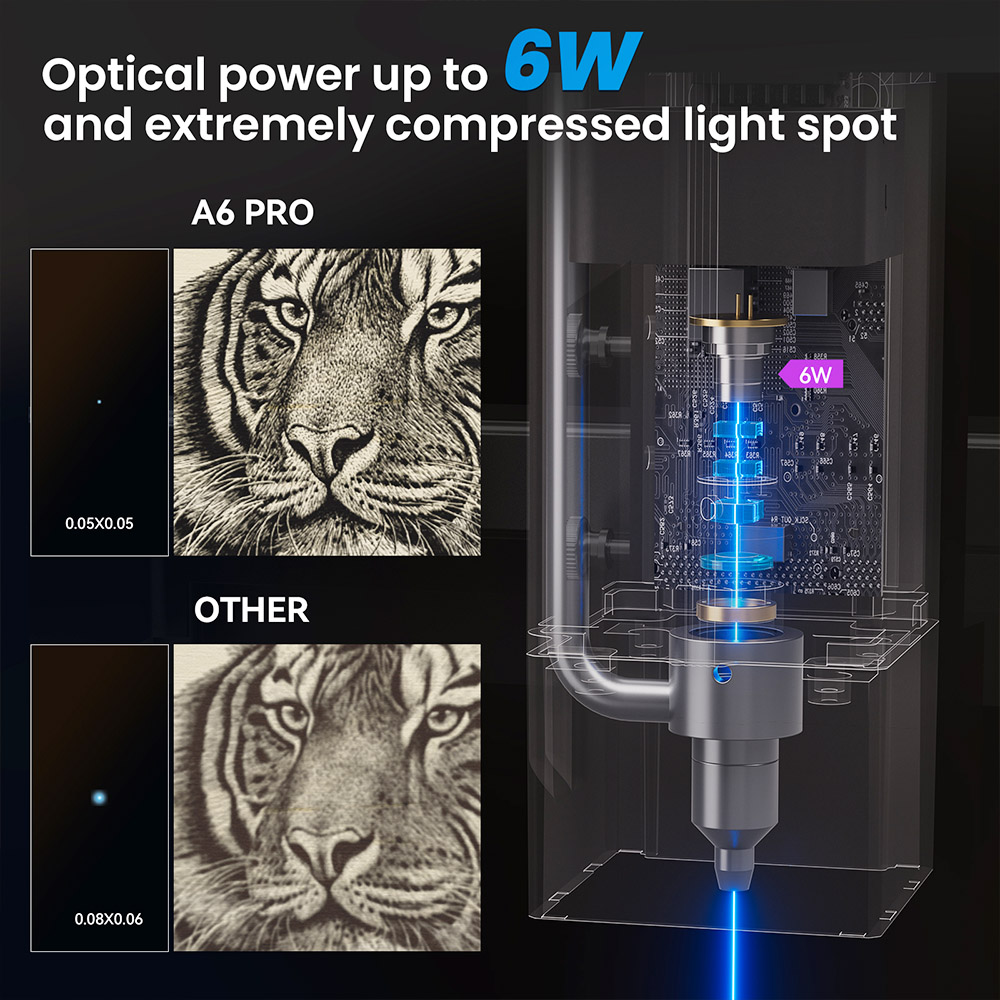

Second Generation Blue Laser Spot Compression
The A6 Pro laser adopts the second-generation of laser spot compression process, which further compresses the laser spot and significantly improves the cutting ability. The A6 Pro has a 30% increase in cutting power compared to other machines in its class.

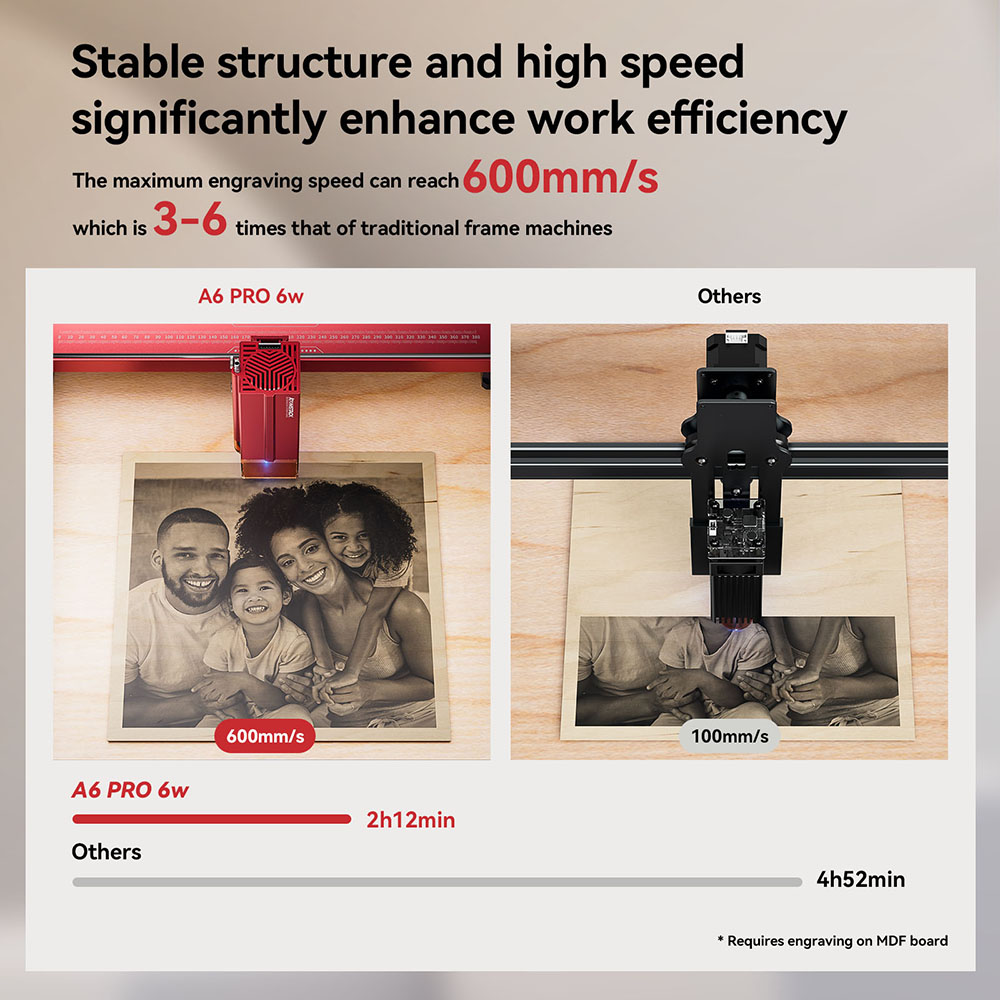

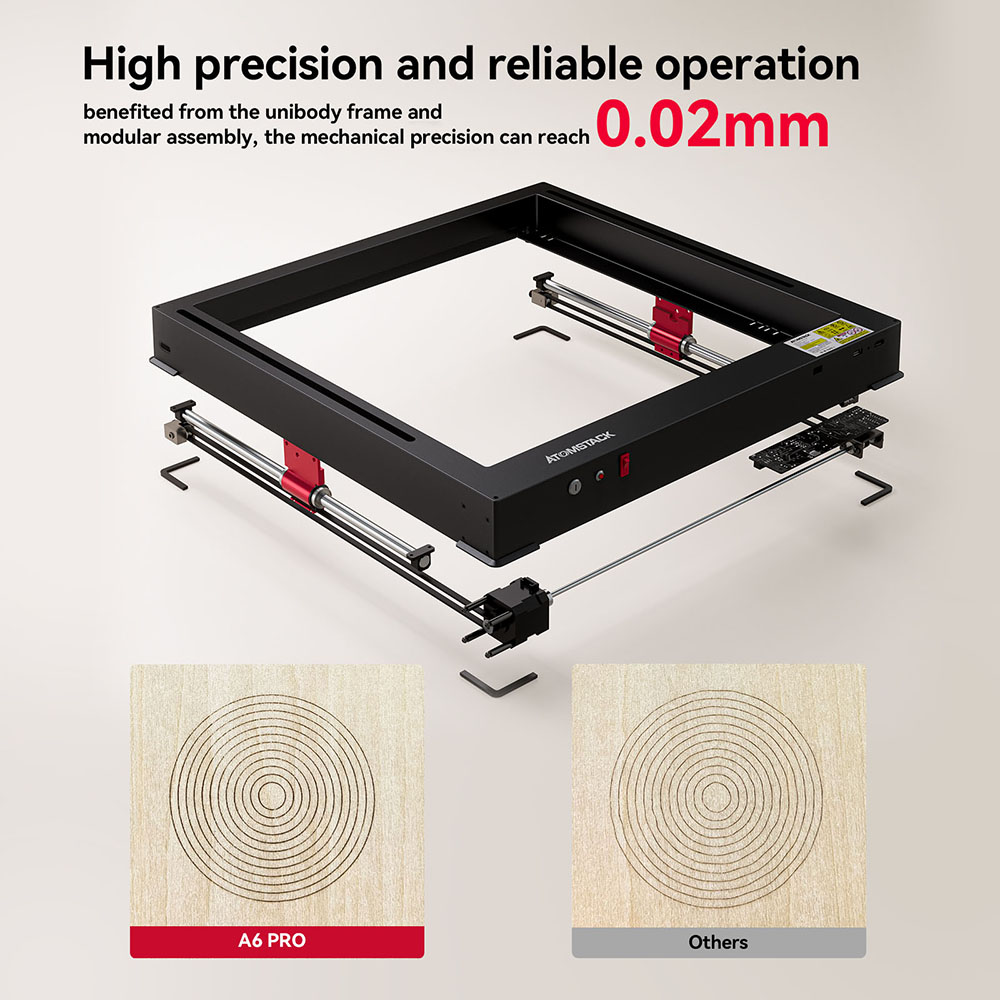

More Stable and High-speed Structure

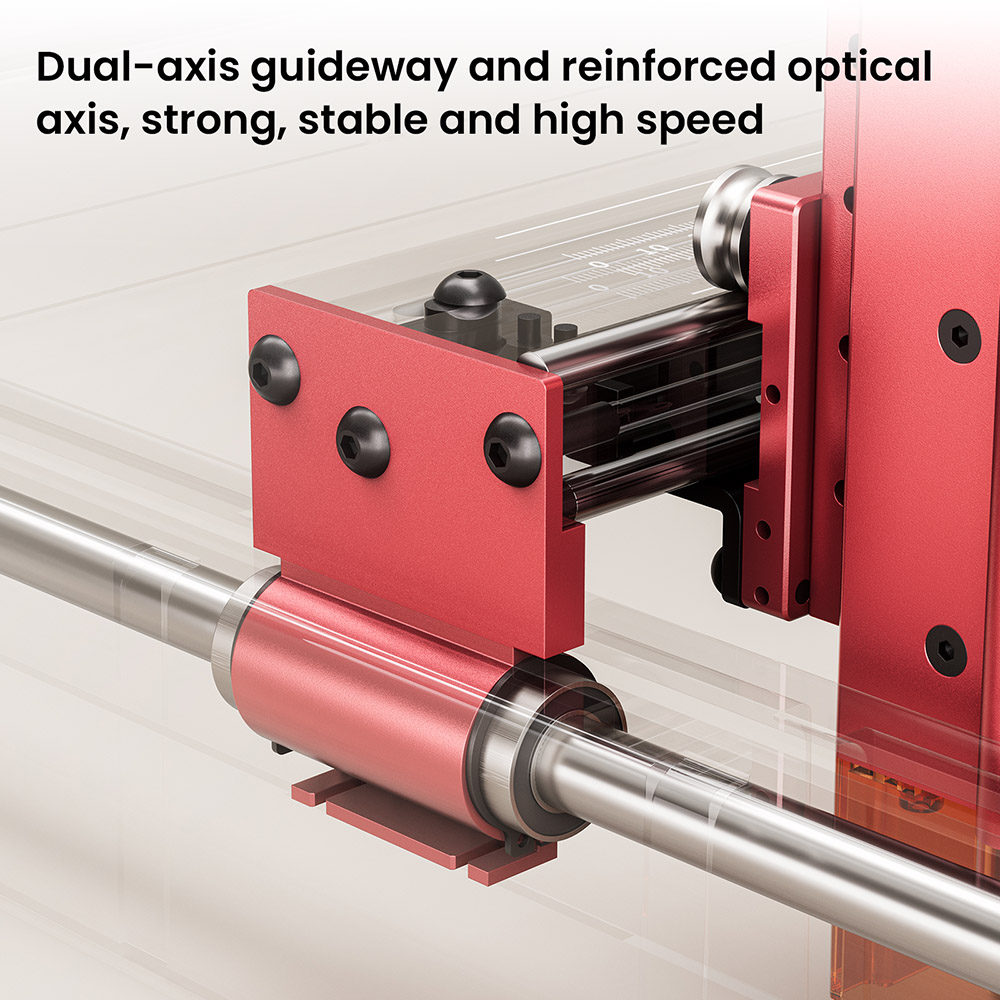

A6 Pro bottom frame is one-piece molding, X-axis metal using a dual-axis guide structure, work jitter is very small, to ensure that the machine does not jitter in the 500mm / s high-speed operation (data for the frame of the mechanical movement speed, low-power machines need to adjust the speed or carving marks are very shallow).
Tank Chain Closing
In order to make the machine more beautiful and the structure more stable, Atomstack A6 Pro adopts the tank chain wire harness program, which makes the wire harness run smoothly without entanglement and improves the life of the wire.
Ultra High Power
Adopt the most stable 6W large light power laser module. The latest laser spot compression technology, powerful power, and long light waist, can once cut 3mm tung wood board, 3mm black acrylic board, 3mm linden plywood, 1 layer of laser-specific vinyl, and fixed-focus design, 10s fast and accurate focusing.

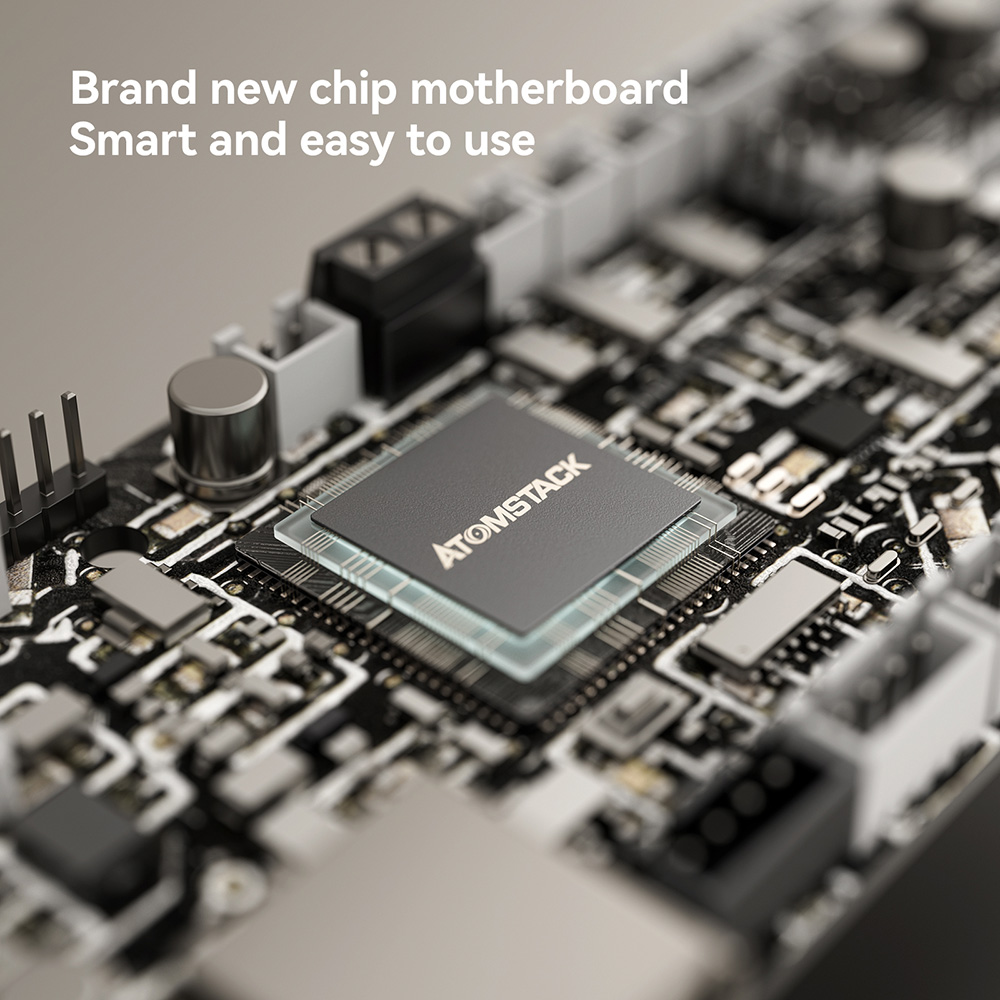

Self-developed 32-bit Motherboard
The most intelligent self-research and self-manufacturing ESP32 motherboard, faster data reception and processing capacity, optional accessories to realize auto-focus, power-off renewed carving, sinking cutting, and other functions.
Non-blocking Laser
The new A6 laser has a built-in tool-free focusing module and a built-in air-assisted system, no wire interference, simple and beautiful. More patented double-layer air-gathering cover design, which can ensure that the long-term use does not block the head and not pollute the lens, greatly improving the life of the laser.
Self-developed Mobile APP
Atomstack's self-developed mobile APP is now available on all major Android app markets and Apple AppStore (you can also scan the QR code of the manual to download it) Small size and multi-functionality, bring a brand new control experience, come to try it.
Panoramic Glass Eye Protection Design
The panoramic light filtering glass protector plays a good role in protecting your eyes, filtering 97% of UV light, you and people around you can watch laser engraving without wearing goggles. Reduce your cost of goggles and the inconvenience of wearing goggles.
Wide Compatibility
The machine is compatible with all kinds of mature engraving software, such as LaserGRBL, and LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10, and also supports Mac system (LightBurn), and supports NC, BMP, JPG, PNG, DXF, etc. The machine is compatible with all kinds of mature engraving software, such as LaserGRBL, and LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10 and also supports the Mac system (LightBurn).
Upgrade Compression Spot Coupling Technology
Ultra-fine laser focus area reduced to 0.05 * 0.05mm, high-density laser many times can cut 6mm thick plywood, 6mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, engraving & cutting speed than the ordinary models increased by 30%, the limit of the cutting thickness can be comparable to the effect of 90W carbon dioxide laser engraving machine.
Laser sintering temperature up to 600℃.
Safety Protection
Equipped with an emergency stop button to stop the machine from running at any time if there is an accident, and a limit switch and gyroscope to make the laser work safer.
Specification
| General | Brand: ATOMSTACK Type: Laser Engraver Model: A6 Pro Color: Black |
| Specification | Engraving Size: 365*305mm Overall Machine Power: 40W Laser Output Optical Power: 6W Laser Wavelength: 455±5nm Engraving Precision: 0.02mm Focusing Mode: Fixed focus laser, no focus Laser shield: There is a protective shield on the laser that protects the user's eyes, no need to wear additional goggles. Operating Software: LaserGRBL, LightBurn, Supports Win XP/Win 7/Win 8/XP/Win 10, etc. Supported File Formats: NC, BMP, JPG, PNG, DXF Data Transfer Method: USB Power Supply: International standard power Input: 100-240V AC, 50/60Hz Output: 24V 5A Certification: CE FCC RoHS FDA PSE Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB plates, aluminum oxide, non-reflective plating layer and lacquer layer metal, 304 mirror stainless steel, glass, ceramics, cotton, slate; Cutting Materials: Cardboard, non-woven fabrics, wood, plywood, acrylic (transparent to be blackened), some thin plastic sheets, sponges, aluminum and stainless steel and other metal sheets |
| Weight & Size | Product Weight: 6.1kg Package Weight: 8.1kg Package Size(L x W x H): 60x60x18cm |
| Package Contents | 1 x Complete Machine Frame 1 x Laser Module 1 x Tank Chain 1 x Mounting Screw 1 x Tool Kit 1 x Fixed-focus Film 3 x Acrylic Sheets 3 x Wood Chips 10 x Wire Ties 1 x Desiccant 1 x Brush 1 x Dust-free Cloth 1 x Power Adapter 1 x Data Cable 1 x User Manual |
