Highlights
- The World's First 6-core Diode 33W Laser.
- 20mm wood Cutting in One-PASS.
- 10mm Black Acrylic Cutting in One-PASS.
- It can cut 0.05mm thin sheet metal.
- Fixed-Focus, Air Assist.
- 0.01mm Engraving Accuracy.
- Offline Engraving.
- App Connection.
- 400*400mm.

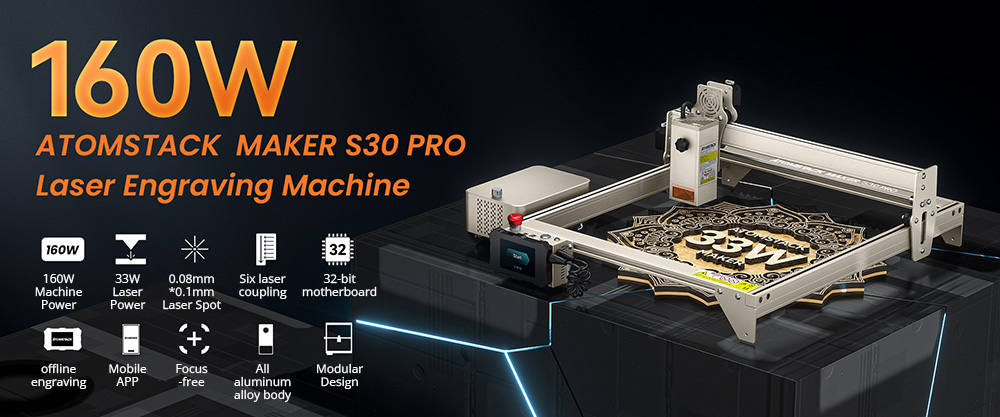

33W Laser Output Power

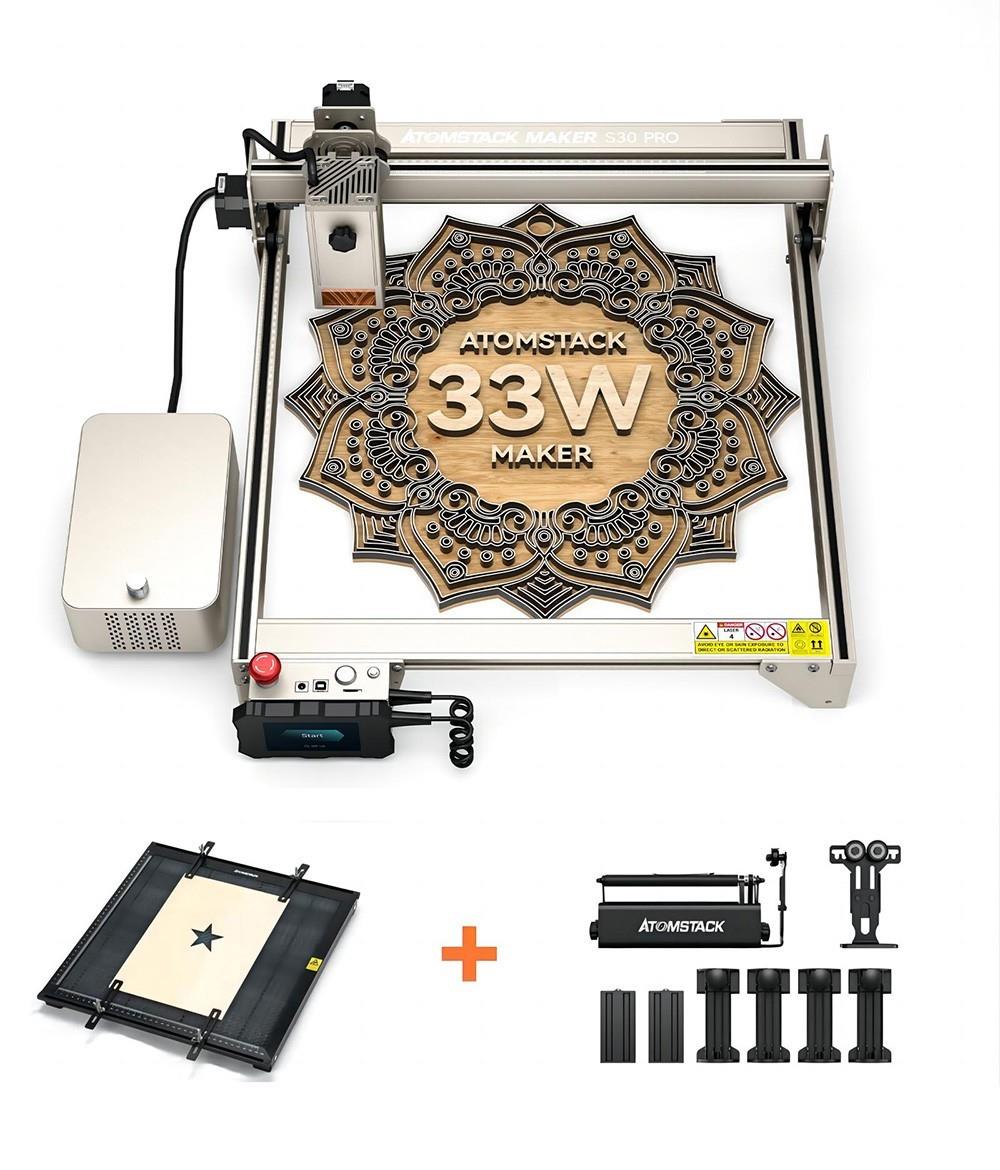

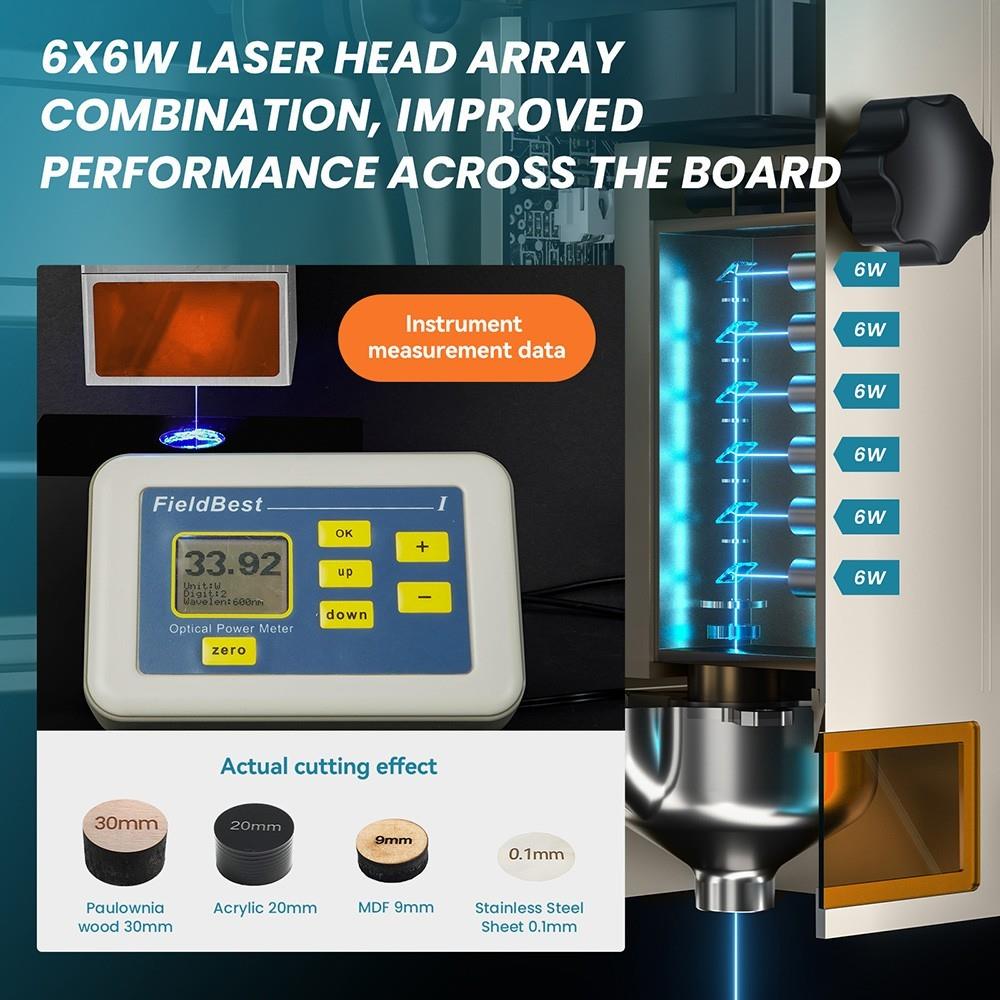

Atomstack S30 Pro is the world’s first 33W laser output power laser engraver, it has the latest 6*6W laser coupling technology (ultra-fine laser spot size is reduced to 0.08*0.1mm) that can cut 18-20 mm paulownia board and 10mm black acrylic board in one pass. The high-density laser can easily cut 25mm wood board and 30mm black acrylic board through multiple passes. It can also directly engrave on mirror stainless steel, ceramic, opaque glass, etc.
High Working Efficiency
Compared with a 10W laser engraving machine, S30 Pro has a 200% higher cutting speed and 150% higher cutting depth. Compared with a 20W laser engraving machine, S30 Pro has a 50% higher cutting speed and 25% higher cutting depth.
Upgraded F30 Pro Air Assist Kit
Equipped with F30 Pro, the cutting ability of the S30 Pro is greatly improved, and the cutting accuracy and quality are also greatly optimized.
Newly Updated 32-bit mainboard
Built-in 256-bit color levels make the engraving result finer and the contrast higher, so that your engraving will not just be black.
Upgraded Laser Module
The new S30 Pro laser module has a built-in tool-free focus module and a built-in air-assist system, without the interference of wires, simple and beautiful.
Offline Engraving Supported
You can perform engraving when there is no computer available.
Filter Panoramic Eye Protection
The panoramic-filtered glass cover filters 97% of UV light and protects your eyes well. The user and people around can watch laser engraving without goggles.
Easy to Install
The all-aluminum anodized structure design makes the machine strong and improves the engraving precision. The installation can be completed within 20-30 minutes.
Safe and Convenient
It also has an emergency stop button, limit switch, and reset switch, which can bring a safer working environment. With the modular design of the fuselage mechanism, you can get 400*850mm super large engraving size by replacing the frame components. (Extension kit is not included)
Specification
| General | Brand: ATOMSTACK Type: Laser Engraver Kit Model: Maker S30 Pro |
| Specification | Working Area: 400*400mm Engraving Material: wood, bamboo, cardboard, plastic, leather, PCB, aluminum oxide, non-reflective plated and painted metal, 304 mirrors stainless steel, glass, ceramic, cotton cloth, slate Cutting Material: cardboard, nonwoven fabric, wood board, acrylic, some thin plastic sheets, sponge Total Power: 160W Electric Power: 120W Laser Output: 33-36W Wavelength: 455±5nm Engraving Accuracy: 0.01mm Focusing Method: Fixed-focus laser, no need to focus Laser Protective Cover: Protect the user’s eyes and prevent pets from grabbing the laser spot Compatible Software: LaserGRBL (Windows) and LightBurn (Windows & Mac) Supported Files: NC, BMP, JPG, PNG, DXF Data Transfer Method: USB Input Voltage: 100-240V AC, 50/60HZ Output Voltage: DC12V, 5A |
| Weight & Size | Product Weight: 12.5kg Package Weight: 13.9kg Product Size(L x W x H): 575*555*205mm Package Size(L x W x H): 585*565*205mm |

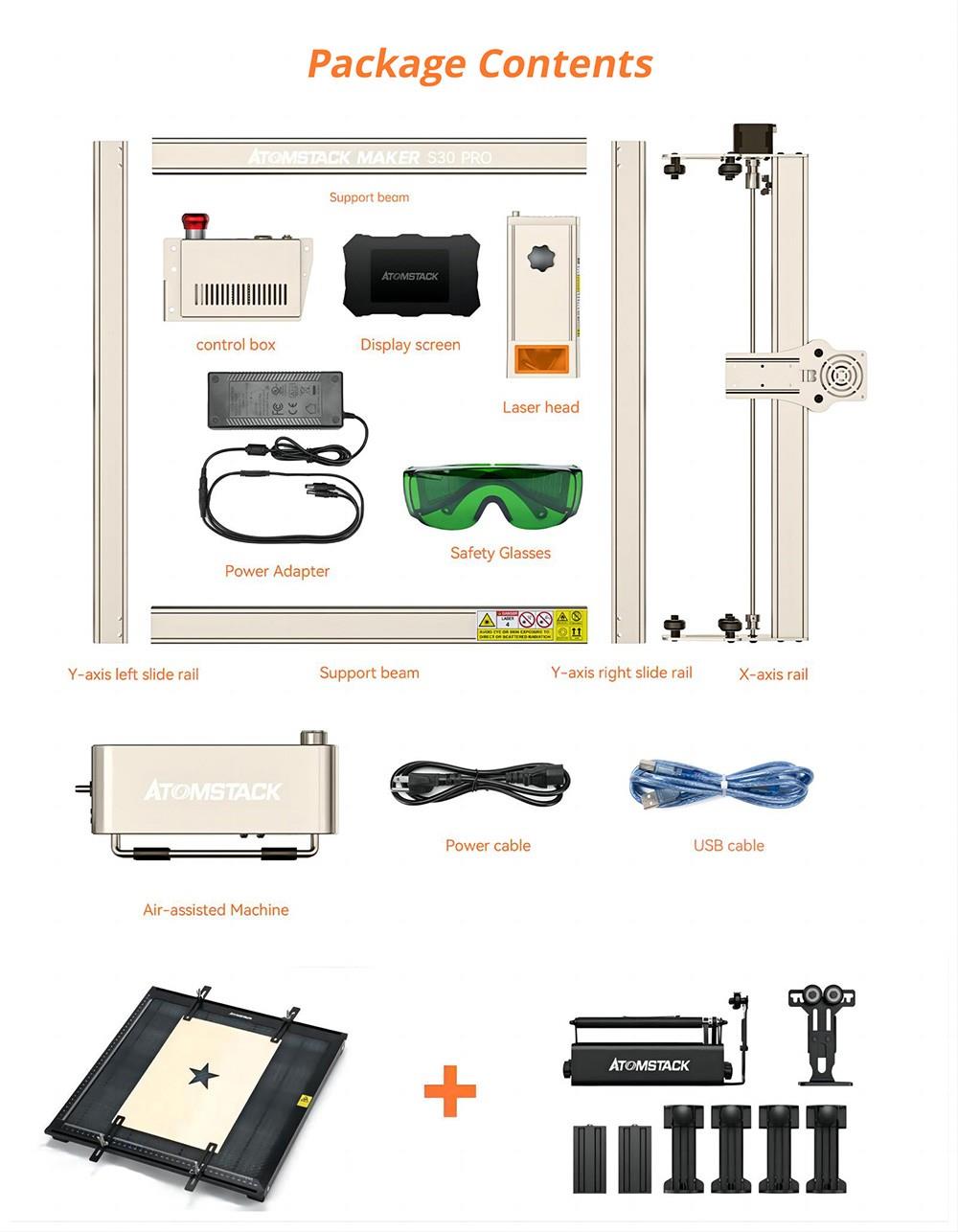

| Package Contents | 2 x Support Beam 1 x Y-axis Left Slide Rail 1 x Y-axis Right Slide Rail 1 x Control Box 1 x Display Screen 1 x Laser Head 1 x Power Adapter 1 x Safety Glasses 1 x X-axis Rail 1 x Air-assisted Machine 1 x Power Cable 1 x USB Cable 1 x R3 Pro Roller Kit 1 x F1 Honeycomb Plate 1 x User Manual |
