Highlights

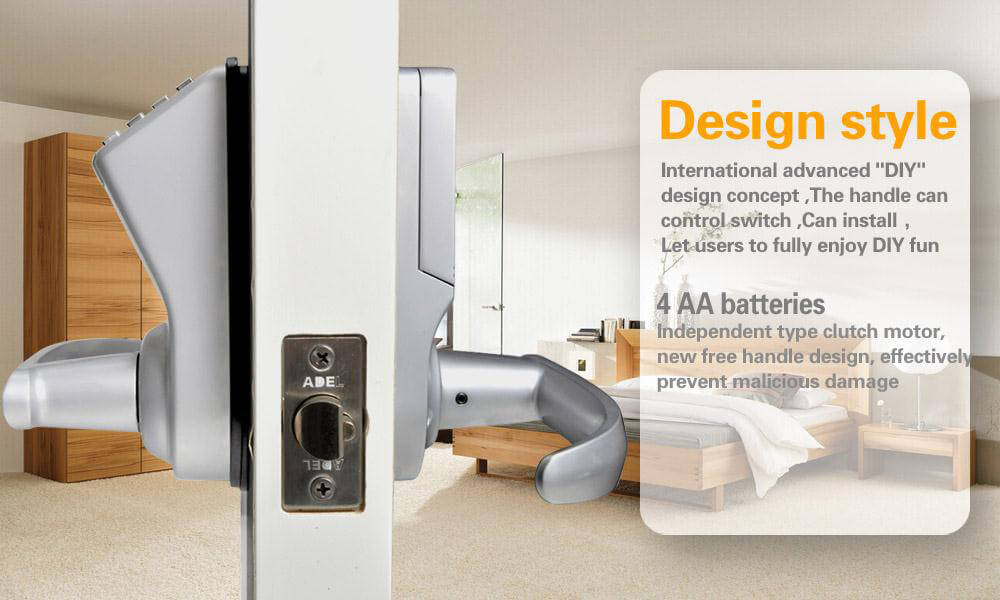

- Adopt international standard monolock lock tongue lock core
- Adjustable design, can directly replace the spherical door lock
- Independent type clutch motor, new free handle design, effectively prevent malicious damage
- Firm integration of cast steel structure, beautiful, delicate and elegant
- Function introduction
- Three kinds of way to open the door: fingerprint,password,mechanical keys
- Can store 99 fingerprints, grouping management can be realized
- Lower than 4.8 v, there will be a low pressure alarm
- Can be an external emergency power if the battery runs out
Specification
| General | |
|---|---|
| Type | Fingerpringt lock |
| Model | DIY-788 |
| Input voltage | 6V1.5 V alkaline battery (section 4) |
| Static power | ≤8mA |
| dynamic power | ≤150mA |
| Storage capacity | 99 |
| Fingerprint acquisition time | <0.2s |
| Fingerprints of time | <1s |
| Boomed from (FRR) | <1‰ |
| Recognition rate of false (FAR) | ≤0.0001% |
| Use finger point | 360°Arbitrary Angle can be correctly identify |
| Fingerprint set template | Generate a module 2 times |
| Battery life (standby) | 2 years |
| Using the environment humidity | RH(45~85)% |
| Package Contents | |
| 1 * Fingerprint Lock | |
| 1 * Back Handle | |
| 1 * Strike Plate | |
| 1 * Strike Box | |
| 2 * Single Latch(Lock-tongue) | |
| 2 * Machanical Keys | |
| 1 * Bag of Screws | |
| 1 * Installation Tools Kit | |
| 1 * Installation Instruction | |
| 1 * User Manual (English) | |
