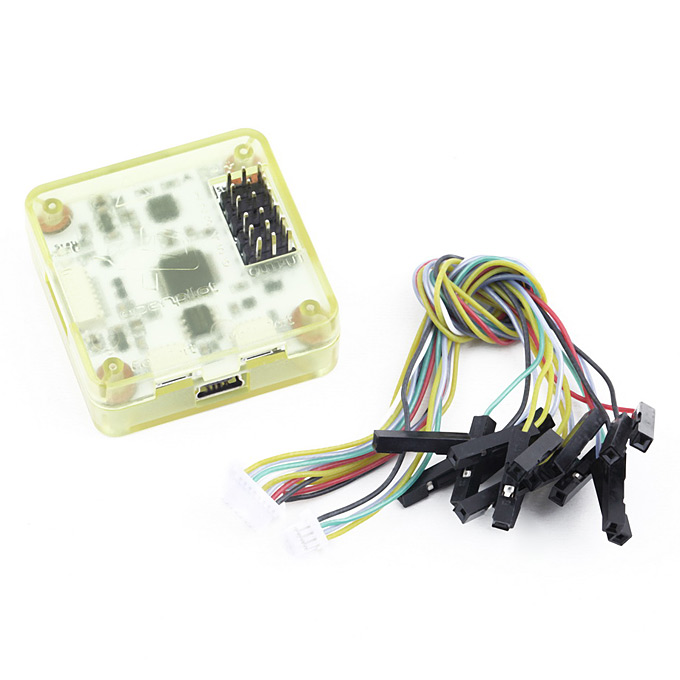

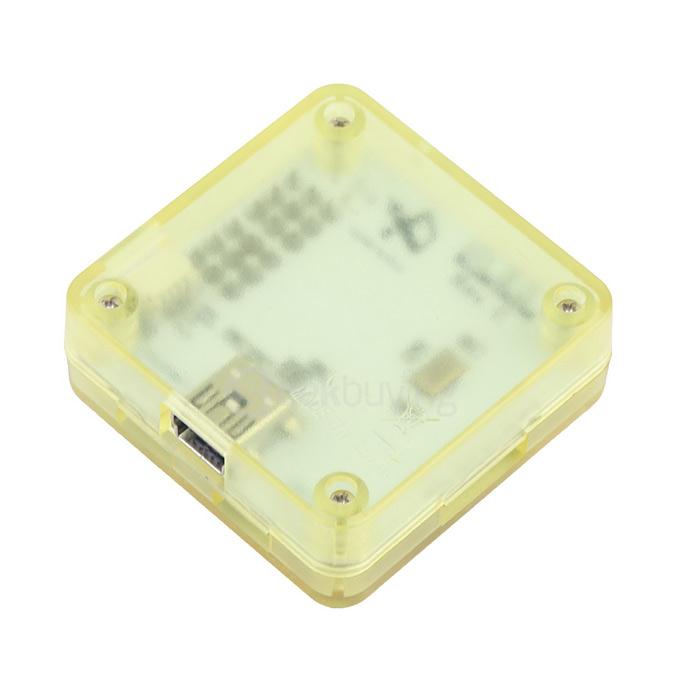

CC3D Flight Control with PP Transparent Pack For Multirotor /Fixed Wing Airplanes

Highlights

• The CC3D provides a crisp feel when flying tricopters, quads, hexas, octocopters, and even fixed wing planes
• Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM
• 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer
• Tiny 36mmx36mm PCB for superior electrical noise reduction and flight performance
• Software support for Windows, Mac and Linux
• Direct high speed USB support with no drivers required, a truly plug and play device
• Spektrum satellite receiver support
• Futaba S-BUS hardware support
• Innovative Flexi-port technology for superior port flexibility
• 4Mbits on-board EEPROM for configuration storage
• Flexi-port
• CopterControl also offers the innovative Flexi-port which provides either I2C connectivity or a second serial port. Flexi-port gives CopterControl the flexibility to use either I2C and a single serial port or dual serial ports, according to your connectivity needs.
• Superior user experience

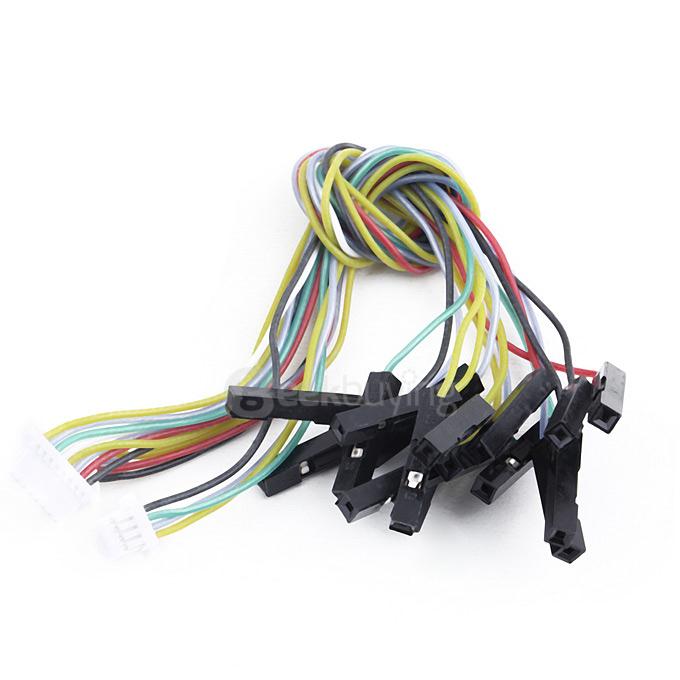

• OpenPilot has tried to make your experience with the CC3D as easy and trouble-free as possible. Naturally for a high-end product, the hardware is complete; there is nothing to solder. The included RC harness allows you to connect any standard PWM receiver. All CopterControl boards are tested before shipping and come with bootloader already flashed. A standard mini-USB cable (not included) is used to load the latest firmware and configure everything for your unique airframe.
• Sensors and Components
• 3-axis Gyroscope array and 3-axis Accelerometer: MPU-6000
• Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2, DSMJ, DSMX satellites, and Futaba S.Bus receivers.
• Simultaneous support for multiple receivers.
• ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream, 4 PWM output channels
• MainPort functions (configurable): serial telemetry (default), GPS, S.Bus, Spektrum/JR satellites
• FlexiPort (configurable): serial telemetry, GPS, Spektrum/JR satellites, or I2C peripherals (under development)
• 10 PWM outputs to servos or ESC’s, or for camera stabilization
• Camera stabilization: supports up to 3-axis camera mounts with stabilization and manual control from any of configured receivers.
• Onboard USB connectivity for easy configuration.
• USB and serial telemetry and configuration
• Supported by powerful OpenPilot GCS
• 4 Mbit onboard memory
• 3C Quaternion based complementary filter running at 500Hz

Specification
