Highlights

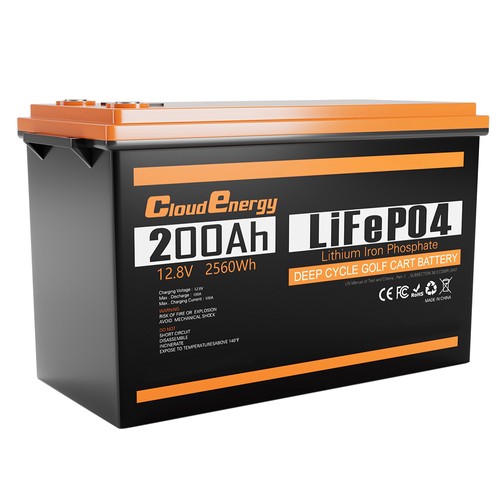

Reliable Automotive Grade Lithium Battery
Cloudenegy LiFePO4 batteries have exceptional quality since they are manufactured by automotive-grade LiFePO4 Cells with higher energy density, more stable performance & greater power. Highest-level safety based on UL Testing Certificate for the cell inside the battery and built-in 100A BMS to protect it from overcharge, over-discharge, over current, and short circuit with excellent self-discharge rate. 100% safe, non-toxic, renewable energy.
Perfect for Off-Grid & Outdoors Application

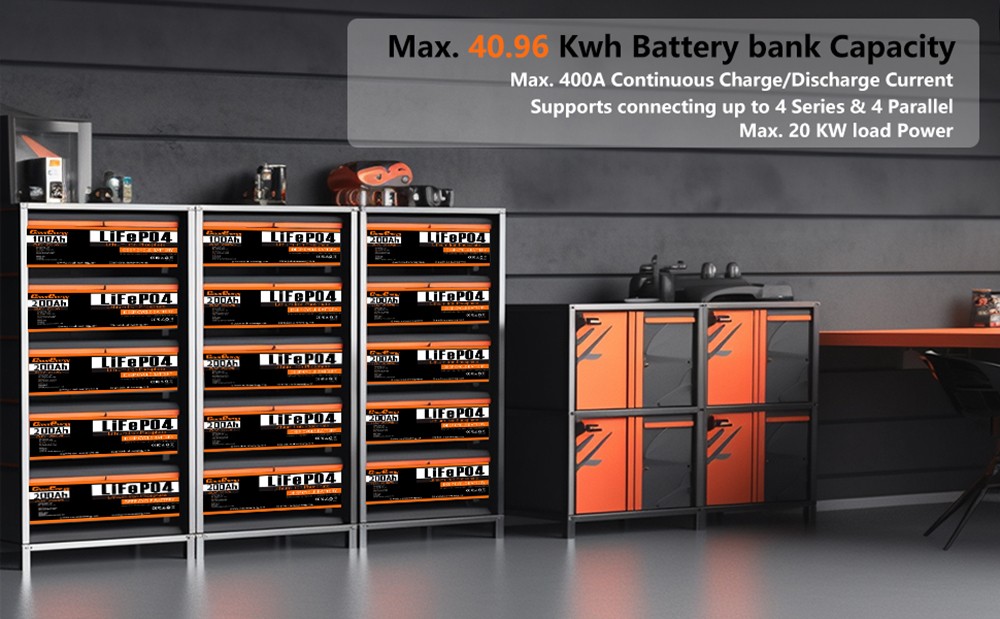

Cloudenegy LiFePO4 Battery can be connected in parallels and series for larger capacity (Max 1200Ah ) and higher voltage (24V, 36V, 48V), which makes it perfect for off-grid solar systems and outdoors applications such as home backup power, RV, camping, sailboat, etc. You don’t have to worry about not being able to charge the battery on cloudy days as the long endurance of the battery will bring you reliable power or longer and more enjoyable trips.
Specification
| General | Brand: Cloudenergy Type: LiFePO4 Battery Pack Model: CL12-200 Color: Orange+Black |
| Specification | Nominal Voltage: 12.8V Nominal Capacity: 200Ah Charge Voltage: 14.2-14.6V Energy: 2560Wh Max Continuous Charging Current: 100A Max Continuous Discharging Current: 100A Recommend Charge Current: 40A (0.2C) Max Load / Inverter Power: 1280W Charge Temperature: 0 to 50 Celsius (32 to 122 Fahrenheit) Discharge Temperature: -20 to 60 Celsius (-4 to 140 Fahrenheit) Storage Temperature: -10 to 50 Celsius (14 to 122 Fahrenheit) Waterproof: IP63 Terminal: M8 |
| Weight & Size | Product Weight: 19.5kg Package Weight: 21kg Product Size(L x W x H): 53.2x20.7x21.5cm Package Size(L x W x H): 56.2x24.7x24.5cm |
| Package Contents | 1 x LiFePO4 Battery Pack 1 x User Manual |
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
Q1: When I get the battery for the first time, does the battery need to be charged?
A: There is only 50% charged when you get the battery. You need to fully charge the battery.
Q2: How to charge the battery?
A: Scheme 1: You can use a lithium iron phosphate 4-string (14.6V) charger to charge the battery pack.
Scheme 2: You can use photovoltaic solar panels to charge the battery through MPPT.
Scheme 3: You can use the inverter to charge the battery pack (note: the inverter needs a built-in AC to DC charging function)
Q3: How do I connect the lifepo4 battery in series or in parallel?
A: 1. Please use 14.2~14.6V charging voltage to fully charge all lifepo4 batteries individually;
2. Connect your batteries one by one in parallel, and leave them together for 12~24 hrs to automatically balance the voltages of two adjacent batteries.
And then, you can connect your batteries in series or/ and in parallel.
Note: The voltage must be consistent, allowing a difference within 100 mV.
Q4: How to activate the battery when BMS cuts it off for protection?
A: If the BMS has cut off the battery for protection, you need to cut off the load of the battery and put the battery aside for 30 minutes.
Then the battery will automatically recover itself to normal voltage and can be used after fully charged.
