Highlights
Coffee Lake Series Processors Supported
Based on for Intel B360 chipset and support for Intel LGA 1151 processors and for for Intel Optane accelerating technology, allowing increased bandwidth and stability.
SATA 3.0 and USB 3.1
4 SATA 3.0 6Gb/s ports increasing the data transfer rate between the motherboard and internal storage devices and USB 3.0 10Gb/s greatly speeding up the data transfer rate.
M.2 Slot
Rapid M.2 slot provides up to 32Gb/s data transfer rate for M.2 SSD, supporting PCIE X4 SSD and compliant for Intel® Optane™ Technology, which delivering a large forward in reducing latency and accelerating systems for workloads demanding large capacity and quick storage.

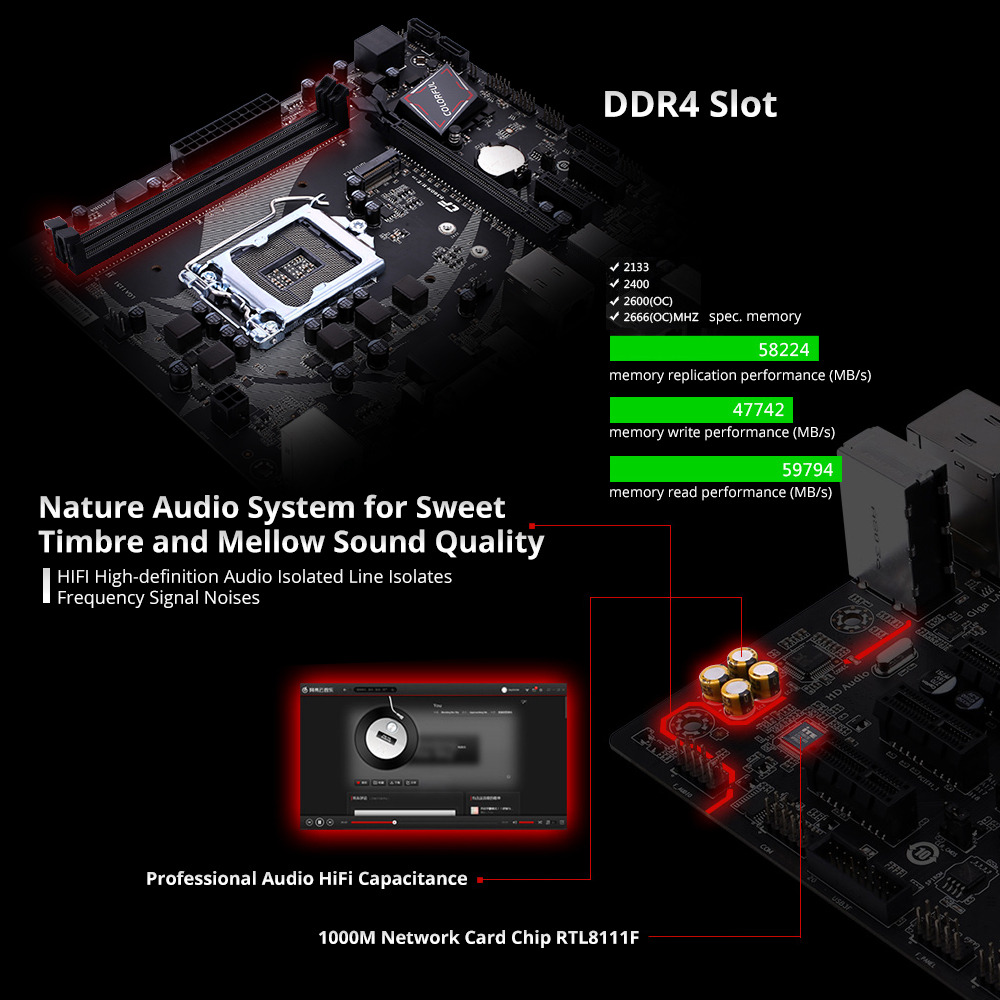

Audio Nature System
Nature Audio System for sweet timbre and mellow sound quality, deliver the greatest quality sound resolution and sound expansion. HIFI high-definition audio isolated line isolates frequency signal noises with graceful gentle LED lighting.
Kilomega Network Card Port
RTL8111GS kilomega network card port provides up to 1000Mbps Ethernet to deliver optimun network responsiveness.
Memory
2 * DIMM slots, support DDR4 dual channel 2133 /2400/2666(XMP)MHz memory.
Full Solid Capacitors
Adopt full solid capacitor, full closed-form inductance and a rigid power management module, ensuring strong power supply. Full solid capacitors provide a more stable power supply even under high temperatures ensure a longer service life and boost the ultimate performance.
Specification
General |
Brand: Colorful |

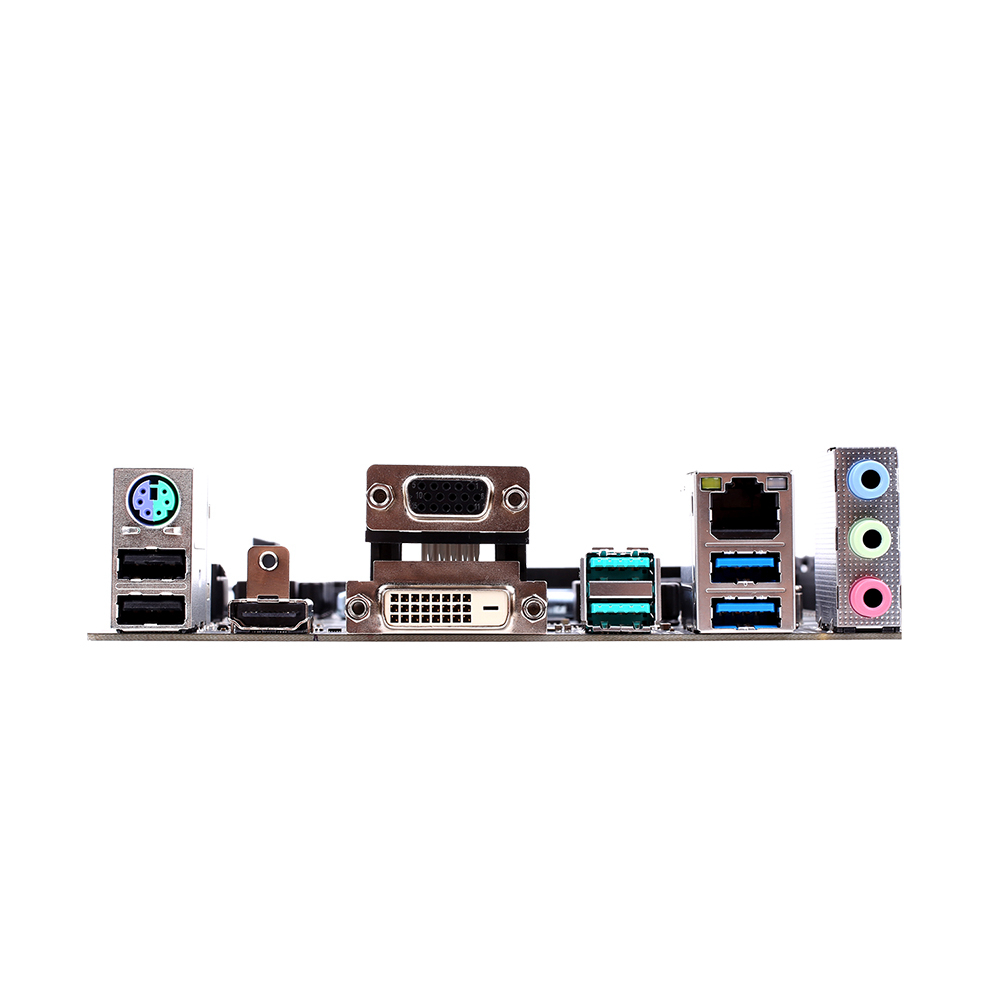

Specification | Processor: support Intel LGA1151 Coffee Lake processors Memory: 2 DIMM slots,support DDR4 dual channel 2133/2400/2666(XMP)MHZ memory Graphics: 1*PCI Express 3.0x16 slot Board IO: 1*PS2 port,2*USB2.0;2*USB3.0;2*USB3.1 ports,1*RJ45 lan;3*audio ports,1*VGA;1*DVI ;1*HDMI ports; onboard:2*USB2.0;1*USB3.0 headers Expansion Slots: 2*PCI Express x1 slots,1*M.2 slot SATA Ports: 4*SATA3.0 6Gb/s ports BIOS: 128M UEFI Power Management: support 95W processors Power connector: 24Pin Power supply mode: 5 phase power supply Hardware Monitor: CPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring LAN: Realtek RTL8111H 1000M LAN Audio: ALC662 6-CH audio |
Weight & Dimensions | Product Weight: 0.420kg Package Weight: 0.890kg Product Dimensions: 225 x 185mm Package Dimensions: 27 x 26 x 5.8cm |

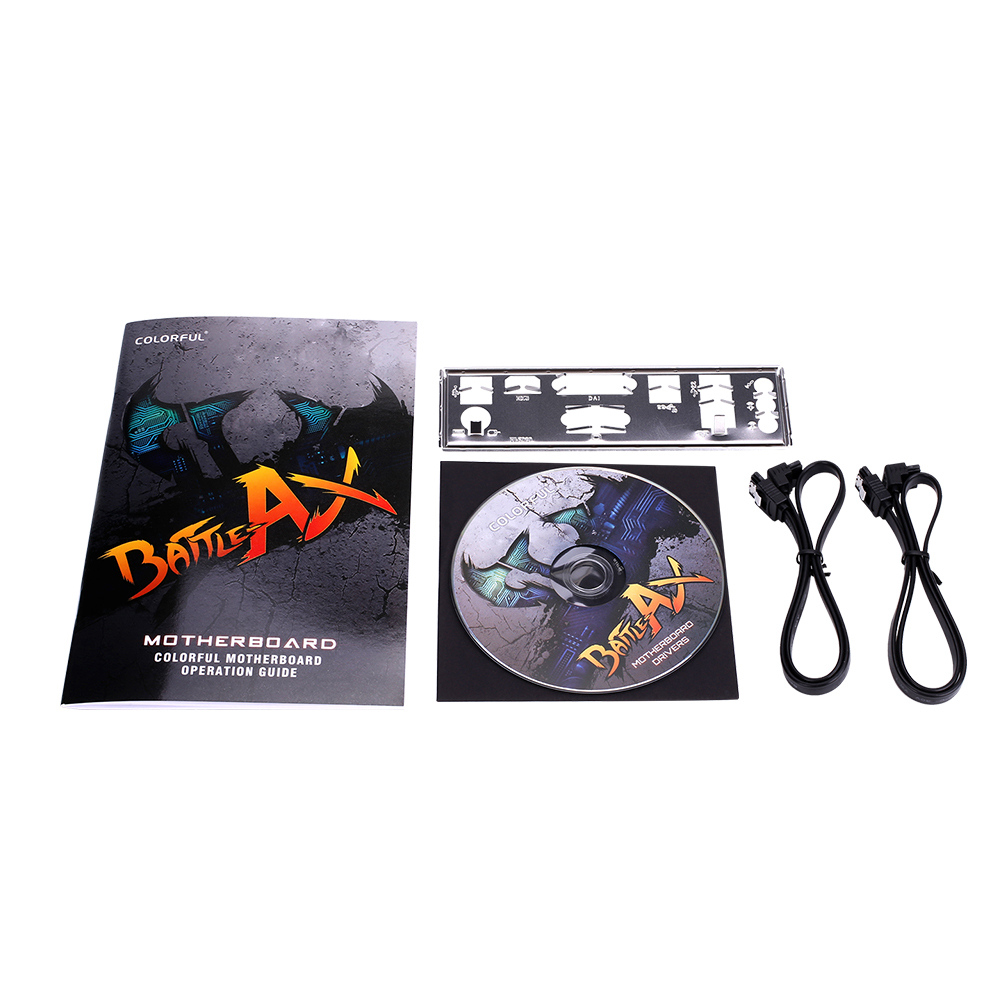

Package Contents |
1 x Motherboard |
