Highlights
0.06mm Compressed Spot for Engraving
The improved 6-lens array compresses the focal spot to only 0.06 mm. It will deliver more details in your engravings, which can cut through 12mm wood board with one pass, and even can cut through up to 18mm wood board within 3 times.

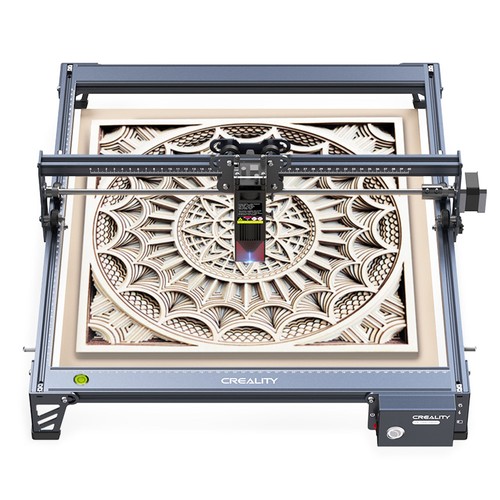

Large Engraving Area
With 400x415mm large engraving area, Creality large laser machine allows users to process a larger piece of material at a time.
One-button Operation
In the offline working state, it can be operated by a single button to preview, start, pause or stop engraving. The integrated LED indicator will signal the status clearly.
3 Steps Focusing
Loosen the laser module screw of Creality laser engraving machine for home use 10W, slide the module until its protective cover touches the focus block, and tighten the screw.
Active Stop Function
Creality wood laser engraving machine comes with a gyroscope, the machine will stop working in case of accidental tilt, flip or drop, with the buzzer and indicator sending an alert.
Specification
| General |
Brand: Creality |
| Specification | Engraving Area: 400x415mm Engraving Speed: 10000mm/min Engraving Accuracy:+/- 0.1mm Laser Wavelength: 450+5nm Laser Head Power: 10W Power Supply: DC 24V 3A Supported Working Mode: TF card, Type-C Operating Temperature: 0-35°C Supported File Format: jpeg/jpg/png/bmp/svg Supported Slicing Software: Crevli tyLaser /LaserGRBL/LightBurn Supported Materials: Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, and metal |
| Weight & Size | Package Weight: 5.5kg Package Size(L x W x H): 64.9x38.6x14.3cm |
| Package Contents |
1 x Creality CV-30 10W Laser Engraving Machine |
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
Q1: What's the working area of CR-Laser Falcon?
A: 400mm*415mm.
Q2: What's the type of the laser source?
A: Semiconductor laser unit.
Q3: What's the radium engraving on the machine profile used for?
A: It is convenient to measure the size of the object and assist in locating the engraving area.
Q4: What'll happen if the machine powered off during working?
A: It will stop working. The machine will be initialized when powered on.
Q5: Why is the engraving effect so shallow?
A: The imported image should be clear. Make sure that focusing correctly before engraving and the power and speed are appropriate.
Q6: Why is the engraved effect different from the original image?
A: Check that the screws are tight and the belt is not too loose or too tight. The tightness of the belt is appropriate if the laser module can slide slowly on the X-axis profile perpendicular to the desktop by gravity and any pulley in the laser module has no empty sliding.
Q7: What should I do if the engraving effect is inconsistent in depth?
A: Ensure that the material to be engraved is flat. Observe the gradient on the machine to ensure that the machine is horizontal, and has been properly adjusted according to the operation method of the user manual.
Q8: Will the laser damage the workbench?
A: The laser may penetrate the material and damage the workbench (especially when cutting). It is recommended to place objects on the bottom that cannot be penetrated by the laser, such as stainless steel plates, aluminum alloy plates, etc.
Q9: Why can't the machine read the G-code file (or read the wrong file)?
A: Please check if the TF card is inserted. The machine reads the latest engraving file(.gcode/.gc/.g/.nc/.ngc) in the root directory of the TF card by default. It is recommended to delete other engraving files in the root directory.
Q10: How to replace the filter cotton in the 5W laser module?
A: Take out the filter cotton directly when powered off. Clean it with water, dry it, and put it back (or replace it with a new one). Be careful not to touch the protective lens of the laser module.
Q11: What should I do if the buzzer makes a rapid alarm sound?
A: In preview and engraving modes, if the machine turns on its side or moves, it will turn off the laser. The motor stops moving, the indicator light flashes, and the buzzer emits an alarm. Solution: Please move the machine to its original position and press the microswitch on the control box to continue previewing or engraving after clearing abnormality (The microswitch only works during offline working).
