Highlights
CR-Scan Otter Lite: Portable 3D Scanning with 0.1 mm resolution
The Otter Lite combines cutting-edge NIR structured light technology with revolutionary portability, designed for creators, engineers, and designers who refuse to be tethered. It allows you to experience industrial-grade precision with the freedom to scan anywhere.
Key Innovations
- Peak Accuracy & Resolution
- 0.05 mm accuracy | 0.1 mm resolution
- Captures intricate details from jewelry to industrial parts
Defies Scanning Limits
- Scans dark/matte surfaces and metallic objects without spray (industry-first for portable scanners!)
- Marker-free "Smart Feature Tracking" ensures seamless color data capture
Unmatched Versatility
- Scan Range: 20 mm (min) to 2000 mm (max)
- Single-Frame Capture Window: 2× larger than competitors
- Handles objects from a coin to car parts
Truly Wireless Workflow
- Wi-Fi 6 Streaming: Send scans real-time to your PC
- Phone Integration: Clip your smartphone to the ergonomic grip & control via Creality Scan App (iOS/Android)
- Airplane-Safe Battery Grip: 3-hour runtime | 80% charge in 1 hour
Why Professionals Choose Otter Lite
The Otter Lite isn’t just portable—it redefines on-the-go scanning. Slip it in your bag, scan a sculpture in a park, or reverse-engineer machinery on-site. No cables. No sprays. No compromises.

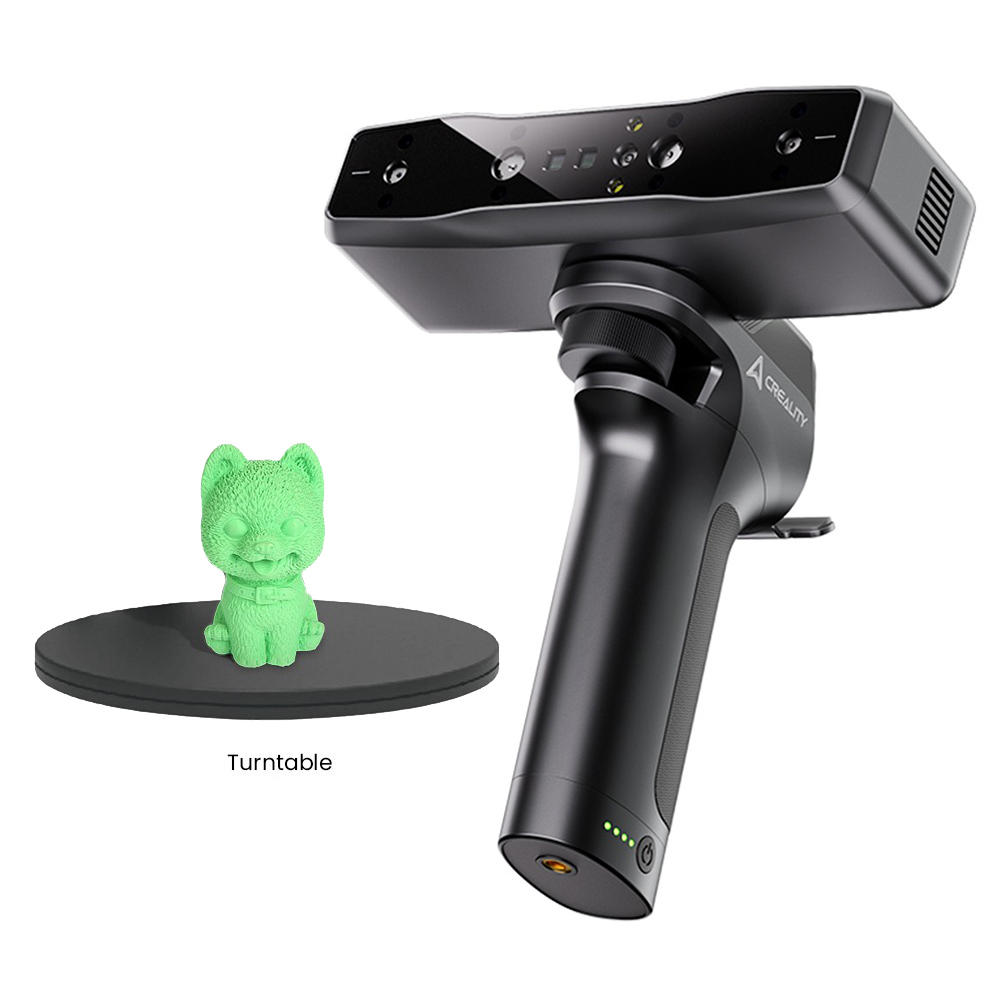

Creality Otter Lite
Truly Wireless, Truly Unlimited
Forget the Cables, Scan Freely.
Scan data streams to your phone in real time for mobile preview and control.
3-Hour Battery Life
The built-in battery in the Lite Bridge handle enables extended scanning sessions, even for large-scale projects.
Ready to Scan, Right Out of the Box
No additional purchases required: unbox and start creating wirelessly.
Multiple Sizes Available
Innovative Four-Lens Stereo Vision
Compatible with scans of all sizes. Two sets of dual lenses for precise details and varied sizes. One set of long-focus dual lenses for scanning small objects, delivering richer details; one set of short-focus dual lenses for scanning large objects, covering a wider size range.
Capture Small and Large Objects
The Otter Lite can scan various objects, ranging from 20 x 20 x 20 mm³ to 2,000 x 2,000 x 2,000 mm³, from a small seashell to a car—all with a single scanner.
Scanning Accuracy Up to 0.05 mm
The Otter Lite adopts an advanced structured-light stereo matching algorithm and optical design to faithfully reproduce the texture and contours of objects. Scanning accuracy up to 0.05 mm ensures optimal sharpness and clarity for every detail.
Scanning Speed Up to 30 FPS
Smooth and Efficient Scanning, No Shaking
Equipped with One-Shot 3D imaging technology, the Otter Lite is naturally stabilized and less prone to tracking loss. Its fast feedback speed ensures smoother handheld scanning.
Scan Black or Metallic Objects Without Spraying
Even without spraying, you can scan cars, auto parts, tires, and other black or metallic objects to achieve the desired modeling effect.
Outdoor Scanning
Designed with advanced 3D DOE (Diffractive Optical Element) structured-light technology, the Otter Lite offers greater environmental adaptability and maintains excellent performance even in direct sunlight (< 30,000 lux).
Unique Face and Body Algorithm with Eye Safety
The face and body mode features a unique facial mapping algorithm that captures more details and easily scans hair. A full human body scan takes only about a minute. Using near-infrared light, invisible to the naked eye, ensures Class 1 laser safety and is harmless to the human body. Scan skin and faces with peace of mind.
Fast Data Transmission via Wi-Fi 6 AX6000 + Pogo Pin
Equipped with an advanced lossless data compression algorithm, the Otter Lite lets you transfer scans quickly and easily via Wi-Fi 6, from the scanner to your computer.
High Capacity and Fast Charging
Charges to 80% in just 1 hour, making outdoor scanning more convenient and worry-free. High-capacity 3,400 mAh battery (airplane-compatible).
Real-Time Mobile Preview
With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.
Color Scanning,
True-to-Life Reproduction
24-Bit Color Scanning
Equipped with a million-pixel RGB color camera and an exclusive color mapping algorithm, it ensures exceptional capture of model details and colors.
Crisp Capture Thanks to Built-In Lighting
Even in low-light environments, it delivers extremely realistic texture effects. Two additional LEDs enable precise detail capture, faithfully reproducing the color and texture of objects.
Marker Scanning Support
With 8 infrared lights, it enables better marker tracking, especially for objects requiring fewer scanning features. In marker mode, it offers greater precision.
Specification
| General | Brand: Creality Type: 3D Scan Model: Otter Lite Color: Black |
| Specification | Scanning Mode: NIR(infrared binocular structured light) Accuracy: 0.05mm@100mm 3D Resolution: 0.1 - 2mm Scanning Speed: Up to 30fps Min. scan volume: 20mm x 20mm x 20mm Single Capture Range: Close range mode 100mm*62mm@120mm, 160mm*130mm@250mm; Long range mode 352mm*254mm@300mm, 788mm*509mm@600mm, 1460mm*1017mm@1200mm Working distance: 120mm - 1200mm Color Mapping: Yes Alignment Mode: Marker/geometry/texture Output Format: OBJ/STL/PLY IMU: Yes Marker Recognition Enhancement: 8 NIR LEDs Color Supplemental Light: 2 white LEDs Laser Safety: Class I (eye safe) Calibration Board: High-precision glass calibration board Wireless Scanning: Yes Protocol: Wi - Fi 6, Backward compatibility Wi - Fi Bands: 5GHz Data Transfer Rate: Up to 30fps Data Interface: Type-C/USB3.0/USB2.0 Input Power: USB3.0 5V 3A, WiFi 12V 2A System Support: Windows: Windows 10/11 (64-bit), Recommended: i7-Gen7+ CPU, Nvidia/AMD GPU, 16GB+ RAM, Minimum: i5-Gen8+ CPU, 8GB+ RAM; Mac OS: Recommended: Apple M1/M2/M3 16GB+ RAM, Minimum: Intel i5-Gen8+ 8GB+ RAM; Android Chip: Qualcomm Snapdragon 888++ Operating System: Android 10.0+ RAM: ≥6G; iOS: Model: iPhone 13(A15 Bionic) Operating System: iOS15+ RAM: ≥6G |
| Weight & Size | Product Weight: 1.6kg Package Weight: 2.6kg Product Size(L x W x H): 173x39x56mm Package Size(L x W x H): 325x260x115mm |
| Package Contents | 1 x Creality Otter Lite 3D Scanner 1 x Lite Bridge 1 x USB3.0 Data Cable (USB-C/USB-A 2m) 1 x USB2.0 Power Cable & Lite Bridge Charging Cable (USB-C/USB-A 1.5m) 1 x High-precision Calibration Board 1 x Turntable 1 x Scanning Test Object (OWL) 2 x USB-C Adaptor 1 x Reflective Markers (Diameter: 6mm*10, Diameter: 3mm*10) 1 x Screw 1 x Magnetic Phone Holder 1 x Quick Guide & Certification & Warranty Card 1 x Cleaning Cloth 1 x Lanyard 1 x Portable Case 1 x Turntable |
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
Q: Creality Otter or Otter Lite ?
A: Creality CR-Scan Otter vs. CR-Scan Otter Lite: Both are handheld 3D scanners utilizing Near Infrared (NIR) Structured Light technology, yet they differ in precision, scanning speed, and operating range – designed to meet distinct user requirements and budgets.
Accuracy
CR-Scan Otter: High accuracy, up to 0.02mm, suitable for highly precise scanning, such as detailed capture of small objects.
CR-Scan Otter Lite: Accuracy of 0.05mm, suitable for scanning larger objects, with slightly lower precision than the Otter.
Scanning Speed
CR-Scan Otter: Scanning speed is 20 frames per second, suitable for slower scanning needs that focus on detail.
CR-Scan Otter Lite: Faster scanning speed of 30 frames per second, suitable for scenarios requiring quick scanning.
Scanning Range
CR-Scan Otter: Maximum scanning range of 1350 × 840 mm, suitable for scanning medium to small-sized objects.
CR-Scan Otter Lite: Maximum scanning range of 1460 × 1017 mm, suitable for scanning larger objects.
Working Distance
CR-Scan Otter: Working distance of 110-1000mm.
CR-Scan Otter Lite: Working distance of 120-1200mm, supporting a larger scanning range.
Weight
CR-Scan Otter: Weighs 390g, relatively heavier.
CR-Scan Otter Lite: Weighs 300g (scanner) and 306g (Lite Bridge), overall lighter and more suitable for prolonged use.
Wireless Scanning Function
CR-Scan Otter: Requires additional accessories to support wireless functionality.
CR-Scan Otter Lite: Built-in Wi-Fi 6 support, enabling real-time mobile previews and control without additional accessories.
Applicable Scenarios
CR-Scan Otter: Suitable for professional fields requiring extreme precision, such as jewelry design, reverse engineering, and prototyping.
CR-Scan Otter Lite: Suitable for hobbyists, educators, or small businesses, providing wireless and fast scanning functions for various applications.
Summary:
If you require high scanning precision or need to capture detailed small objects, the CR-Scan Otter is the better choice.
If you are looking for better cost performance, wireless functionality, and can accept slightly lower scanning precision, the CR-Scan Otter Lite is an ideal option.
