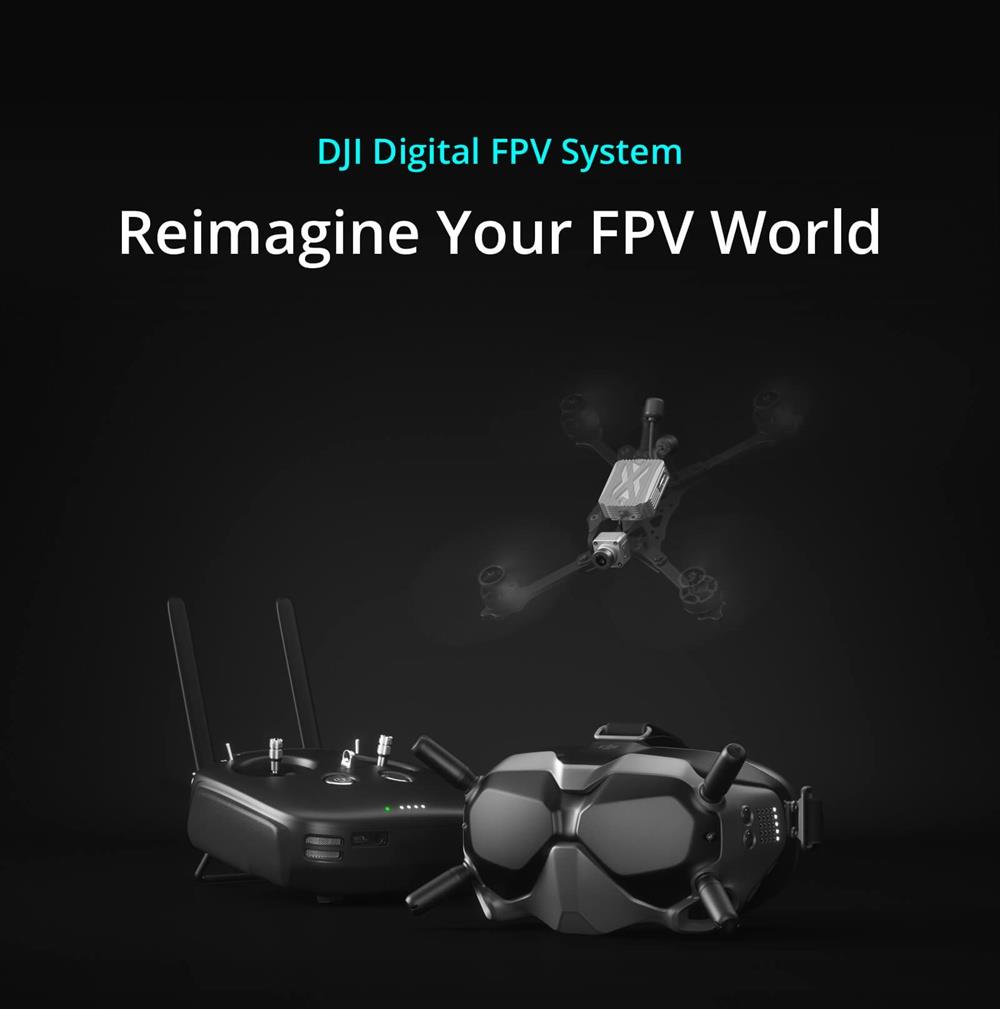

DJI Digital FPV System 4KM Range Transmitter 720P*120fps FPV Video Goggles 5.8G 8CH Air Unit 1080P Cam For Racing Drone

General

Brand: DJI
Item Name: Digital FPV System
Version: DJI FPV Fly More Combo
Mode: Mode 2
Quantity: 1Set

Specification

Overview:

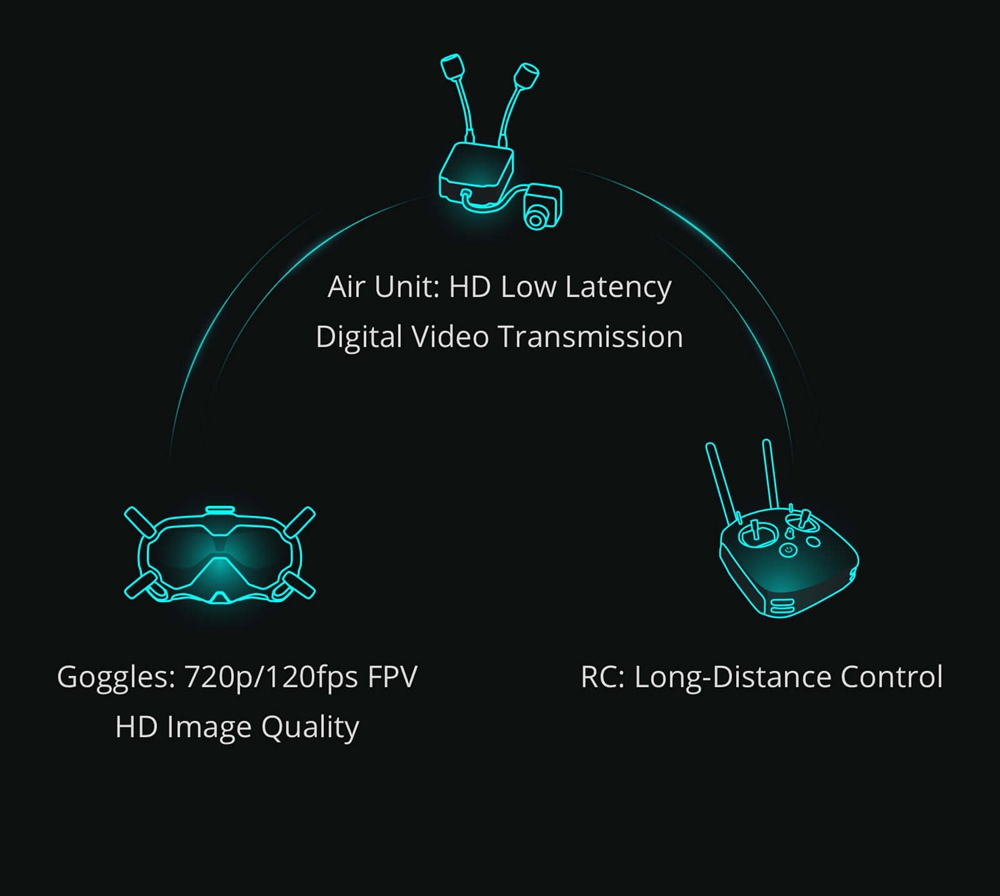

DJI has redefined the drone racing industry with the new Digital FPV System. It delivers lower latency rates within 28 ms, a 4km maximum transmission range, stunning HD 720p/120fps resolution, and, most importantly, an unforgettable FPV flying experience.

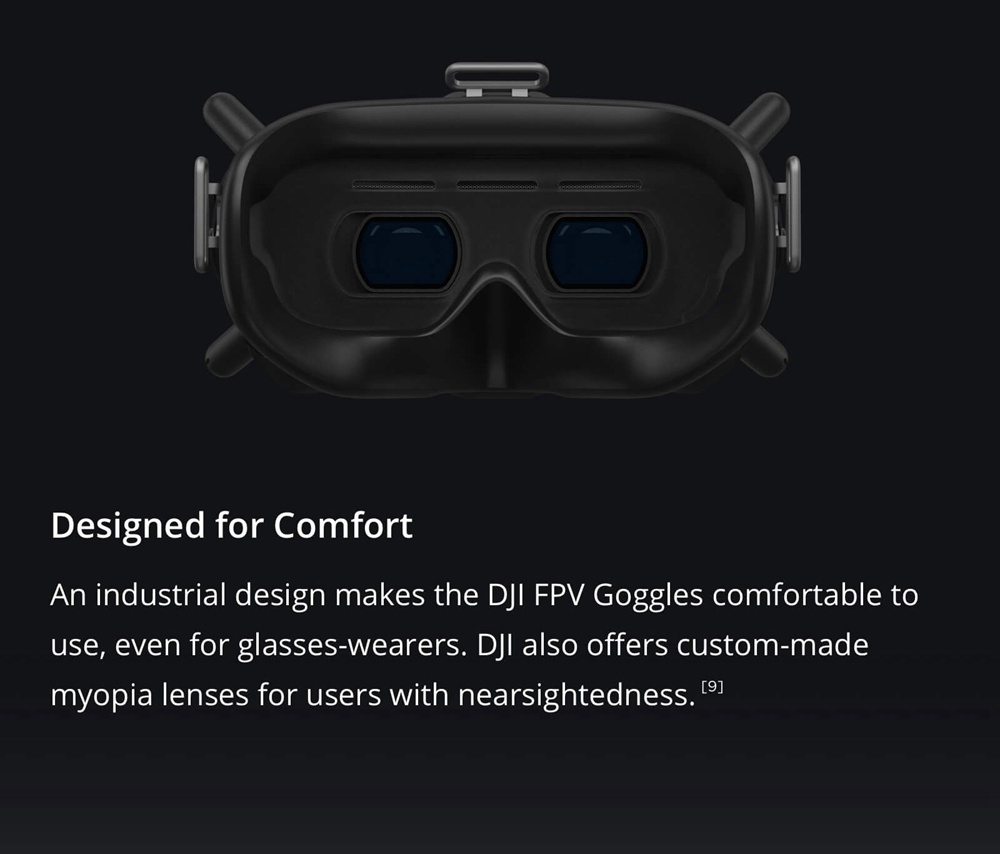

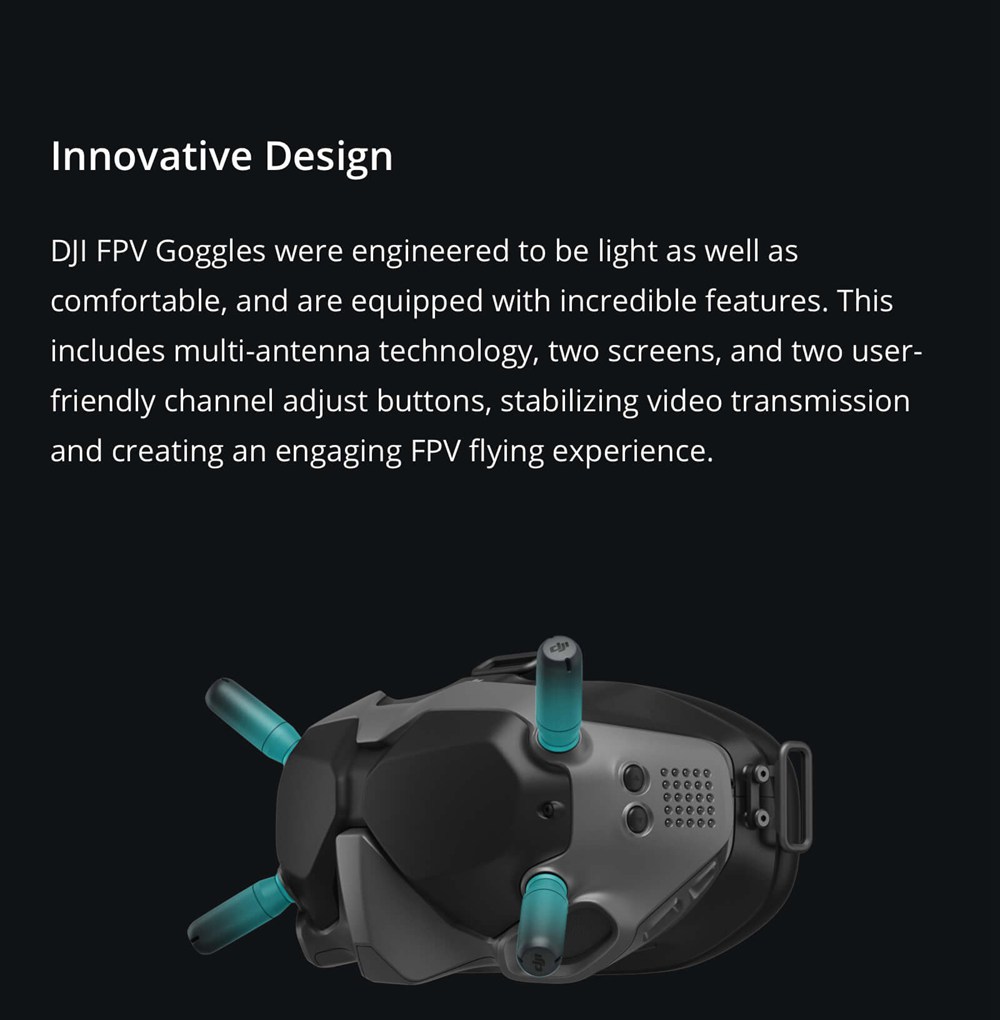

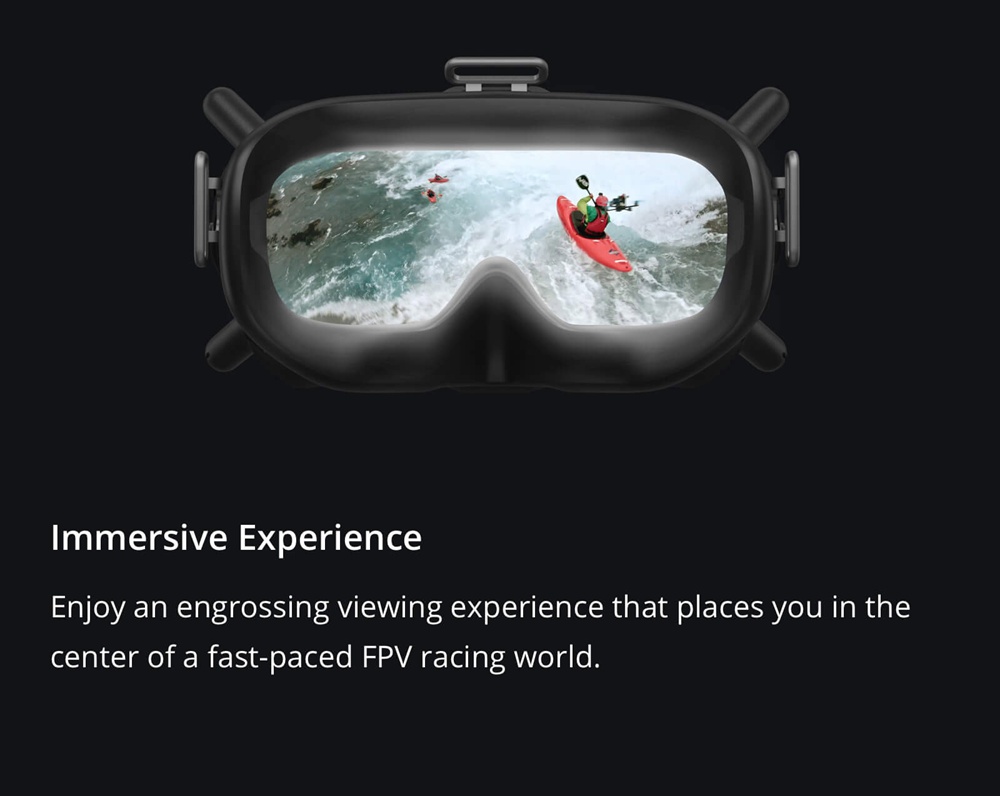

DJI FPV Goggles
Weight: Approx. 415g (headband and antennas included)
Dimensions: 202×126×110 mm (antennas included),
                     184×122×110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen): 1440 × 810
Screen Renew Rate: 120Hz
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
Live View Mode: Low Latency Mode (720p/120fps)
                           High-Quality Mode (720p/60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6V
FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70mm
Battery: 6.6V-21.75V External battery, total power consumption of 7W
Supported Storage Card: MicroSD cards with storage capacities of up to 128GB.

DJI FPV Camera
Sensor: 1/3.2" CMOS; Effective Pixels: 4M
Lens: 2.1mm,f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1×21.1×20.1 mm
Weight: 8.2g

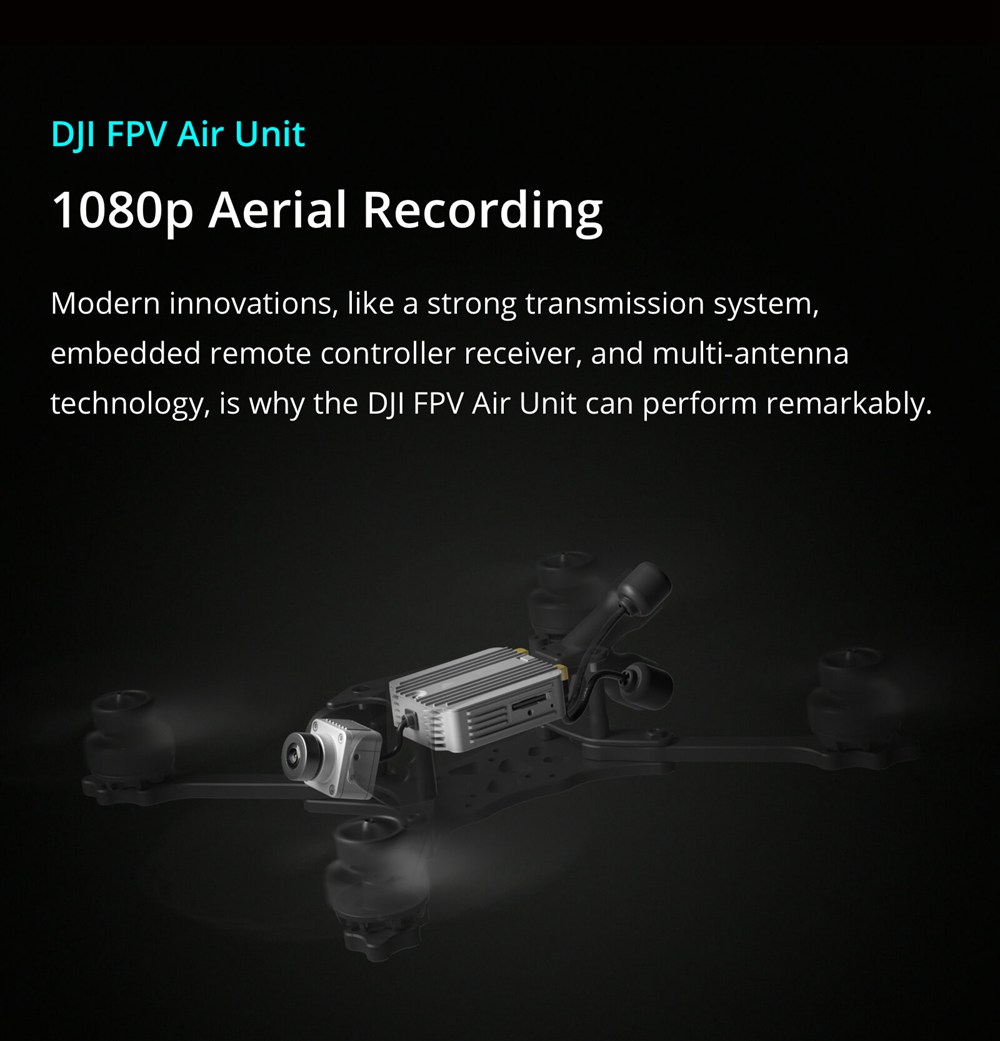

DJI FPV Air Unit
Weight: Air Unit (Camera included): 45.8g
             3.9g (each MMCX elbow)
Dimensions: Air Unit: 44×37.8×14.4mm
                    Camera: 27.4×21.1×20.1mm
                    Coaxial Cable: 100mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): Low Latency Mode (720p/120fps): <28ms;CE: <14dBm
Min. Latency (end-to-end): Low Latency Mode (720p/120fps): <28ms
                                            High-Quality Mode (720p/60fps): <40ms
Max. Transmission Distance: FCC/SRRC: <4km; CE: <0.7km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Supported Flight Control System: The DJI FPV Air Unit is only compatible with flight controllers that support Betaflight
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9W
Channels: 8
Channels info: FCC
               Channel 1: 5660
               Channel 2: 5695
               Channel 3: 5735
               Channel 4: 5770
               Channel 5: 5805
               Channel 6: 5878
               Channel 7: 5914
               Channel 8: 5839

               CE/SRRC
               Channel 1: 5735
               Channel 2: 5770
               Channel 3: 5805
               Channel 8: 5839

               MIC
               Channel 1: 5660
               Channel 2: 5700
               Channel 8: 5745

DJI FPV Remote Controller
Weight: 765g
Operation Frequency: 5.725-5.850GHz
Max. Transmission Distance(Unobstructed, free of interference): FCC/SRRC:4km
                                                                                                        CE: 0.7km
Transmitter Power (EIRP): FCC: <30 dBm
                                           CE: <14dBm
                                           SRRC:<19dBm
Operation Current/Voltage: 0.6 A @ 7.6 V
Operation Temperature: 0° to 40°C (32° to 104°F)
Charging Temperature: 5° to 40°C (41° to 104°F)

Remote Controller intelligent Battery (WM37-4920mAh-7.6V)
Battery Type: LiPo 2S
Capacity: 4920mAh
Voltage: 7.6V
Energy: 37.39Wh

Package Contents

1 X FPV Goggles(Foam Padding Included)
4 X Antennas
1 X USB-C Cable
1 X Headband
1 X Sleeve
1 X Power Cable
1 X Air Unit(Cam Included)
2 X Antenna(MMCX Elbow)
1 X 3IN1 Cable
4 X M2.0 Screw
1 X Remote Controller(Battery Included)
