Highlights

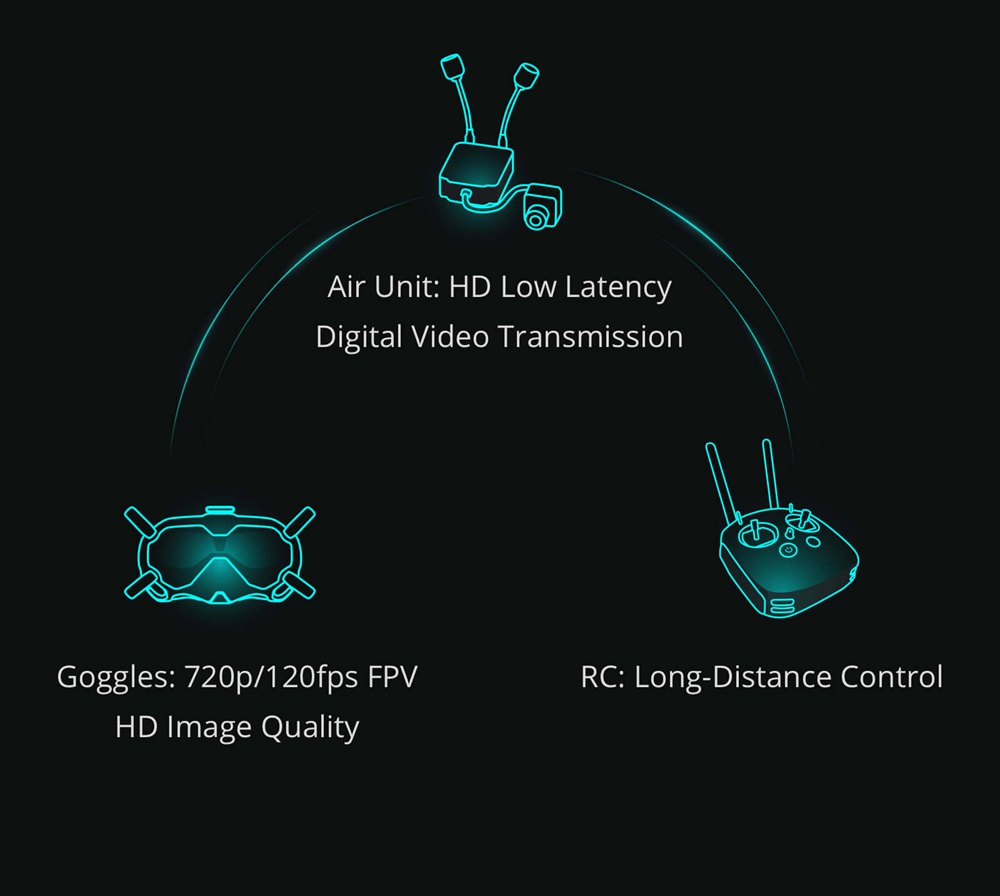

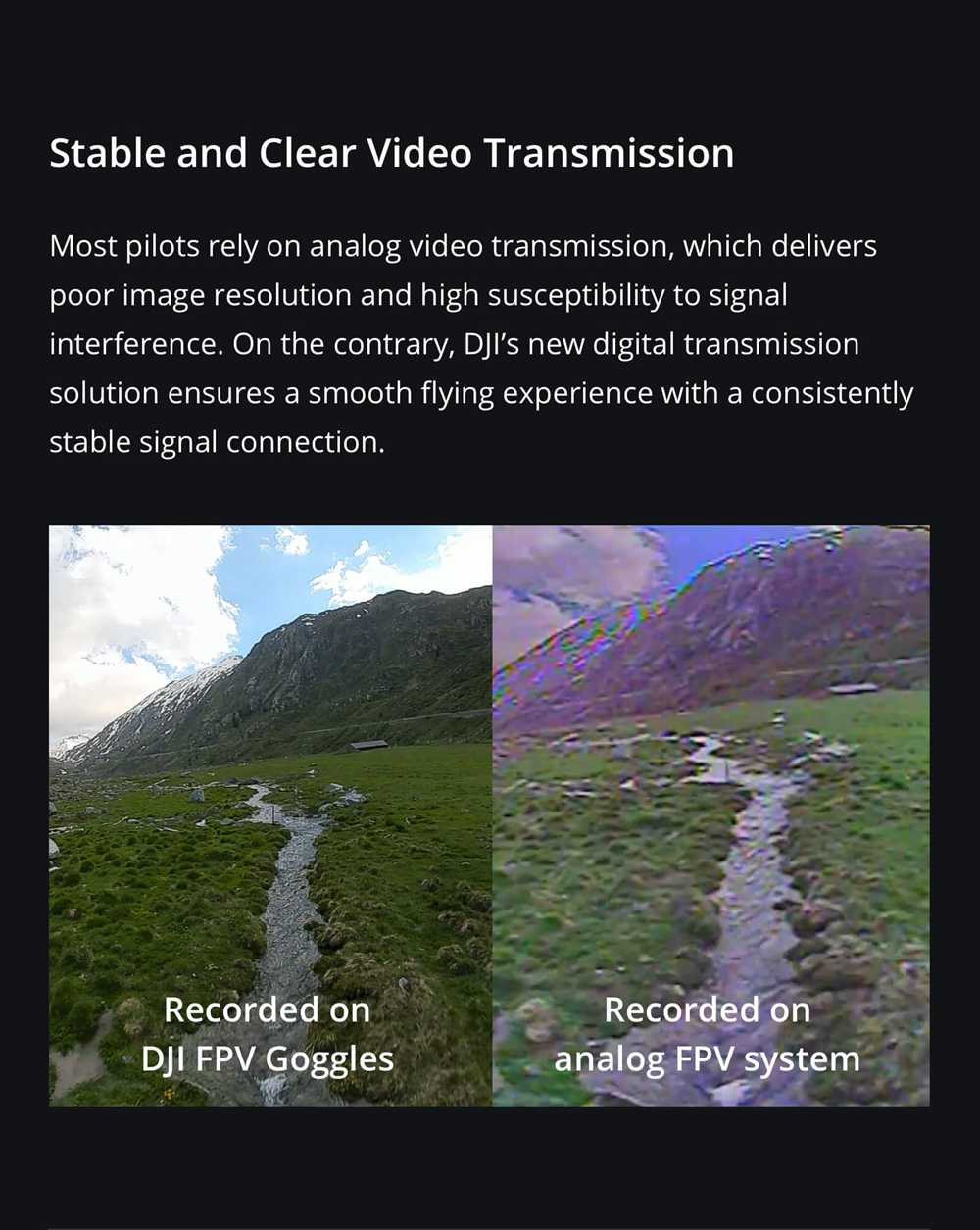

28m Low Latency Digital Image Transmission
Equipped with new FPV digital image transmission system, highly integrated FPV Video Goggles, remote controller, transmission module and camera, to bring HD low latency fluency picture, full of immersion.

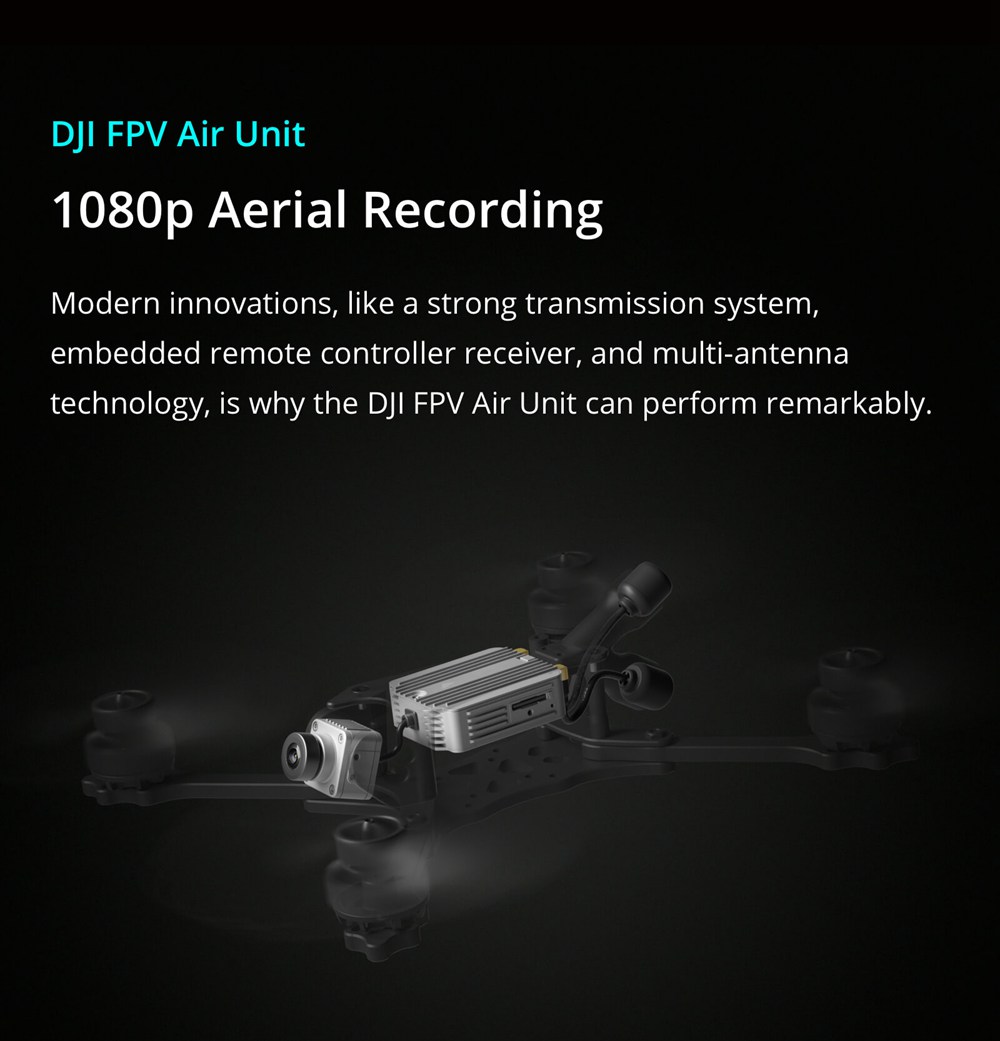

1080p Video and Integrate Remote Control Reception
DJI FPV transmission can highest support 8 independent communication channels, transmission video, remote control receiver and multi-antenna transceiver function.

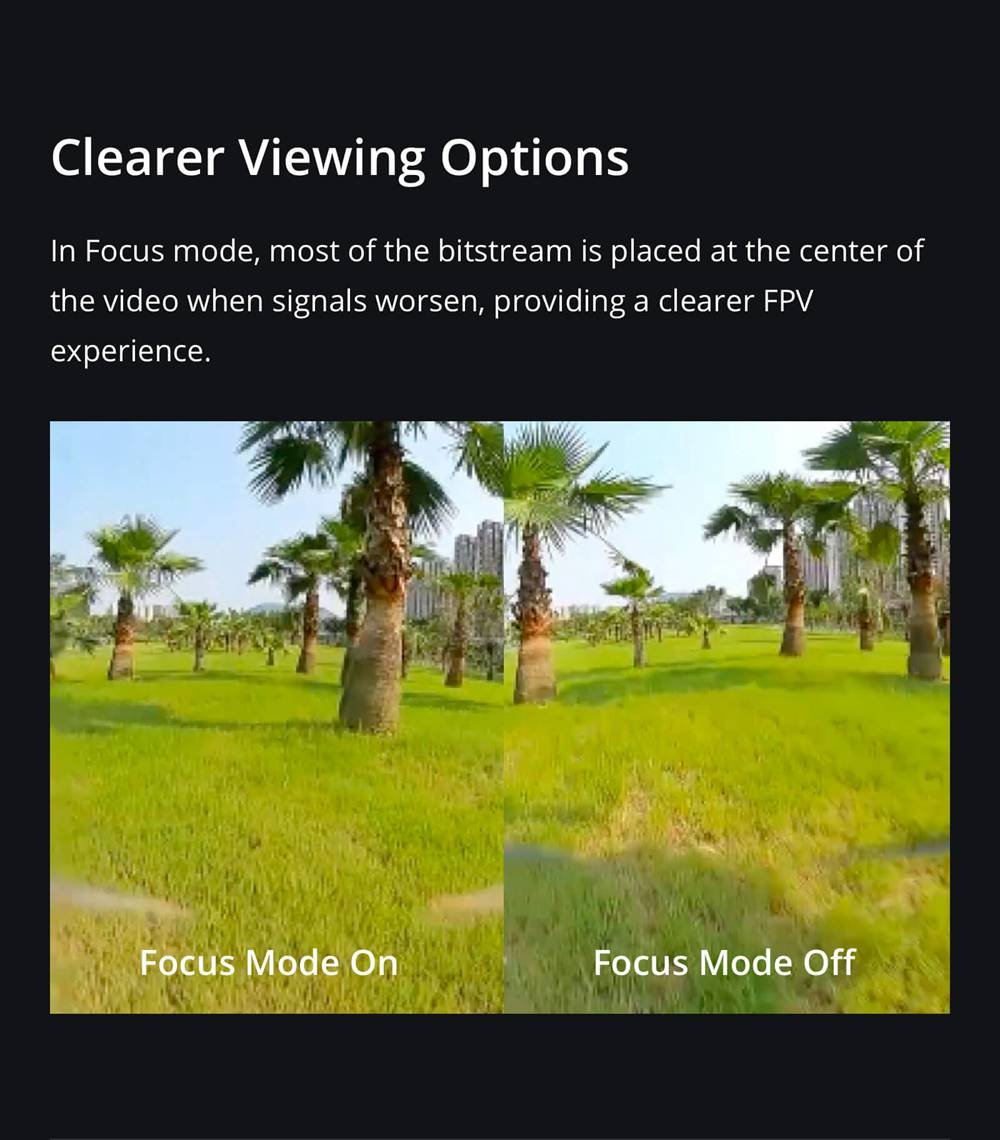

Brand New Focus Mode
Brand new focus mode can self-optimize the center of picture, to make a more clear screen.
Support Image Transmission Broadcast
The broadcast function allows viewers to use the flying glasses to enter the "view mode", select the channel used by the pilot, and follow the pilot's perspective in real time.

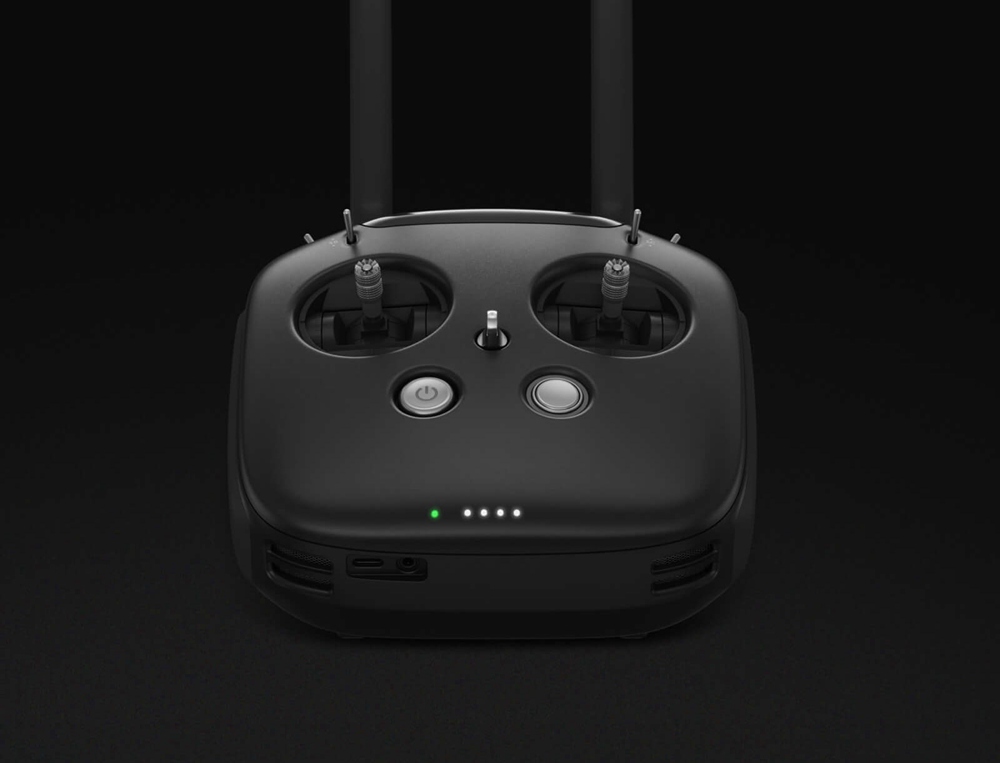

Durable Life
The DJI FPV remote control is tailored for crossover flight, with a 4km map and 7.5 hours of battery life.
More Camera Functions
150 degree super wide-angle lens for wide field of view. A variety of camera modes to meet the needs of different scenarios. Customize brightness and saturation for rich picture expression.
Specification
General
|
Brand: DJI
Item Name: Digital FPV System
Version: DJI FPV Experience Combo
Quantity: 1Set
|
Specification
|

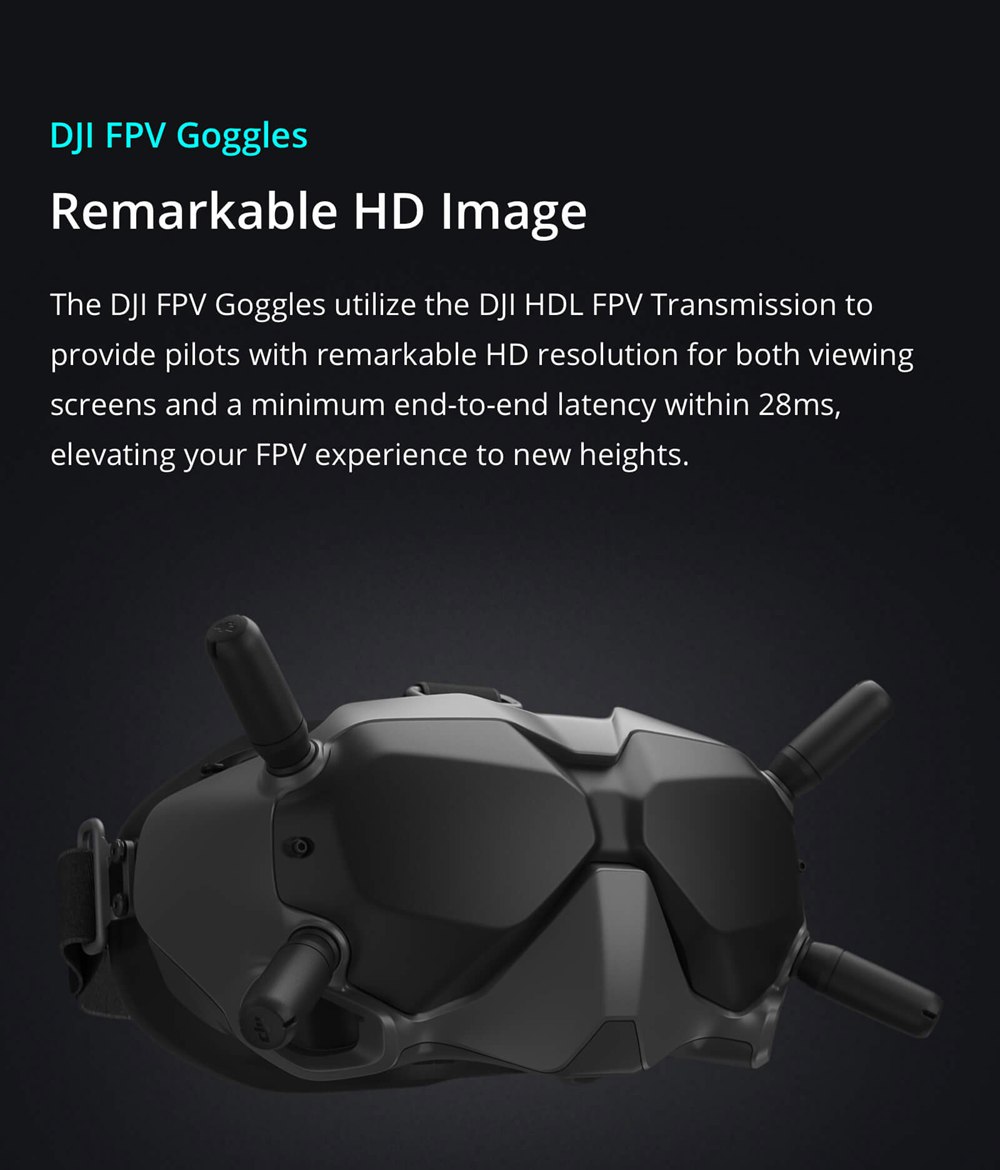

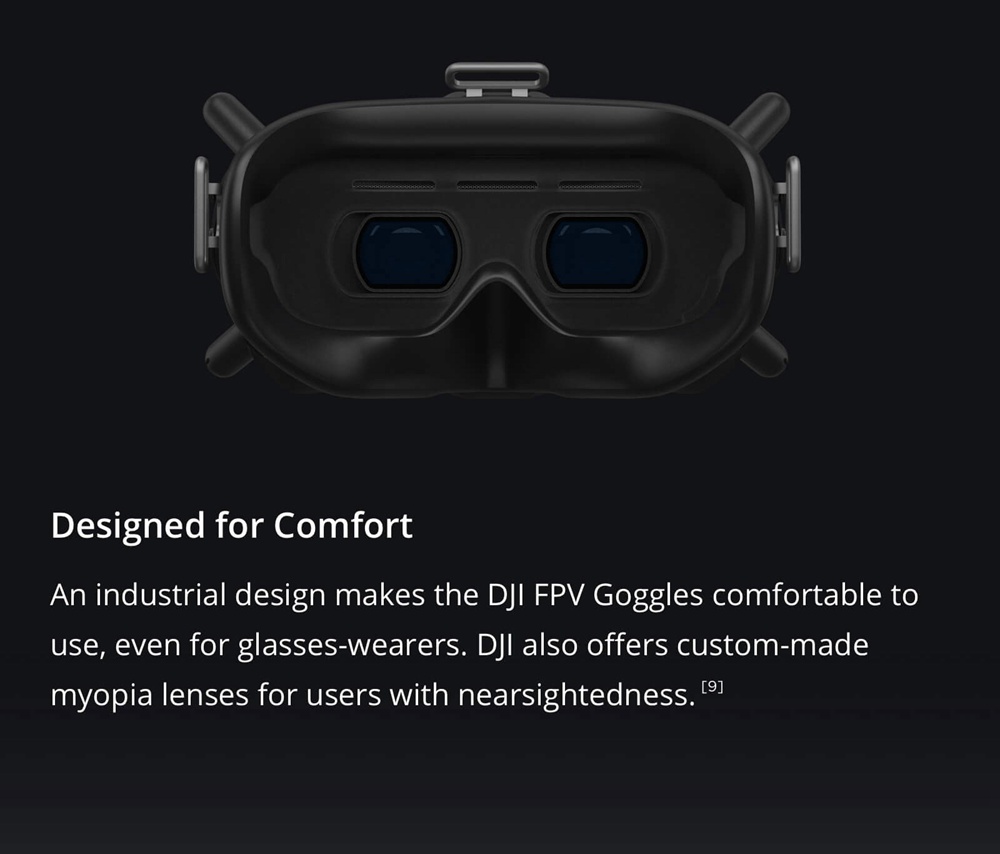

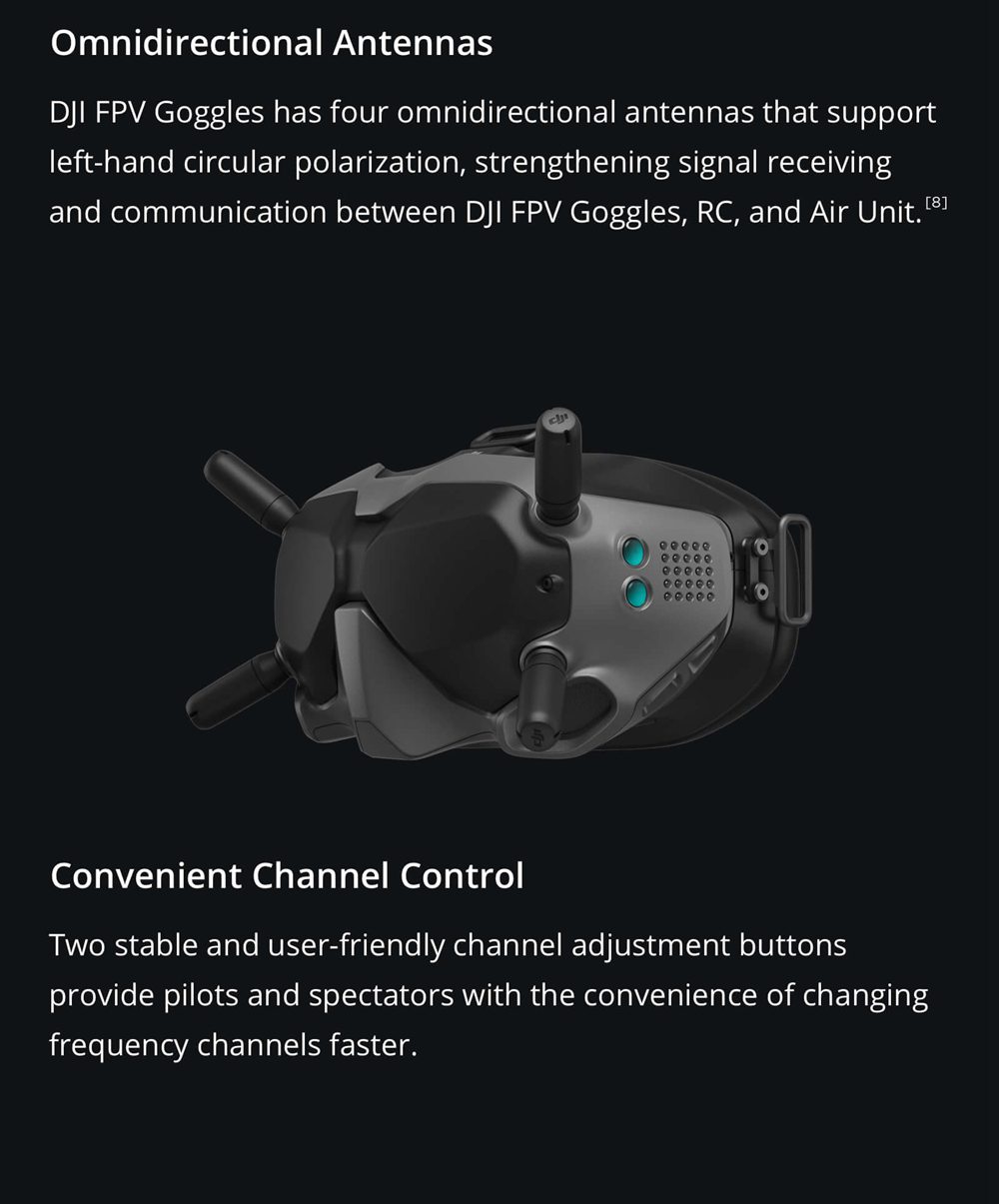

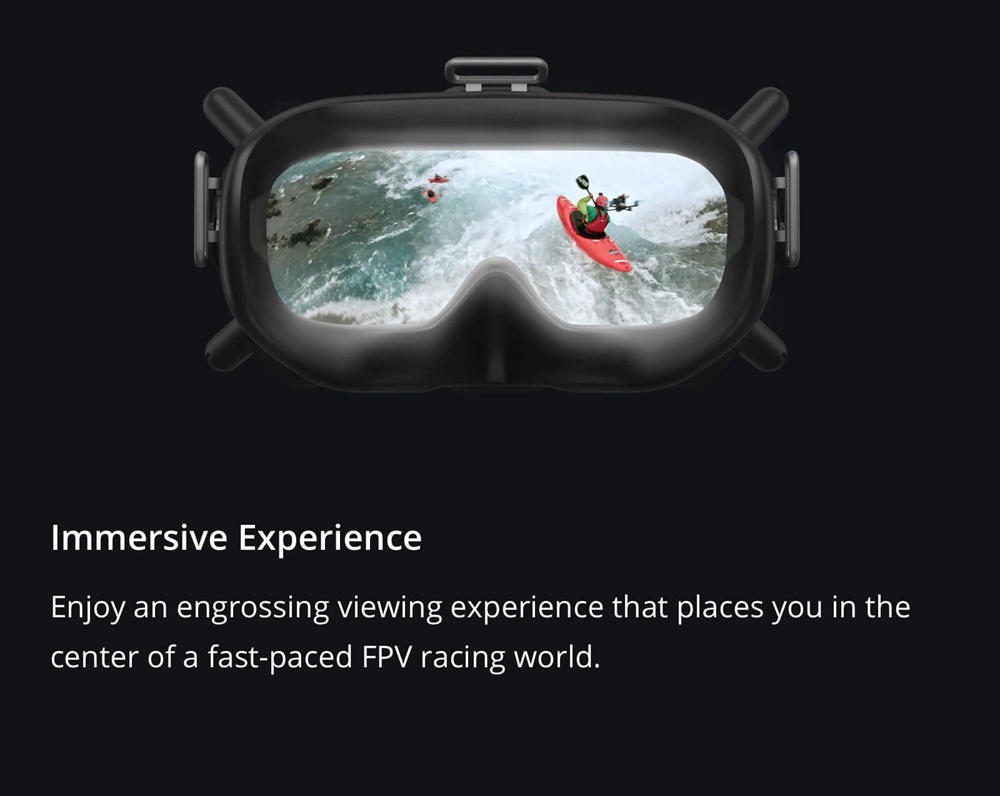

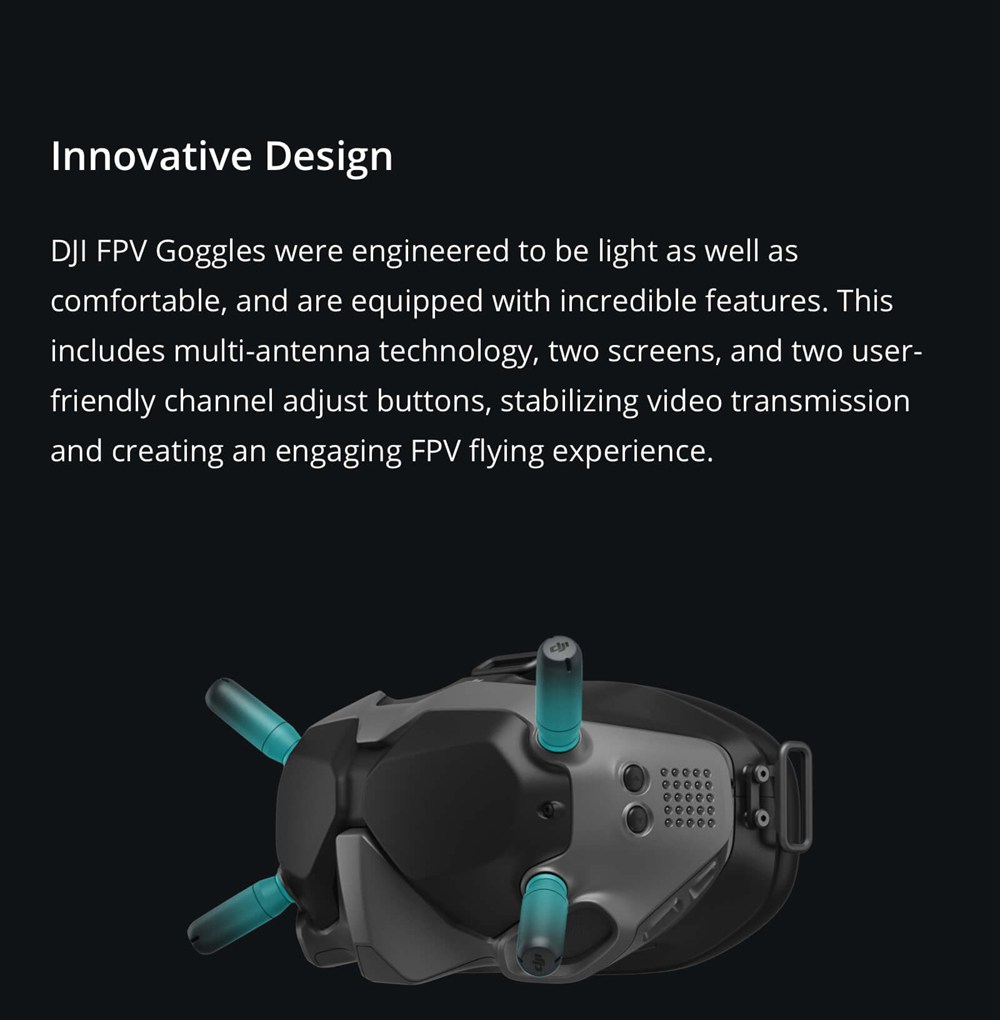

DJI FPV Goggles
Weight: Approx. 415g (headband and antennas included)
Dimensions: 202×126×110 mm (antennas included),
184×122×110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen): 1440 × 810
Screen Renew Rate: 120Hz
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
Live View Mode: Low Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6V
FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70mm
Battery: 6.6V-21.75V External battery, total power consumption of 7W
Supported Storage Card: MicroSD cards with storage capacities of up to 128GB.
DJI FPV Camera
Sensor: 1/3.2" CMOS; Effective Pixels: 4M
Lens: 2.1mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1×21.1×20.1 mm
Weight: 8.2g
DJI FPV Air Unit
Weight: Air Unit (Camera included): 45.8g
3.9g (each MMCX elbow)
Dimensions: Air Unit: 44×37.8×14.4mm
Camera: 27.4×21.1×20.1mm
Coaxial Cable: 100mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): Low Latency Mode (720p/120fps): <28ms;CE: <14dBm
Min. Latency (end-to-end): Low Latency Mode (720p/120fps): <28ms
High-Quality Mode (720p/60fps): <40ms
Max. Transmission Distance: FCC/SRRC: <4km; CE: <0.7km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Supported Flight Control System: The DJI FPV Air Unit is only compatible with flight controllers that support Betaflight
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9W
Channels: 8
Channels info: FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839
MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745
|
Package Contents
|
1 X FPV Goggles(Foam Padding Included)
4 X Antennas
1 X USB-C Cable
1 X Headband
1 X Sleeve
1 X Power Cable
2 X Air Unit(Cam Included)
4 X Antenna(MMCX Elbow)
2 X 3IN1 Cable
8 X M2.0 Screw
|
