DJI Goggles RE Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - Black

Brand: DJI 0Answered Questions Item Code:413634
Price: $ 659.99 $679.99 3 % OFF
Ship from:
QTY: Bulk Order Rebate

Shipping:Free Shipping to United States via UPS Expedited

Sold Out
Add to Wishlist(11)
Price Match
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping
  • Description
  • Reviews
  • Q&A
  • Sold Out

Highlights

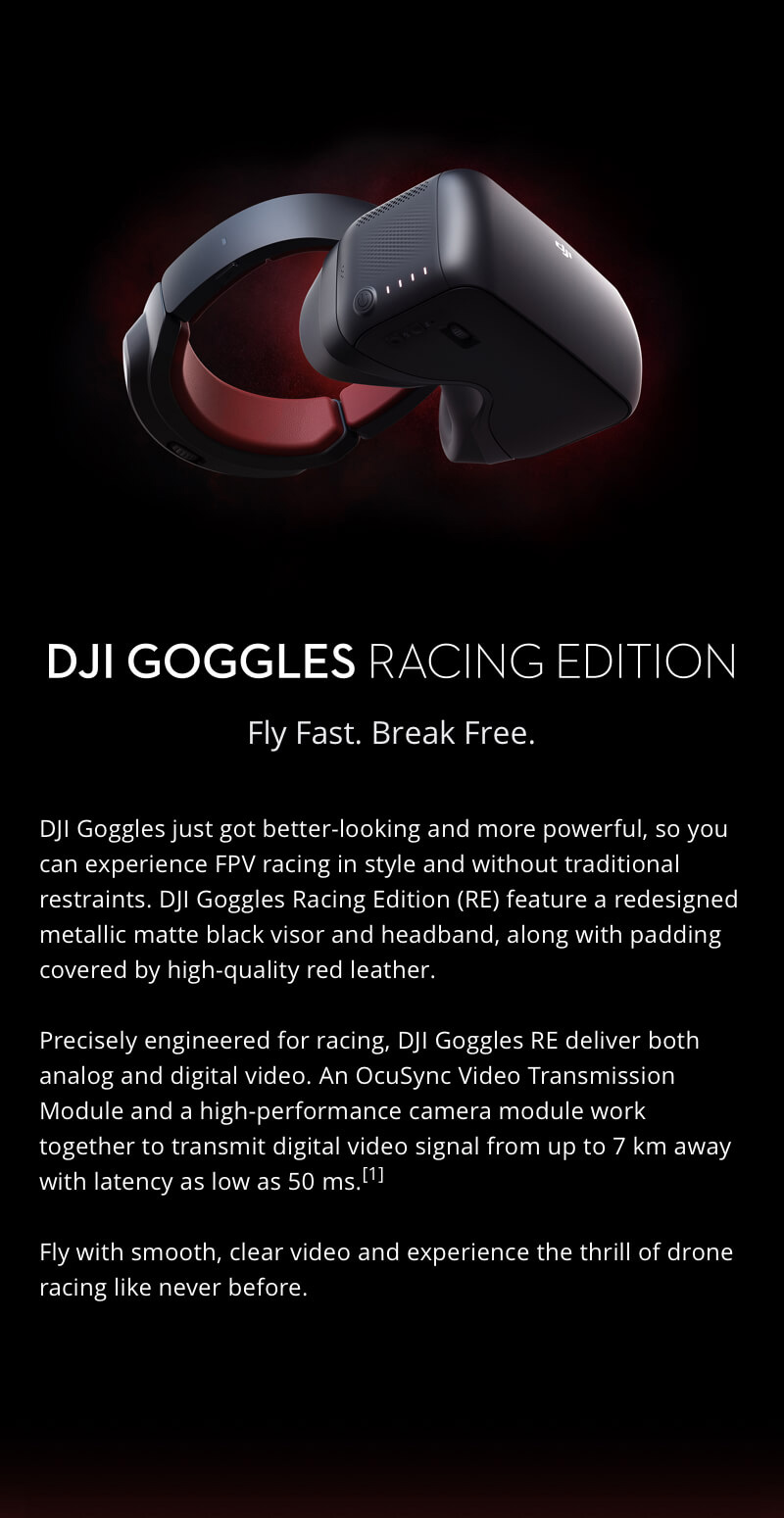

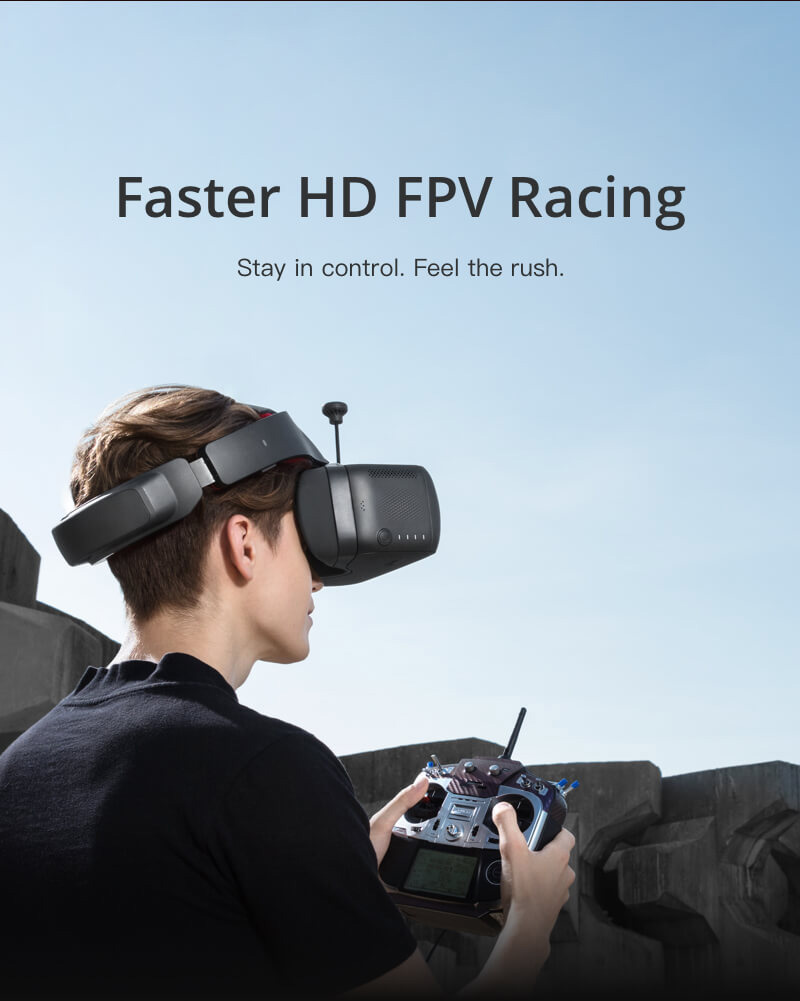

DJI Goggles Racing Edition (RE) feature a redesigned metallic matte black visor and headband, along with padding covered by high-quality red leather. Precisely engineered for racing, DJI Goggles RE are compatible with an OcuSync video transmission module and a high-performance camera module, which work together to transmit digital video signal from up to 7 km away with latency as low as 50 ms,1 in addition to analog signal.

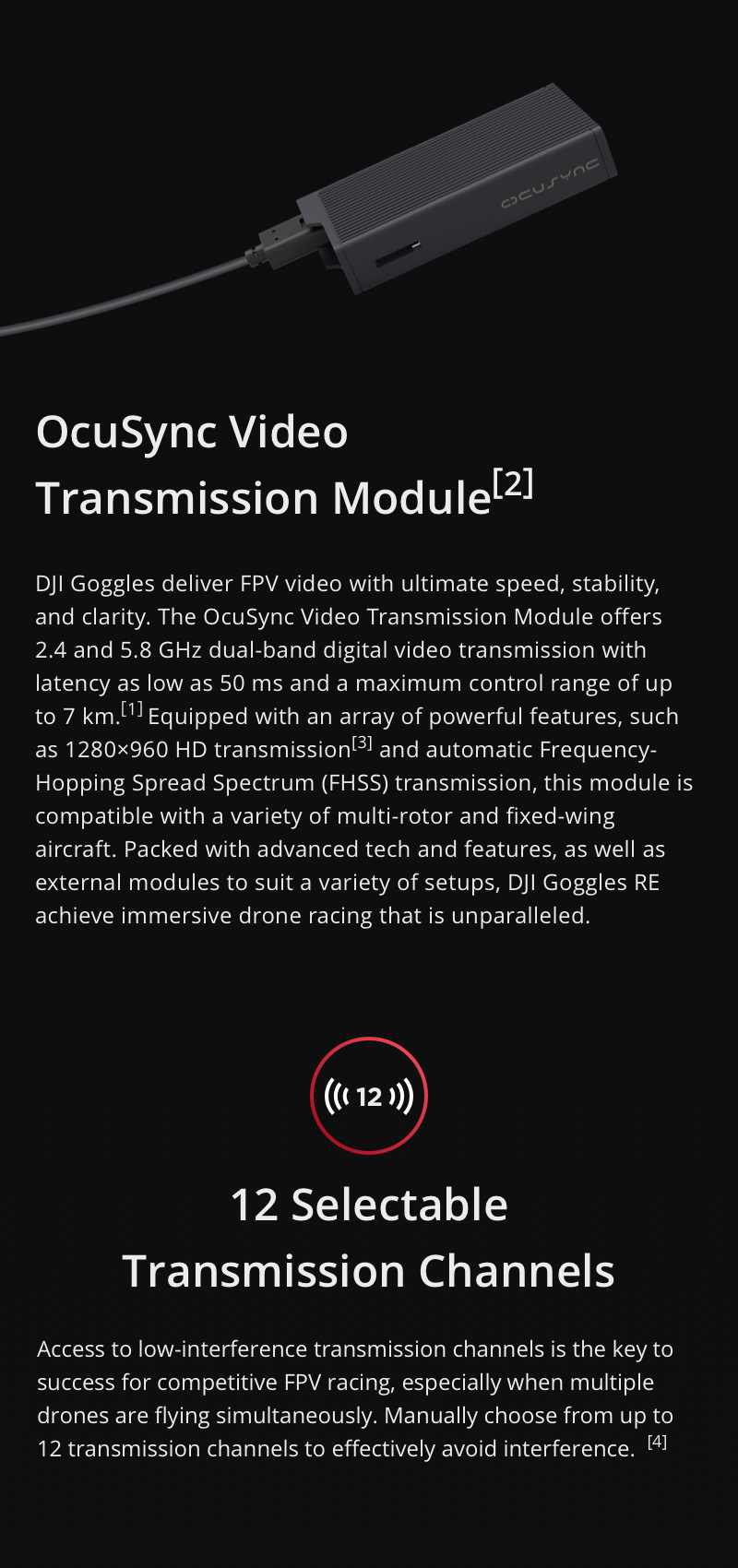

OcuSync Video Transmission Module

DJI Goggles deliver FPV video with ultimate speed, stability, and clarity. The OcuSync Video Transmission Module offers 2.4 and 5.8 GHz dual-band digital video transmission with latency as low as 50 ms and a maximum control range of up to 7 km.

12 Selectable Transmission Channels

Access to low-interference transmission channels is the key to success for competitive FPV racing, especially when multiple drones are flying simultaneously.

Automatic FHSS Technology

When encountering wireless interference, the OcuSync Module will quickly and automatically switch between the 2.4 and 5.8 GHz channels to maintain unobstructed transmission.

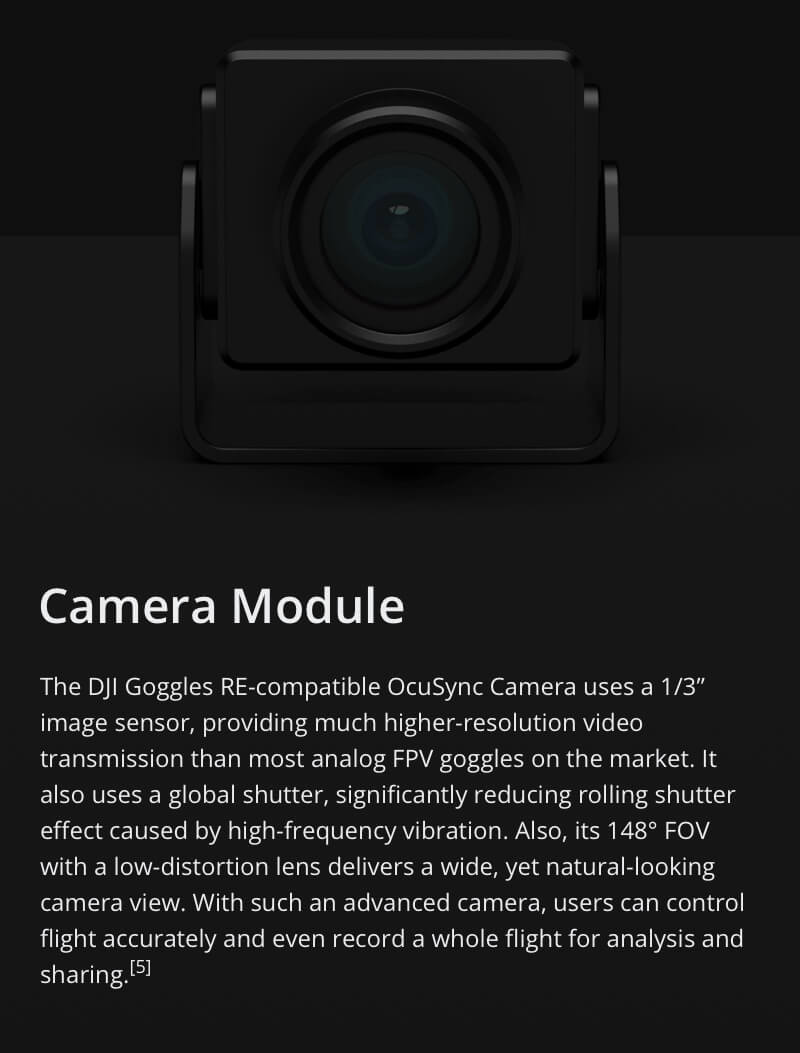

Camera Module

The DJI OcuSync Camera compatible with DJI Goggles RE uses a 1/3” image sensor, providing much higher-resolution video transmission than most analog FPV goggles on the market.

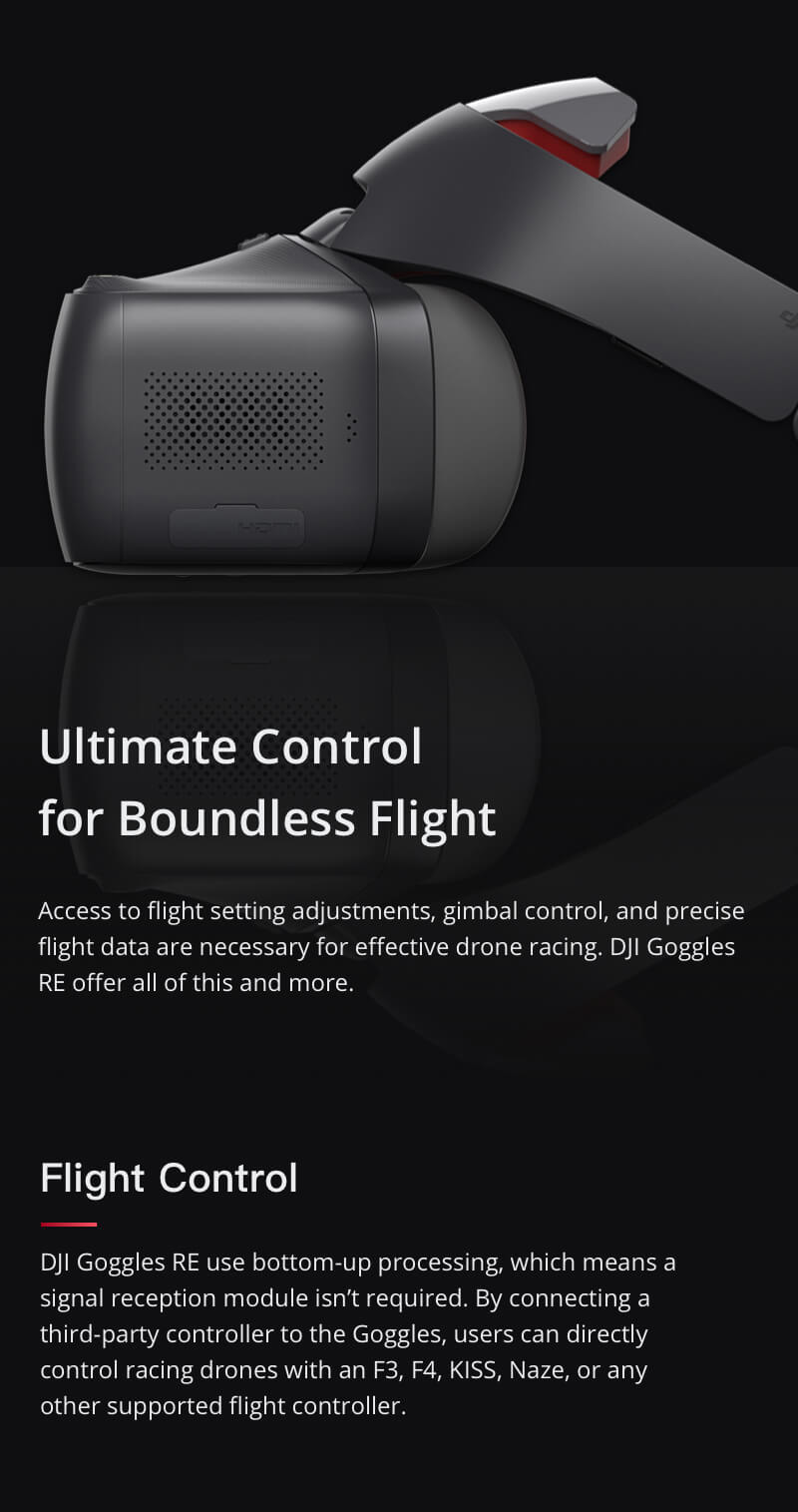

Ultimate Control for Boundless Flight

Access to flight setting adjustments, gimbal control, and precise flight data are necessary for effective drone racing. DJI Goggles RE offer all of this and more.

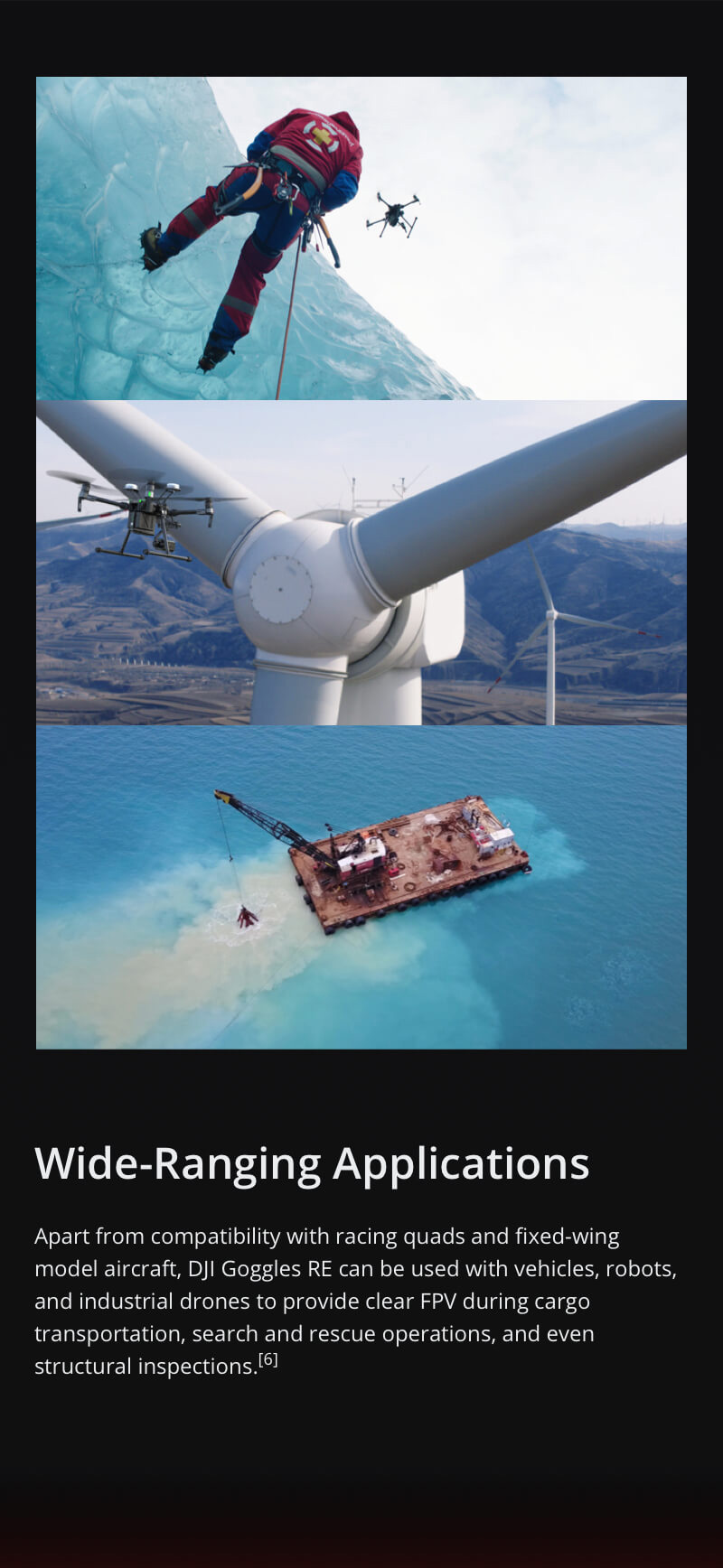

Wide-Ranging Applications

Apart from compatibility with racing quads and fixed-wing model aircraft, DJI Goggles RE can be used with vehicles,robots, and industrial drones to provide clear FPV during cargo transportation, search and rescue operations,and even structural inspections.

DJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - BlackDJI Goggles Racing Edition 5 Inches Head Tracking FPV Glasses for DJI Mavic Pro/Spark/Phantom 4/Inspir 2 - Black

Specification

General

Brand: DJI
Item Name: DJI GOGGLES RE
Weight (Typical): 502g
Headband: 500g
Goggles Size:19.5 X 15.5 X 11cm
Headband (folded): 25.5 X 20.5 X 92cm
Screen Size: 5-inch X 2
Screen Resolution: 3840 X 1080(Single Screen: 1920 X 1080)
Transmitter Power (EIRP): 2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)
5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC)
Live View Modes: 1080p30, 720p60, 720p30
Video Format: MP4 (H.264)
Supported Video Play Format: MP4, MOV, MKV
Video format: H264
Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3
Battery Capacity: 9440 mAh
Operating Temperature Range: 32° To 104° F (0° To 40°C)
Charger Input: 100-240 VAC,50/60 Hz,0.5A
Output: 5V 3A/9V 2A/12V 1.5A

Product Details

DJI OCUSYNC AIR SYSTEM
Air Unit: 43.7g
Camera (cable included): 18.2g
Pagoda Antenna: 9.4g
Cylindrical Antenna: 9.4g
Dipole Antenna: 4.2g
Dimensions Air Unit: 72 X 33 X 14mm
Camera: 29.4 X 28.2 X 22.6mm

DJI OCUSYNC CAMERA
Communication Frequency: 2.4 GHz/5.8 GHz
Transmitter Power (EIRP): 2.4 GHz: 22.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)
5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 25.5 dBm (SRRC)
Live View Modes and Min. Latency: 960p50:70ms / 720p60:60ms / 480p50:50ms
Max. Transmission Distance 2.4 GHz: 7km(FCC) / 4km(CE) / 4km(SRRC)
Max. Transmission Distance 5.8 GHz: 4km(FCC) / 0.7km(CE) / 4km(SRRC)
Recommended Frequency Band: 5.8GHz / CE:2.4GHz / SRRC:5.8GHz
Video Format: MP4 (MPEG4)
I/O Interface: S.Bus, Micro USB, PPM, UART, MMCX, Micro SD card slot
Supported Flight Control System: F3, F4, KISS, NAZE
Supported Remote Controller: X9D(Frsky)/DEVO 10(Walkera)/T8FG(Futaba)/T14SG(Futaba)/WTF09sll(WFLY)/                                            AT9S(RadioLink)
Operating Temperature Range: 32°To 104°F(0°To 40°C)
Input Power: 9 - 16.8V (3S-4S)
Sensor: 1/3 CMOS
Effective pixels: 1.2M
Lens: 2.65mm f/2.0
Lens Group: 6G + IR
Shutter: Global Shutter
ISO: 100 - 3200
FOV: 148°(D) / 111°(H) / 79.5°(V)

A DJI Goggles - Micro USB OTG Cable is required when working with Spark.
A DJI Goggles - HDMI (Type A) Female to HDMI (Type C) Male Adaptor is required when working with Inspire 1 series.

Package Contents

1 x DJI Goggles Racing Edition
1 x Charger
1 x Wire Clip
2 x Pagoda Antenna(SMA Interface)
1 x Reversed SMA Connector
1 x Micro USB Cable
1 x HDMI Cable
1 x Cleaning Cloth
