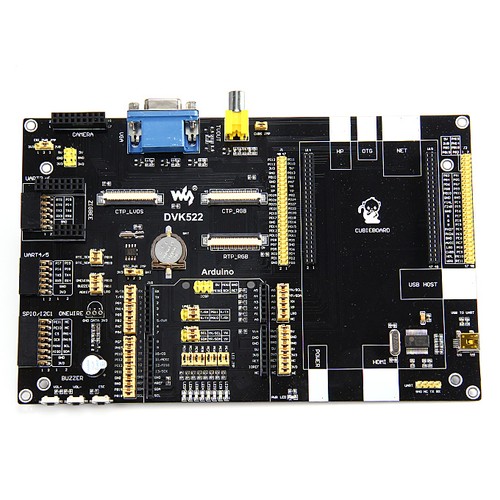

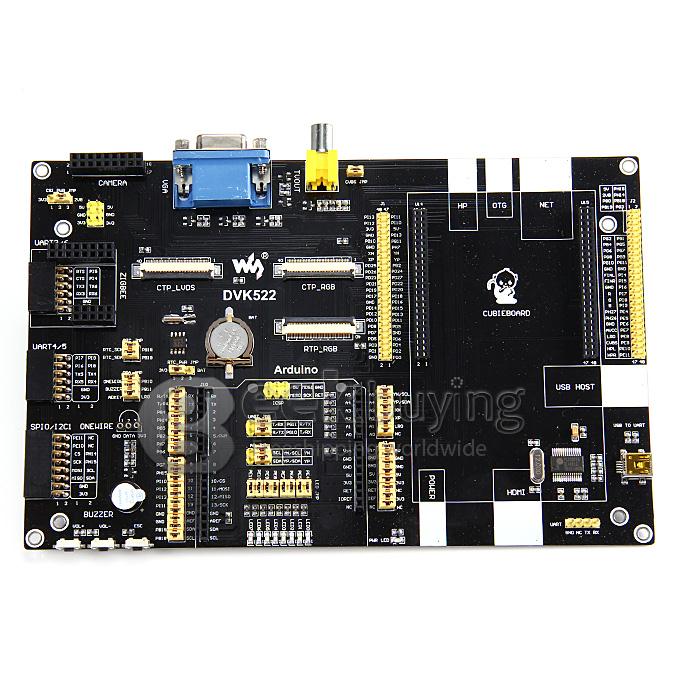

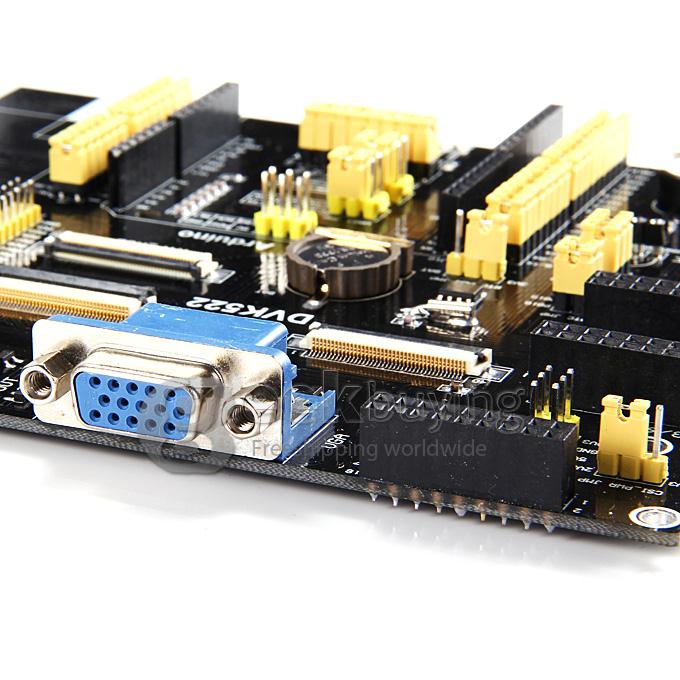

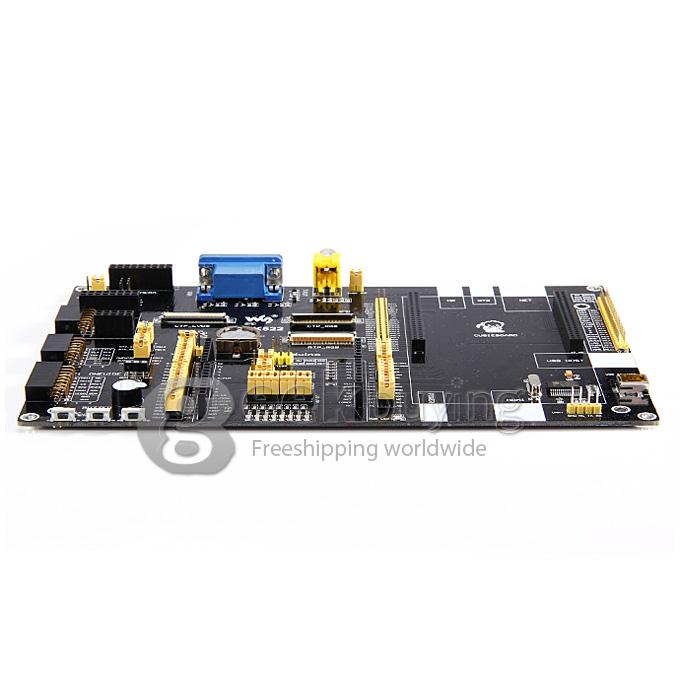

DVK522 Expansion Board for Cubieboard / Cubieboard2 Support Arduino & TVOUT VGA LCD CAMERA UART Various Interface

Highlights

• DVK522 is an expansion board designed for Cubieboard/Cubieboard2, integrates various components and interfaces for connecting external accessory boards. It's ideal for Cubieboard evaluation and development.

Specification

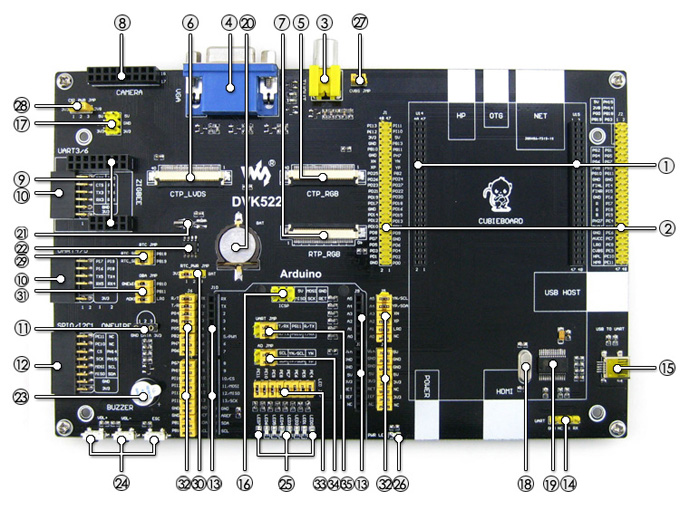

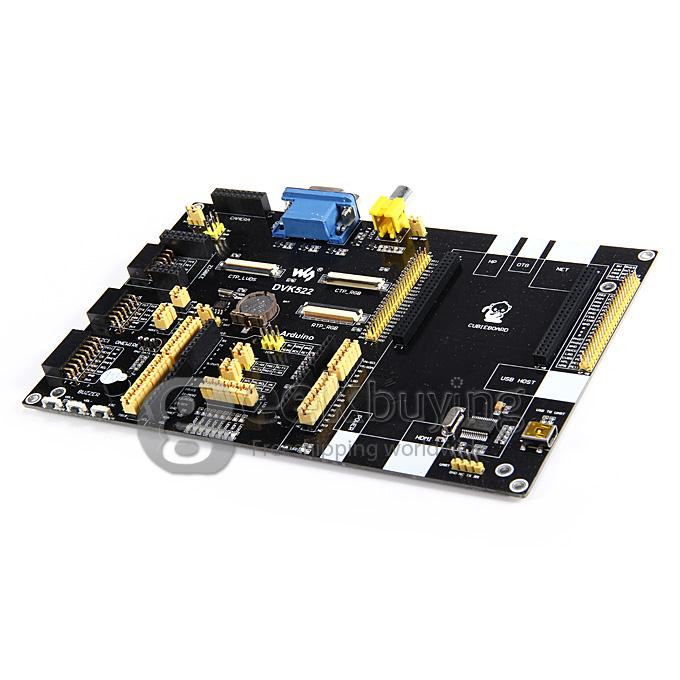

 DVK522 Product introduction

1. 1.Cubieboard/Cubieboard2 connector
2. 2.Cubieboard/Cubieboard2 expansion ports
3. 3.TVOUT interface: video CVBS output, for connecting display devices like TV
4. 4.VGA interface: video VGA output, for connecting monitor
5. 5.7inch capacitive touch LCD RGB interface: for connecting capacitive touch LCD with RGB interface
6. 6.7inch capacitive touch LCD LVDS interface: for connecting capacitive touch LCD with LVDS interface
7. 7.7inch resistive touch LCD RGB interface: for connecting resistive touch LCD with RGB interface
8. 8.CAMERA interface: for connecting camera modules like OV7670
9. 9.ZIGBEE connector: for connecting ZigBee modules like Core2530, supports working with ZB501
10. 10.UART interface: easily connects to UART modules such as RS485 Board (3.3V), GPS module, etc.
11. 11.ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
12. 12.SPI0/I2C1 interface: easily connects to SPI or I2C modules such as MAG3110 Board, AT45DBXX Dataflash, etc.
13. 13.Arduino connector: for connecting compatible Arduino boards and/or Arduino shields
14. 14.UART interface (PL2303TA): connects to the UART0 of Cubieboard/Cubieboard2 for debugging
15. 15.USB interface: USB TO UART (PL2303TA)
16. 16.ICSP interface: Arduino ICSP
17. 17.5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
18. 18.12M crystal: for PL2303TA
19. 19.PL2303TA: onboard USB TO UART convertor
20. 20.RTC backup battery: 3.3V battery
21. 21.32.768K crystal: for PCF8563
22. 22.PCF8563: onboard RTC chip
23. 23.Buzzer
24. 24.AD keys: 3 common Android keys
25. 25.User LEDs: 8 LEDs
26. 26.Power indicator
27. 27.TVOUT jumper
28. 28.CAMERA power selection jumper
29. 29.RTC jumper
30. 30.RTC power selection jumper
31. 31.ONE-WIRE, Buzzer, and AD Keys jumper
32. 32.Arduino Port selection jumper: easily controlling the Arduino connection
33. 33.User LEDs jumper
34. 34.Arduino AD selection jumper
    • short the right: while connecting Arduino ADC shield
    • short the left: while connecting Arduino I2C shield
35. 35.Arduino UART selection jumper
    • short the right: while connecting Arduino UART shield
    • short the left: while connecting Arduino microcontroller board
36. 36.Net Weight: 129g
37. 37.Dimension: 195 x 134 x 15mm

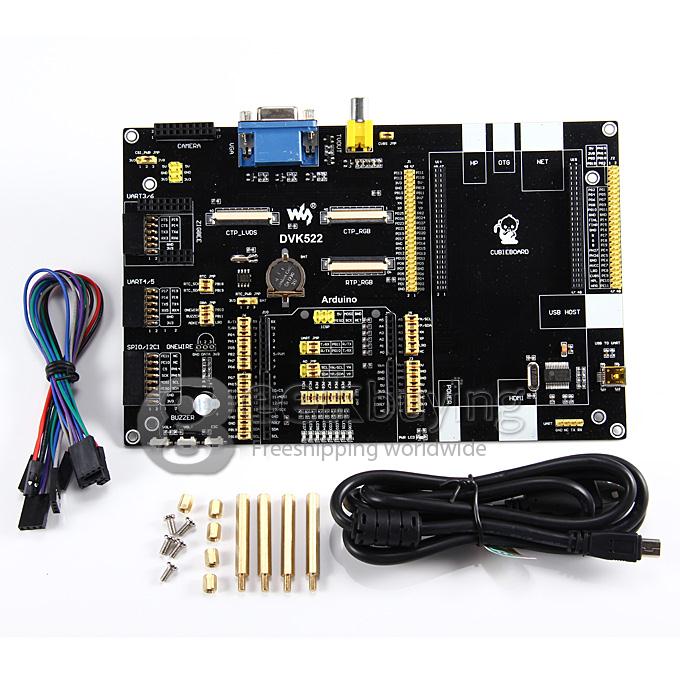

What's in the box?

• 1 x DVK522
• 1 x USB type A plug to mini-B plug cable
• 1 x 4-pin 2-pin wires pack
• 1 x 7inch LCD screws pack
