Highlights

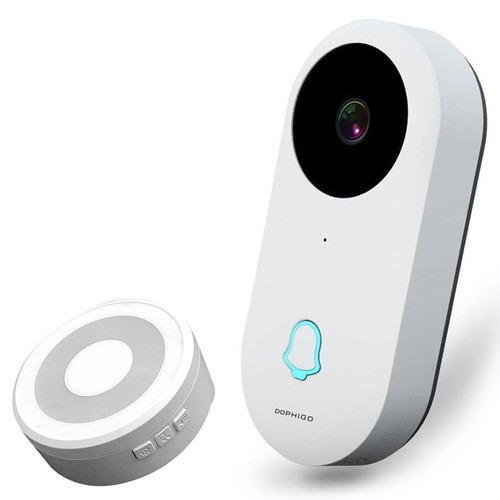

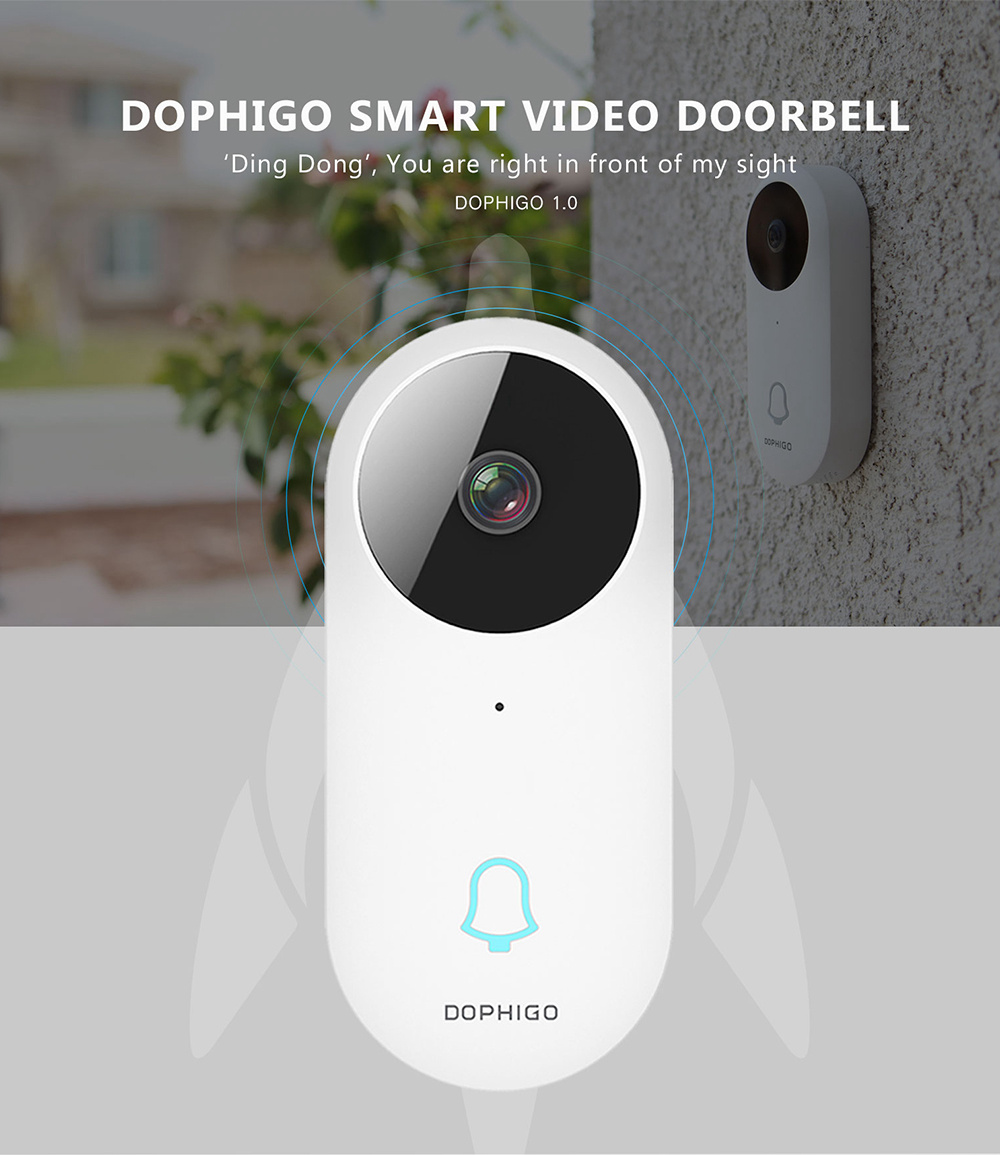

1. Wireless battery powered smart video doorbell
2. Low power consumption, about 120 days standby time
3. Support night vision,10m night vision
4. 156 degree detection angle, accurate motion detection
5. Support WiFi, APP message push
6. Support 2-way audio communication, answer your door wherever you are
7. Indoor chime has 2 modes and 32 music, which can be installed in any place with socket
Specification
| General |
Brand: Dophigo |
| Product Details | Outdoor unit
Main Control Chip:HuaWei Hisilicon Hi3518EV200
Sensor:1.3 MP HD sensor SC1235
Visual angle:D=156° H=125° V=64°
Video streaming:1280*960/30fps video
CMOS Image Processing:Support automatic white balance, automatic gain control, automatic backlight compensation
System:Lite OS
Standby time:Around 4 months
Network configuration mode:Bluetooth fast networking
Audio
Audio coding standard:AAC&G.726
Audio input / output:-35dB microphone/built-in 1 speaker
Video management

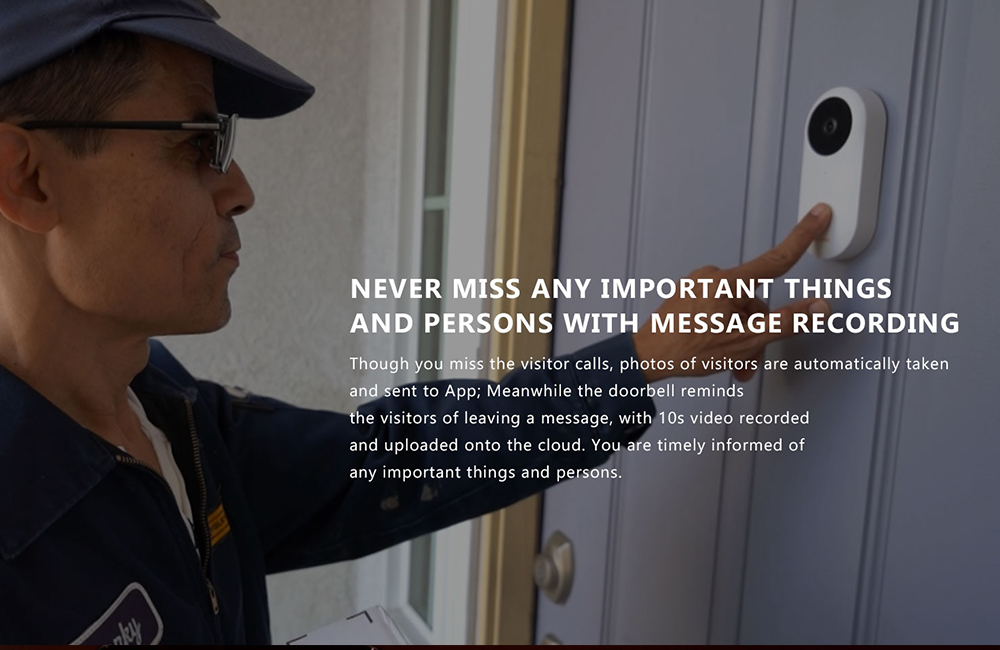

Video mode:Visitors video recording
Network
Network protocol:TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,P2P
WiFi:2.4GHz, WIFI802.11b/g/n wireless network
Function
Adaptive bitrate:Support
Two way intercom:Real-time two way audio,one way video
Voice call:Support
Remote wakeup:Support

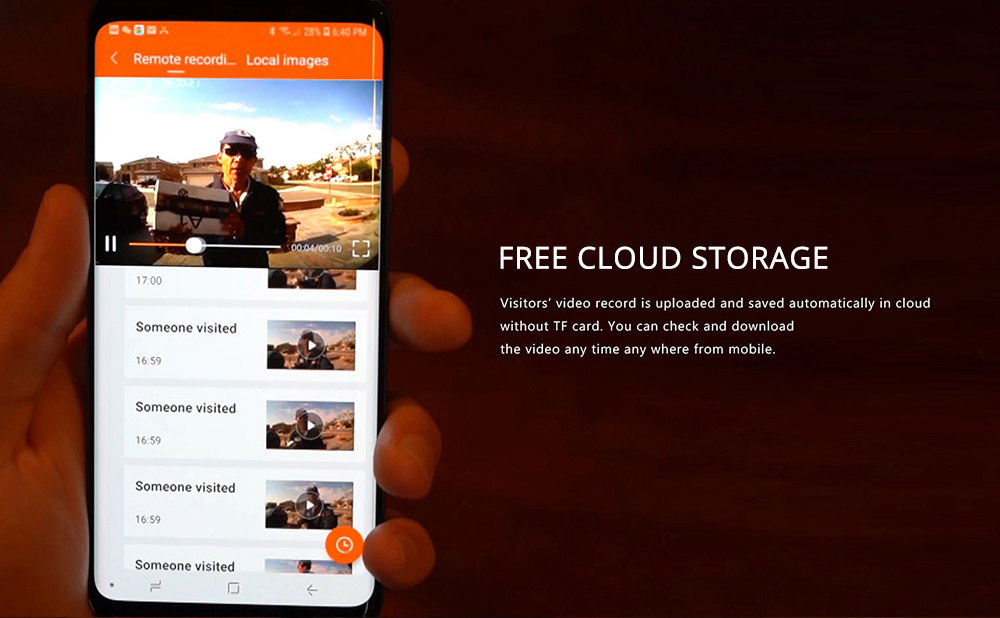

Mobile APP:DophiGo, ios10.0, Android 5.0 above
System Requirements
Power supply:18650 lithium battery
Charging current:Linear charging1A
Stand-by time:About 4 months(Ten-times/day, 30S/time)
Continuous working:10h
Cellular data:5.5M/Minute for live video
Working Temperature:-20°C~+50°C
Working Humidity:≤70%RH
Indoor unit
Operating Voltage: AC 110/220V
Power Consumption: 95mA
Wireless Transmission: 433MHz
Speaker: 16Ω;0.25W
Working Temperature: -10~40°C
Ringtone: Support 32 kinds of music(optional)
Volume Adjustment: Support
Multi-Split: 1 indoor chime can be connected to 20 outdoor units; 1 outdoor unit can be connected to unlimited indoor chimes.
Volume: 100 dB
Working Mode: Normal mode; mute mode
Status Indicator Light:Red / Blue
|
| Weight & Dimensions | Product Weight:0.23KG(indoor unit);0.105KG(outdoor unit) Product Dimensions:135*62*25mm(indoor unit);75*75*73mm(outdoor unit) Package Weight:0.405KG Package Dimensions:165*144*88mm |
| Package Contents |
1 x Outdoor Unit |
